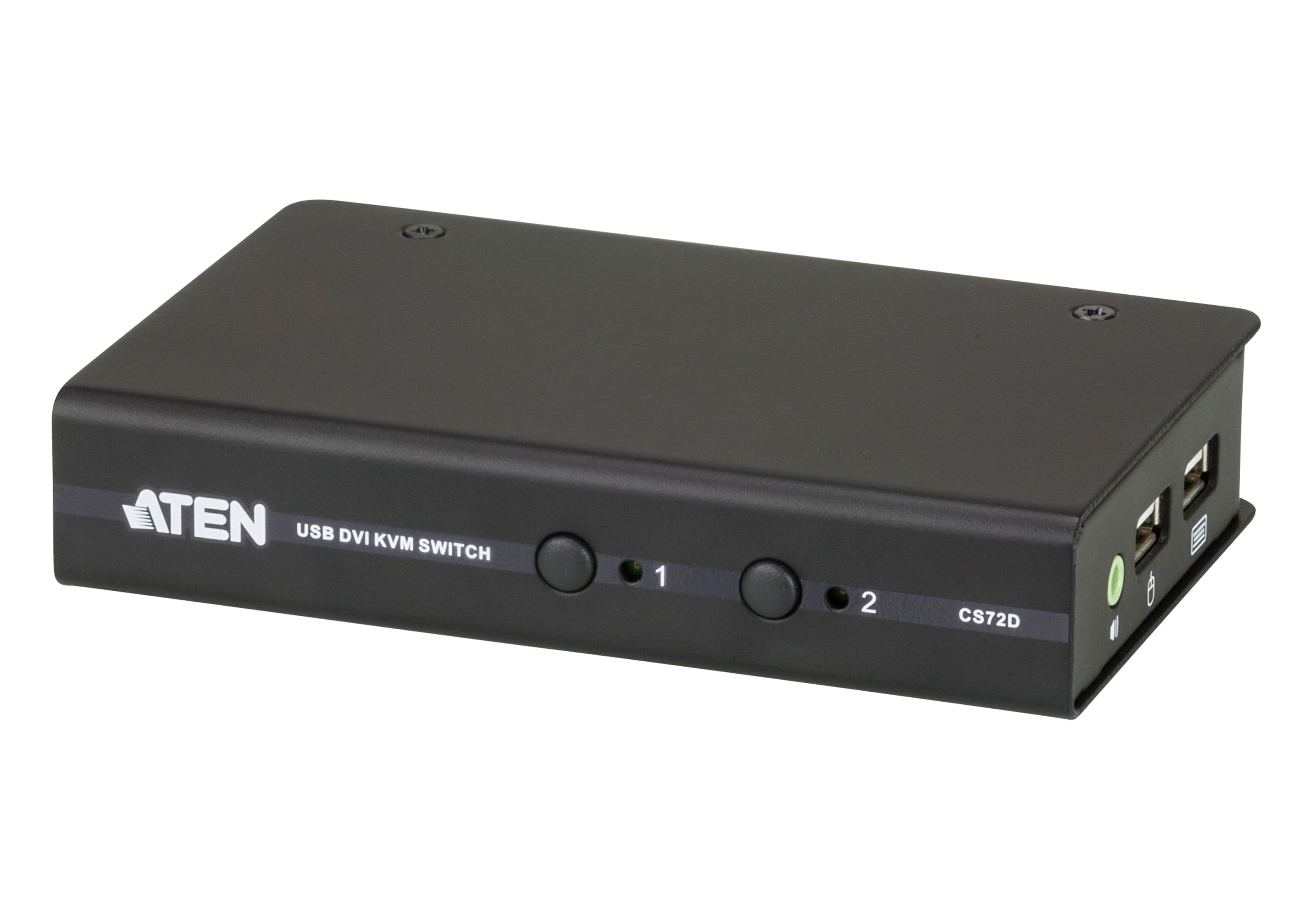

2-Port USB DVI/Audio Slim KVM Switch

Name: 2-Port USB DVI/Audio Slim KVM Switch
Brand: ATEN
SKU: CS72D

CS72DDiscontinued

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

The CS72D 2-Port USB DVI KVM Switch allows you to control two computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video

Features

Fully compliant with DVI specification (Digital only)
Supports multi-function and wireless mouse/keyboard
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Superior video quality – 1920 x 1200@60Hz
Multiplatform support – Windows, Linux, Mac, FreeBSD and Sun
HDCP compliant
Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
Computer selection via front panel pushbuttons, hotkeys, and mouse switching function*
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
Complete keyboard emulation for error-free booting
Firmware upgradeable
Bus-Powered
Mac/Sun keyboard support and emulation** * Mouse port switching is only functional under mouse emulation mode and USB 3-key wheel mouse ** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers

Specifications

Computer Connections: 2
Console Connections: 1
Port Selection: Hotkey, Pushbutton, Mouse

Connectors

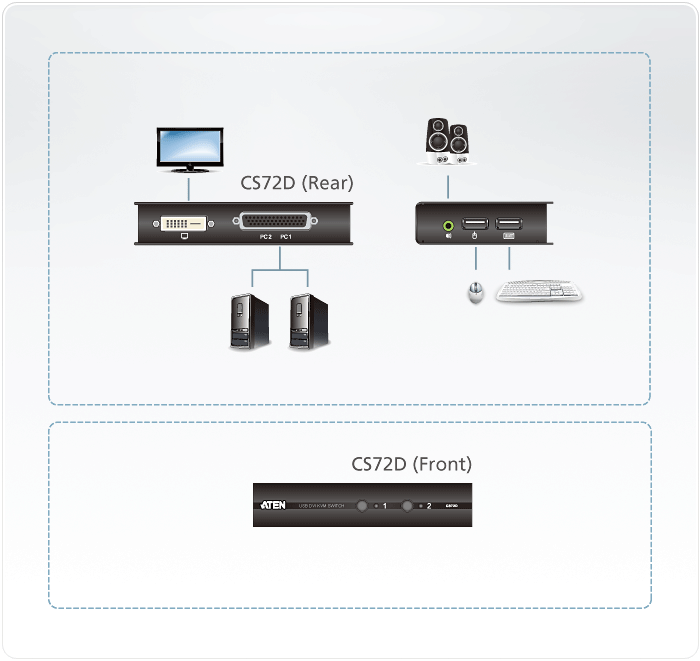

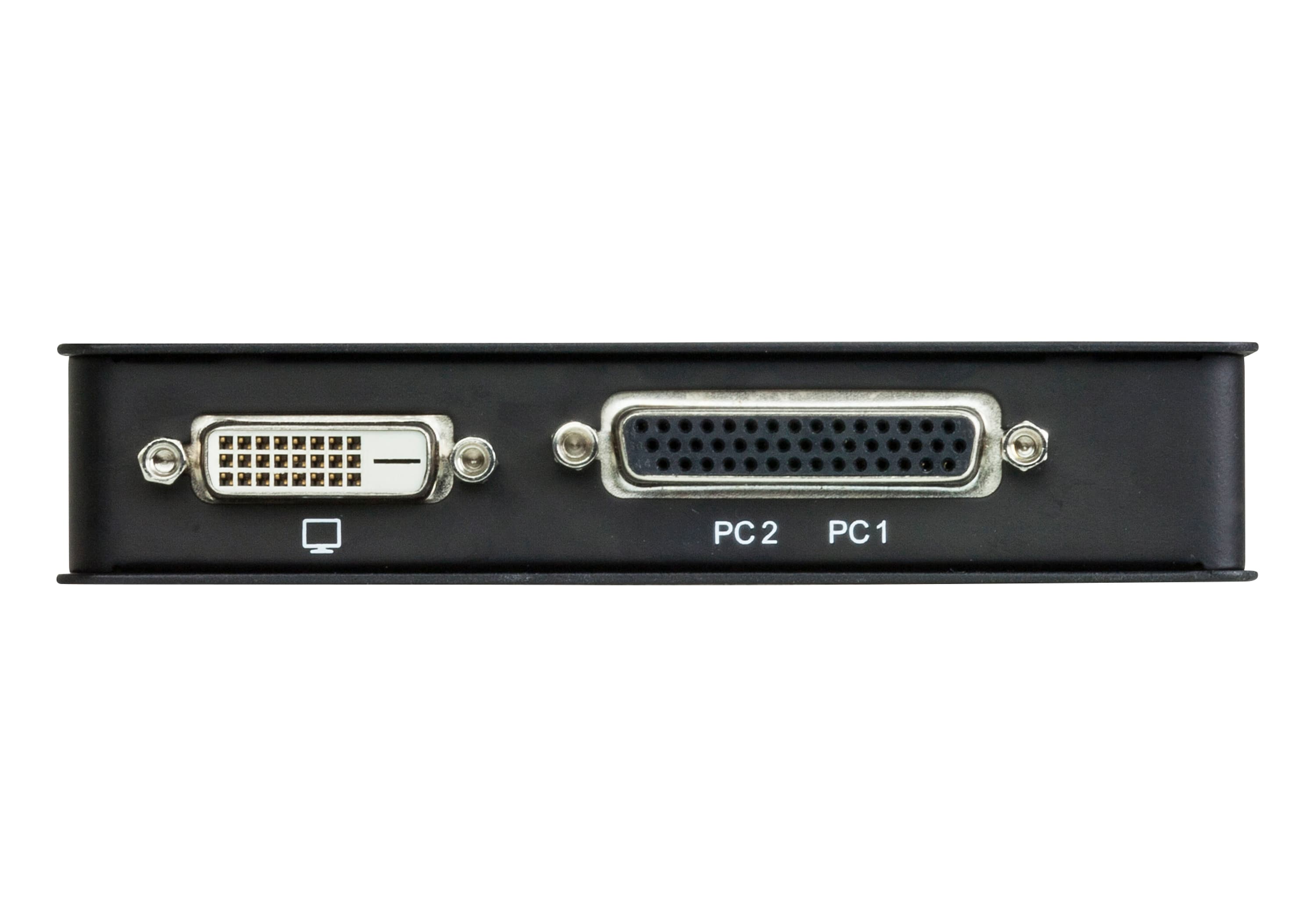

Console Ports: 1 x DVI-D Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
Computer Port 1: 1 x 44-pin Connector Female

LEDs

Selected: 2 (Green)

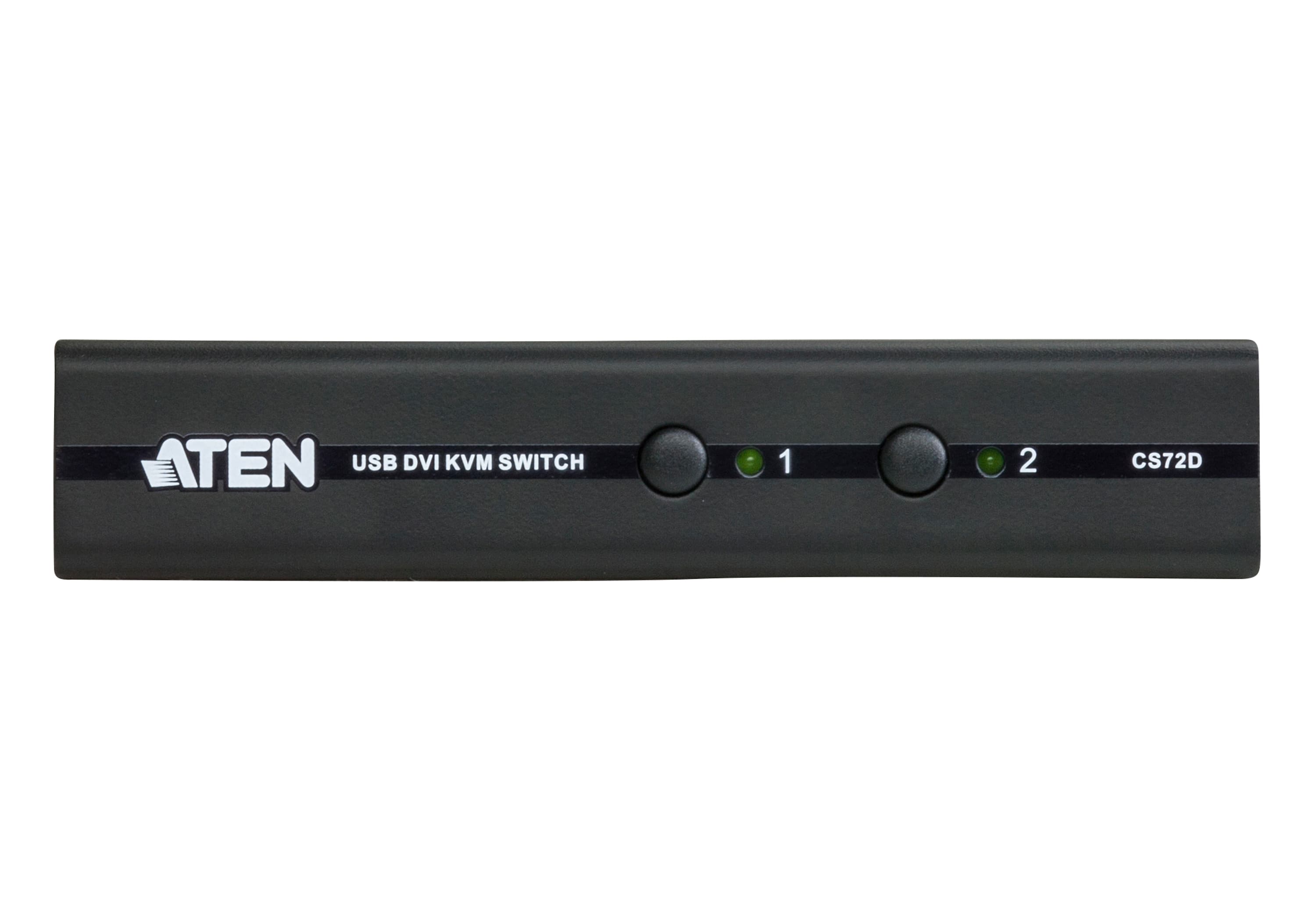

Pushbuttons: 2
Power Consumption: DC5V:1.67W:12BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Emulation

Keyboard / Mouse: USB
Video: 1920 x 1200 @ 60Hz; 1920 x 1080 @ 60Hz
Scan Interval: 3, 5, 10, 20 seconds (default: 5 secs.)

Environmental

Operating Temperature: 0 - 50˚C
Storage Temperature: -20 - 60˚C
Humidity: 0 - 80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 0.33 kg ( 0.73 lb )
Dimensions (L x W x H): 12.50 x 8.20 x 2.50 cm (4.92 x 3.23 x 0.98 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
