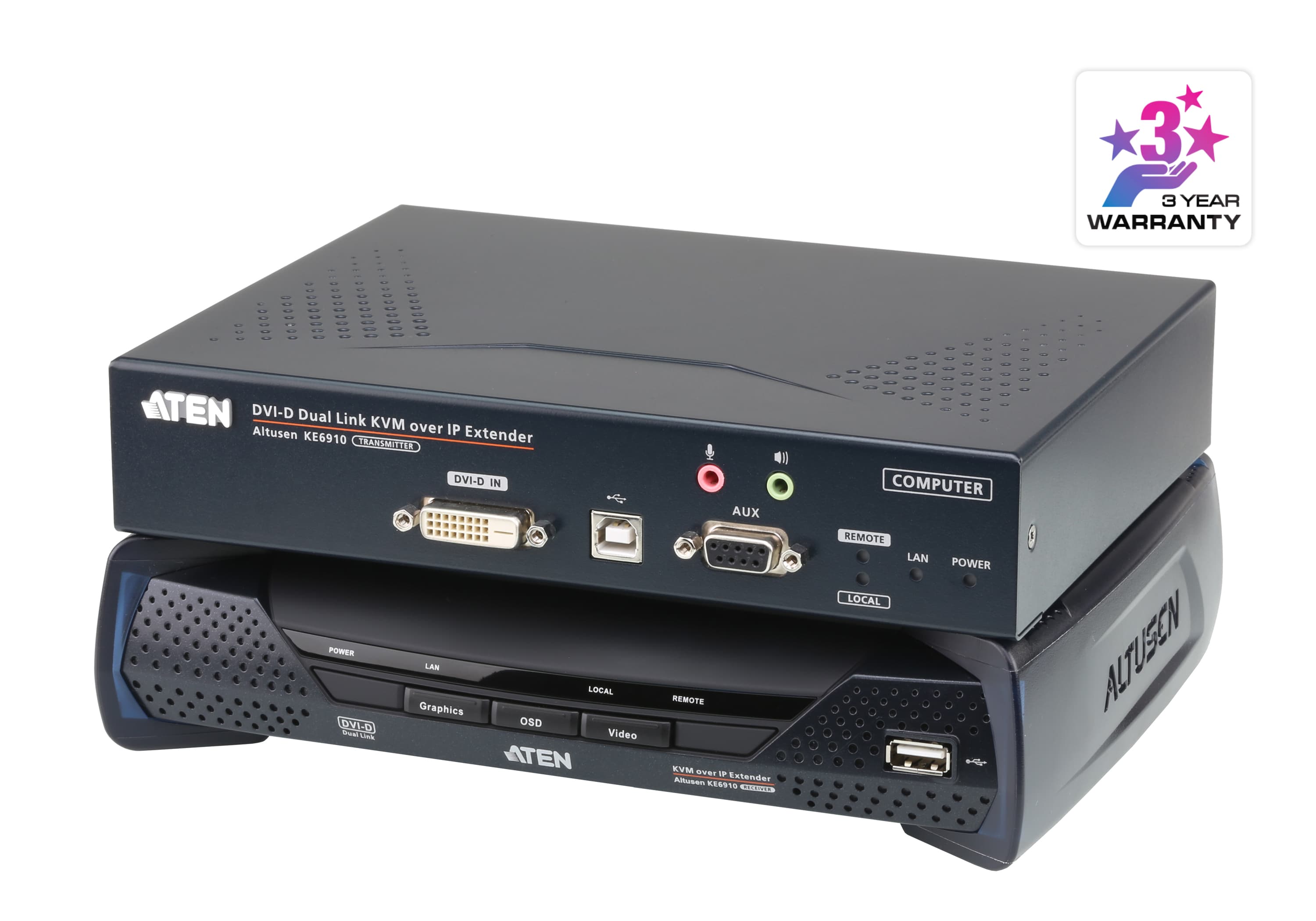

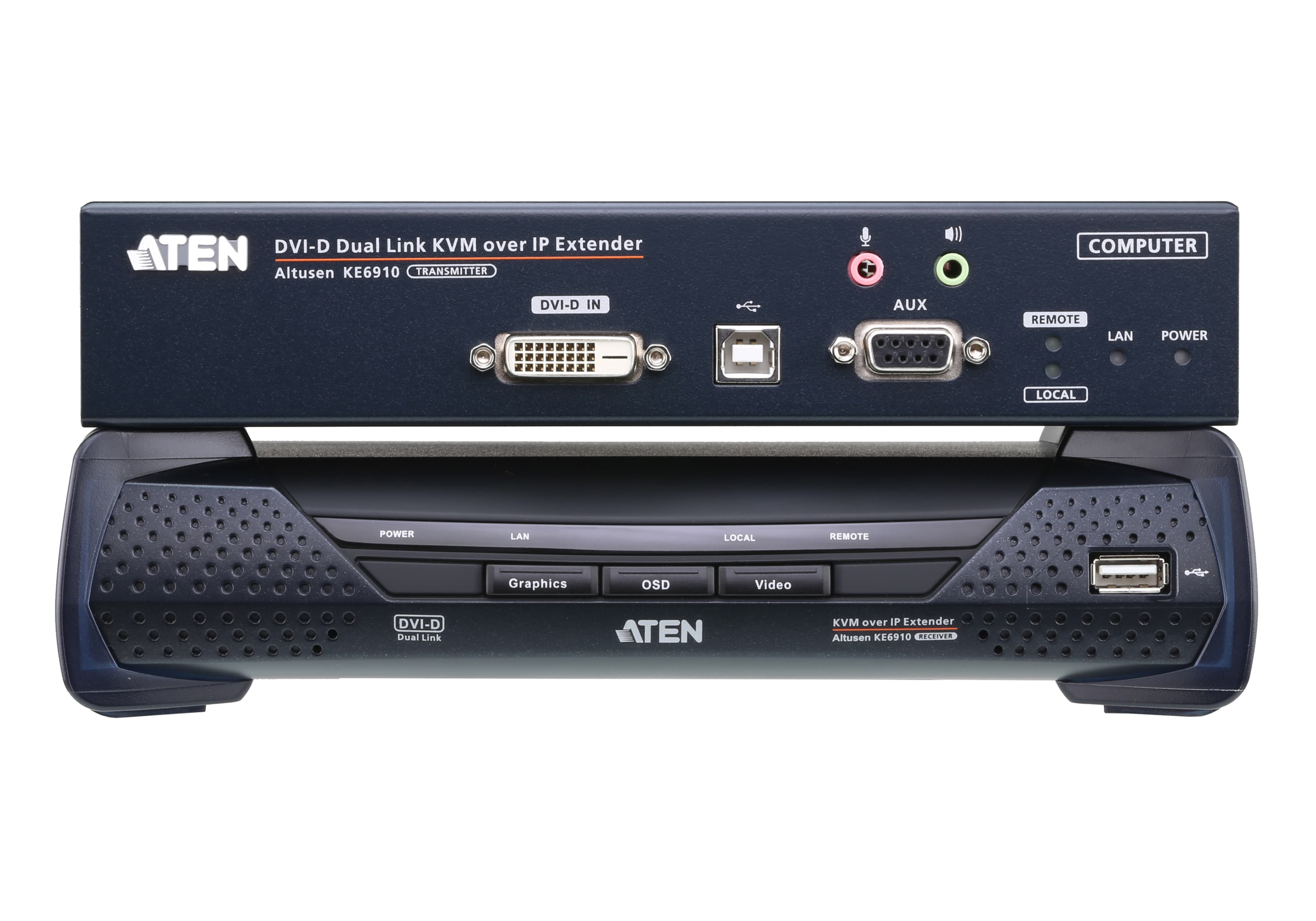

2K DVI-D Dual Link KVM over IP Extender

KE6910
Заяви офертаDatasheet PDFРъководствоБърз стартCAD чертеж

KVM over IP удължител за DVI-D Dual Link с резолюция до 2048 x 2048 @ 60 Hz. Превключва между сървъри за 0.3 s, а с Boundless Switching операторът сменя приемника с движение на мишката.

Характеристики

  • Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
  • Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
  • Fast Switching – 0.3-second switching between transmitter-connected servers of any resolution
  • “Push” and “Pull” – shares content instantly to/from a single Rx or video wall by just one click
  • Authentication Lock – automatically logs in when the power of the system is resumed after power off
  • Connection Redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
  • Disconnection Alert – Pop-up warning message and looping alarm beeping notify users the disconnection status
  • Supports power / network failover – ensures constant availability for mission-critical applications (2 DC jacks for KE6910; 1 RJ-45 and 1 SFP fiber for network failover)
  • ATEN Matrix Link – allows users instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
  • Video Walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
  • Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
  • On-screen Preview (Panel Array™ Mode) – allows users to view the video of up to 36 displays on one screen
  • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
  • Channel connections allow RX devices to connect to multiple TX devices – to streams video, audio, USB and serial sources independently
  • Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
  • Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
  • Advanced user authorization settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
  • Video grouping of up to 4 sets of KE series devices to support Multi-Display applications
  • Configurable user and group permissions for access and control of KVM over IP extenders
  • Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button2 Note: 1. These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by CCKM. 2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information
  • The housing meets IEC 60945 standards for maritime control room use and has passed environmental tests
  • Supports 1Gbps SFP fiber module expansions up to 10 km1
  • Advance processor provides lossless and zero latency video transmissions up to 2560 x 2048 @ 50Hz, 2560 x 1600 @ 60Hz; 8-bit RGB (24-bit total color)
  • Audio enabled – supports stereo speakers and microphone
  • High speed USB Storage Transmission support
  • Auto-MDIX – automatically detects cable type
  • Built-in 8KV/15KV ESD protection and 2KV surge protection
  • Fanless design for silent operations that are energy efficient
  • Rack Mountable – Mounting options: •2X-021G Dual Rack Mount Kit •2X-031G Single Rack Mount Kit
  • Includes an industrial-grade power adapter – supports operating temperature of 0°C- 50°C to ensure durability and adaptability under harsh environmental conditions Note: 1. The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
  • Centralized management software – KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
  • Dual console operation – controls the user's system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
  • OSD (On Screen Display) on the Receiver configures both units
  • EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
  • Four selectable access modes for multiple simultaneous access (Exclusive/Occupy/Share/ View only mode) – administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
  • Command line interface – administrators can control all KVM over IP extenders via RS-232 or TCP/IP using a CLI or 3rd party application
  • RS-232 serial ports – allows users to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
  • Supports Hotkey Commands
  • Flashing LED and beeping features help locate and identify devices
  • Video Compression Level – allows users to increase/decrease the video quality to adjust for appropriate network bandwidth
  • Compatible with all KE devices
  • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
  • Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
  • Supports industry standard Transport Layer Security (TLS) protocol
  • USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
  • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Supports Smart Card/CAC Reader

Конектори

USB порт
2 x USB Type A Female (White)
USB порт
N/A
Конзолни портове

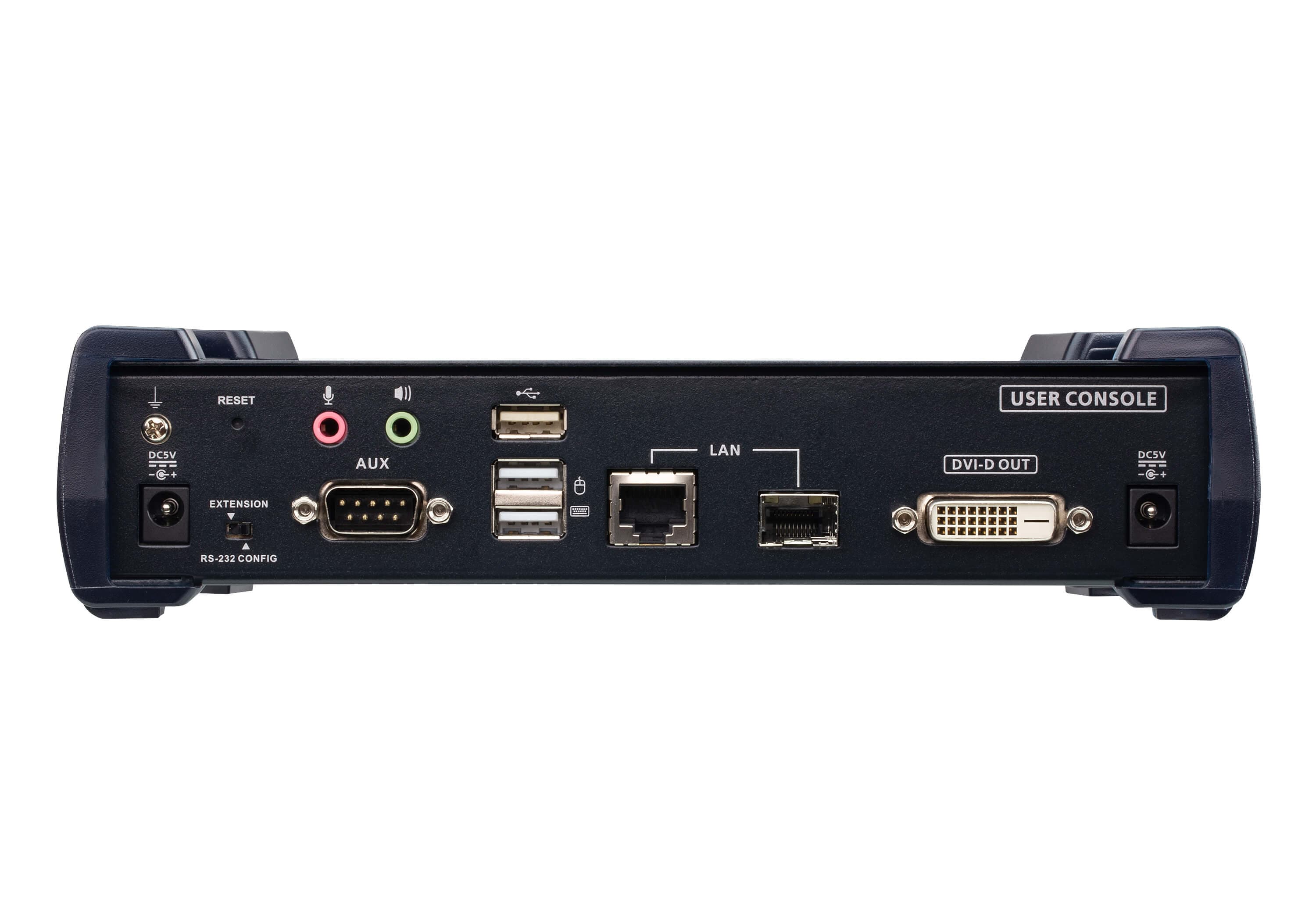

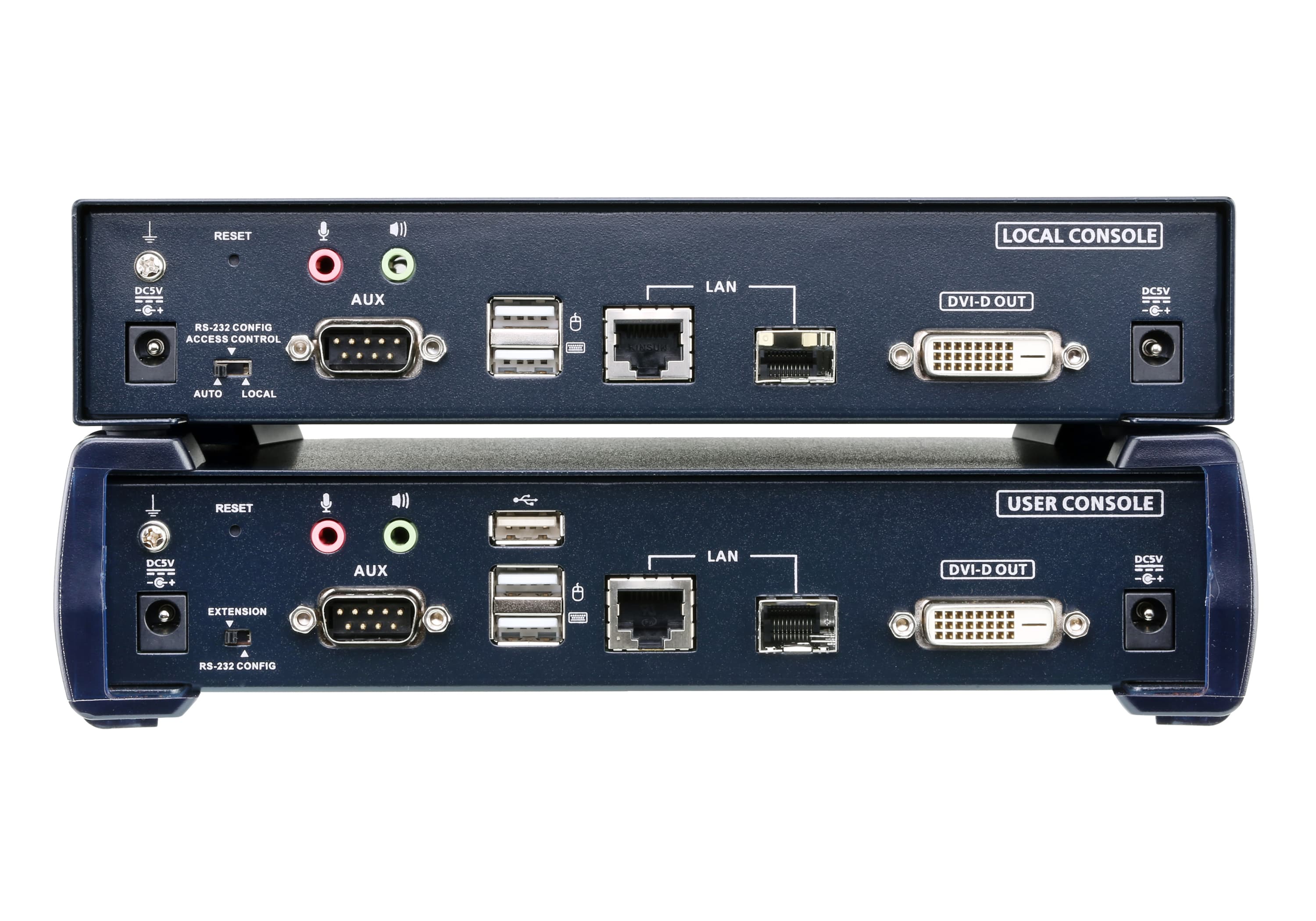

2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
Конзолни портове
2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
KVM портове
N/A
KVM портове
1 x USB Type B Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black)
Захранване
2 x DC Jack (Black)
Захранване
2 x DC Jack (Black)
LAN портове
1 x RJ-45 (Black) 1 x SFP Slot
LAN портове
1 x RJ-45 (Black) 1 x SFP Slot

Бутони и превключватели

OSD
1 x Pushbutton
OSD
N/A
Видео
1 x Pushbutton
Видео
N/A
Графика
1 x Pushbutton
Графика
N/A
Нулиране
1 x Semi-recessed Pushbutton
Нулиране
1 x Semi-recessed Pushbutton
Избор на режим
1 x Slide Switch (Extension, RS-232 Config)
Избор на режим
1 x Slide Switch (Auto, RS-232 Config/Access Control, Local)

Индикатори

10/100/1000 Mbps
1 (10: Orange / 100: Orange & Green / 1000: Green)
10/100/1000 Mbps
1 (10: Orange / 100: Orange & Green / 1000: Green)
Захранване
1 (Blue)
Захранване
1 (Blue)
Локално
1 (Green)
Локално
1 (Green)
Отдалечено
1 (Green)
Отдалечено
1 (Green)

Емулация

Клавиатура / мишка
USB
Клавиатура / мишка
USB
Консумация
DC5V:9.02W:68BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация
DC5V:10.02W:51BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Видео резолюция
Up to 2560 x 2048 @ 50Hz/2560 x 1600 @ 60Hz
Видео резолюция
Up to 2560 x 2048 @ 50Hz/2560 x 1600 @ 60Hz

Работна среда

Работна температура
0–50°C
Работна температура
0–50°C
Температура на съхранение
-20–60°C
Температура на съхранение
-20–60°C
Влажност
0–95% RH, Non-condensing
Влажност
0–95% RH, Non-condensing

Физически характеристики

Корпус
Metal
Корпус
Metal
Тегло
1.26 kg ( 2.78 lb )
Тегло
1.13 kg ( 2.49 lb )
Размери (Д x Ш x В)
22.75 x 17.16 x 5.48 cm (8.96 x 6.76 x 2.16 in.)
Размери (Д x Ш x В)
21.50 x 16.33 x 4.18 cm (8.46 x 6.43 x 1.65 in.)
Забележка
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
