2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector

Name: 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector
Brand: ATEN
SKU: CS682

CS682

Request a quote Datasheet PDF Manual Quick start guide

The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround

Features

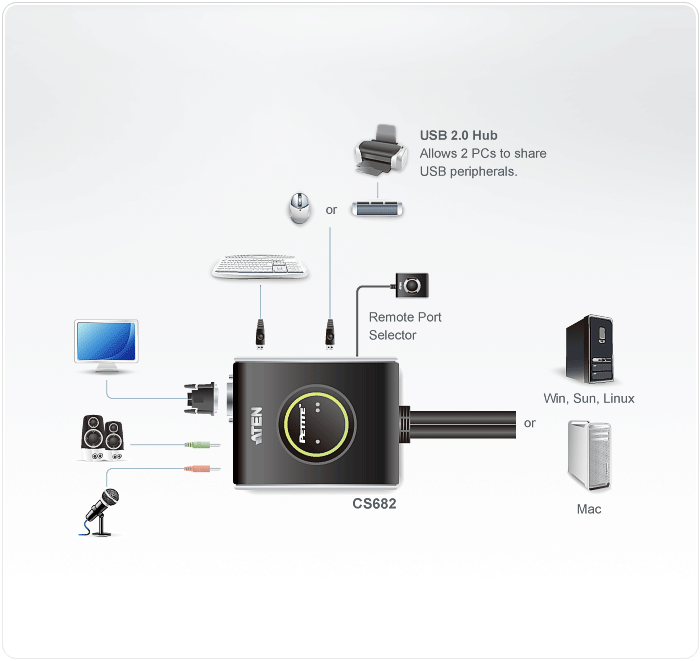

One DVI video console controls two USB computers
Fully DVI-Digital specification compliant
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
Computer selection via remote port selector, hotkeys, and USB mouse
Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support - Windows, Linux, Mac and Sun
Compact design, built-in all-in-on cables (2 x 1.2 m)
Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
Superior video quality - up to 1920 x 1200
Compatible with widescreen LCD monitors
Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
Supports multimedia keyboards
Supports wireless keyboards and mice
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Mac/Sun keyboard support and emulation**
HDCP Compliant
Bus-Powered
Firmware upgradable * This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode. ** • PC keyboard combinations emulate Mac/Sun keyboards. • Mac/Sun keyboards work only with their own computers.

Specifications

Computer Connections: 2
Port Selection: Hotkey, Mouse, Remote Port Selector

Connectors

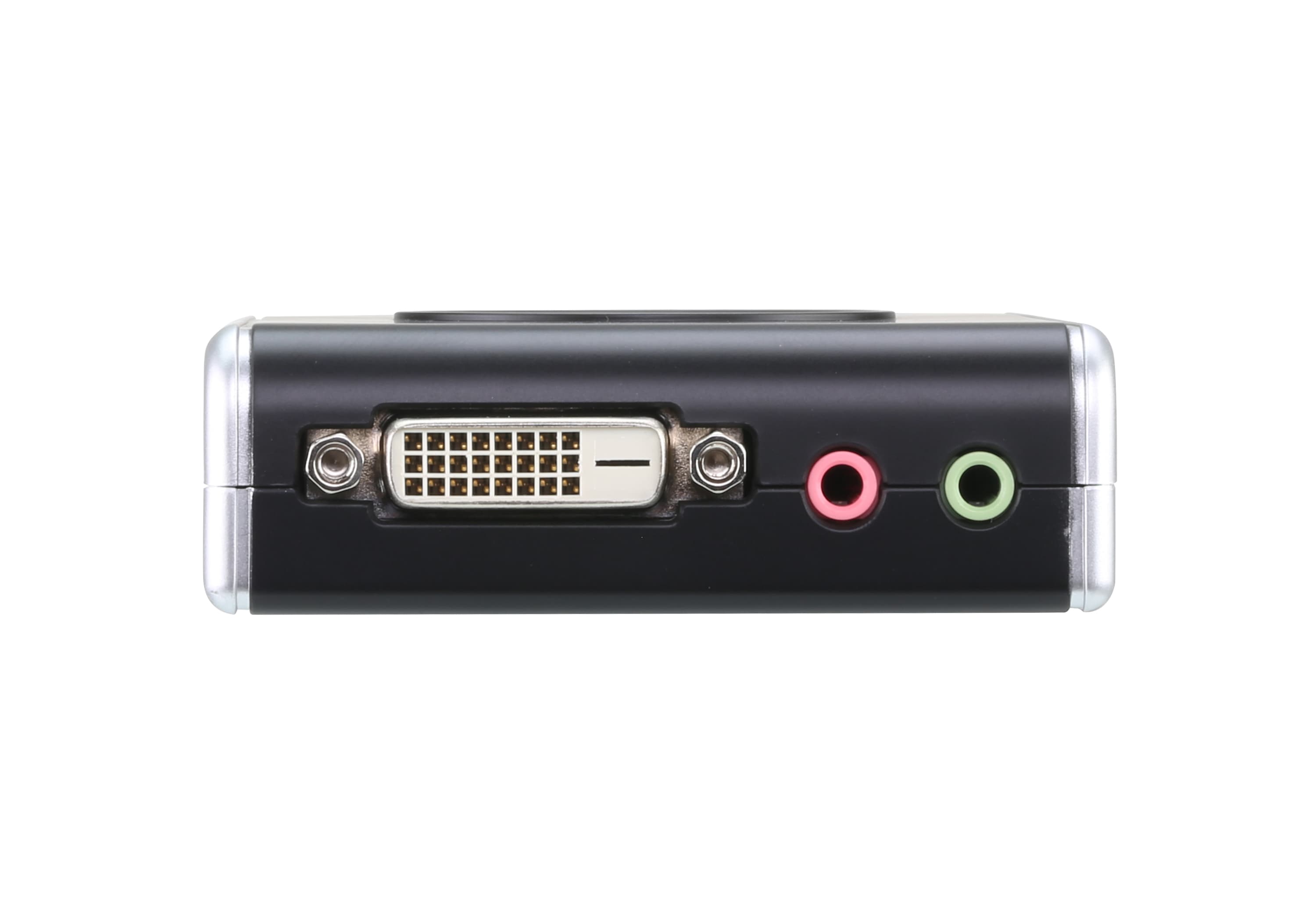

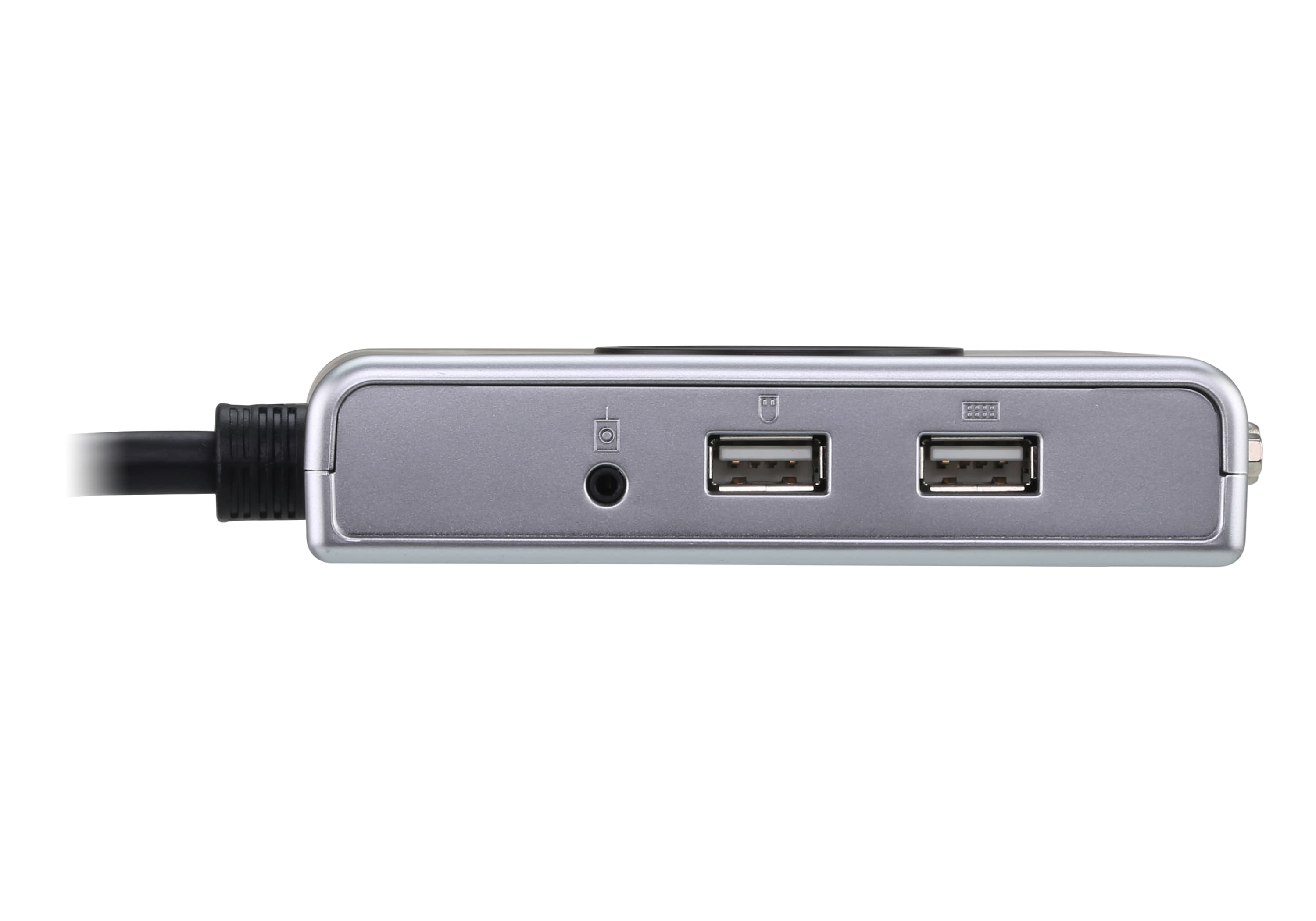

Console Ports: 1 x DVI-D Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

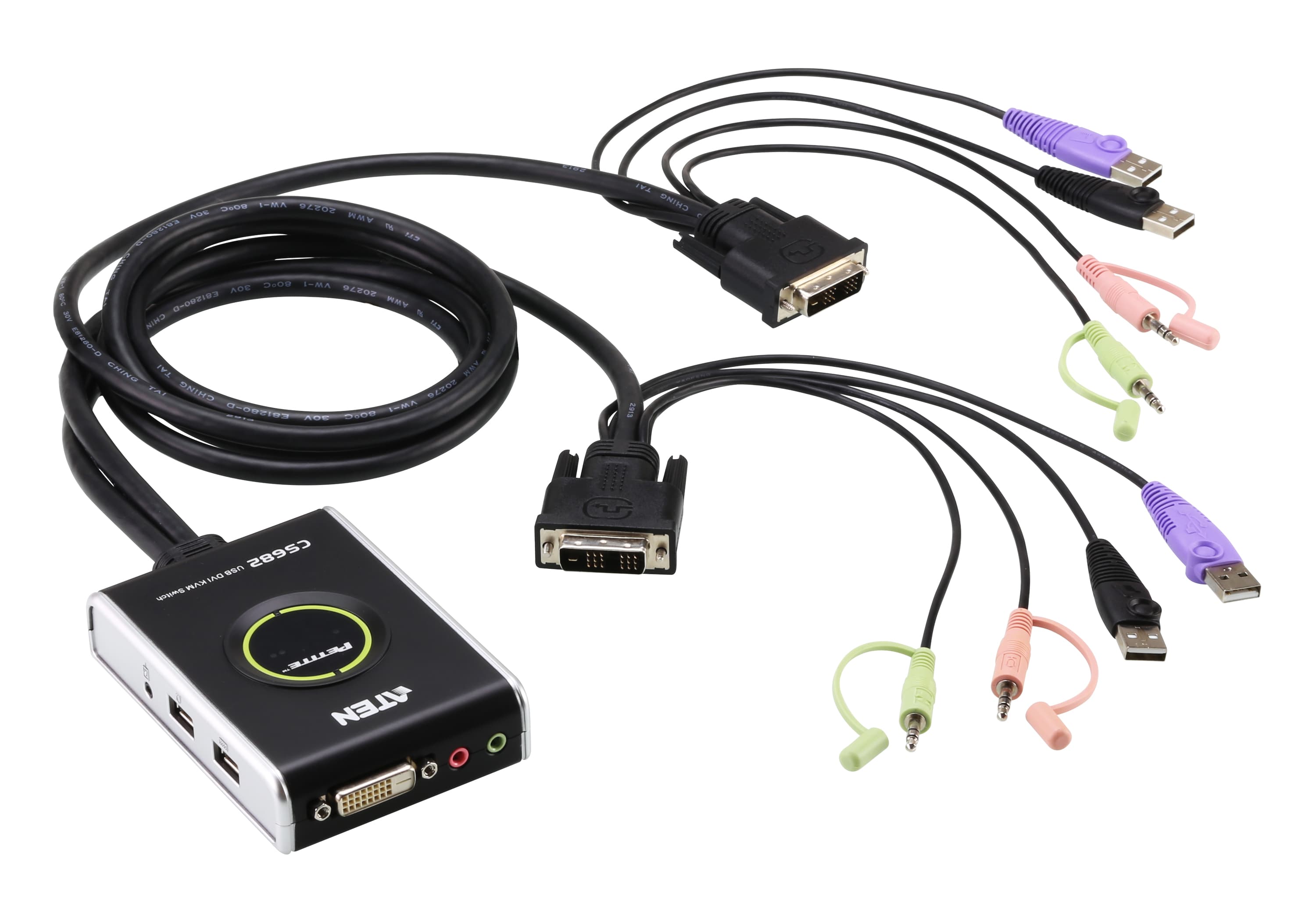

KVM Ports: 2 x DVI-D Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Remote Port Selector: 1 x 2.5mm Audio Jack Female

LEDs

KVM: 2 (Green)
Remote Port Selector: 2 (Green)

Cable Length

KVM: 2 x 1.2 m
Remote Port Selector: 1.8 m

Emulation

Keyboard / Mouse: USB
Video: 1920 x 1200 @ 60Hz
Scan Interval: 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption: DC5V:3.23W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0 - 80% RH, Non-condensing

Physical Properties

Housing: Plastic
Weight: 0.49 kg ( 1.08 lb )
Dimensions (L x W x H): 11.15 x 7.80 x 2.40 cm (4.39 x 3.07 x 0.94 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
