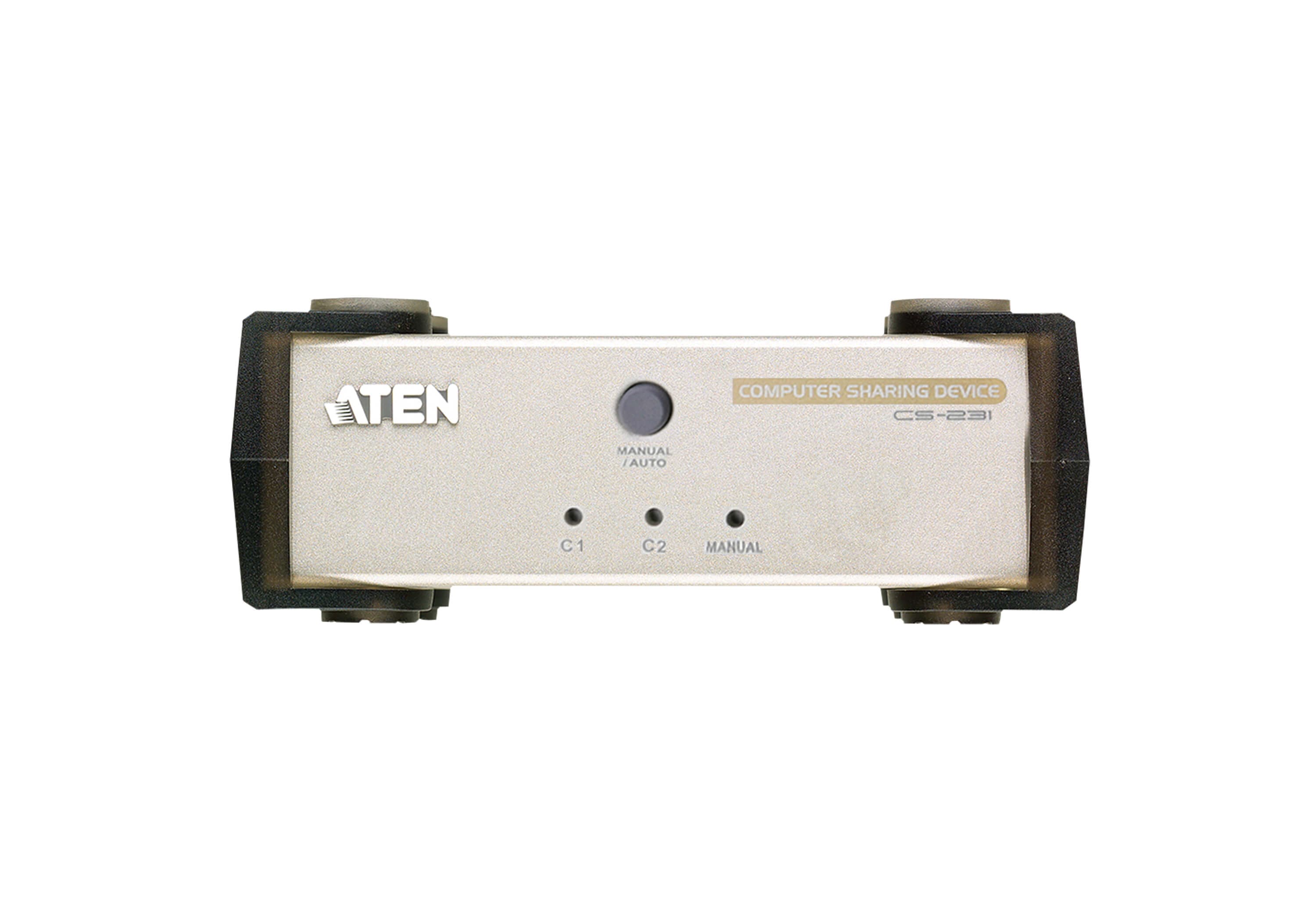

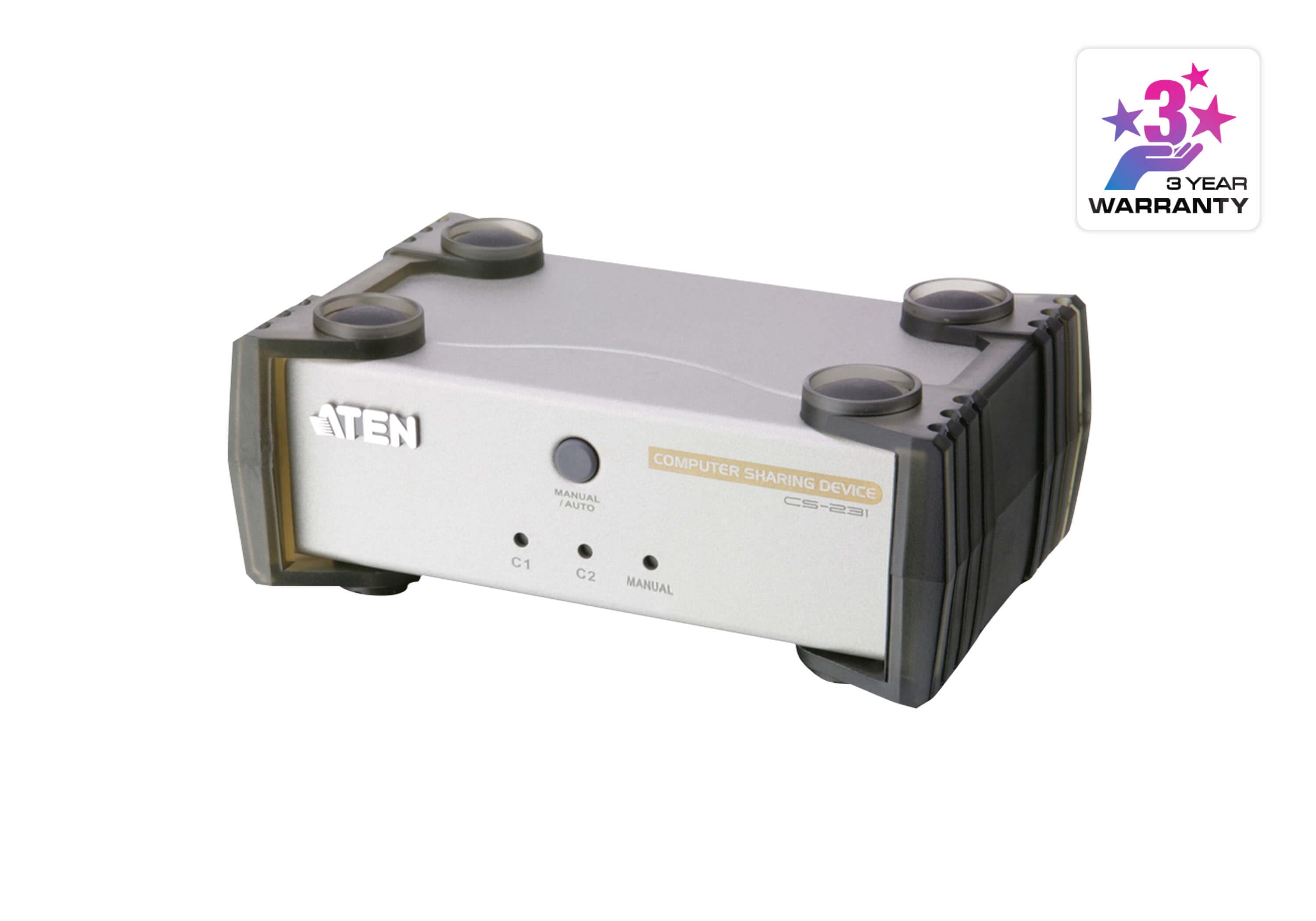

USB VGA Computer Sharing Device and Access Control Box Kit
CS231TKDiscontinued
Kit combining the VGA computer sharing device with an access control box; 2 USB consoles share 1 computer, and Console 2 can be barred from taking control.
Features
- Supports Access Control Box which allows users to prohibit Console 2 from controlling (operating)

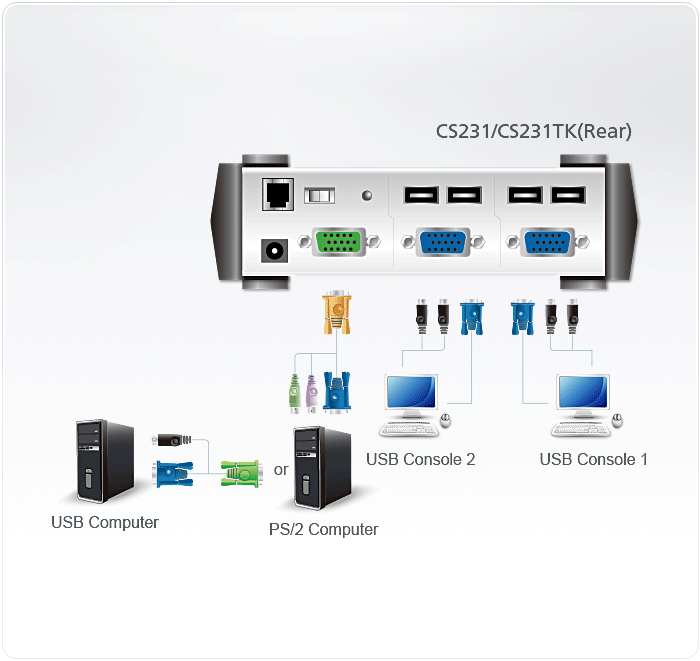

- Single computer shared by two USB consoles
- Supports USB and PS/2 computers
- Multiplatform Support (Windows, Mac, Unix and Linux)
- Manual or Auto console selection
- Controls the system with hotkeys
- Firmware upgradable
- Private Mode for a privileged user
- Screen Saver function
- Chooses from four Timeout settings
- Supports VGA, SVGA, and Multisync monitors
- No software required
Specifications
- Computer Connections
- 1
- Console Selection
- Pushbutton, Hotkey* Note: * Selecting console via hotkey only works in Manual Mode.

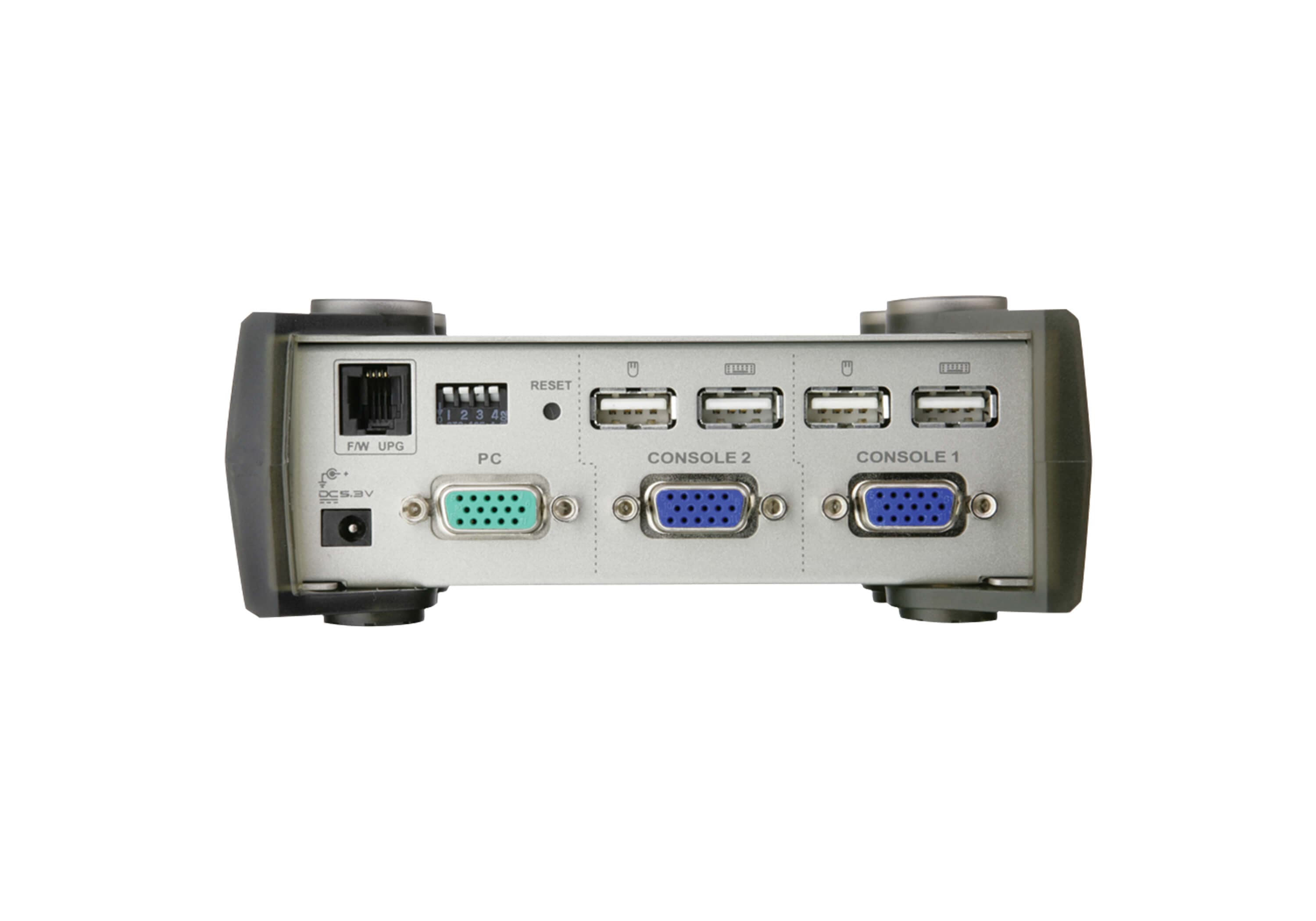

Connectors
- Console Ports
- 2 x HDB-15 Female (Blue) 4 x USB Type A Female
- KVM Ports
- 1 x SPHD-15 Female (Green)
- Firmware Upgrade
- 1 x RJ-11 Female
- Power
- 1 x DC Jack (Black)
Switches
- Mode Selection
- 1 x Pushbutton
- Reset
- 1 x Semi-recessed Pushbutton
- DIP
- 1 x 4 pin
LEDs
- Selected
- 2 (Green)
- Manual
- 1 (Orange)
- Video
- 1920 x 1440
- Power Consumption
- DC 5.3V:1.6W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50˚C
- Storage Temperature
- -20-60˚C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.56 kg ( 1.23 lb )
- Dimensions (L x W x H)
- 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
