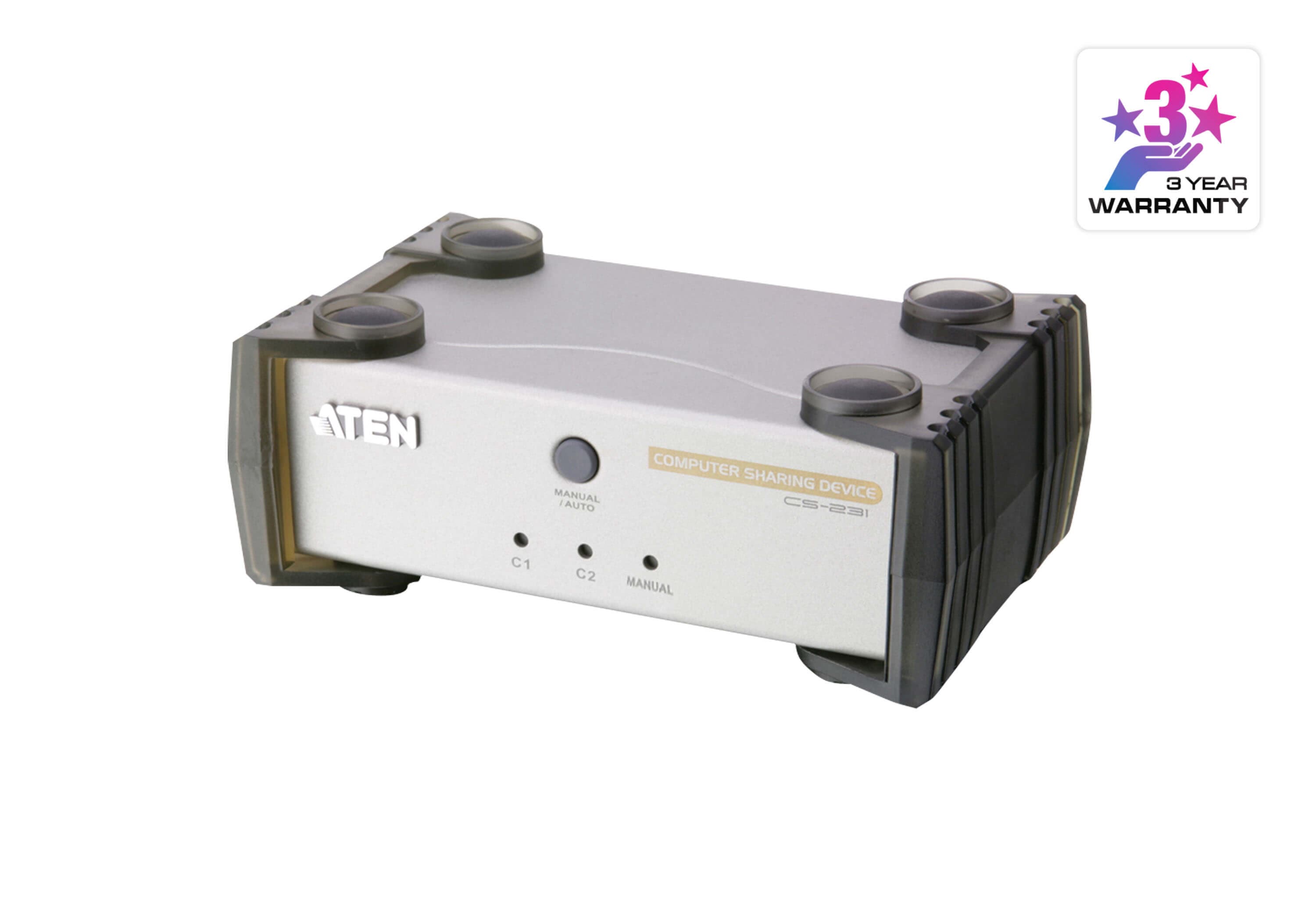

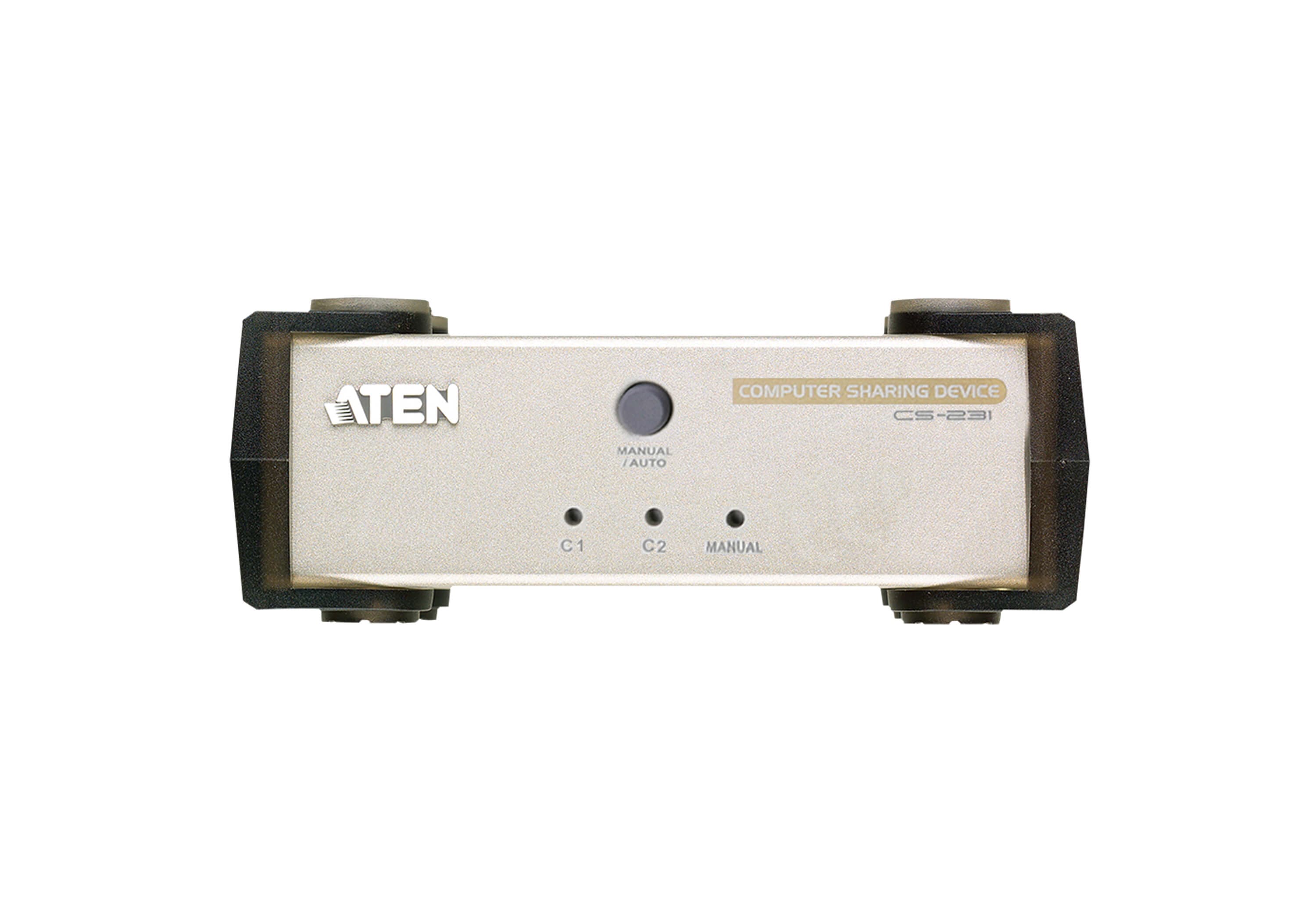

USB VGA Computer Sharing Device and Access Control Box Kit
CS231TKСнет от производство
Комплект за споделяне на един VGA компютър между две USB конзоли. Чрез включения Access Control Box управлението от втората конзола може да се забранява; поддържа Windows, Mac, Unix и Linux.
Характеристики
- Supports Access Control Box which allows users to prohibit Console 2 from controlling (operating)

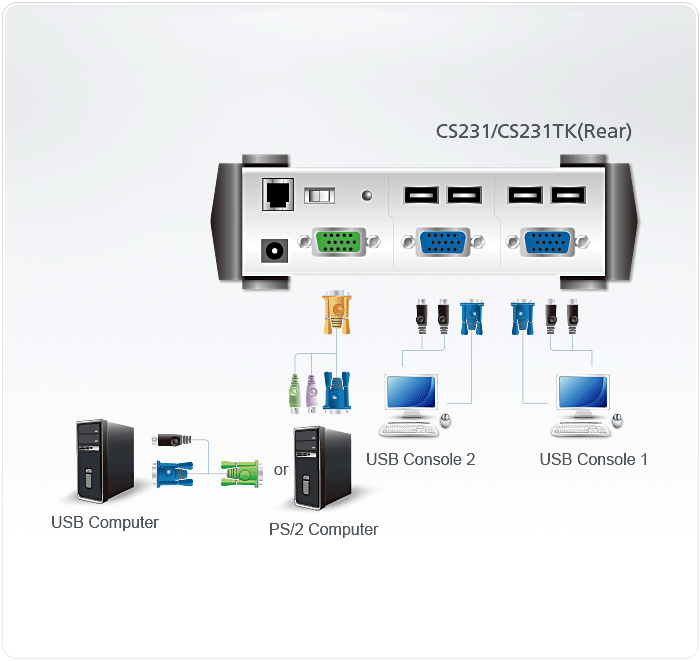

- Single computer shared by two USB consoles
- Supports USB and PS/2 computers
- Multiplatform Support (Windows, Mac, Unix and Linux)
- Manual or Auto console selection
- Controls the system with hotkeys
- Firmware upgradable
- Private Mode for a privileged user
- Screen Saver function
- Chooses from four Timeout settings
- Supports VGA, SVGA, and Multisync monitors
- No software required
Спецификация
- Връзки към компютри
- 1
- Избор на конзола
- Pushbutton, Hotkey* Note: * Selecting console via hotkey only works in Manual Mode.

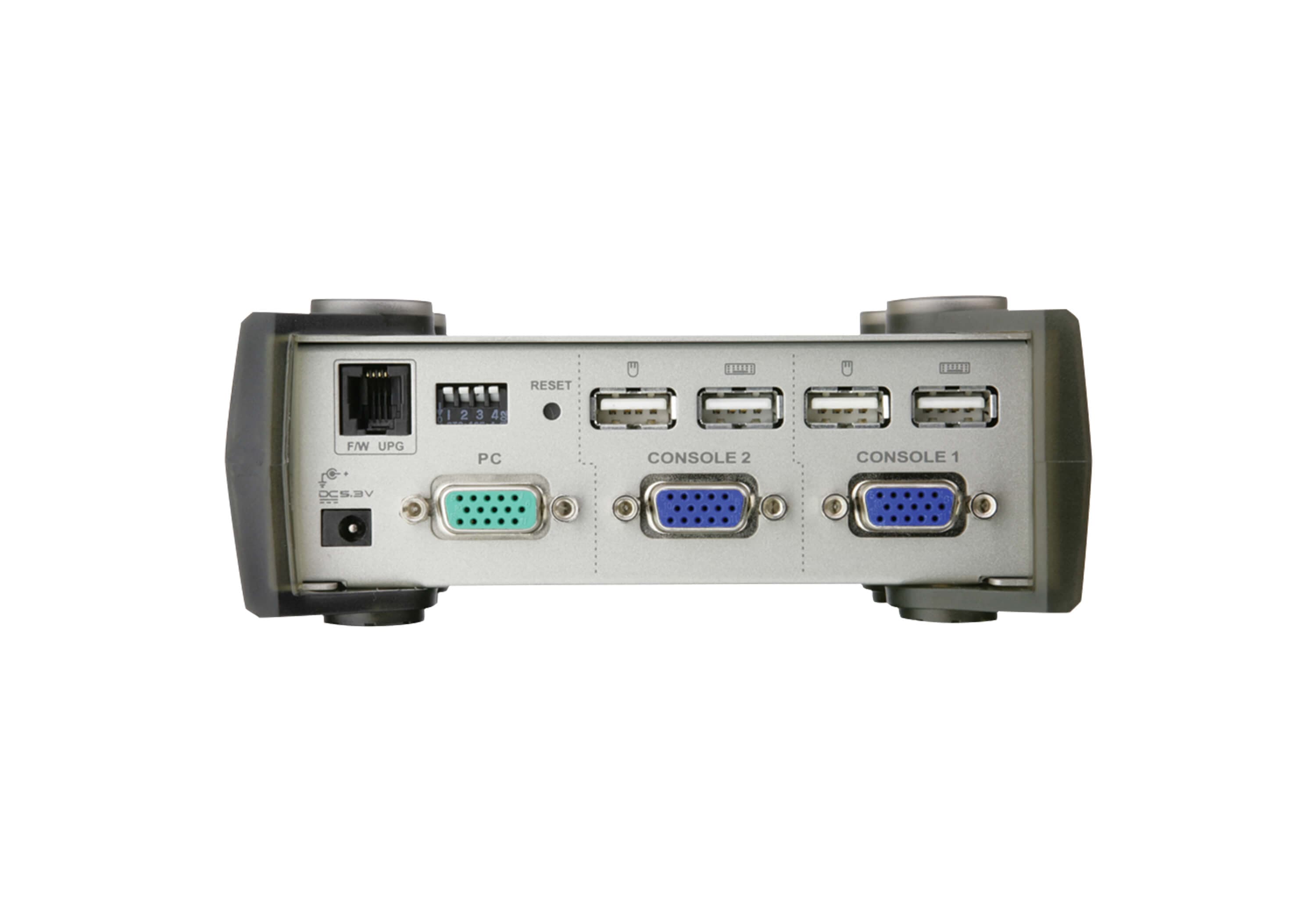

Конектори
- Конзолни портове
- 2 x HDB-15 Female (Blue) 4 x USB Type A Female
- KVM портове
- 1 x SPHD-15 Female (Green)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x DC Jack (Black)
Бутони и превключватели
- Избор на режим
- 1 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- DIP превключвател
- 1 x 4 pin
Индикатори
- Избран
- 2 (Green)
- Ръчен режим
- 1 (Orange)
- Видео
- 1920 x 1440
- Консумация
- DC 5.3V:1.6W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.56 kg ( 1.23 lb )
- Размери (Д x Ш x В)
- 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
