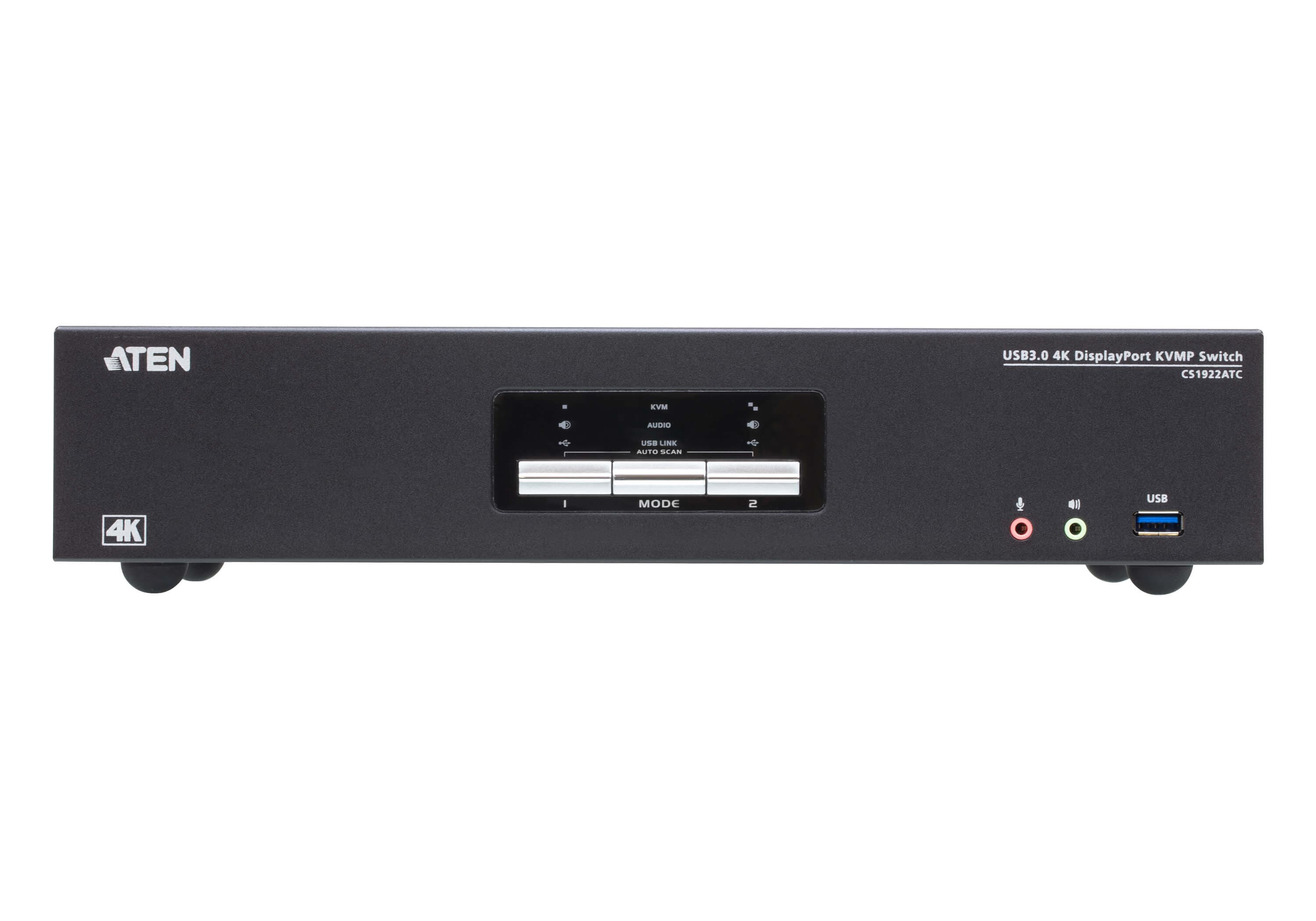

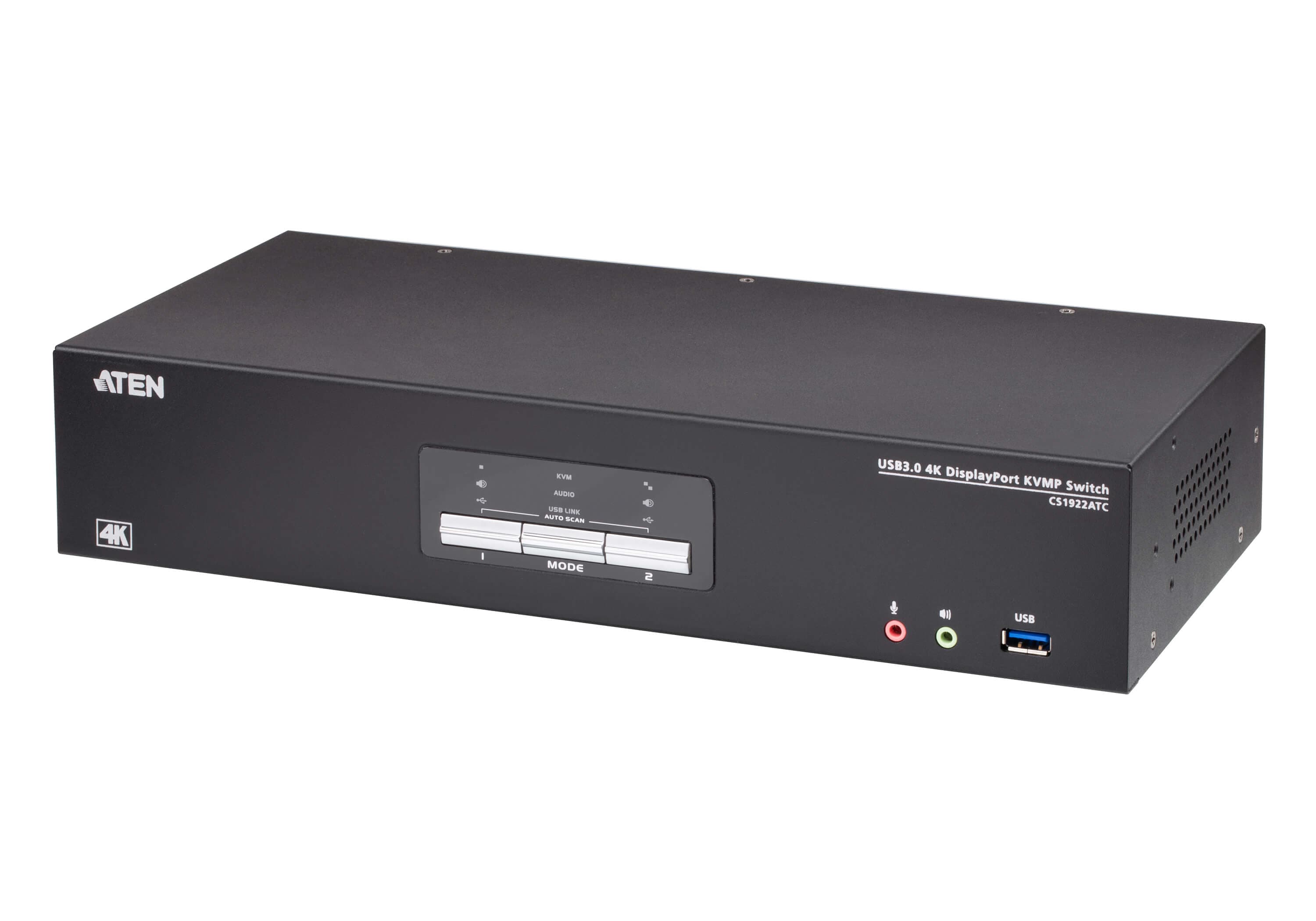

2-Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC

Name: 2-Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC
Brand: ATEN
SKU: CS1922ATC

CS1922ATC

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

DisplayPort switch for air traffic control consoles: controls 2 computers, supports 2048 x 2048 @ 60 Hz radar screens and has dual lockable power inputs for failover.

Features

One USB / DisplayPort console controls 2 DisplayPort computers and shares 2 USB peripherals
Supports 2048 x 2048 @ 60 Hz screen resolutions dedicated for radar monitoring; maximum resolution up to 4096 x 2160 @ 60 Hz
Zero-Second Switch – provides continuous video stream and real-time switching
Supports power failover – 2 lockable DC jacks for power redundancy to ensure constant availability for mission-critical applications
Supports serial port switching for legacy devices, maintaining compatibility with existing device interfaces
Computer Selection via front panel pushbuttons, hotkeys, mouse, RS-232 commands, and remote port selector
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
EDID Expert™ – smooth power- up, high-quality display and use of the best video resolution across different screens
Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
DisplayPort 1.2, and HDCP compliant
Supports HD audio*
Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
Console keyboard emulation / bypass feature supports most multimedia keyboards
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
Power on detection
Auto scan
Firmware upgradable Note: HD audio through DisplayPort cannot be switched independently

Specifications

Computer Connections: 2
Port Selection: Hotkeys, Pushbutton, Mouse, RS232 commands, Remote Port Selector

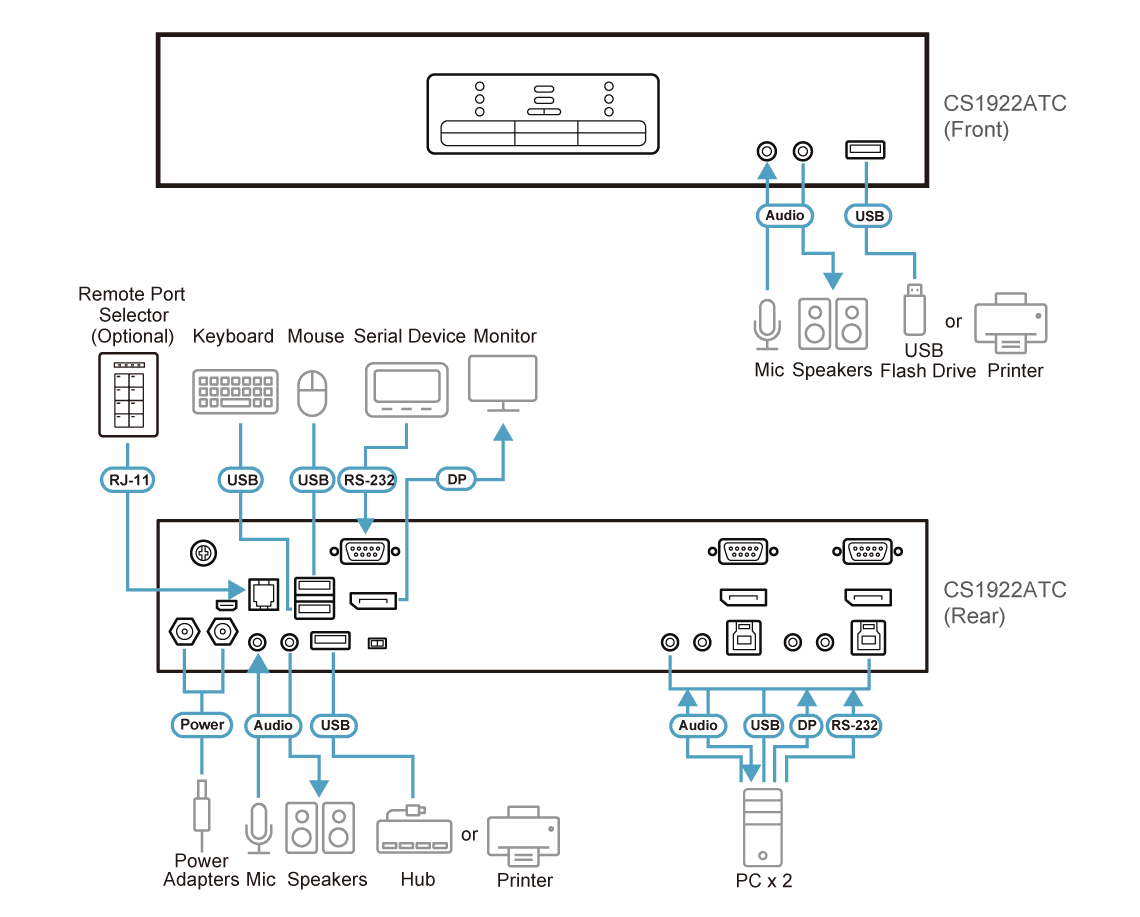

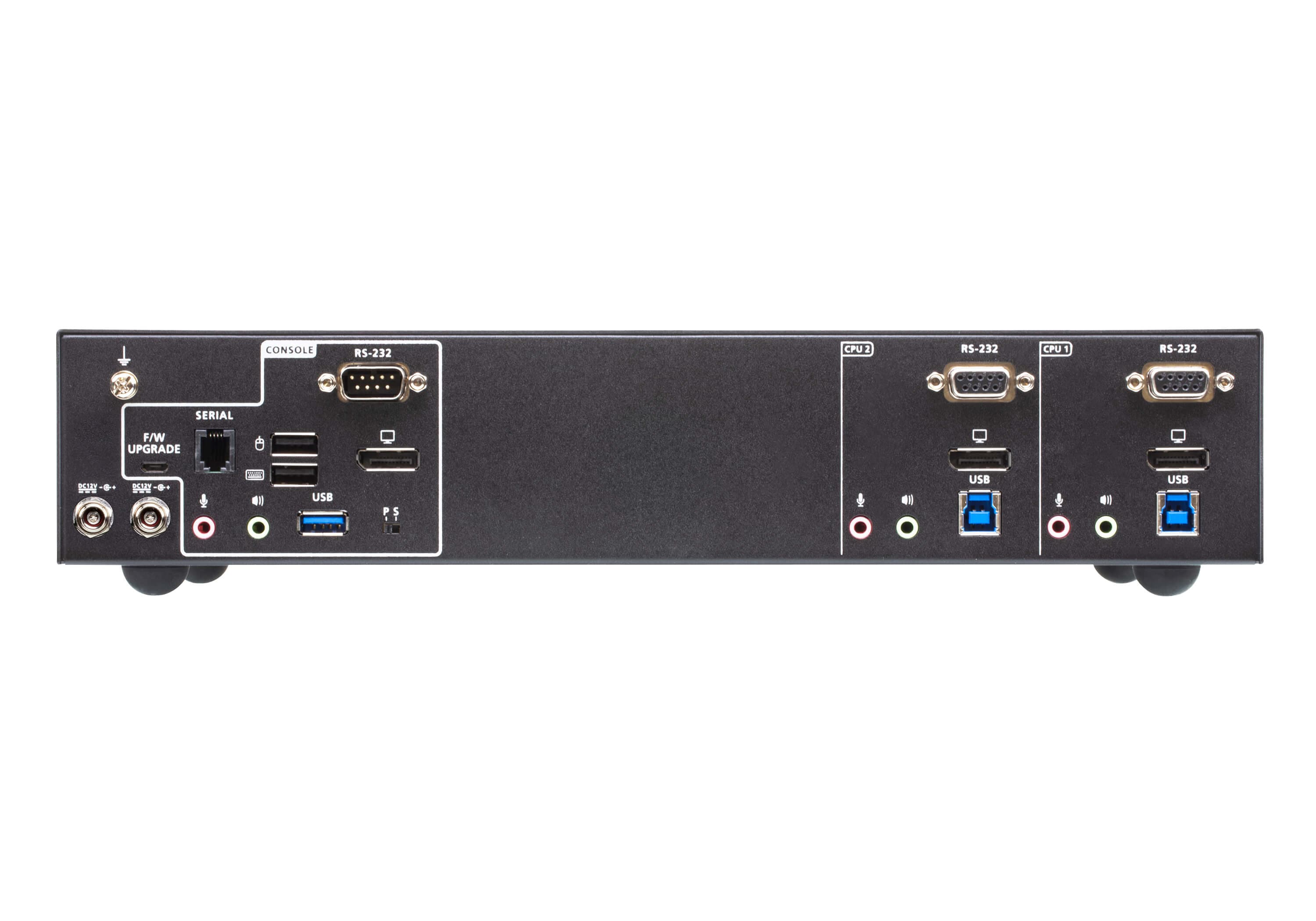

Connectors

Console Ports: 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Stereo Jack Female (Pink; 1 x front, 1 x rear) 1 x DB-9 Male
KVM (Computer) Ports: 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) 2 x DB-9 Female
Power: 2 x Lockable DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Remote Port Selector: 1 x RJ-11 Female
Firmware Upgrade: 1 x micro USB Female

Switches

Selected: 3 x Pushbutton

LEDs

USB Link: 2 (Green)
Audio: 2 (Green)
KVM: 2 (Orange)

Emulation

Keyboard / Mouse: USB
Video: Up to 4096 x 2160 @ 60Hz
Power Consumption: DC12V:16.09W:134BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-50°C
Storage Temperature: -20-60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 1.86 kg ( 4.1 lb )
Dimensions (L x W x H): 33.50 x 16.10 x 6.55 cm (13.19 x 6.34 x 2.58 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
