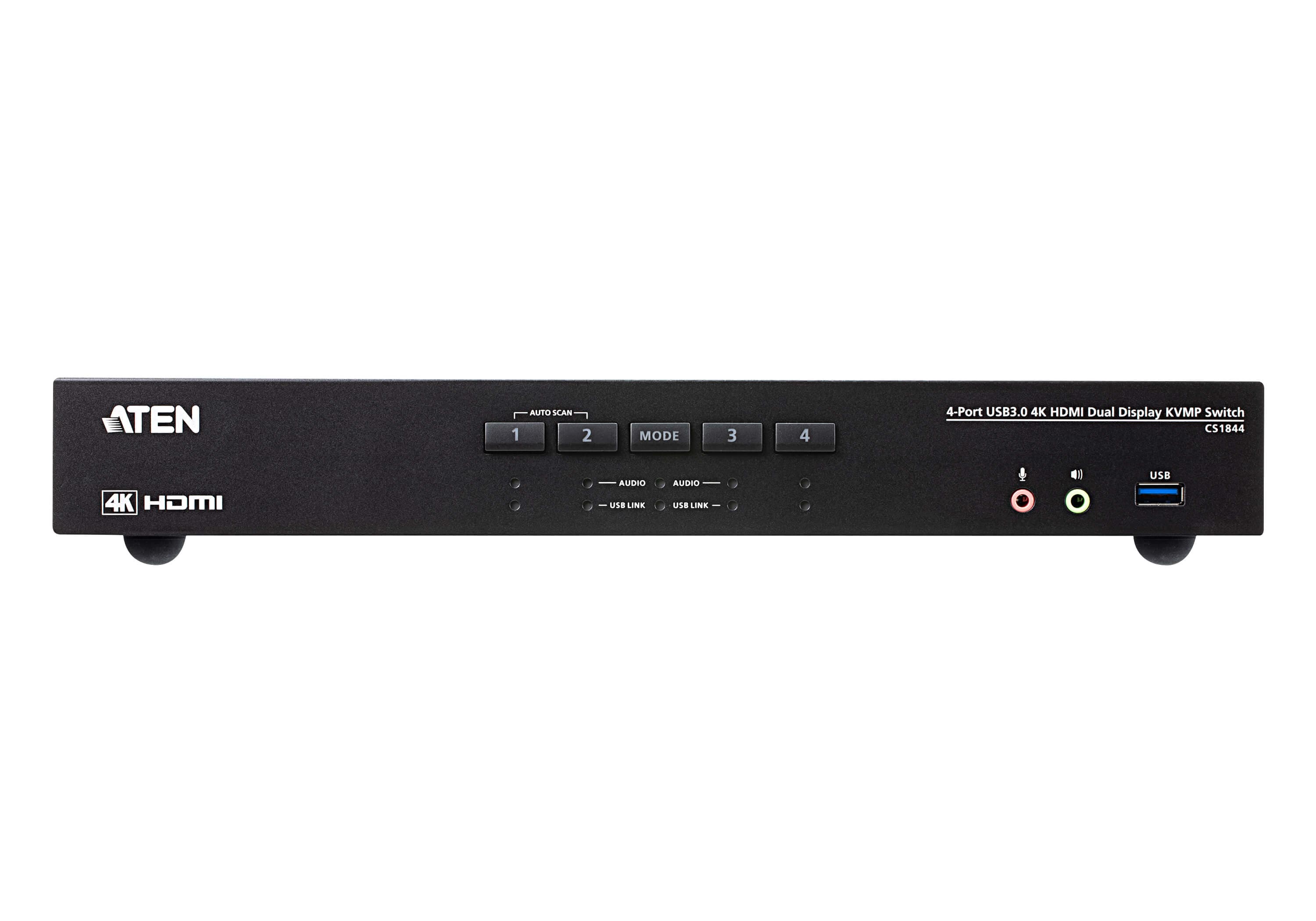

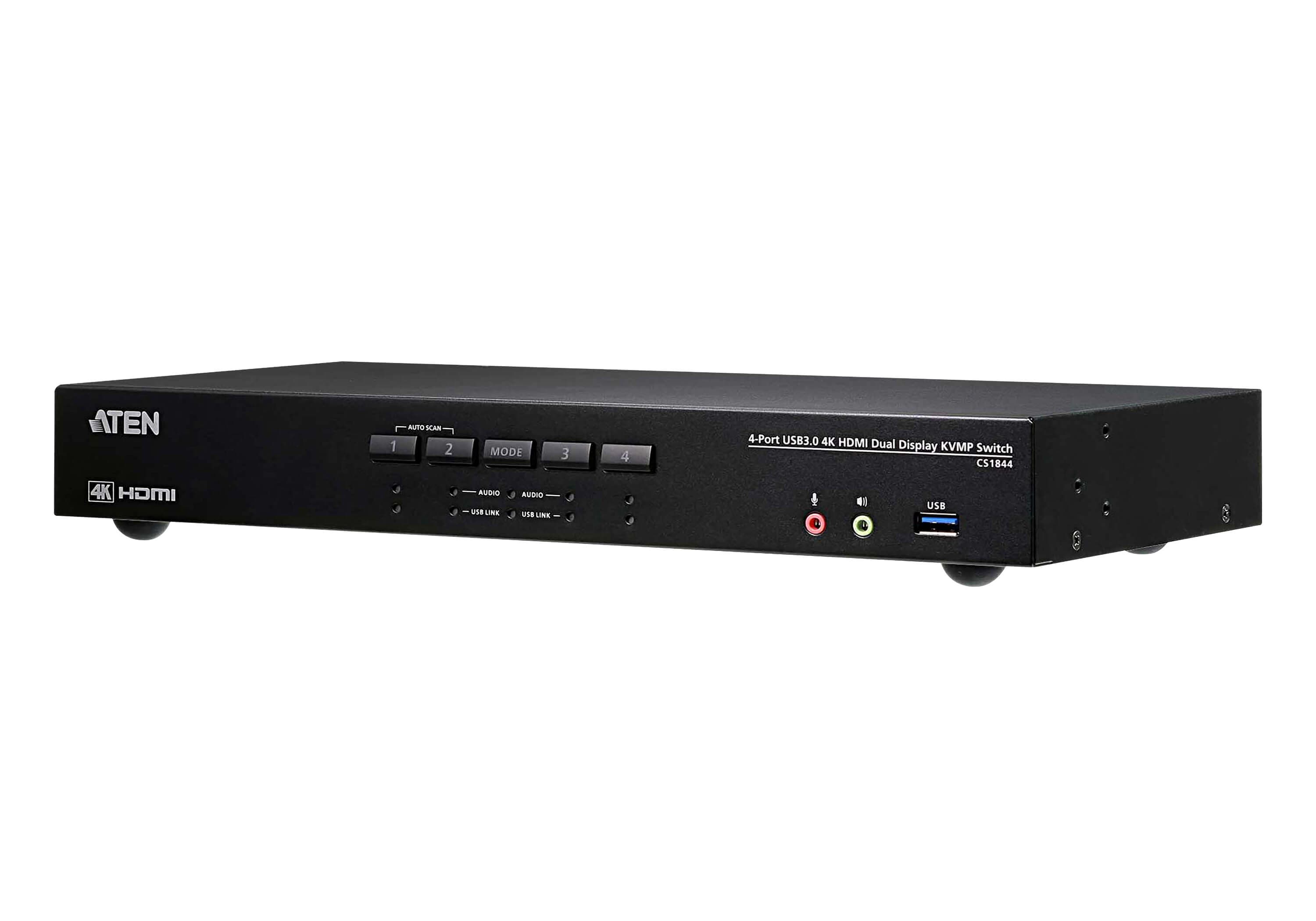

4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

Name: 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
Brand: ATEN
SKU: CS1844

CS1844

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

Desktop switch where one keyboard, mouse and two HDMI monitors control 4 computers at up to 4096 x 2160 @ 60 Hz; connecting two units enables quad display.

Features

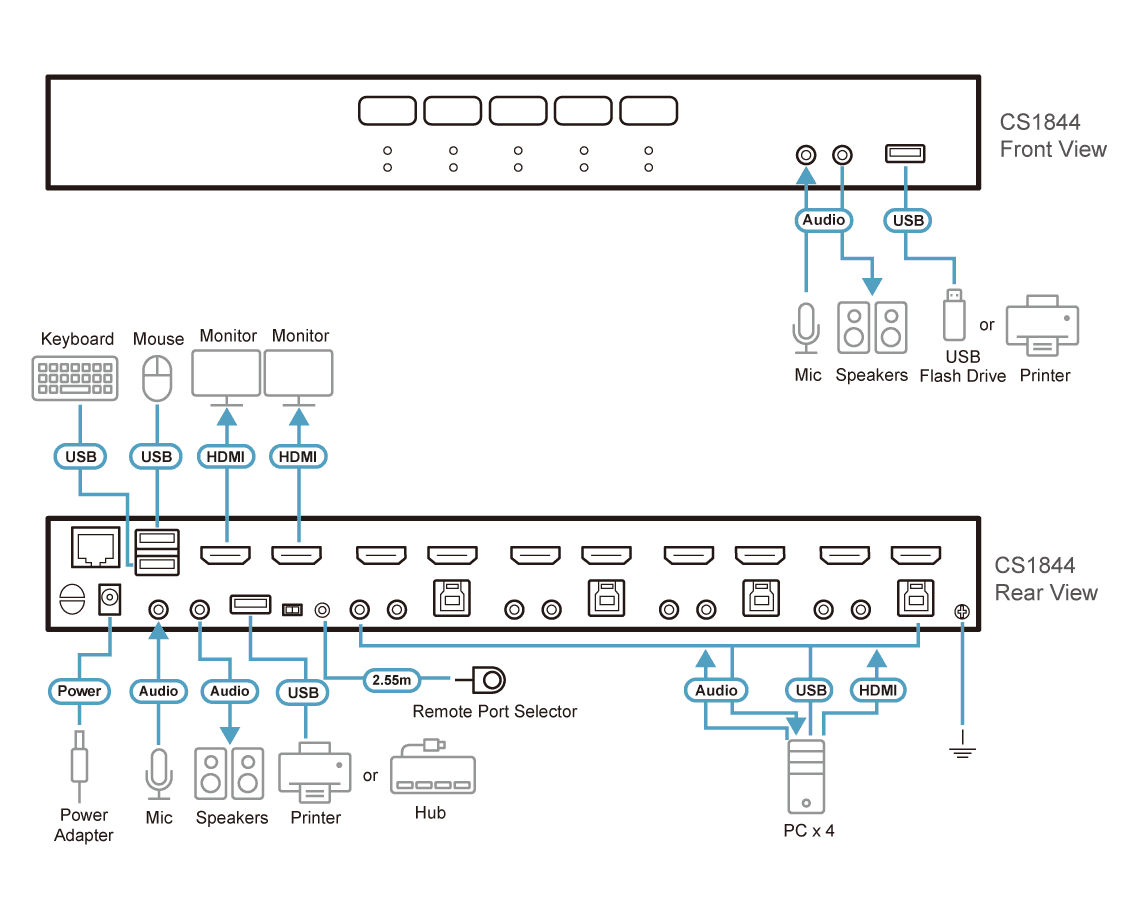

One USB keyboard, mouse and two HDMI monitors control four HDMI computers and share two USB peripherals
Supports Quad Display by connecting two Dual Display KVM switches
Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2
Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports console keyboard emulation / bypass feature
Supports console mouse emulation / bypass feature
Independent switching of KVM, USB peripheral, and stereo audio focus3
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
HDMI compliant; HDCP compliant
Supports HD audio3
Power on detection
Auto Scan Mode for monitoring all computers
Firmware upgradable Note: 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice. 2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45 to DB-9 cable. Please refer to the CS1842/CS1844 user manual. 3. HD audio through HDMI channel cannot be switched independently.

Specifications

Computer Connections: 4
Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector

Connectors

Console Ports: 2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

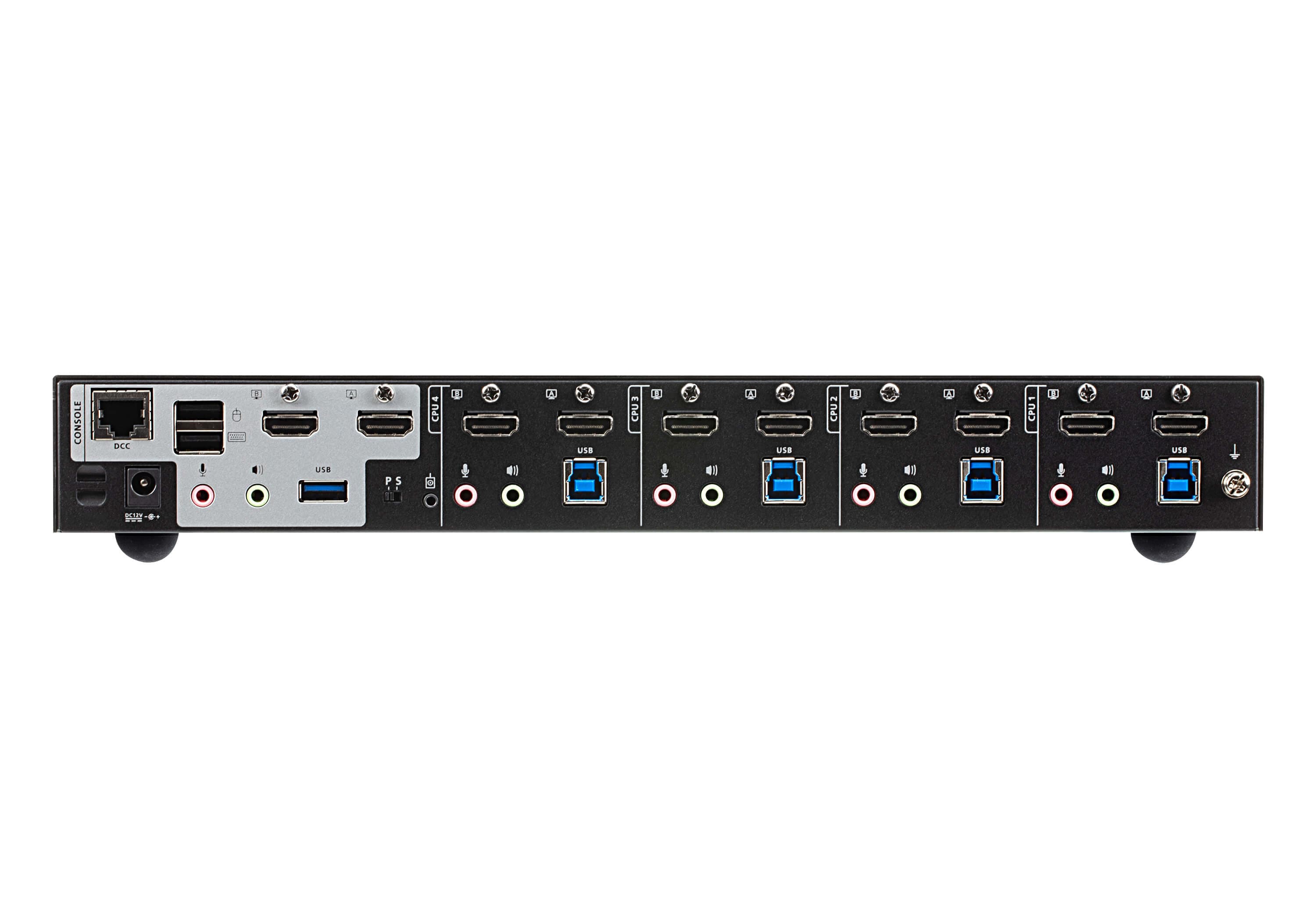

KVM (Computer) Ports: 4 x USB3.1 Gen1 Type B Female (Blue) 8 x HDMI Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports: 1 x RJ-45 Female
Remote Port Selector: 1 x 2.5mm Audio Jack Female
Power: 1 x DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

Switches

Selected: 5 x Pushbutton
Station Selection: 1 x Slide Switch

LEDs

On Line /Selected: 5 (Orange)
USB Link: 5 (Green)
Audio: 5 (Green)

Emulation

Keyboard / Mouse: USB
Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval: 1-99 Seconds (Default: 5 sec.)
Power Consumption: DC12V:4.42W:63BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 1.57 kg ( 3.46 lb )
Dimensions (L x W x H): 33.50 x 16.05 x 4.40 cm (13.19 x 6.32 x 1.73 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
