4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode

Name: 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode
Brand: ATEN
SKU: CS1824

CS1824

Desktop switch controlling 4 HDMI computers from one console at up to 4096 x 2160 @ 60 Hz, with audio mixer mode and a USB 3.1 Gen 1 hub at 5 Gbps.

Features

One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Audio Mixer Modes – mixes up to two audio sources as audio output
Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
Independent switching of KVM, USB peripheral, and stereo audio focus2
HDMI compliant; HDCP compliant
Supports HD Audio2
Power on detection
Auto Scan Mode for monitoring all computers
Firmware upgradable Note: 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice. 2. HD audio through HDMI channel cannot be switched independently

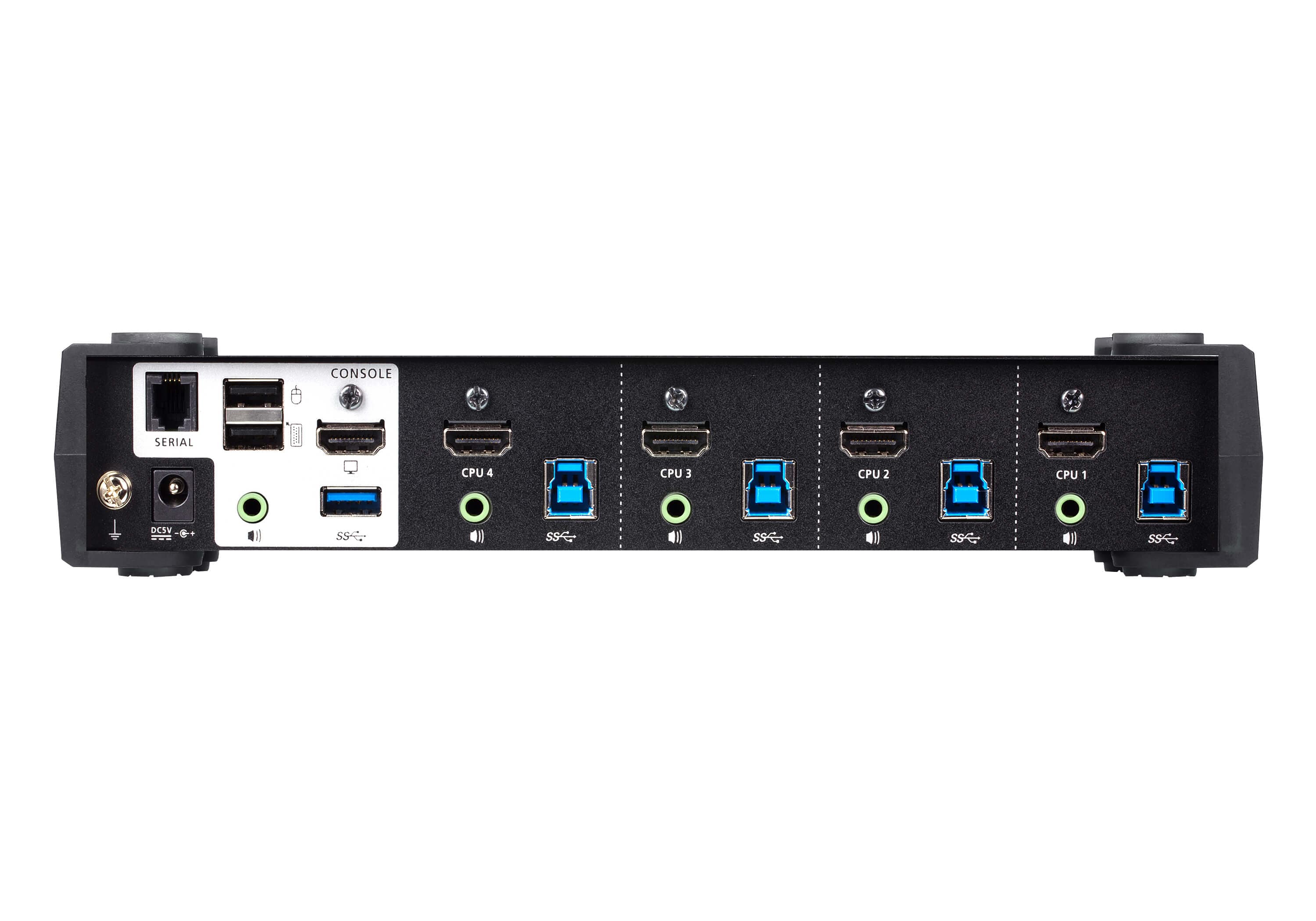

Console Ports: 2 x USB Type A Female 1 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports: 4 x USB3.1 Gen1 Type B Female (Blue) 4 x HDMI Female (Black) 4 x 3.5mm Audio Jack Female (Green)
Serial: 1 x RJ-11 Female
Power: 1 x DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

Keyboard / Mouse: USB
Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval: 1-99 Seconds (Default: 5 sec.)
Power Consumption: DC5V:2.535W:54.5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Housing: Metal, Plastic
Weight: 0.94 kg ( 2.07 lb )
Dimensions (L x W x H): 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
