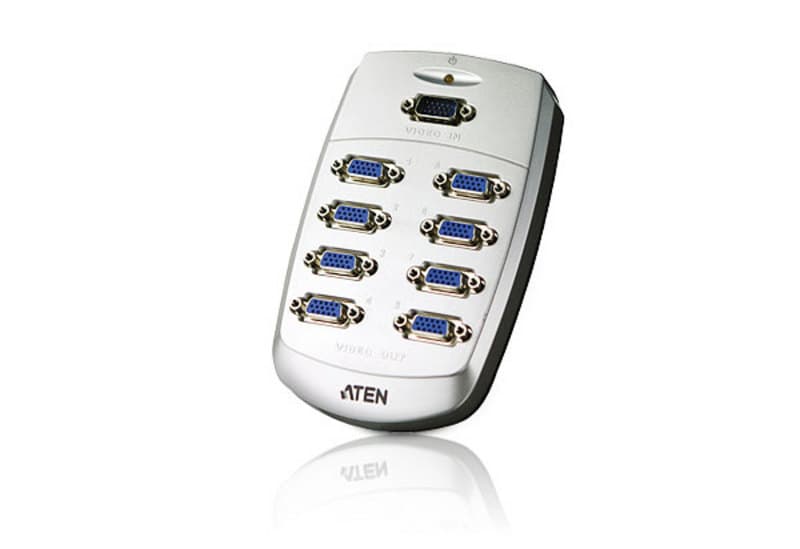

8-Port VGA Splitter Wall Plate (Plastic) (250MHz)

Name: 8-Port VGA Splitter Wall Plate (Plastic) (250MHz)
Brand: ATEN
SKU: VS88

VS88Снет от производство

VGA сплитер за стенен монтаж — един вход към 8 изхода при лента до 250 MHz; каскадира се до три нива за общо 512 сигнала.

Характеристики

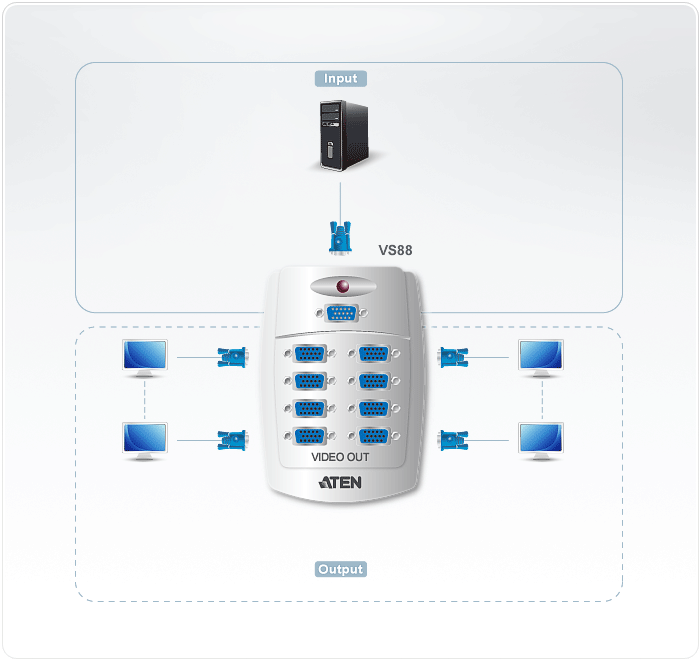

One video input to 8 video outputs.
Cascadable to 3 levels - provides up to 512 video signals.
Supports up to 250 MHz bandwidth.
Long distance transmission - up to 30 m (210'). *
High video resolution - up to 1920 x 1440.
DDC, DDC2, DDC2B Compatible (Port 1 only).
Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall.
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Захранване: 1 x DC Jack
Консумация: DC9V:3.62W:17BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Plastic
Тегло: 0.22 kg ( 0.48 lb )
Размери (Д x Ш x В): 9.79 x 15.59 x 3.33 cm (3.85 x 6.14 x 1.31 in.)
Брой в кашон: 20 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
