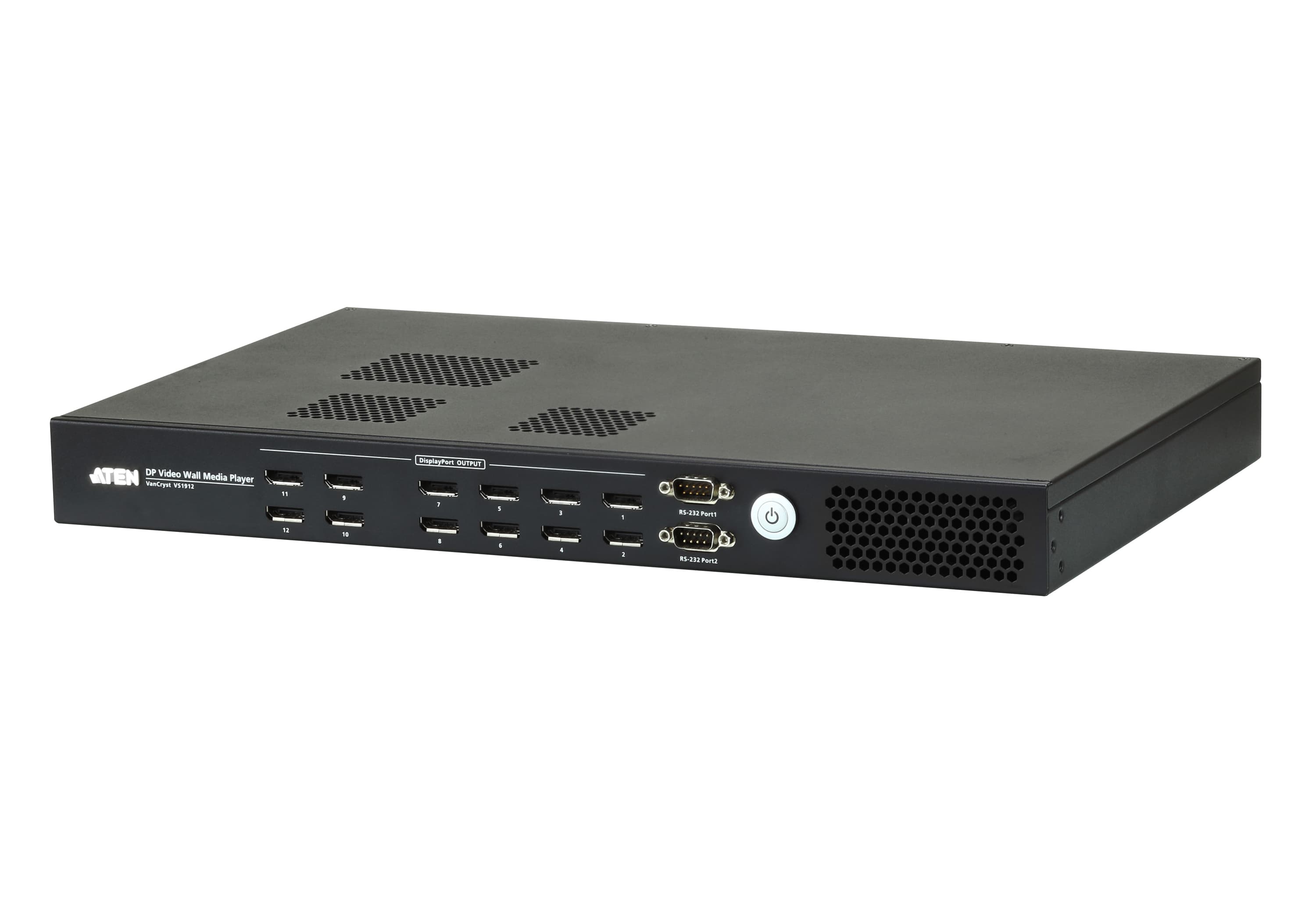

12-Port DP Video Wall Media Player
VS1912Снет от производство
Медиен плейър на PC основа за видеостени и digital signage — управлява до 12 дисплея през DisplayPort и поддържа асиметрични подредби на екраните.
Характеристики
- PC-based player for digital signage and video wall applications
- Allows a video wall with up to 12 displays
- Supports creative, asymmetric layouts*
- Advanced Video Wall: Pictures and videos can be resized, layered (including Picture in Picture), spanned across multiple screens and rotated at 90° intervals.
- Upload system confi guration and playback files easily through an intuitive web GUI, no additional software needed**
- Widgets display video, image, flash media, webpage, text, banner, clock, RSS or RTSP (Real Time Streaming Protocol) over the screens
- Flexible scheduling and profiles for easy management of connections
- Two bi-directional RS-232 serial ports for controlling connected displays ***
- 64 GB storage capacity and 8GB DDR3 system memory
- One HDMI input port for more flexible media sourcing
- USB 3.0 and 2.0 ports for importing profi le settings and schedules
- Locking mechanism included in DisplayPort cables and DVI adapter
- ESD protection for DisplayPorts
- Firmware upgradeable
- Slim 1U design
- Rack mountable * Asymmetric layouts can be formed using displays at right angles only (i.e. portrait and landscape orientations). See page 3 for more details. ** Google Chrome required *** An RS-232 splitter is required if you need to control more than two serial devices. Note: The VS1912 does not support HDCP.
Видео вход
- Интерфейси
- 1 x HDMI Type A Female
Видео изход
- Интерфейси
- 12 x DisplayPort 1.1 Female
Видео
- Макс. скорост на данните
- 8.64 Gbps (2.7 Gbps per lane)
- Макс. пикселна честота
- 340 MHz (with DP to DVI active adapter)
- Съответствие
- HDMI (3D, Deep Color) DisplayPort 1.1
Аудио
- Изход
- 1 x 3.5 mm Stereo Jack Female
Управление
- RS-232
- Connector: 2 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 38400~19200, Hardware & Software Flow Control *RS-232 functionality is pending and will be available with future firmware upgrades
- Ethernet
- 2 x RJ-45 Female
- USB
- 2 x USB 3.0 Female 4 x USB 2.0 Female
Конектори
- Захранване
- 1 x 3-prong AC Socket
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz; 3A
- Консумация
- 120 VAC, 400W; 230 VAC, 400W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Вентилатор
- Airflow: 28.8 cfm (max. in free air) Operating voltage: 6.0 ~ 12.0 VDC Operating temp: -10 ~ 65 ºC
- Капацитет за съхранение
- 64GB mSATA
- Системна памет
- 8GB DDR3
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 4.22 kg ( 9.3 lb )
- Размери (Д x Ш x В)
- 43.00 x 27.00 x 4.40 cm (16.93 x 10.63 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
