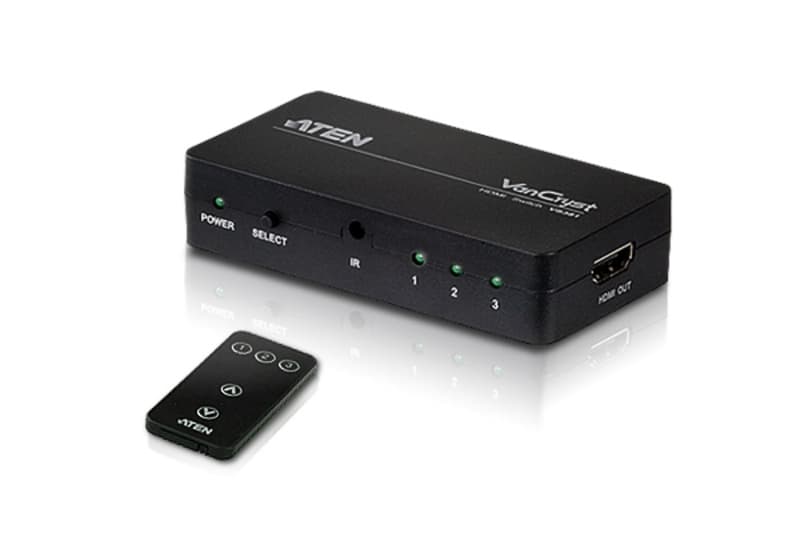

HDMI превключвател за 3 източника към един дисплей. Превключването става с дистанционно или от бутоните на предния панел, поддържа до 1080p.
Характеристики

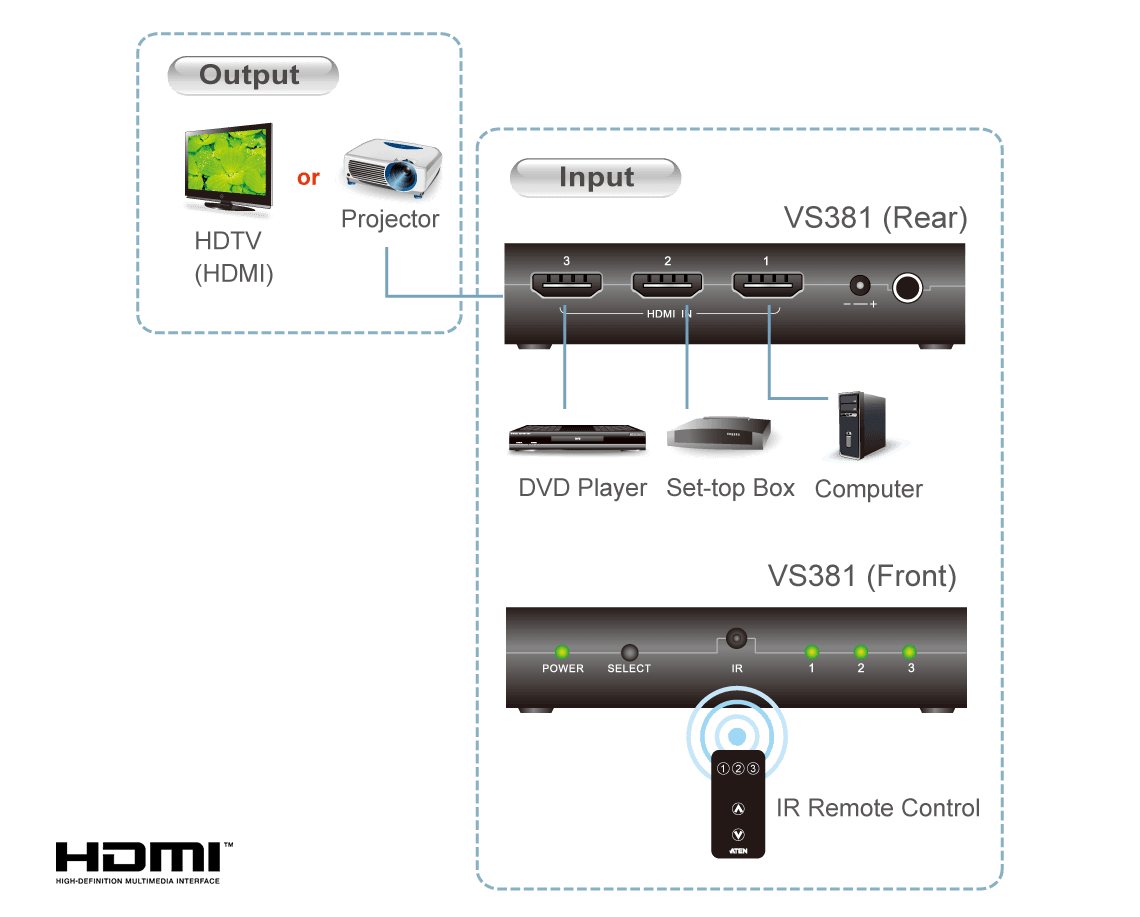

- Allows up to three HDMI A/V sources to be connected to one HDMI display
- Toggle between A/V sources using remote control or front panel pushbuttons
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); PC resolutions of VGA, SVGA, XGA, SXGA, and WUXGA (1920x1200)
- Supports Dolby True HD and DTS HD Master Audio
- Plug-and-play – no software installation required
- DDC Compatible
- HDMI (3D, Deep Color)
- HDCP 1.4 compatible
- Front-Panel LED for port and power status
- Easy and affordable way to add three HDMI inputs to your home theater system
Видео вход
- Интерфейси
- 3 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP Compatible
- Макс. резолюция
- Up to 1080p
- Макс. разстояние
- Up to 15 m
Управление
- IR
- 1 x Mini Stereo Jack Female (Black)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:0.69W:3BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.07 kg ( 0.15 lb )
- Размери (Д x Ш x В)
- 9.60 x 5.12 x 2.24 cm (3.78 x 2.02 x 0.88 in.)
- Брой в кашон
- 40 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
