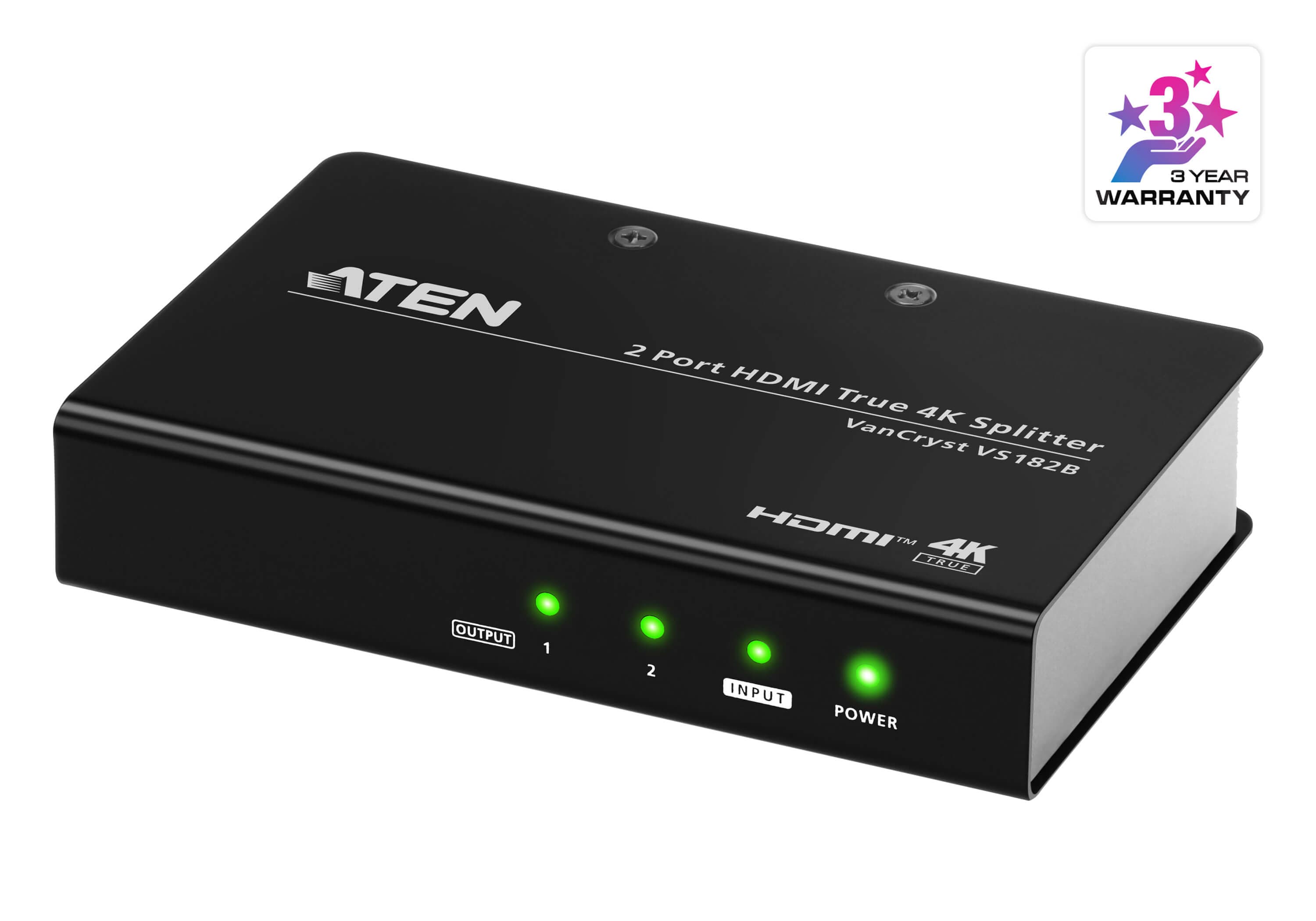

2-Port True 4K HDMI Splitter

Name: 2-Port True 4K HDMI Splitter
Brand: ATEN
SKU: VS182B

VS182B

Разделя сигнала от един HDMI източник към два дисплея едновременно при True 4K (4096x2160@60Hz 4:4:4). Поддържа HDR10+ и HDCP 2.2.

Характеристики

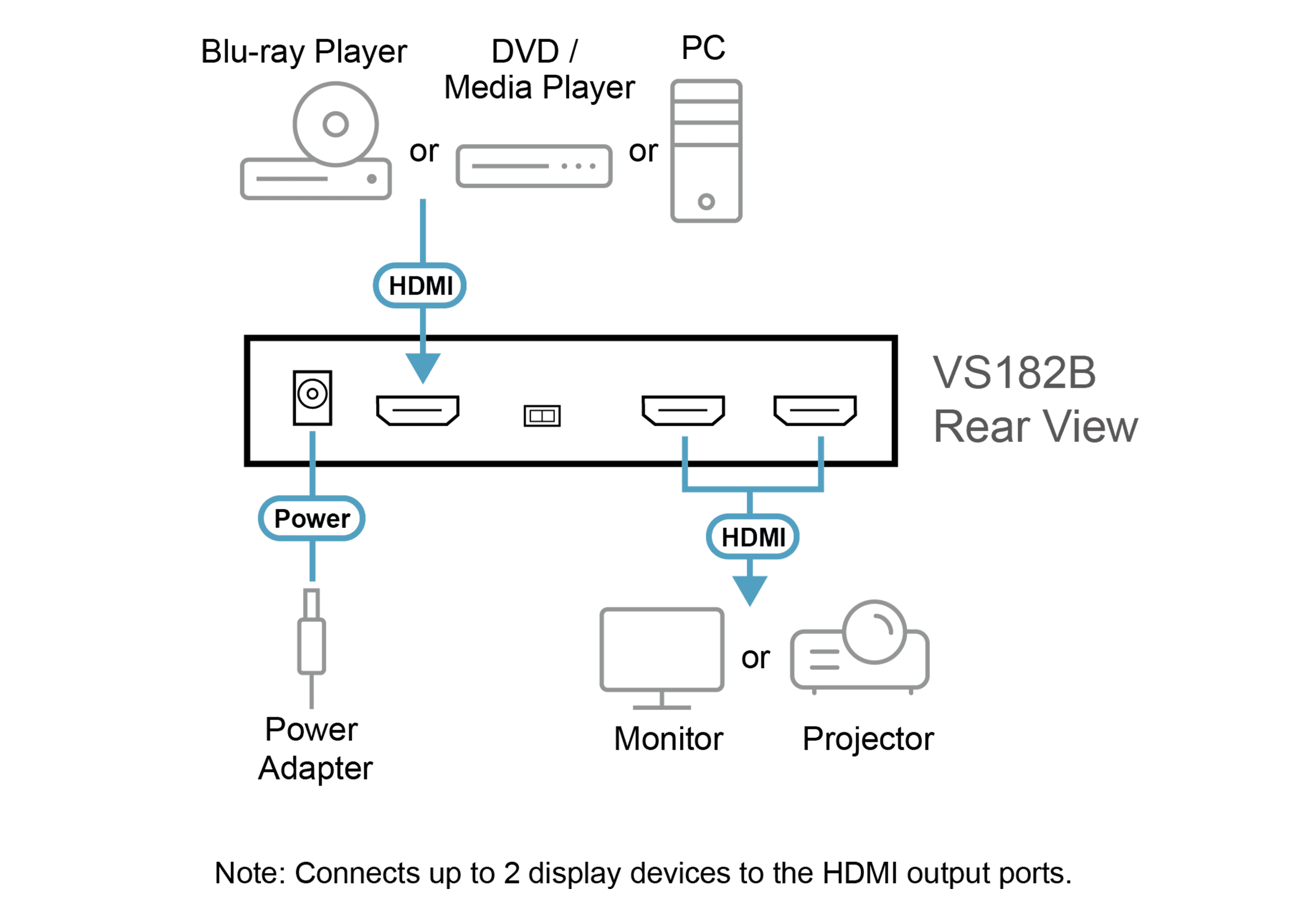

Connects one HDMI source to two HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Supports HDR10+
Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
Long distance transmission- up to 15 m(1920x1200) / 5 m (True 4K)*
Max pixel clock rate up to 600 MHz
Max data rate up to 18 Gbps (6 Gbps per lane)

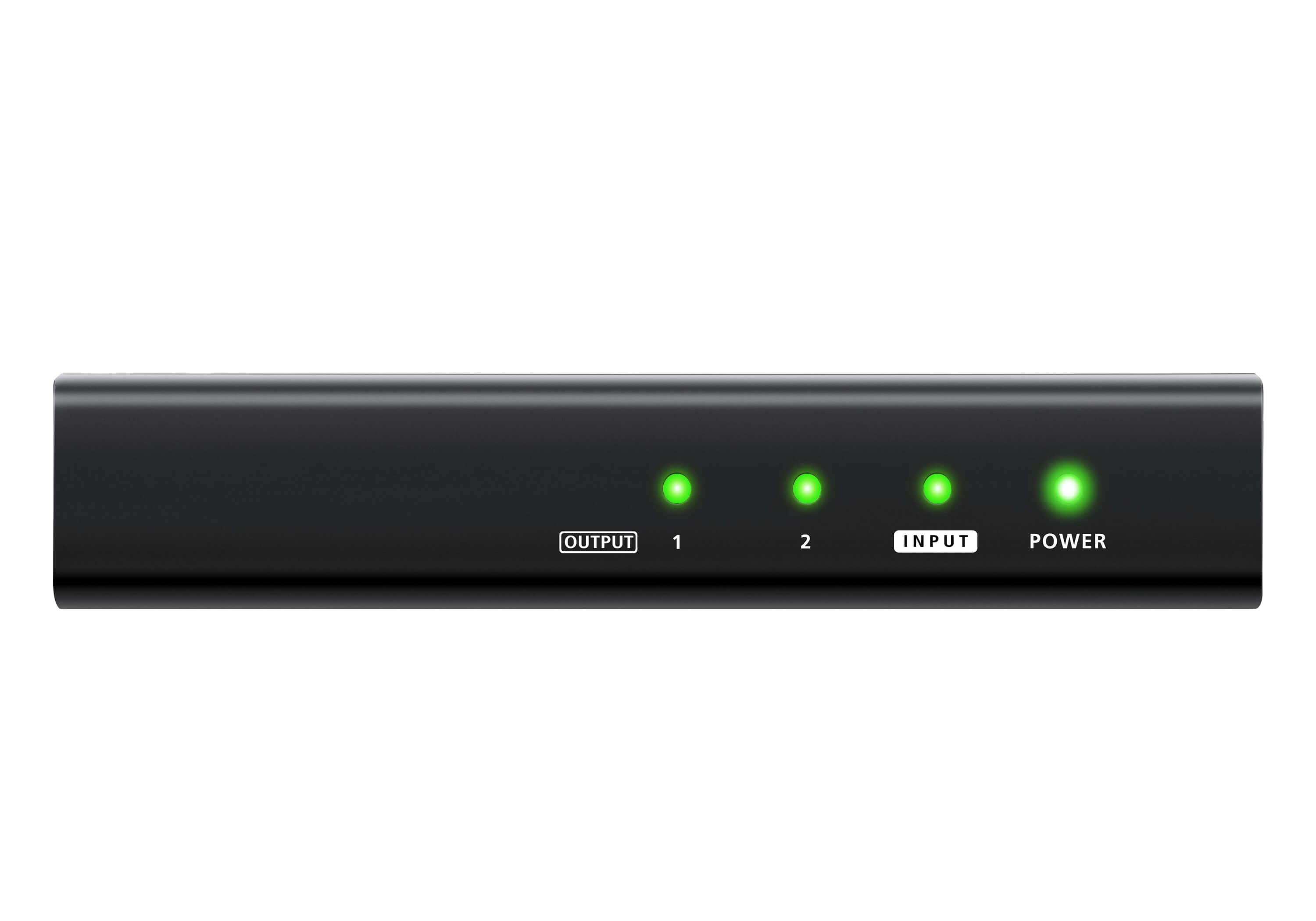

LED indication of power status and source devices

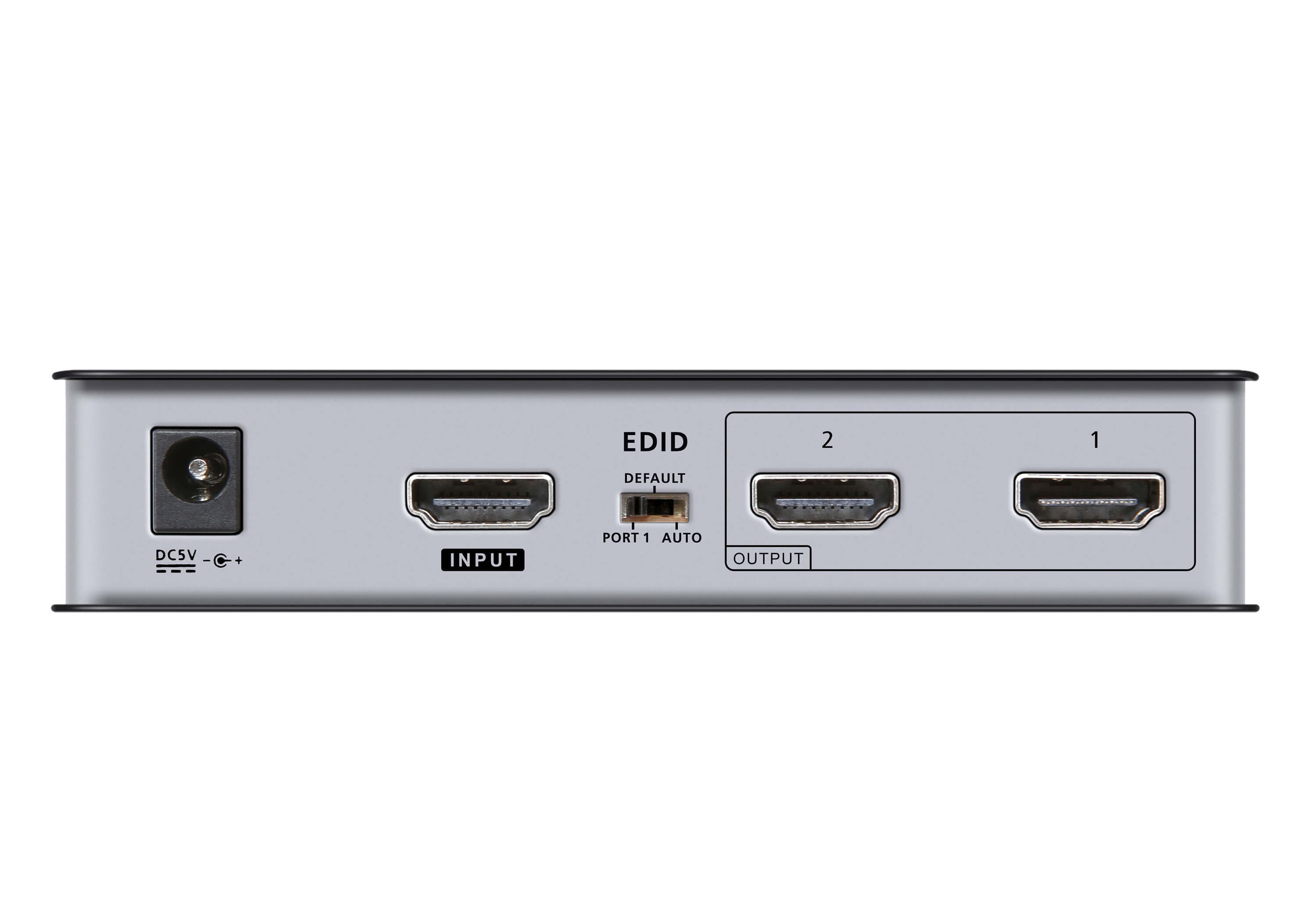

EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
Plug-and-play – No software installation required * Note: Compatible with ATEN 2L-7D02H-1

Захранване: 1 x DC Jack
Консумация: DC5V:4.24W:20BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.32 kg ( 0.7 lb )
Размери (Д x Ш x В): 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Брой в кашон: 20 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
