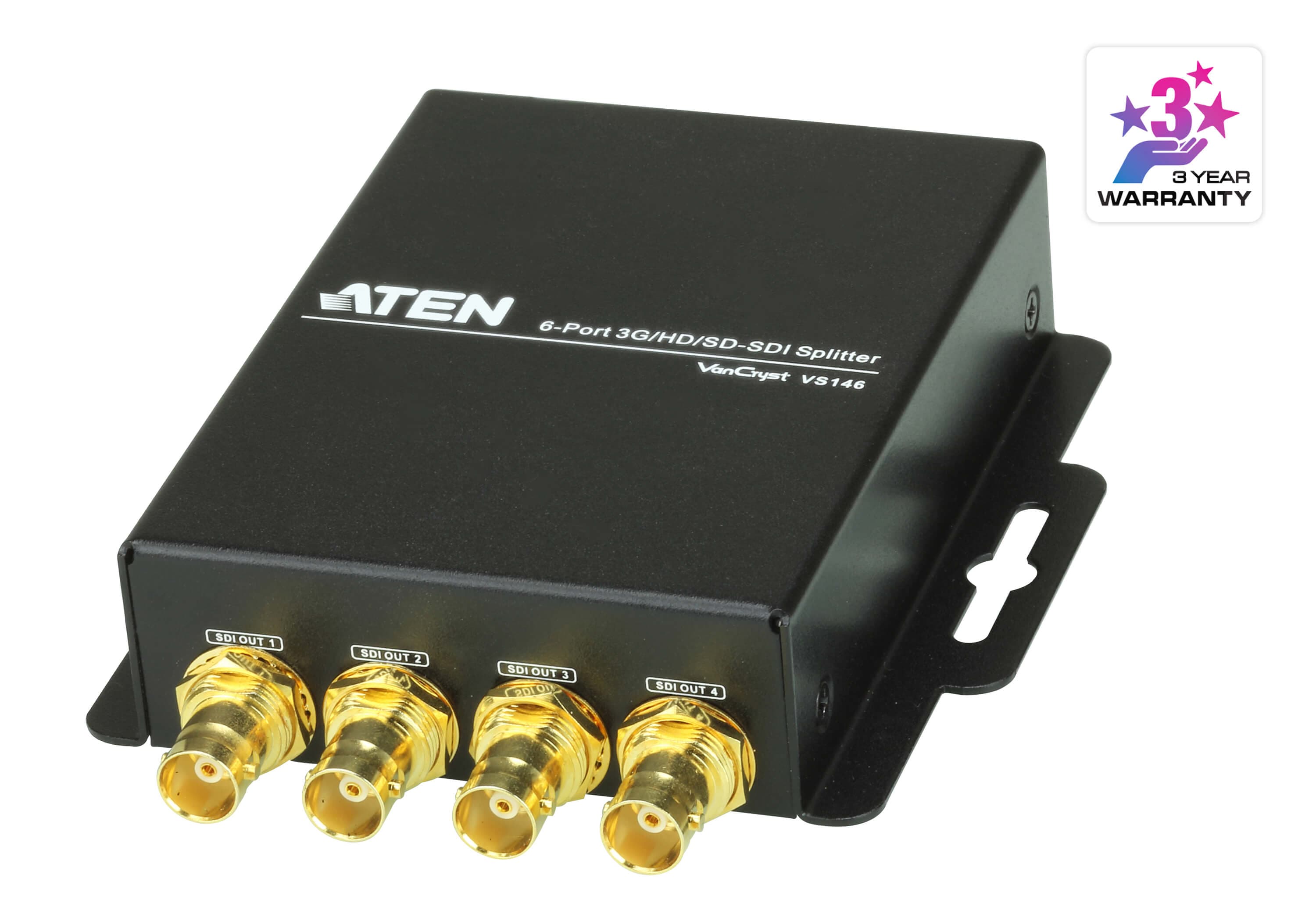

SDI сплитер — един 3G/HD/SD-SDI вход към 6 изхода в реално време, с автоматична еквализация и reclocking на сигнала. Обхват до 90 m (3G-SDI), 150 m (HD-SDI) или 300 m (SD-SDI) по RG6.
Характеристики

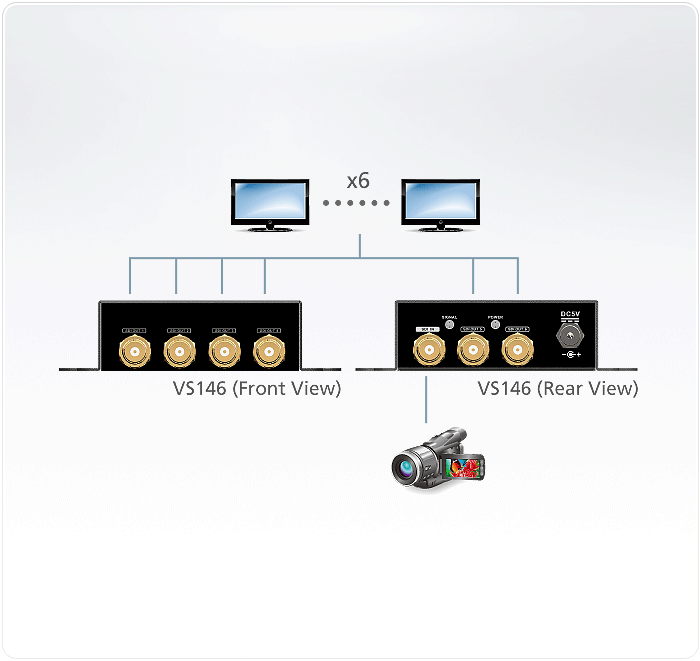

- One video inputs to 6 video outputs
- Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6
- Reclocking SDI signals for cascading and thus longer transmission
- Supported SDI formats: • SD-SDI (SMPTE 259M, up to 270Mbps) • HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps) • 3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
- Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
- Features automatic detection of 3G/HD/SD-SDI signals

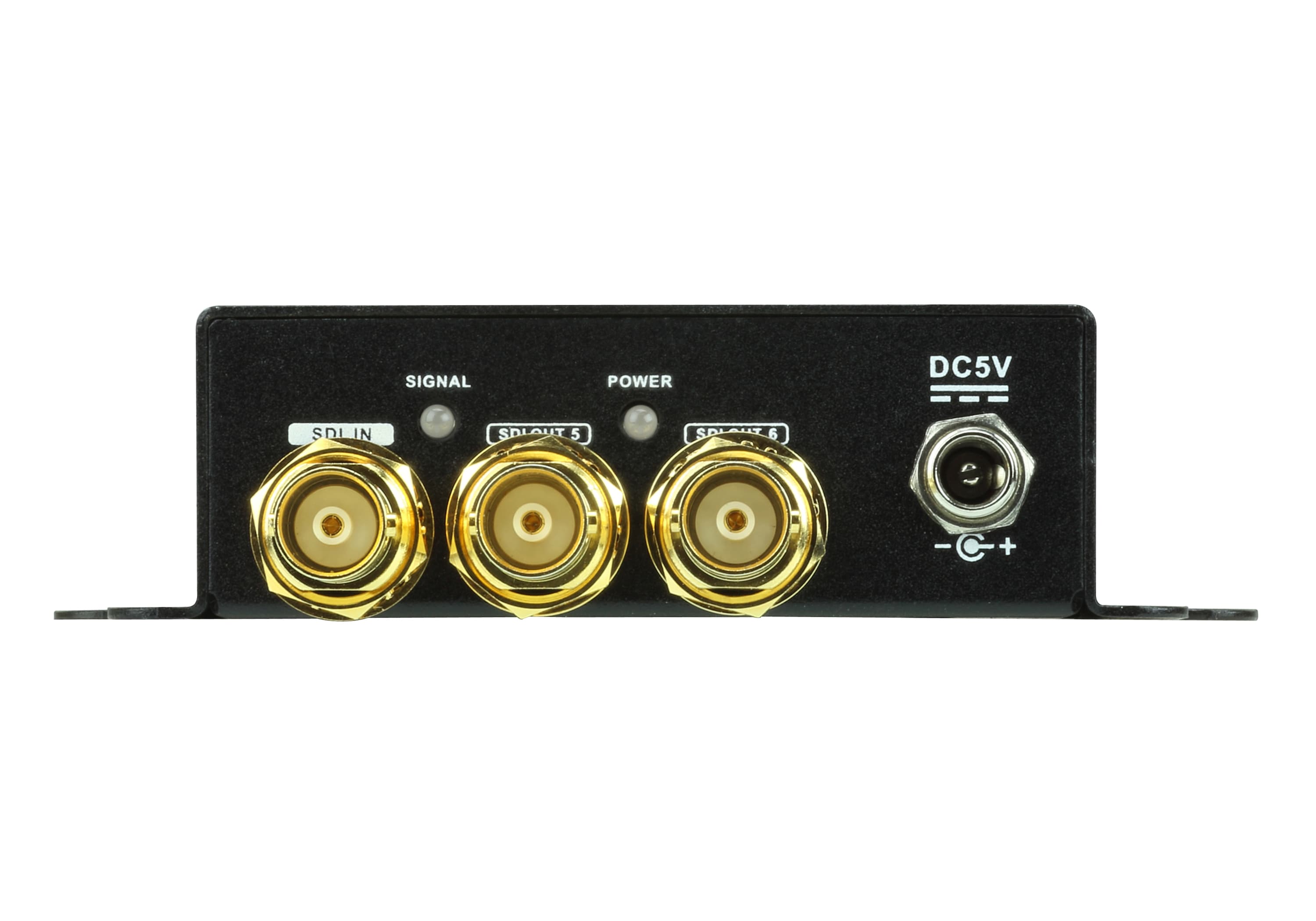

- LED indication of power status and SDI signal
- Locking power connector for secure communications
- Passes all ancillary data
Видео вход
- Интерфейси
- 1 x BNC (Gold)
- Импеданс
- 75 Ω
- Макс. разстояние
- 1.8 m

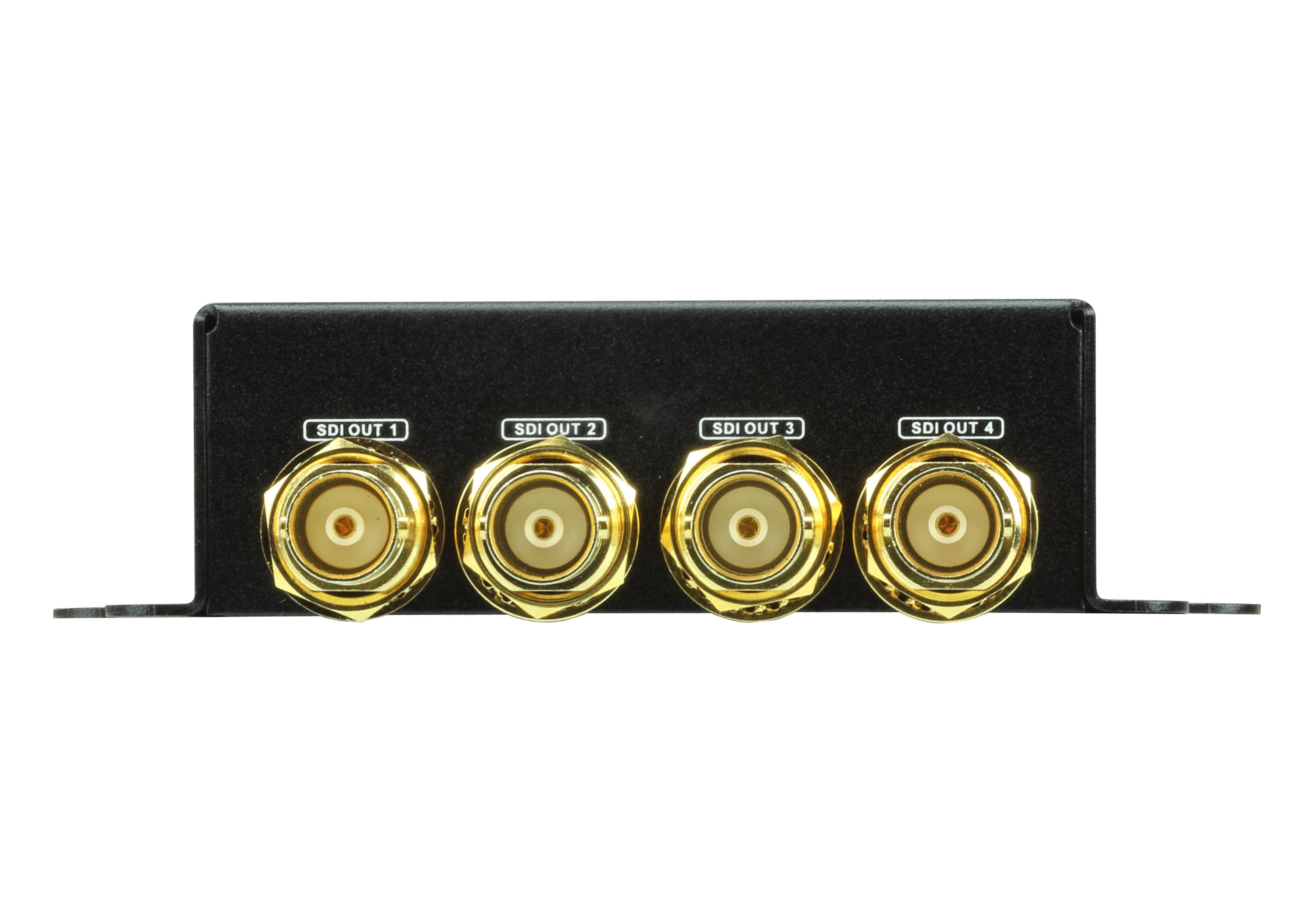

Видео изход
- Интерфейси
- 6 x BNC (Gold)
- Импеданс
- 75 Ω
Видео
- Макс. скорост на данните
- 2.97 Gbps
- Поддържани резолюции
- [email protected] Hz, PAL@50 Hz 720p@50/59.94/60 Hz 1080i@50/59.94/60 Hz [email protected]/24/25/29.97/30/50/59.94/60 Hz
- Макс. разстояние
- 90 m (3G-SDI); 150 m (HD-SDI); 300 m (SD-SDI)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:3.09WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 20 - 90% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.32 kg ( 0.7 lb )
- Размери (Д x Ш x В)
- 10.80 x 13.90 x 2.80 cm (4.25 x 5.47 x 1.1 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
