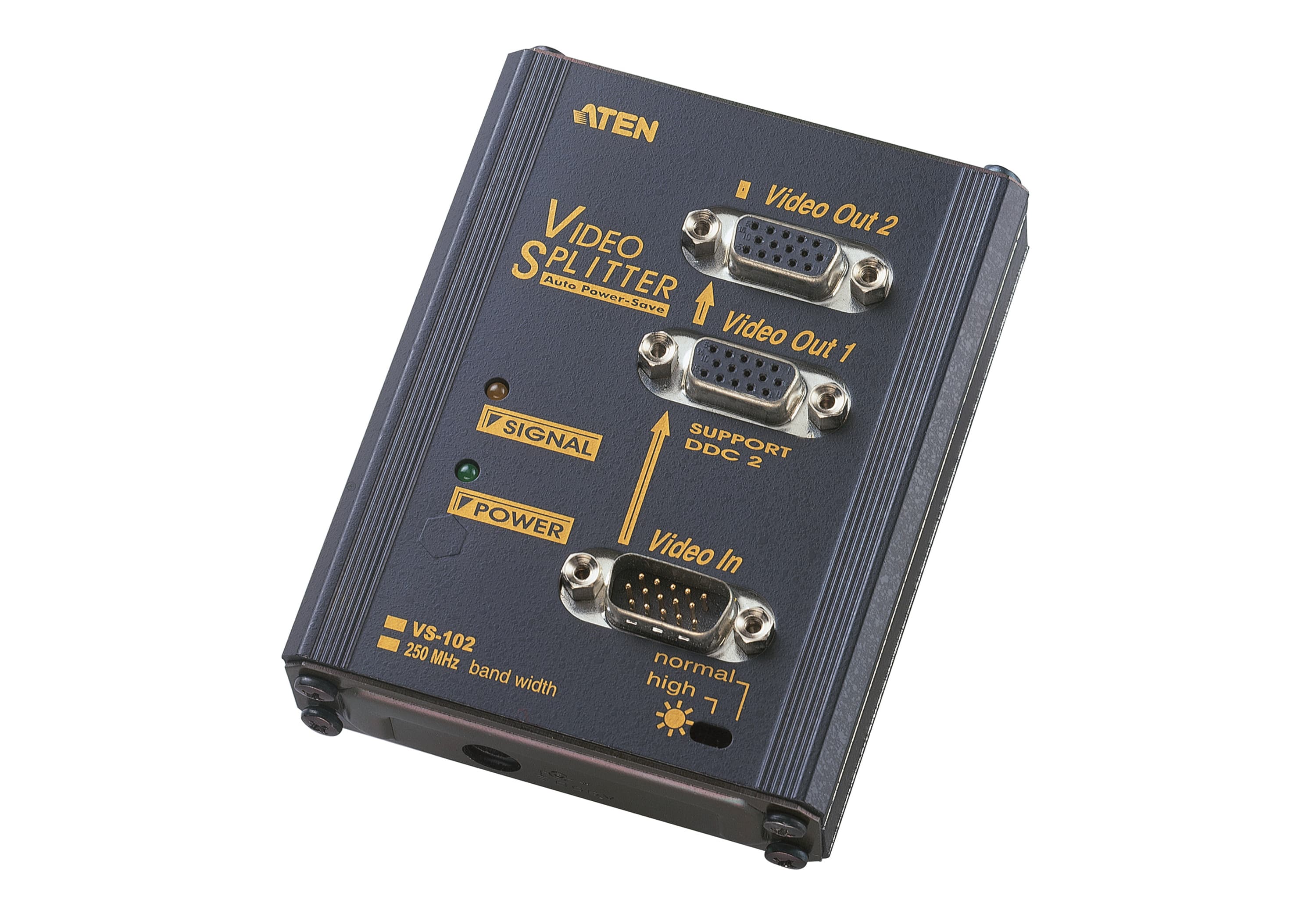

2-Port VGA Splitter Wall Plate (250MHz)

Name: 2-Port VGA Splitter Wall Plate (250MHz)
Brand: ATEN
SKU: VS102

VS102Снет от производство

VGA сплитер за стенен монтаж, който дублира един вход към 2 изхода при 250 MHz; сигналът се усилва с регулатор, а каскада до три нива дава 8 сигнала.

Характеристики

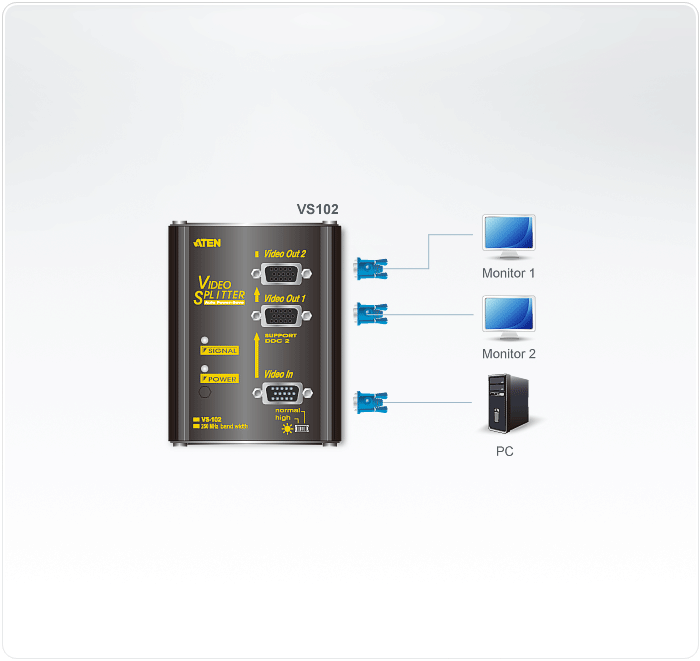

One video input to 2 video outputs.
Cascadable to 3 levels-provides up to 8 video signals.
Supports up to 250 MHz bandwidth.
Long distance transmission - up to 65 m. *
High video resolution - up to 1920 x 1440.
DDC, DDC2, DDC2B Compatible (Port 1 only).
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Захранване: 1 x DC Jack
Консумация: DC9V:1.22W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.19 kg ( 0.42 lb )
Размери (Д x Ш x В): 10.36 x 7.90 x 2.82 cm (4.08 x 3.11 x 1.11 in.)
Брой в кашон: 20 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
