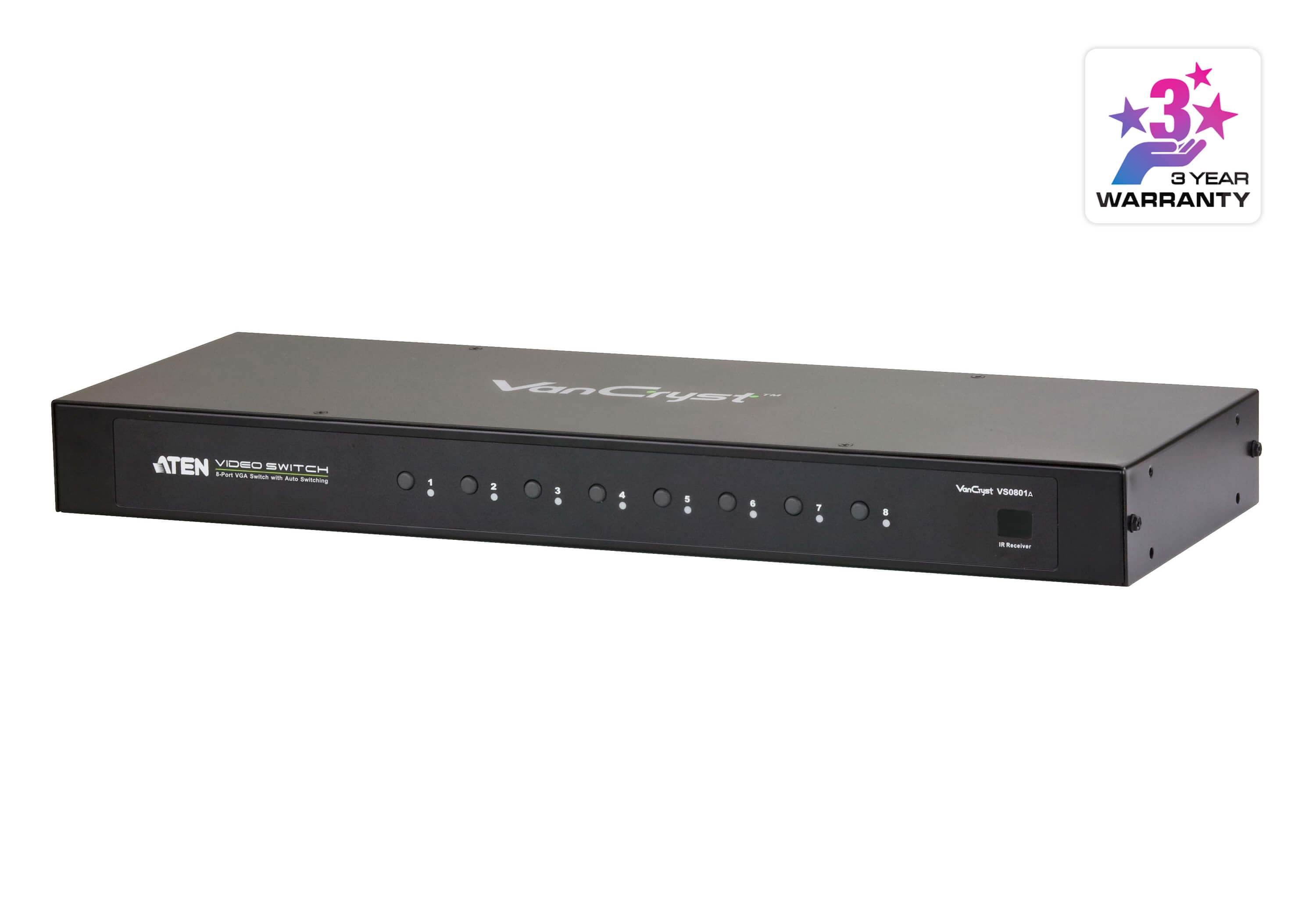

8-Port VGA/Audio Switch with Auto Switching
VS0801A
VGA/аудио превключвател — свързва 8 източника към един монитор или проектор при честотна лента 300 MHz. Управление с бутони, RS-232, IR дистанционно или автоматично превключване.
Характеристики

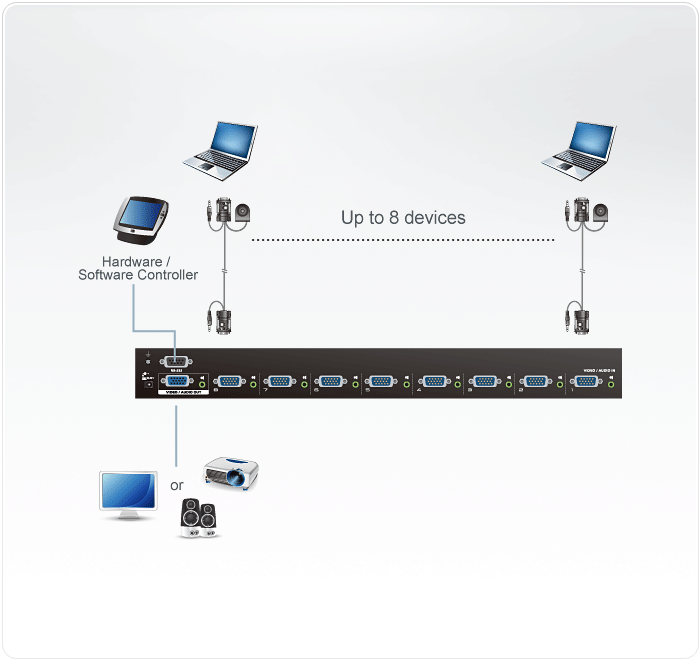

- Display the video output of up to eight computers on a single VGA display
- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable*
- Supports stereo audio
- Built-in bi-directional RS-232 serial port for high-end system control
- RS-232 Control: •Power On Detection – if one VGA source is powered off, the VS0801A will automatically switch to the next powered-on source •Auto Switching – sets the priority for auto switching to a connected port •Pushbutton Lock – locks use of the front panel pushbuttons
- Supports up to 300MHz bandwidth for optimal video quality
- Superior video quality – up to 2048 x 1536 @ 60Hz
- Long distance transmission – up to 30 m
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
- Video Dyna Sync™ – Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports
- Supports Dynamic DDC to monitor and receive updated EDID information from displays * Note: The Port Switching VGA cable does not come with the package and must be purchased separately

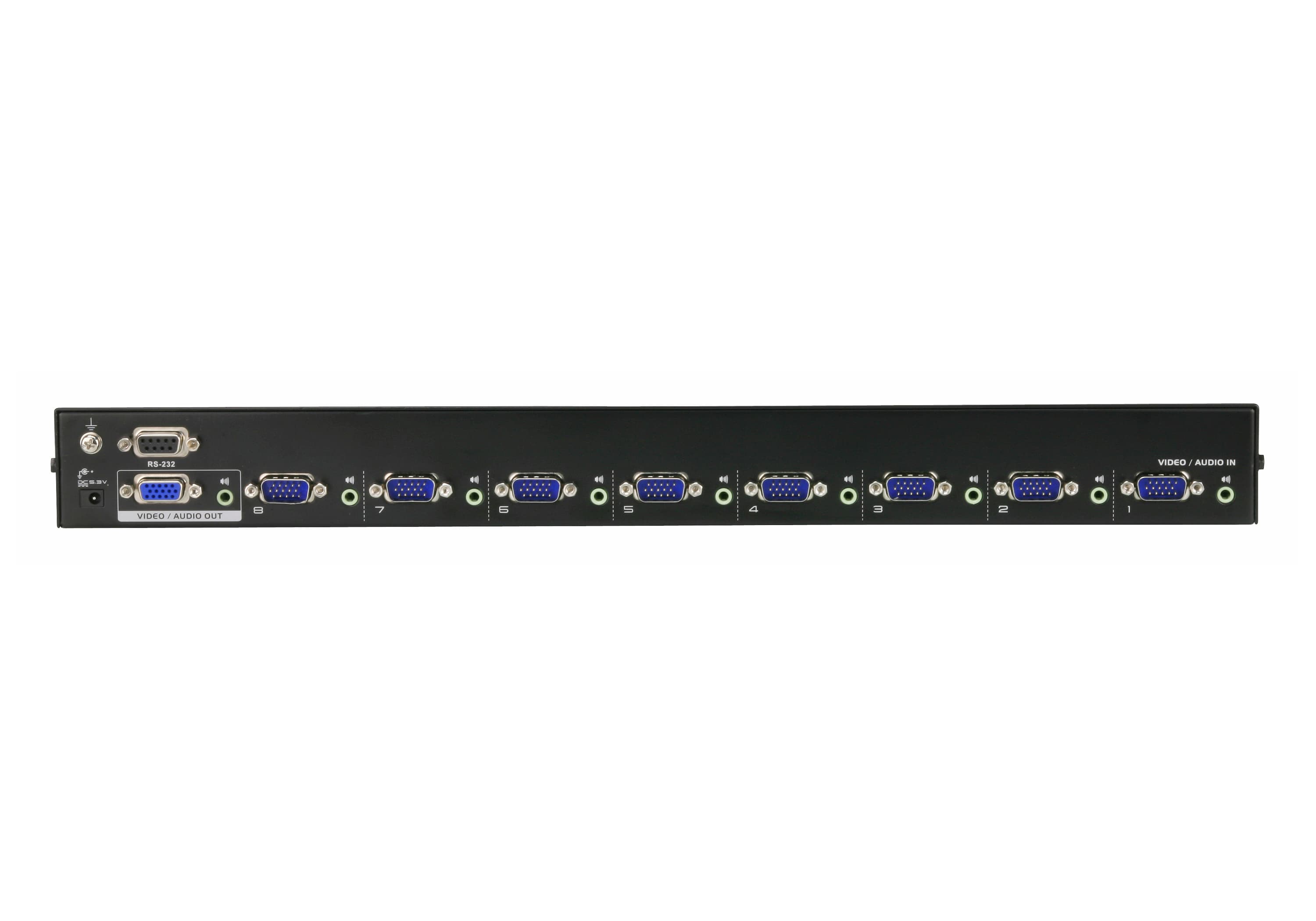

Видео вход
- Интерфейси
- 8 x HDB-15 Male (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
Видео
- Макс. честотна лента
- 300 MHz
- Макс. резолюция
- Up to 1920 x 1440
- Макс. разстояние
- Up to 30 m
Аудио
- Вход
- 8 x Mini Stereo Jack Female (Green)
- Изход
- 1 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5.3V:1.01W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.10 kg ( 4.63 lb )
- Размери (Д x Ш x В)
- 43.70 x 15.98 x 4.40 cm (17.2 x 6.29 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
