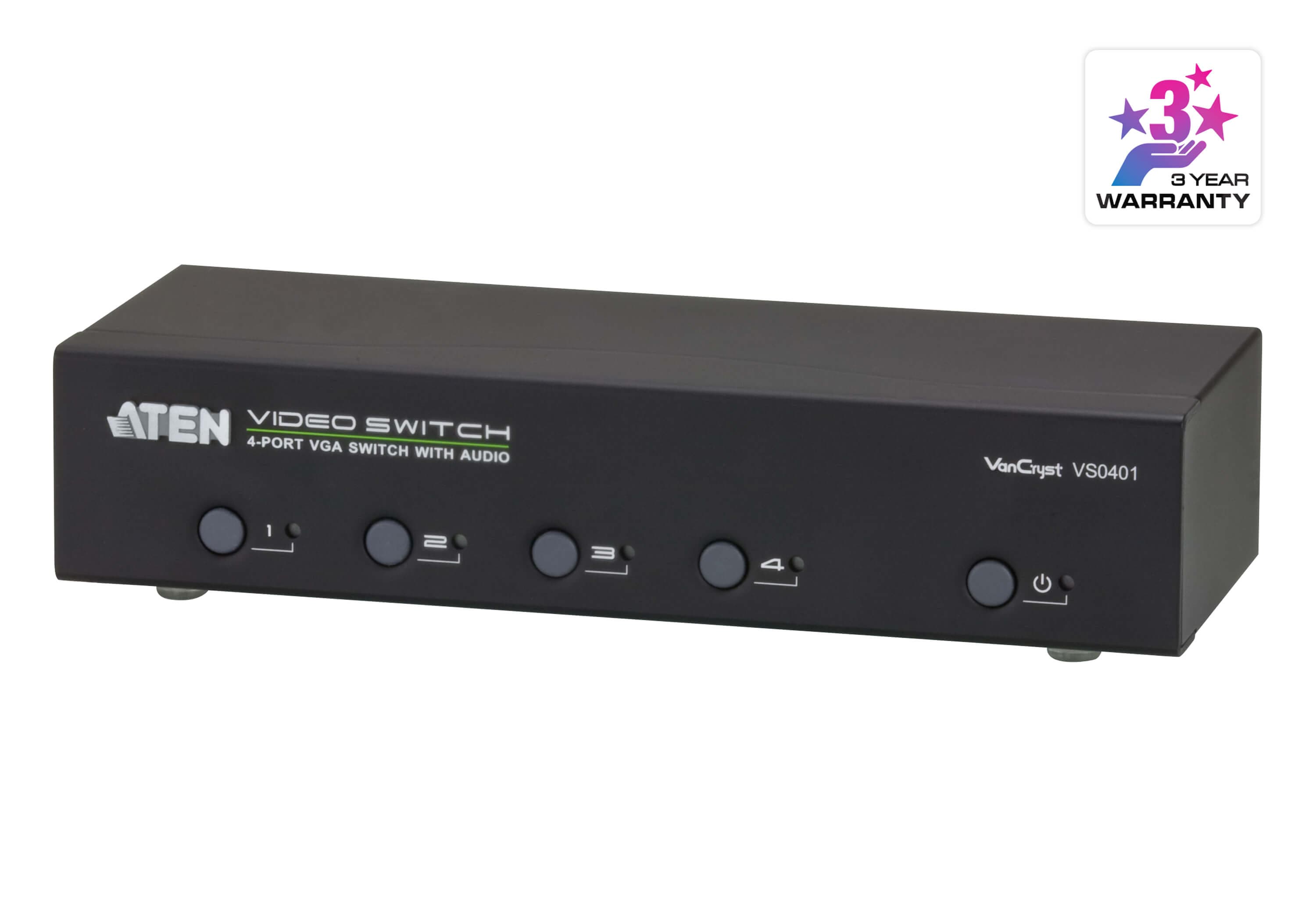

Превключвател за VGA и аудио — 4 компютъра към един монитор или проектор при резолюция до 1920 x 1440. Избор на източник с бутони, RS-232 или IR.
Характеристики

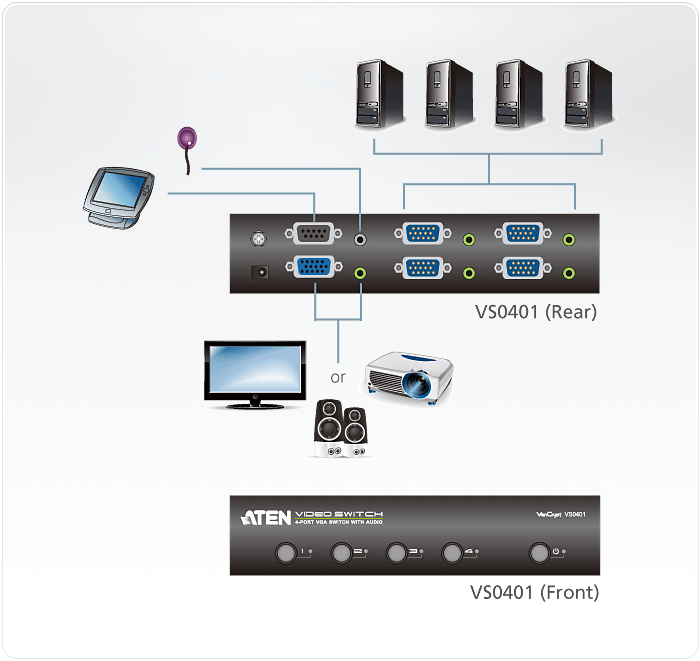

- Displays the video output of four computers on a single monitor or projector

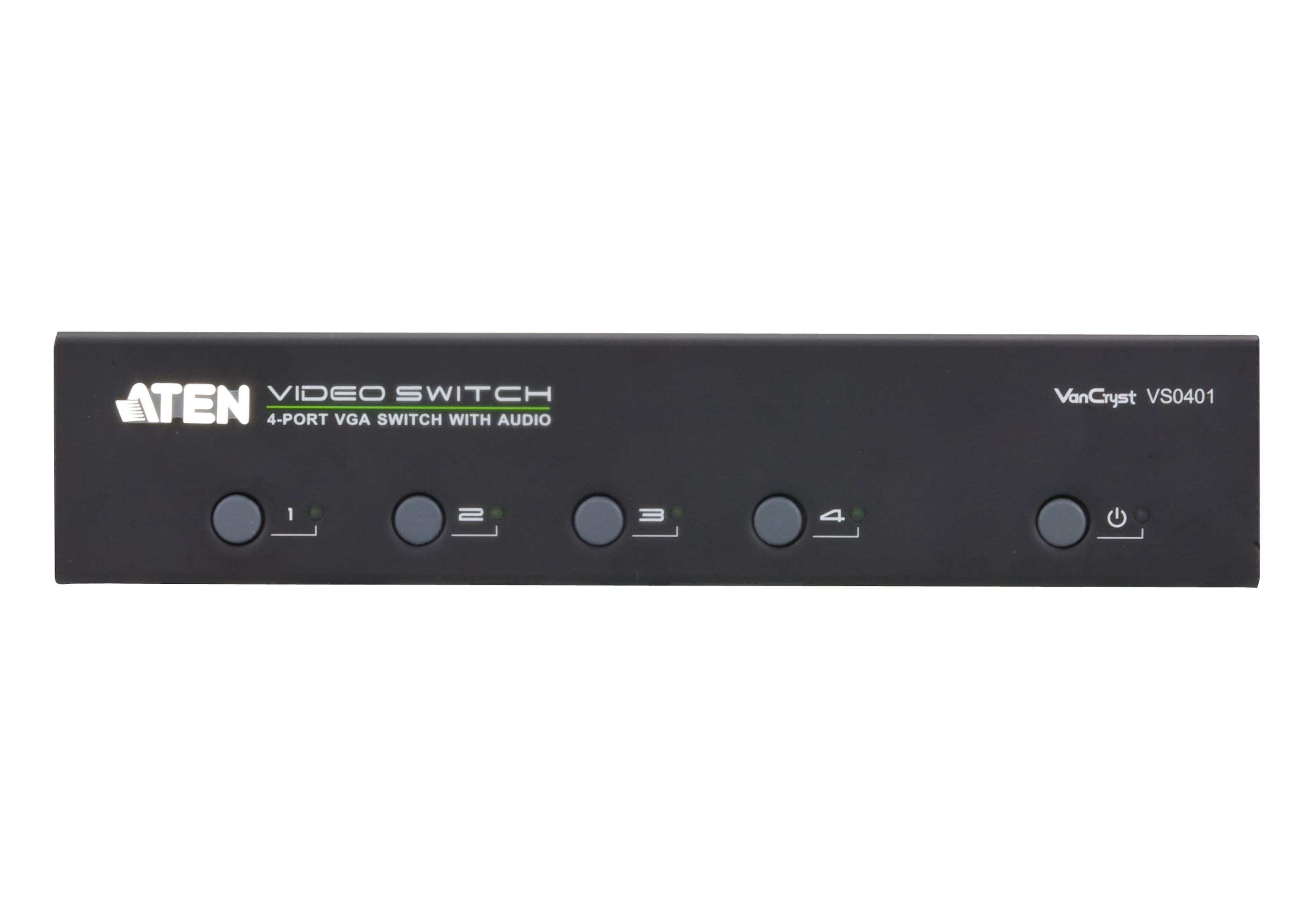

- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
- Superior video quality – up to 1920 x 1440
- Long-distance transmission – up to 30 m *
- Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
- Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Built-in bi-directional RS-232 serial port for high-end system control **
- RS-232 Control: • Power On Detection – if one VGA source is powered off, the VS0401 will automatically switch to the next powered-on source • Auto Switching – sets the priority for auto switching to a connected port • Pushbutton Lock – locks use of the front panel pushbuttons
- Supports stereo audio
- DDC compatible
- Supports up to 300MHz bandwidth for optimal video quality
- LED indication of power status and source device
- All-metal casing provides durability and protection
- Plug-and-play – no software installation required * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality. ** Note: The VS0401 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

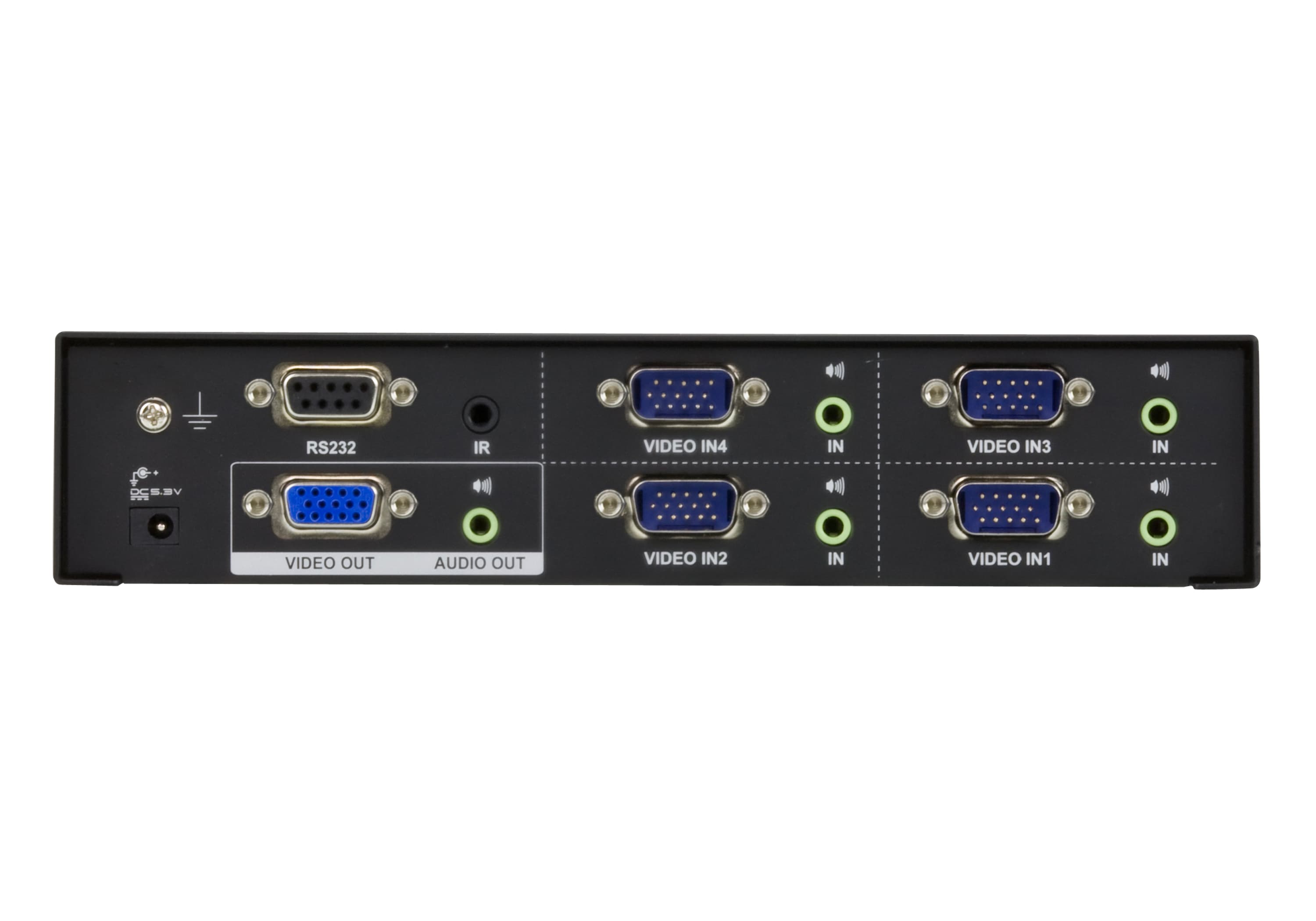

Видео вход
- Интерфейси
- 4 x HDB-15 Male (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 30 m
Видео
- Макс. честотна лента
- 300 MHz
- Макс. резолюция
- Up to 1920 x 1440
- Макс. разстояние
- Up to 30 m
Аудио
- Вход
- 4 x Mini Stereo Jack Female (Green)
- Изход
- 1 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5.3V:0.47W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.66 kg ( 1.45 lb )
- Размери (Д x Ш x В)
- 20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
