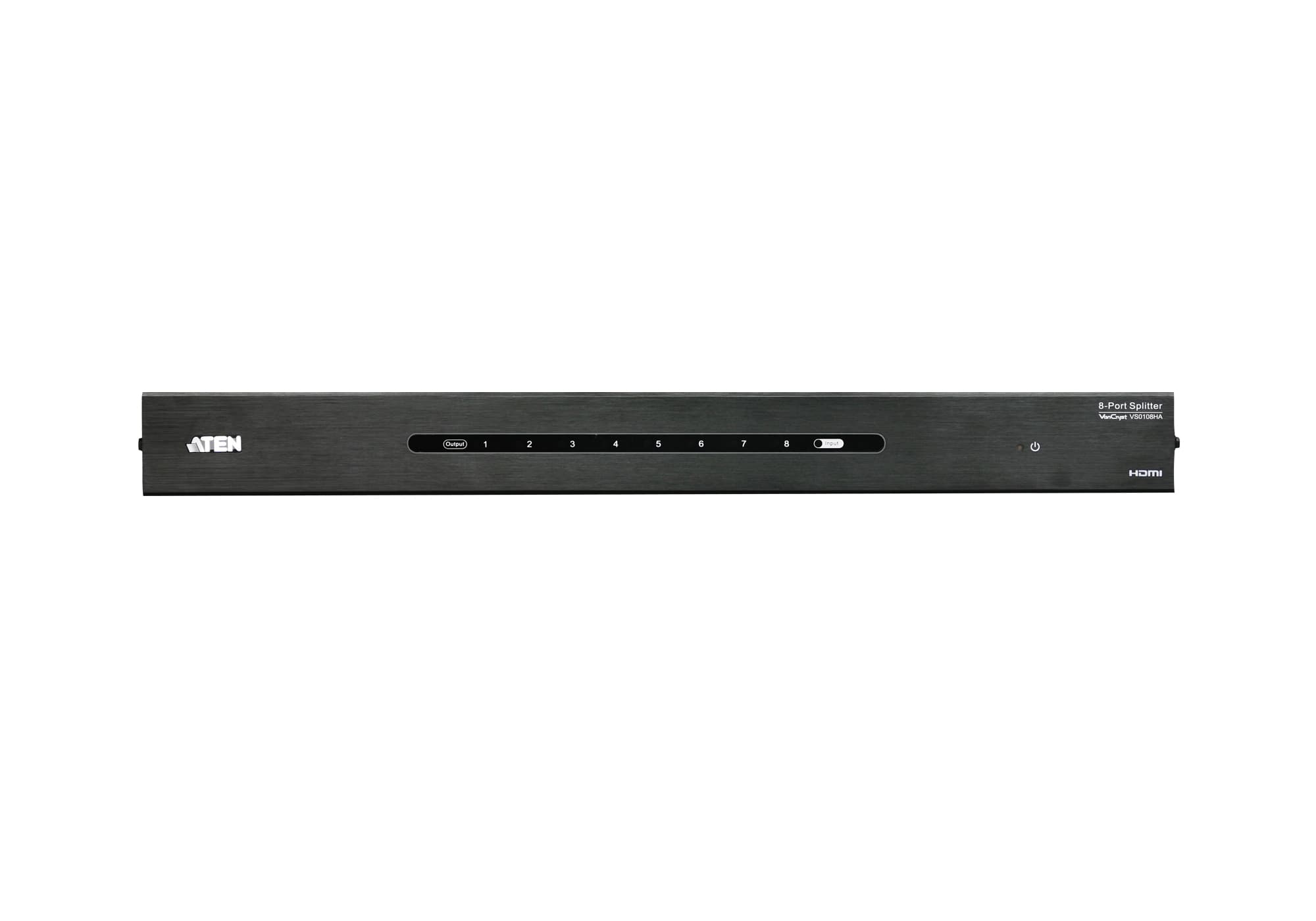

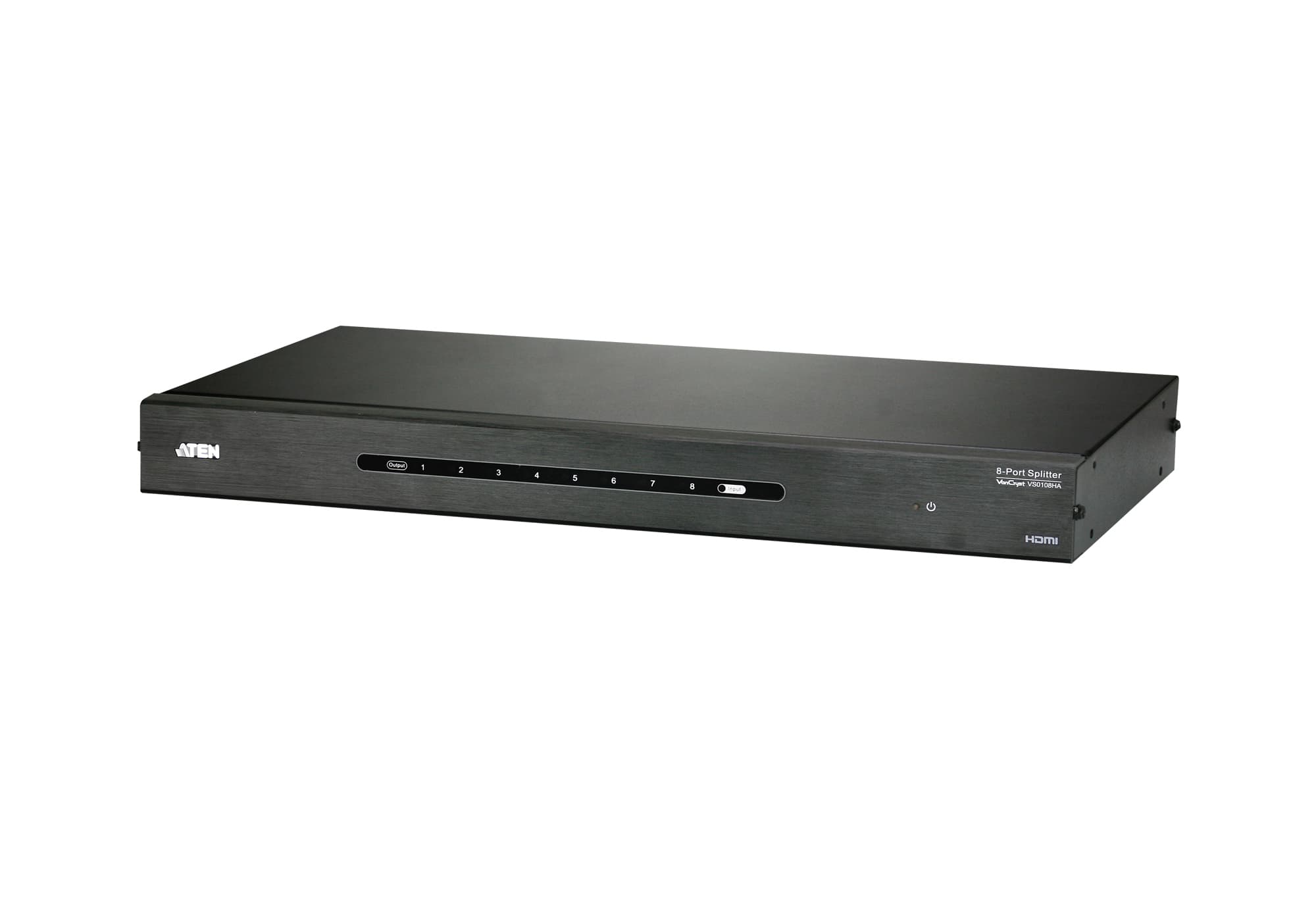

8-Port 4K HDMI Splitter
VS0108HAСнет от производство
HDMI сплитер, който подава един източник към 8 екрана при 4K. За презентационни зали и видеостени с еднакво съдържание на всички дисплеи.
Характеристики

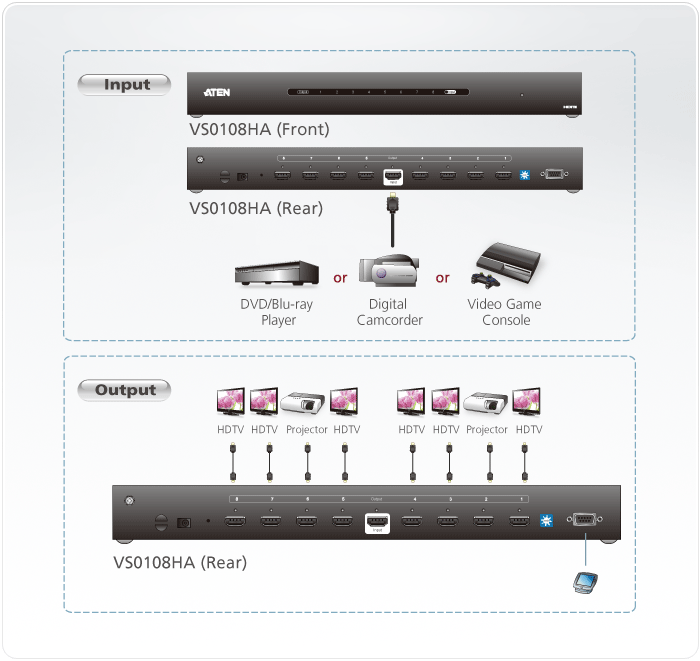

- Connects one HDMI source to eight HDMI displays at the same time
- HDMI (3D, Deep, Color, 4kx2k); HDCP 1.3 Compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Features EDID Expert technology : • EDID Library with default EDID configurations • Built-in EDID Mode selection • Copies a display's EDID to the source device
- Built-in bi-directional RS-232 serial control port for high-end system control
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play – no software installation required
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3m @3840*2160@30 (4:4:4)
Видео изход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15m @3840*2160@30 (4:4:4)
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K); HDCP Compatible
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 8 x HDMI Type A Female (Black)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- EDID настройки
- EDID Mode:Default / Port 1 / Auto

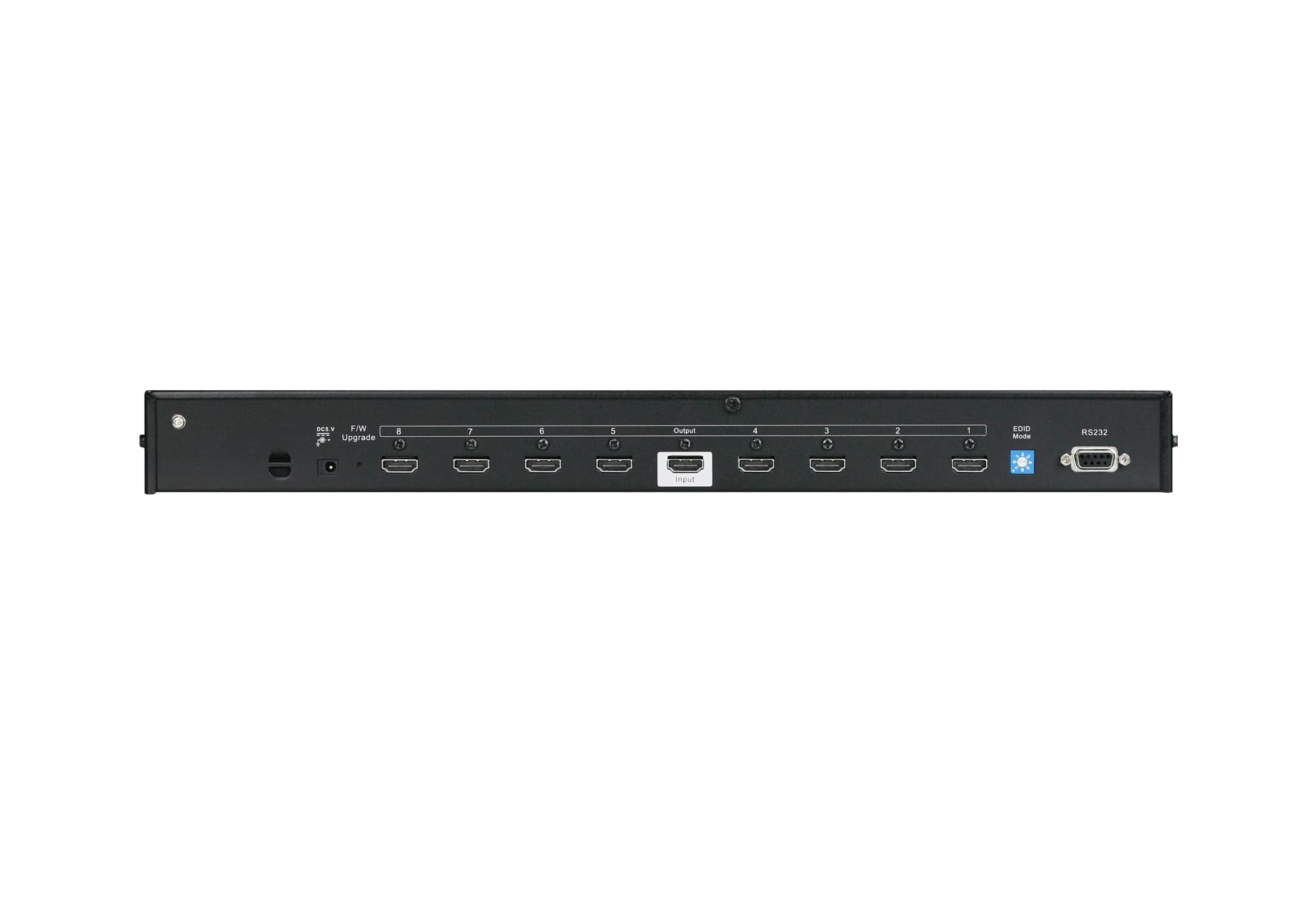

Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:12.1W:57BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.74 kg ( 3.83 lb )
- Размери (Д x Ш x В)
- 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
