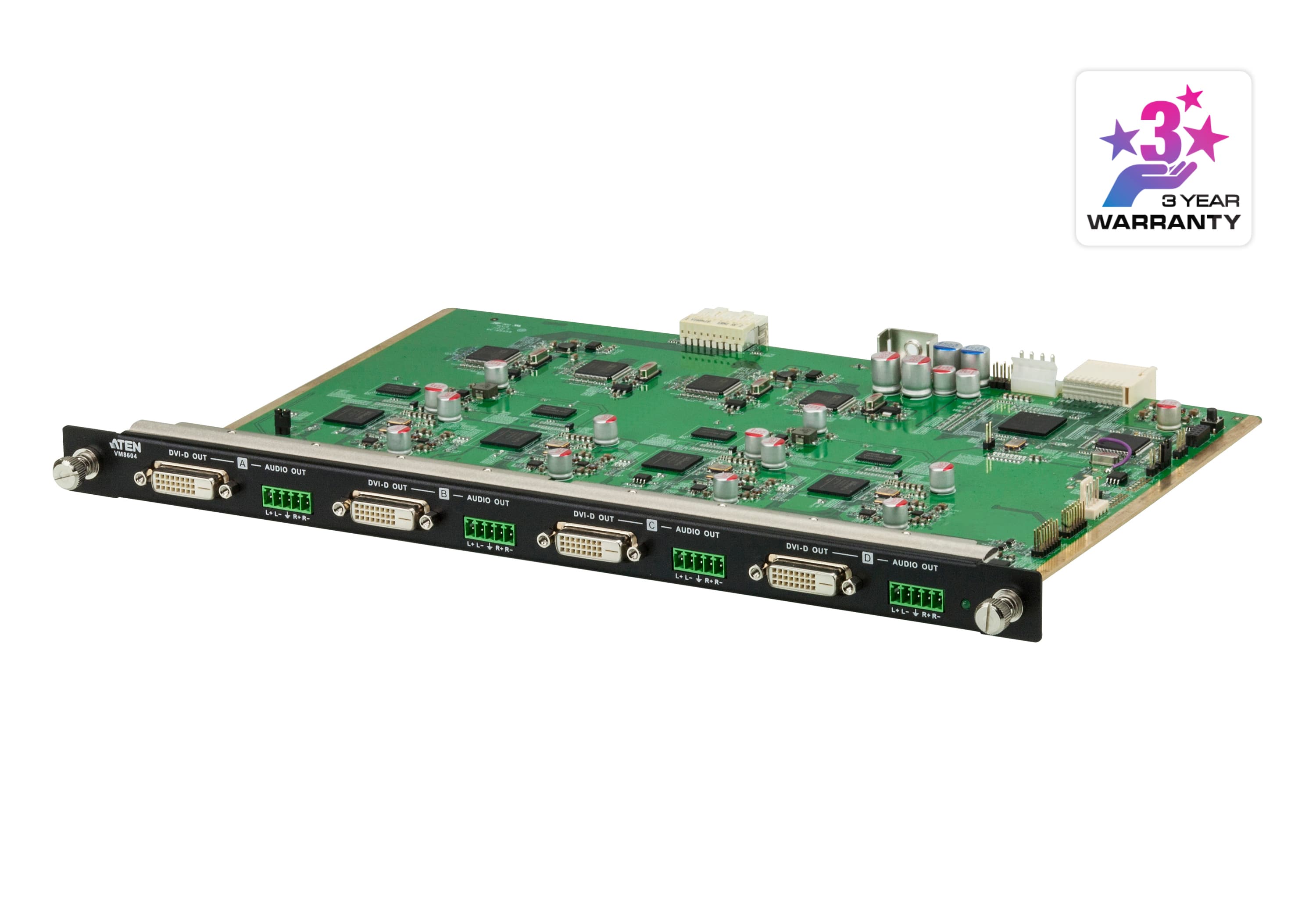

Изходна платка с 4 DVI-D порта и скалер за матриците VM1600 и VM3200 — подава видео към 4 дисплея при резолюция до 1920 x 1200 @ 60Hz, съвместима с HDCP 1.4.
Характеристики
- 4-port DVI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Superior video quality – up to 1920 x 1200 @ 60Hz
- HDCP 1.4 Compatible
- Seamless Switch™– provides continuous video streams, real-time switching and stable signal transmission
- Built-in scaler on each output port to support the scaling function for different video resolutions
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- Built-in EDID wizard – provides an easy way to customized EDID settings
- Hot-swappable design for easy integration of I/O boards
- Audio-enabled
Видео изход
- Интерфейси

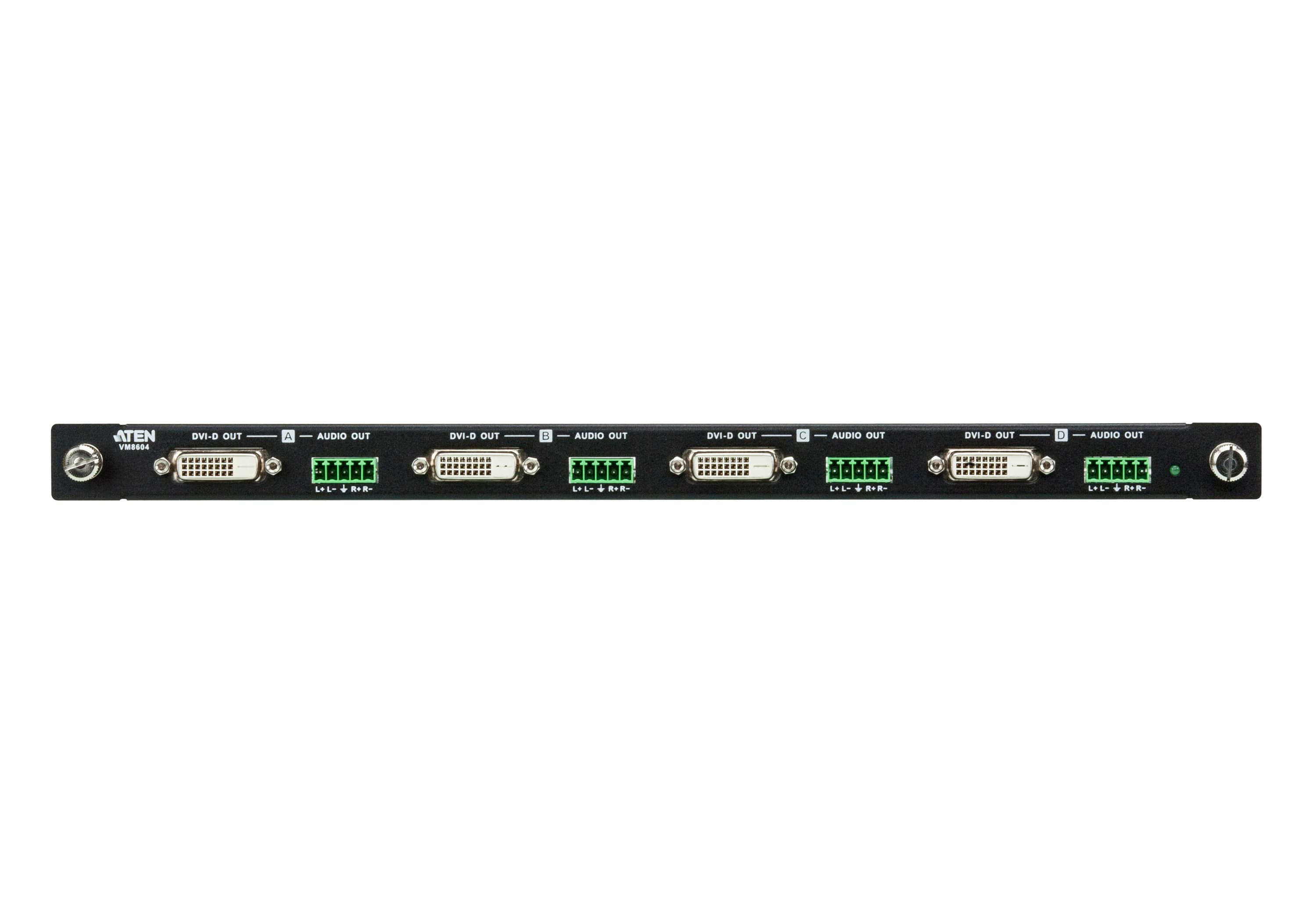

- 4 x DVI-D Female (White)
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 6.75 Gpbs (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDCP 1.4 Compatible
- Макс. резолюция
- Up to 1920 x 1200
- Макс. разстояние
- 5 m
Аудио
- Изход
- 4 x Captive Screw Connector, 5 Pole *Audio signal type: stereo, balanced / unbalanced.
- Консумация
- 20.1W:94BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.55 kg ( 1.21 lb )
- Размери (Д x Ш x В)
- 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Брой в кашон
- 2 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
