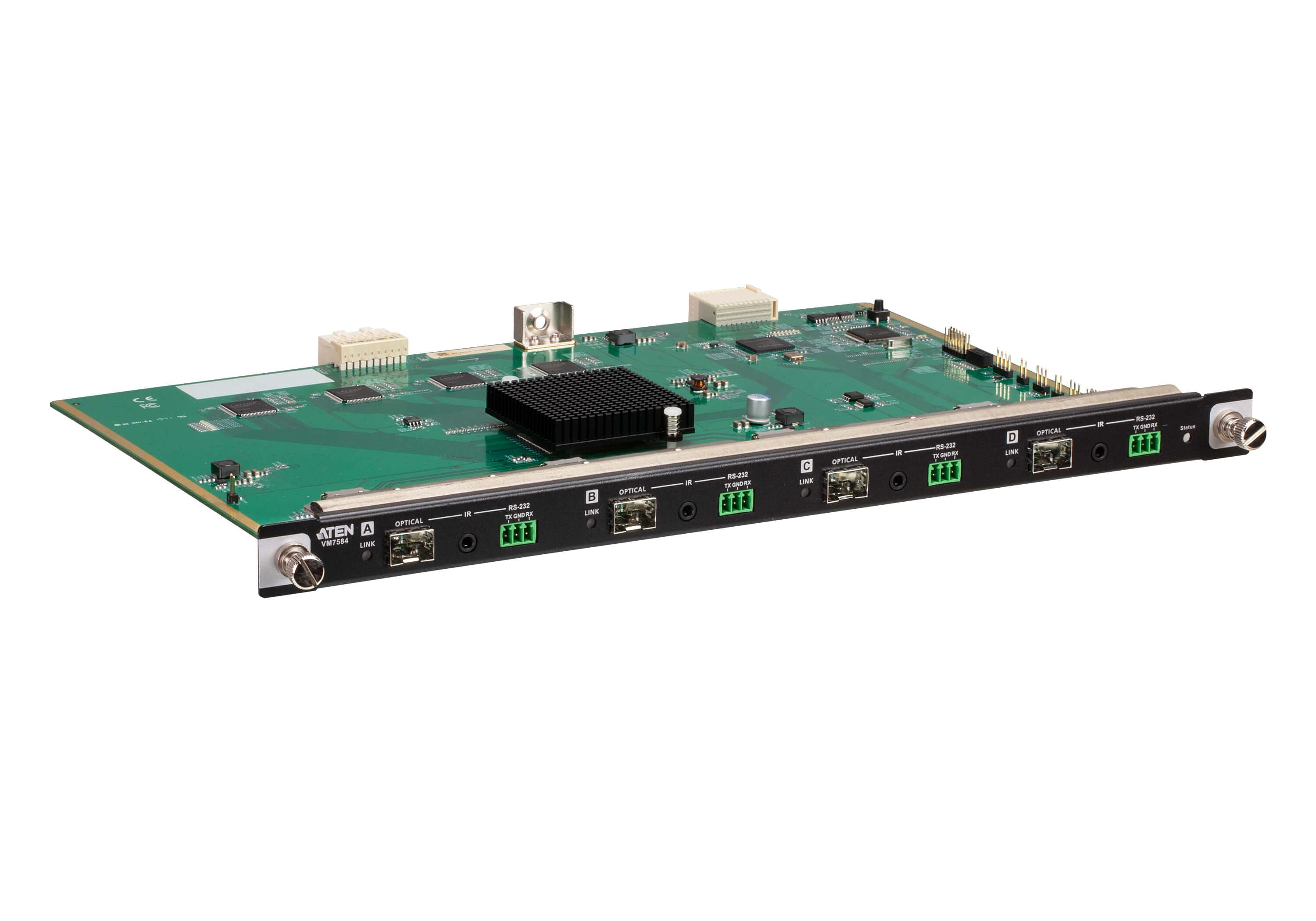

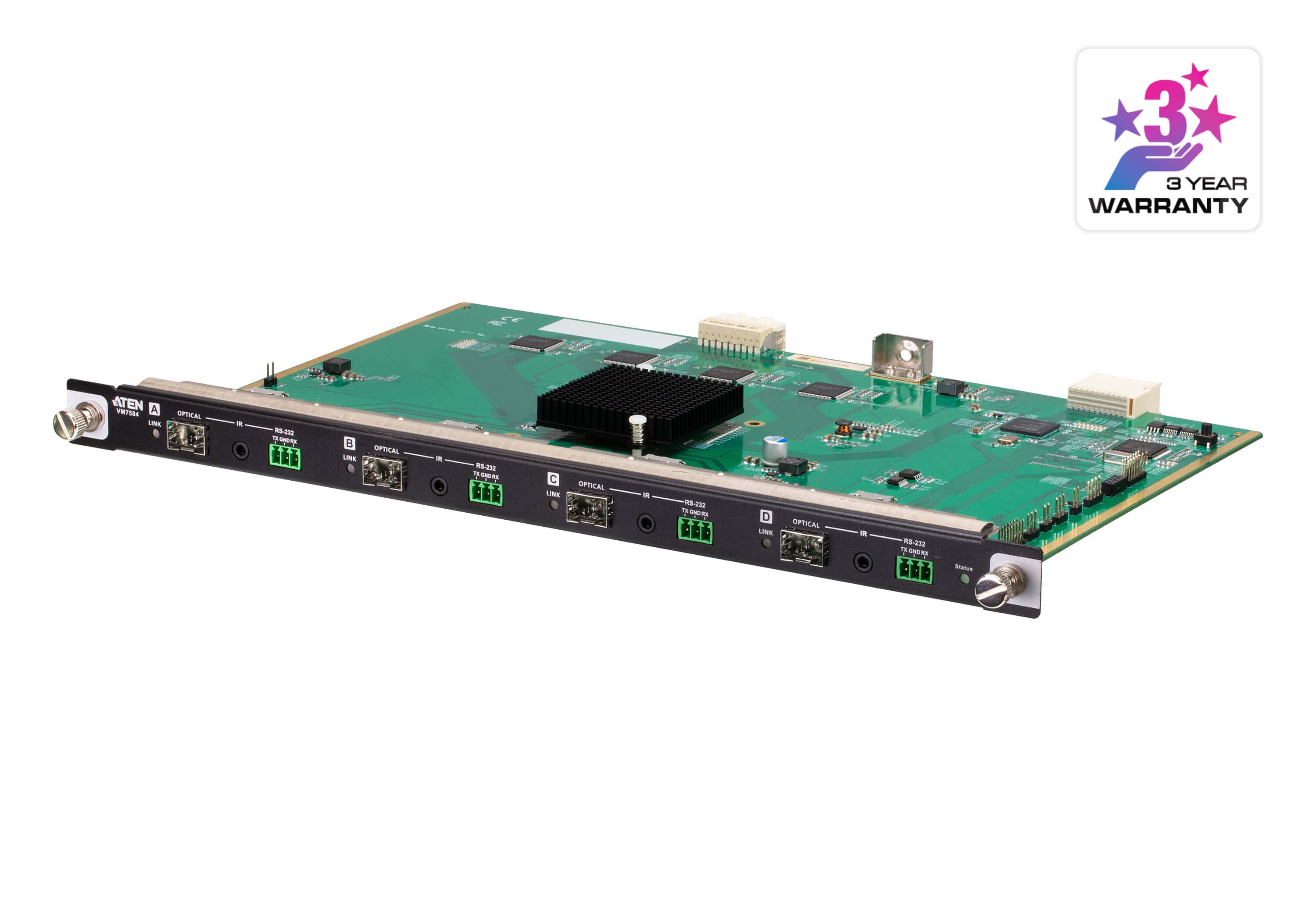

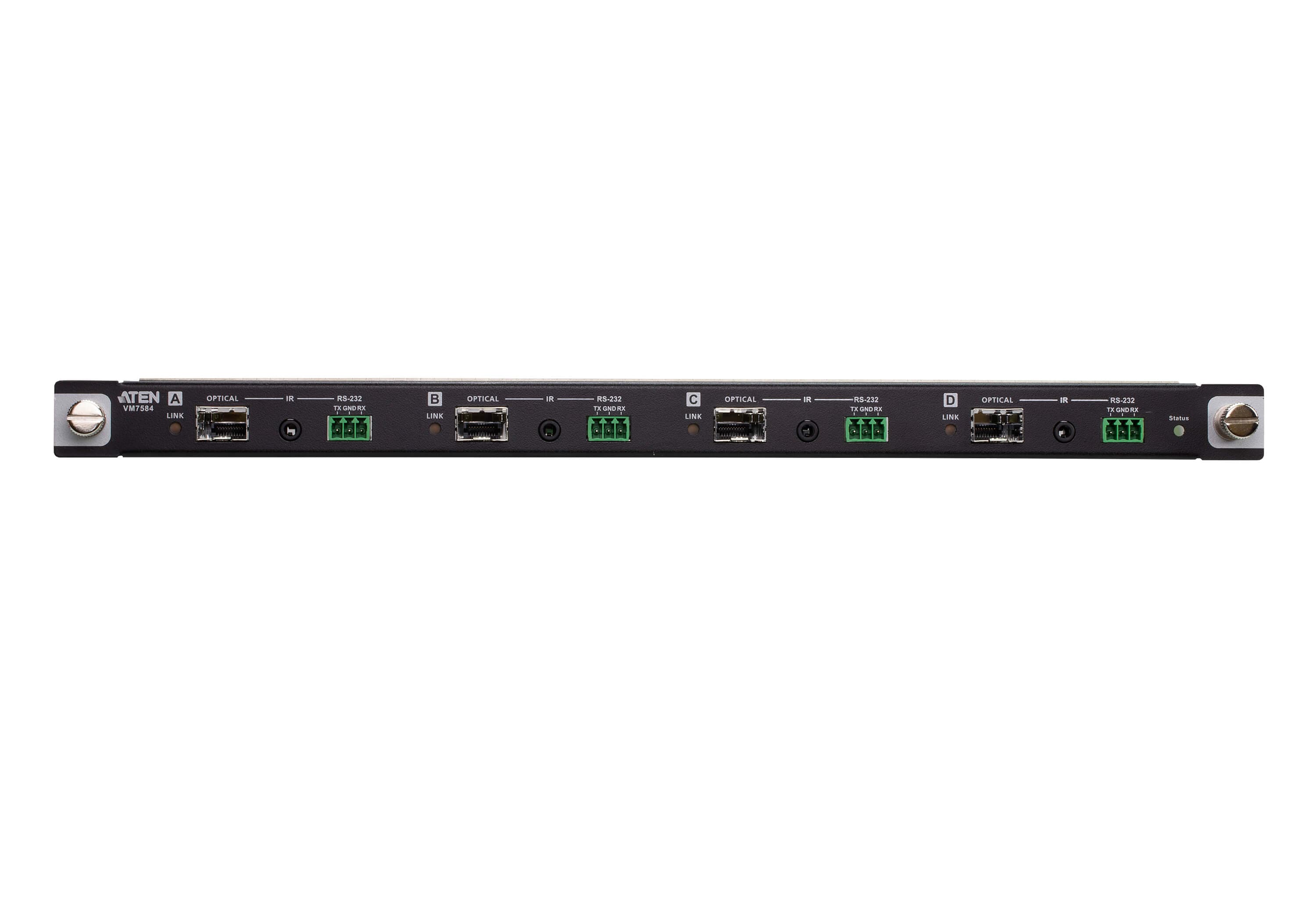

4-Port 10G Optical Input Board (4K@300m (K1, MM) / 10km (K2, SM))
VM7584
Входна платка с 4 двупосочни SFP+ 10G порта за модулните матрици VM3250 / VM3200 / VM1600A. Пренася AV, IR и RS-232 по дуплексен оптичен кабел до 300 m (K1, многомод) или 10 km (K2, едномод).
Характеристики
- Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
- Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables
- Superior video quality over long-distance transmission – up to 4096 x 2160@60Hz (4:2:0), 300m with VM7584K1 over multimode cables or 10km with VM7584K2 over single-mode cables
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Consumer Electronics Control (CEC) support
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners*
- Bi-directional IR channel – IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz*
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Hot-swappable fiber optic module and I/O boards for easy integration and maintenance *Note: The VM7584 is designed to work with the VE883AT True 4K HDMI Optical Transmitter. These features are only available when used with the VE883AT.
Оптични влакна
- Скорост на данните
- 10.3 Gbps
- Дължина на вълната
- VM7584K1: 850 nm VM7584K2: 1310 nm
- Тип оптично влакно
- VM7584K1: Multimode(MM), OM3, LC Duplex Type VM7584K2: Singlemode(SM), LC Duplex Type
Видео вход
- Интерфейси
- 4 x bi-directional SFP+ (LC)
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP 2.2 compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. разстояние
- VM7584K1: up to 300m (MM, OM3, Black) VM7584K2: up to 10km (SM, Blue)
Управление
- RS-232 канал
- 4 x Captive Screw Connectors, 3 pole
- IR канал
- 4 x Mini Stereo Jack Female (Black)
Индикатори
- Състояние
- 1 (Green)
- Връзка
- 4 (Orange)
- Консумация
- 10.54W:49BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.57 kg ( 1.26 lb )
- Размери (Д x Ш x В)
- 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Брой в кашон
- 2 pcs
- Забележка
- 1. The operating distance may vary depending on the fiber type, network bandwidth, connector splicing, signal losses, modal or chromatic dispersion, environmental factors, and kinks. 2. ATEN recommends using single-mode optical fibers that conform to IEC60793-2-50 B1.1 or ITU-T G.652.B specifications; multimode optical fibers that conform to IEC11801 (OM3) specification. 3. The VM7584 is a class 1 laser product and complies with the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
