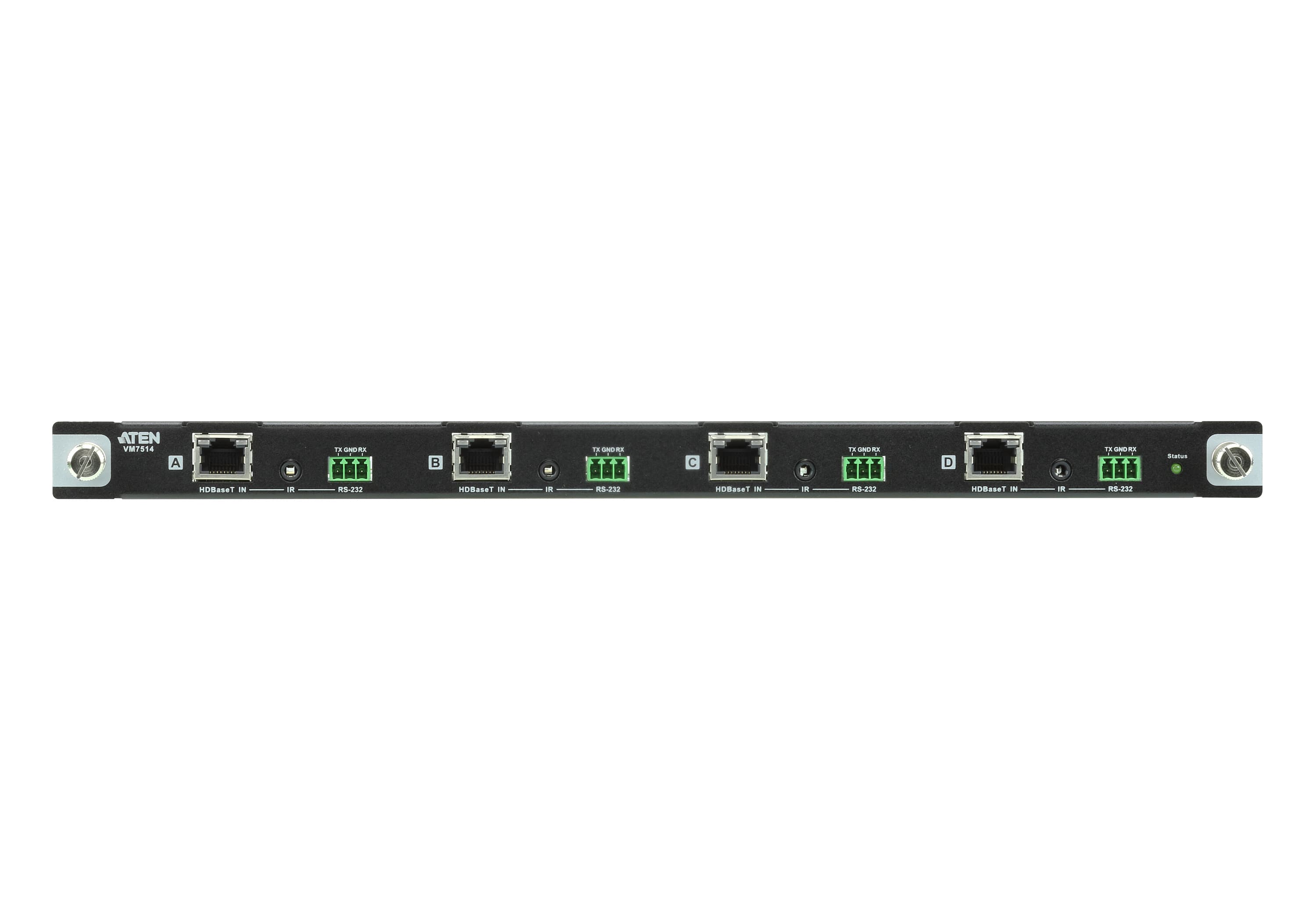

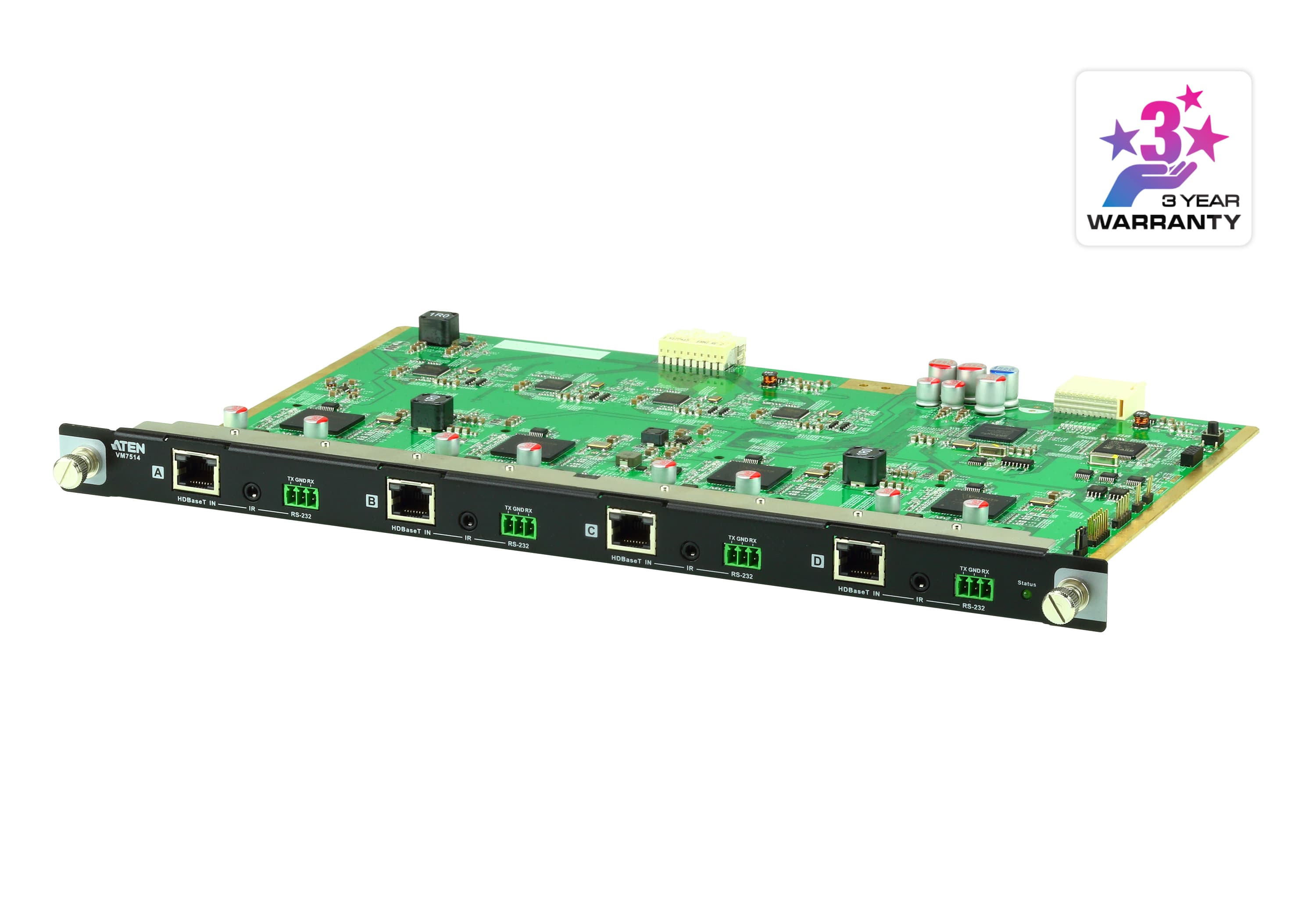

Входна платка с 4 HDBaseT порта за матриците VM1600A и VM3200 — приема сигнали от отдалечени предаватели на до 100 m по Cat 5e/6, при резолюция до 4096 x 2160.
Характеристики
- 4-port HDBaseT Input Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
Видео вход
- Интерфейси
- 4 x RJ-45 Female (Silver)
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDBaseT, HDCP 1.4 compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. разстояние
- 100 m (Cat 6a)
Управление
- RS-232
- 4 x Captive Screw Connectors, 3 pole
- IR
- 4 x Mini Stereo Jack Female (Black)
- Консумация
- 24.5W:115BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.64 kg ( 1.41 lb )
- Размери (Д x Ш x В)
- 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
