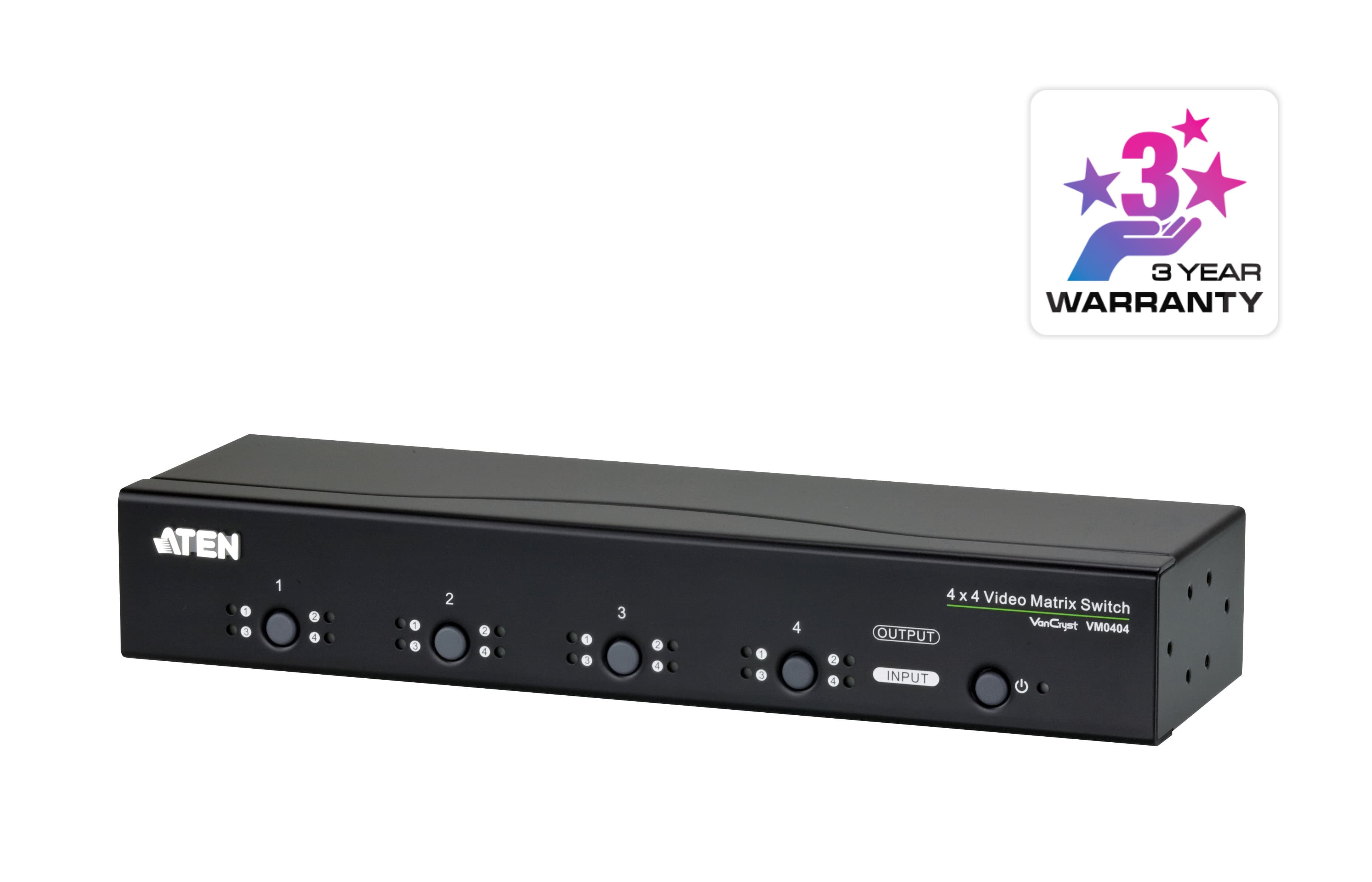

4x4 VGA/Audio Matrix Switch
VM0404Снет от производство
Матричен превключвател 4x4 за VGA и аудио — свързва четири източника към четири монитора или проектора едновременно, с избор на EDID режим и обхват до 30 m.
Характеристики

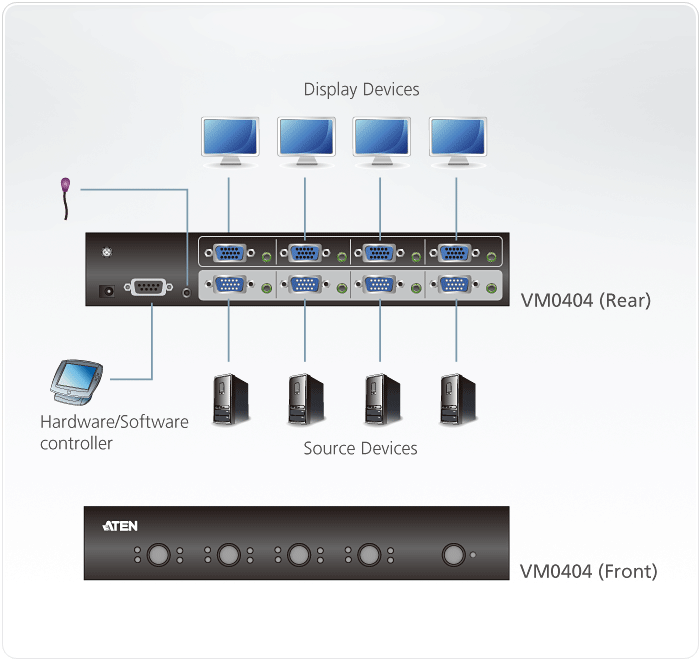

- Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
- Long distance transmission – up to 30m
- Easily switch between multiple sources and multiple displays

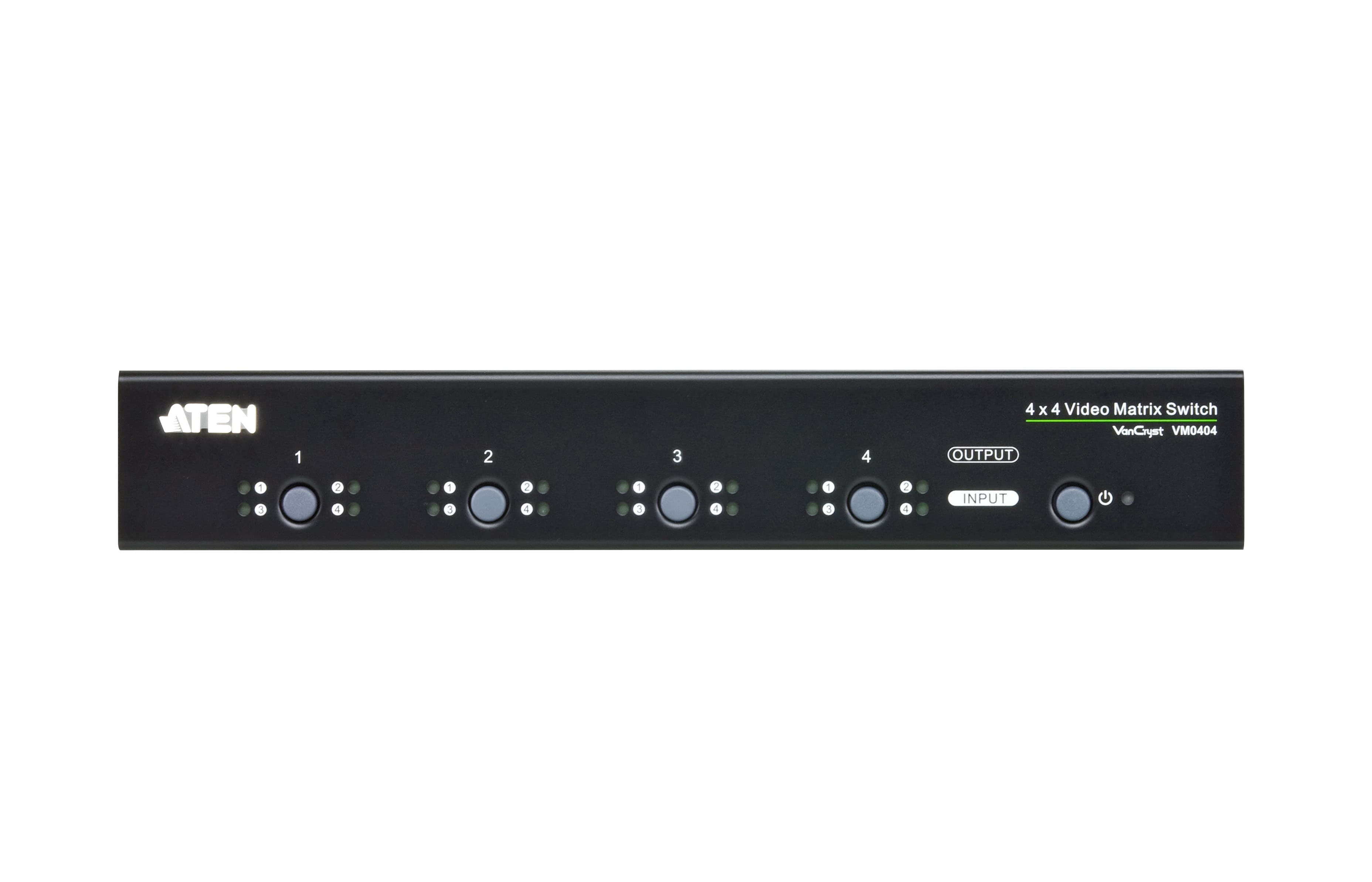

- Easy Operation: • Front panel pushbuttons • RS-232 serial controller
- Superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
- Supports up to 300 MHz bandwidth for high performance video
- EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
- Built-in bi-directional RS-232 serial port for high-end system control*
- Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
- Rack Mountable
- All-metal casing * Note: The VM0404 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

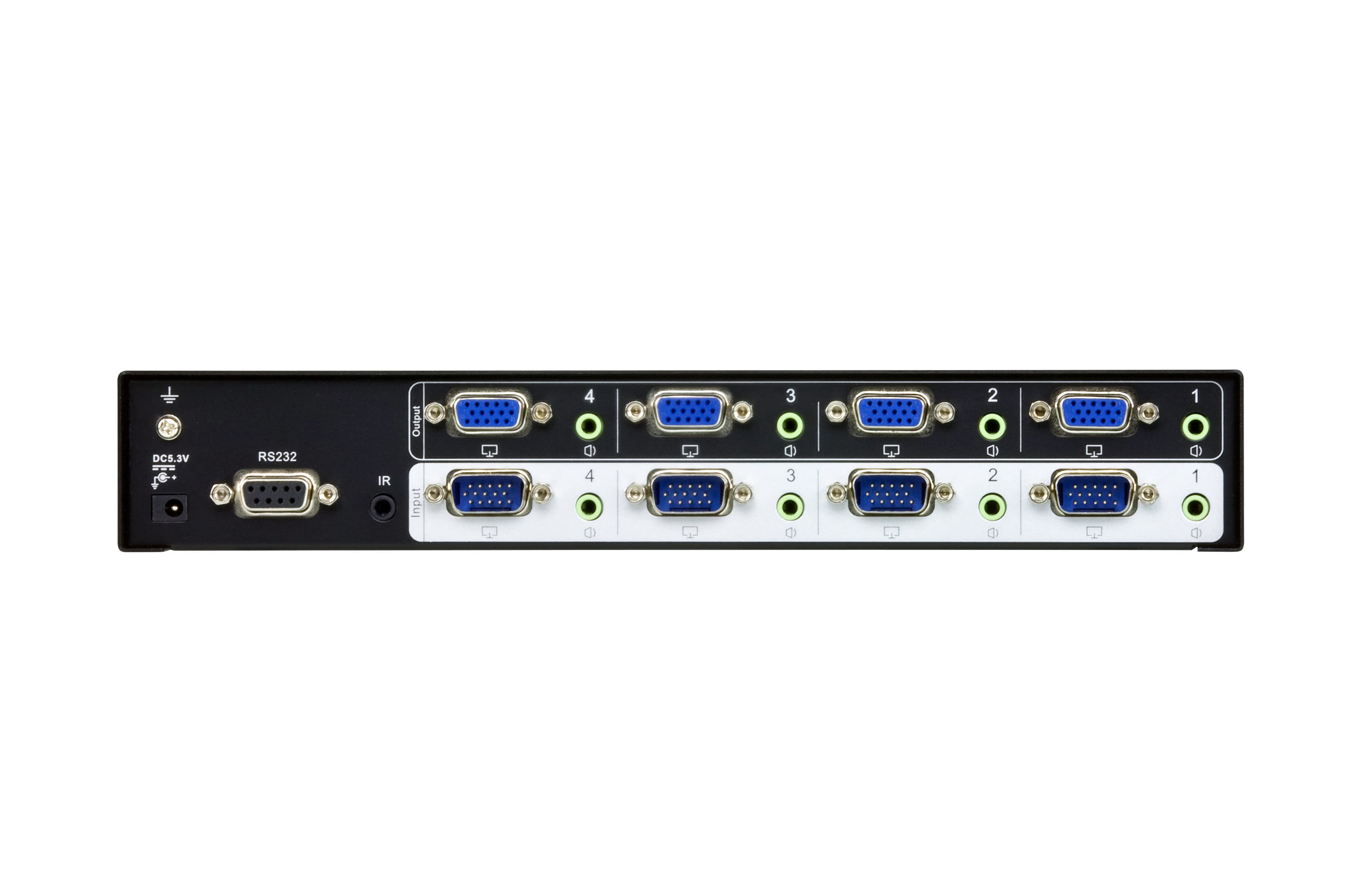

Видео вход
- Интерфейси
- 4 x HDB-15 Male (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 1.8 m
Видео изход
- Интерфейси
- 4 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 30 m
Видео
- Макс. честотна лента
- 300 MHz
- Макс. резолюция
- Up to 1920 x 1440
- Макс. разстояние
- Up to 30 m
Аудио
- Вход
- 4 x Mini Stereo Jack Female (Green)
- Изход
- 4 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Auto
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5V:2.54W:12BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.87 kg ( 1.92 lb )
- Размери (Д x Ш x В)
- 26.00 x 7.61 x 4.40 cm (10.24 x 3 x 1.73 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
