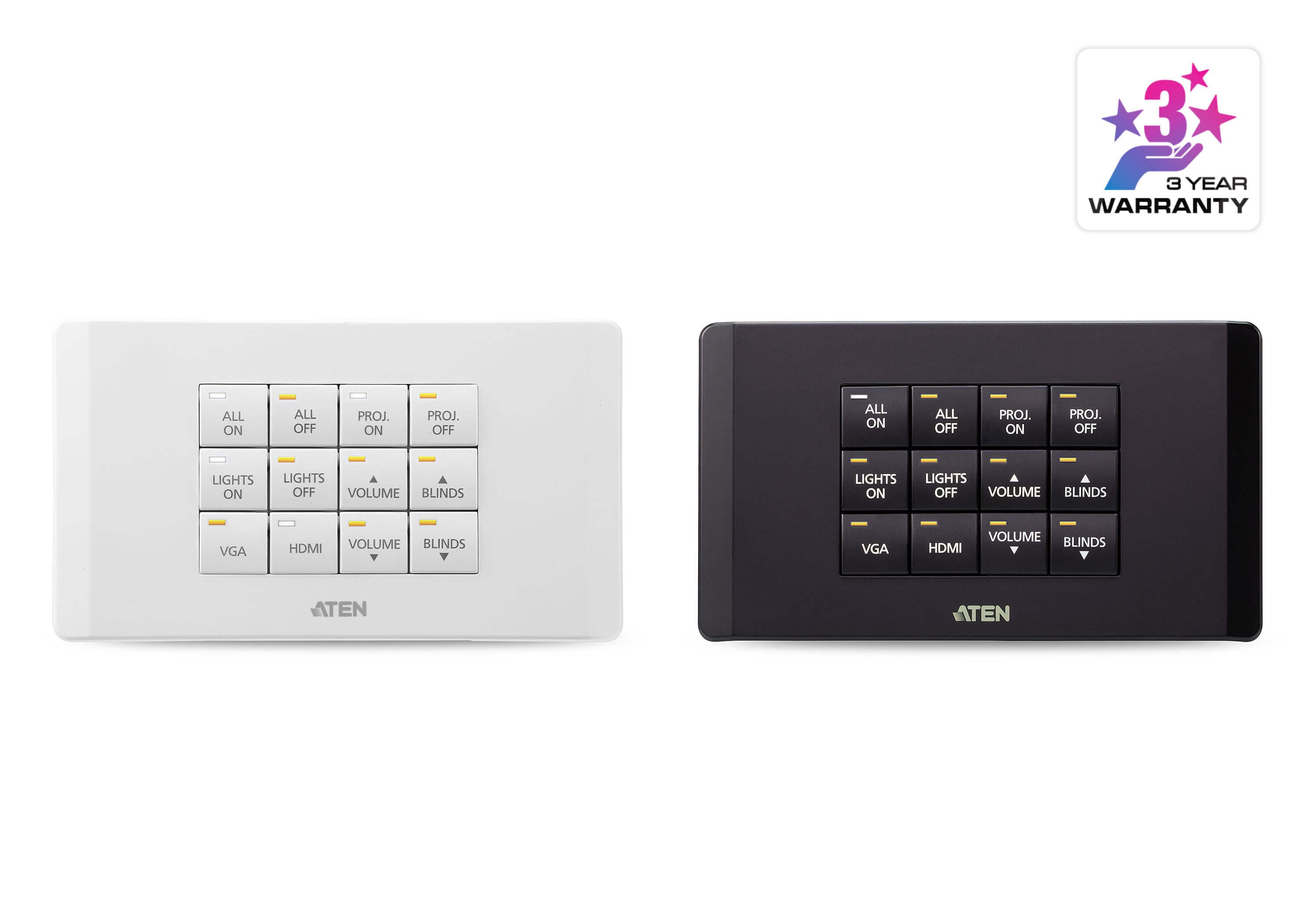

ATEN Control System - 12-button Keypad (EU, 2 Gang)
VK112EU
Клавиатура за ATEN Control System с 6 до 12 бутона в 125 подредби и връзка по Ethernet със захранване по PoE. Монтира се в двойна (2 gang) EU кутия; в черен или бял цвят.
Характеристики
- Keypad - provides physical connection to the ATEN Control System

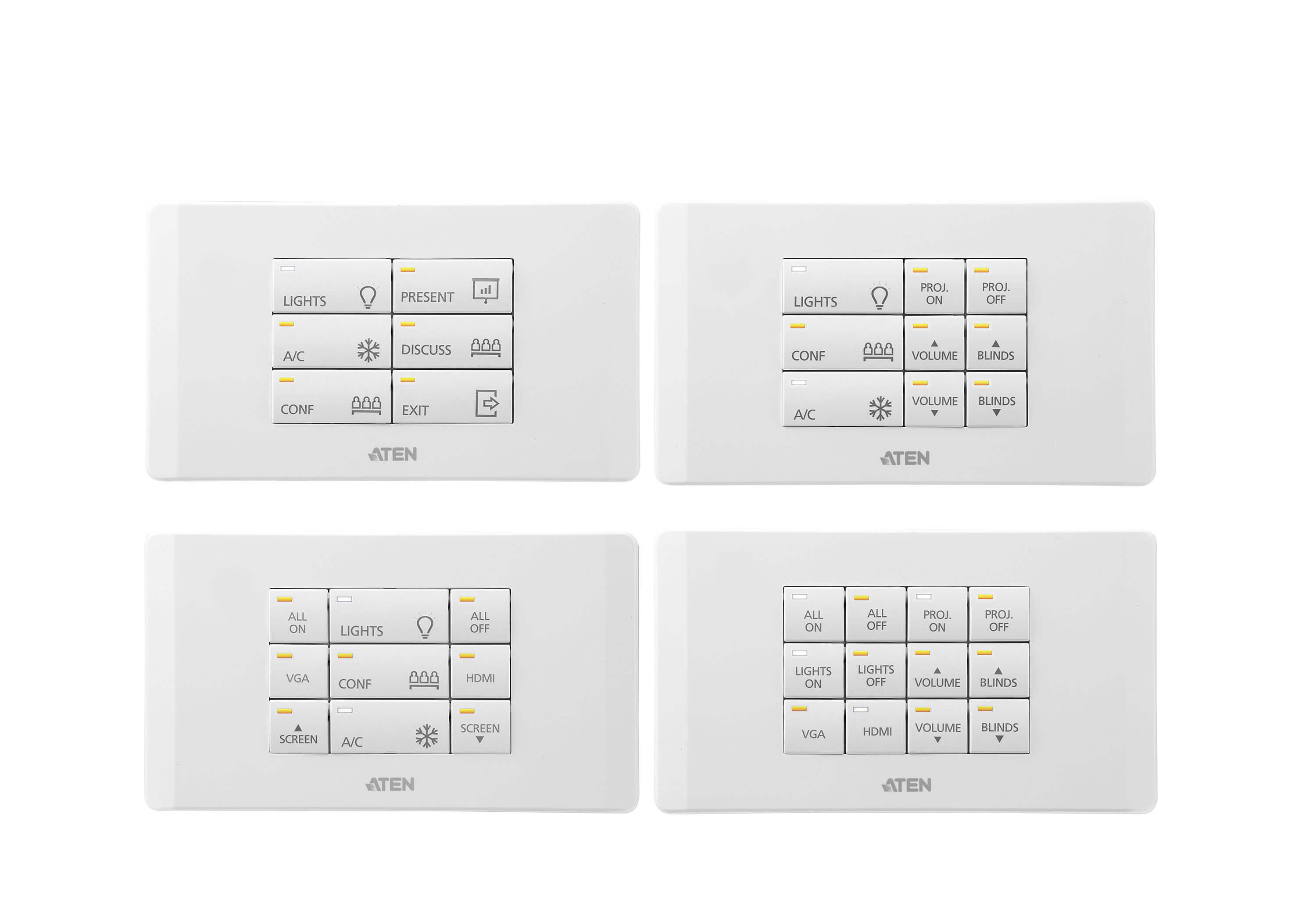

- Fully customizable with 125 layout combinations of 6 to 12 buttons
- Available in black or white color
- System LED indicators for quick connection status check
- Dual-color button LEDs for clear indication and visibility in dark environments
- Easy ID pairing with Control Box for Ethernet communication

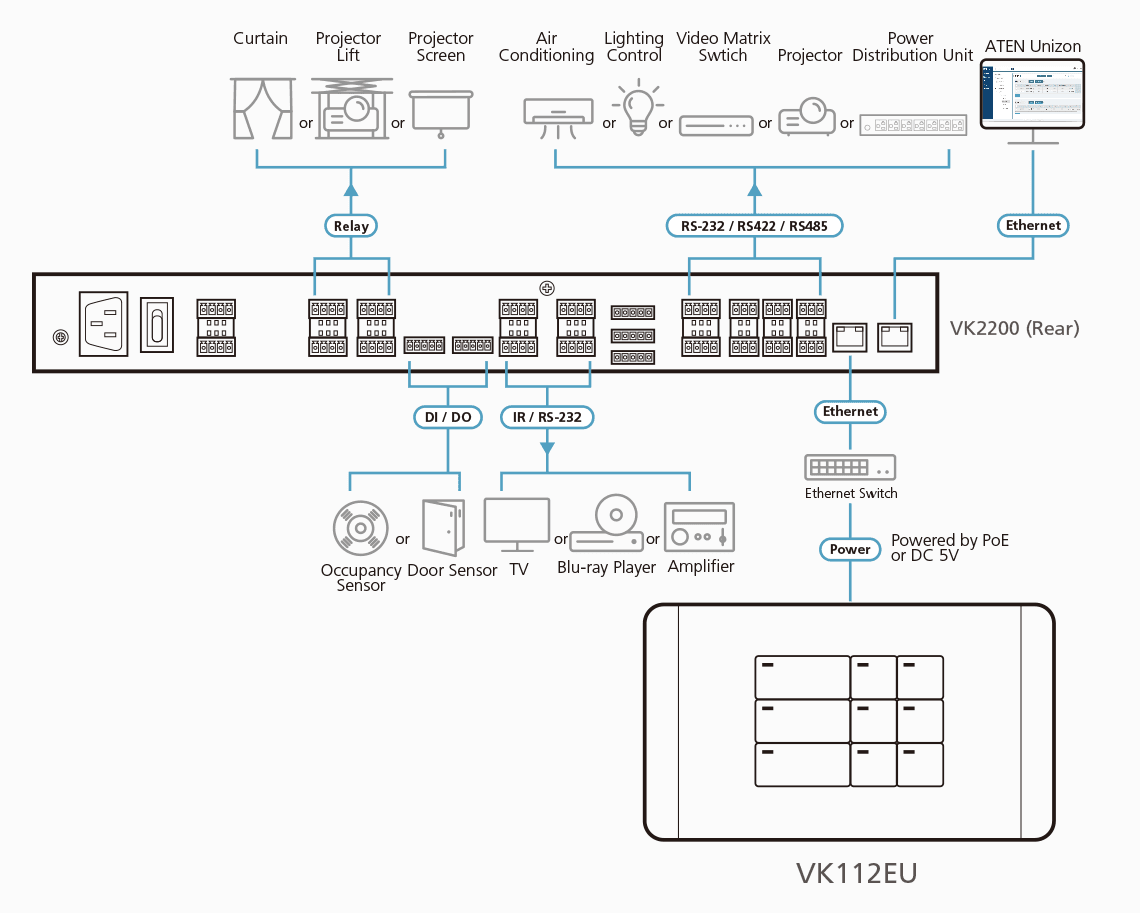

- Up to 8 keypads connect to a single Control Box for future scalability
- Versatile modes support flexible behavior settings for each button
- Intuitive web GUI for easy keypad configuration
- Dual power supplies with Power over Ethernet (PoE) and DC power
- Customized button engraving service

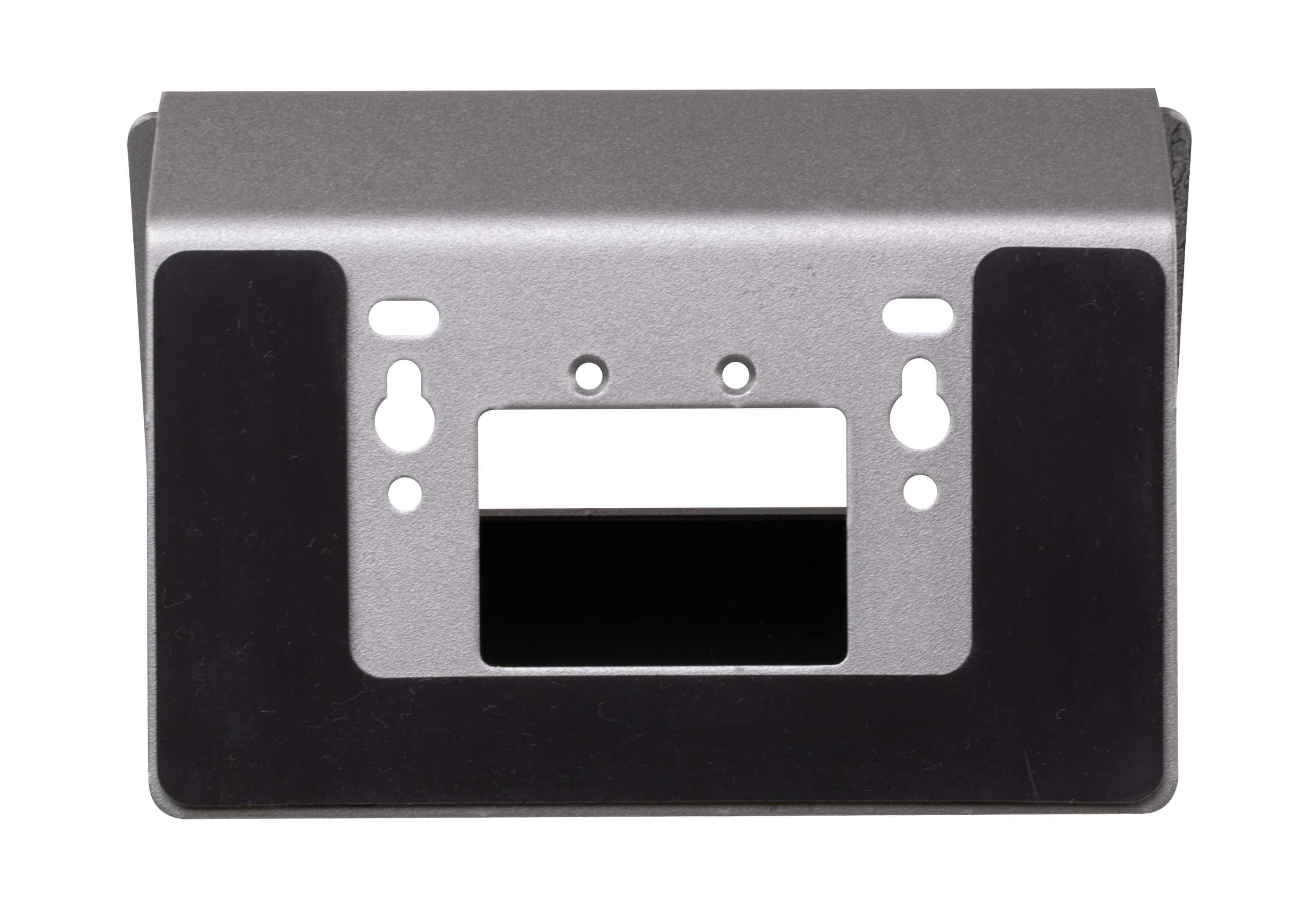

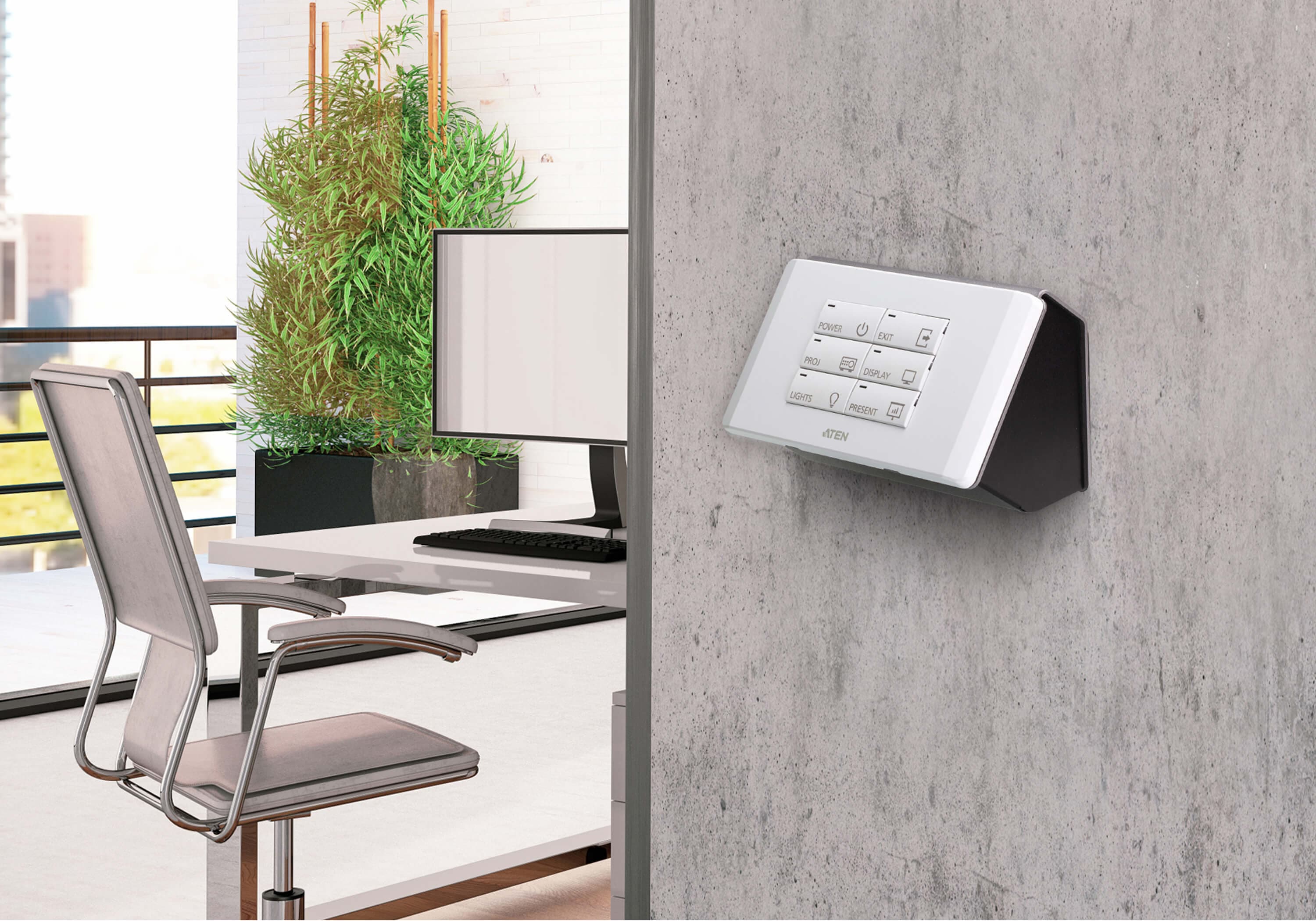

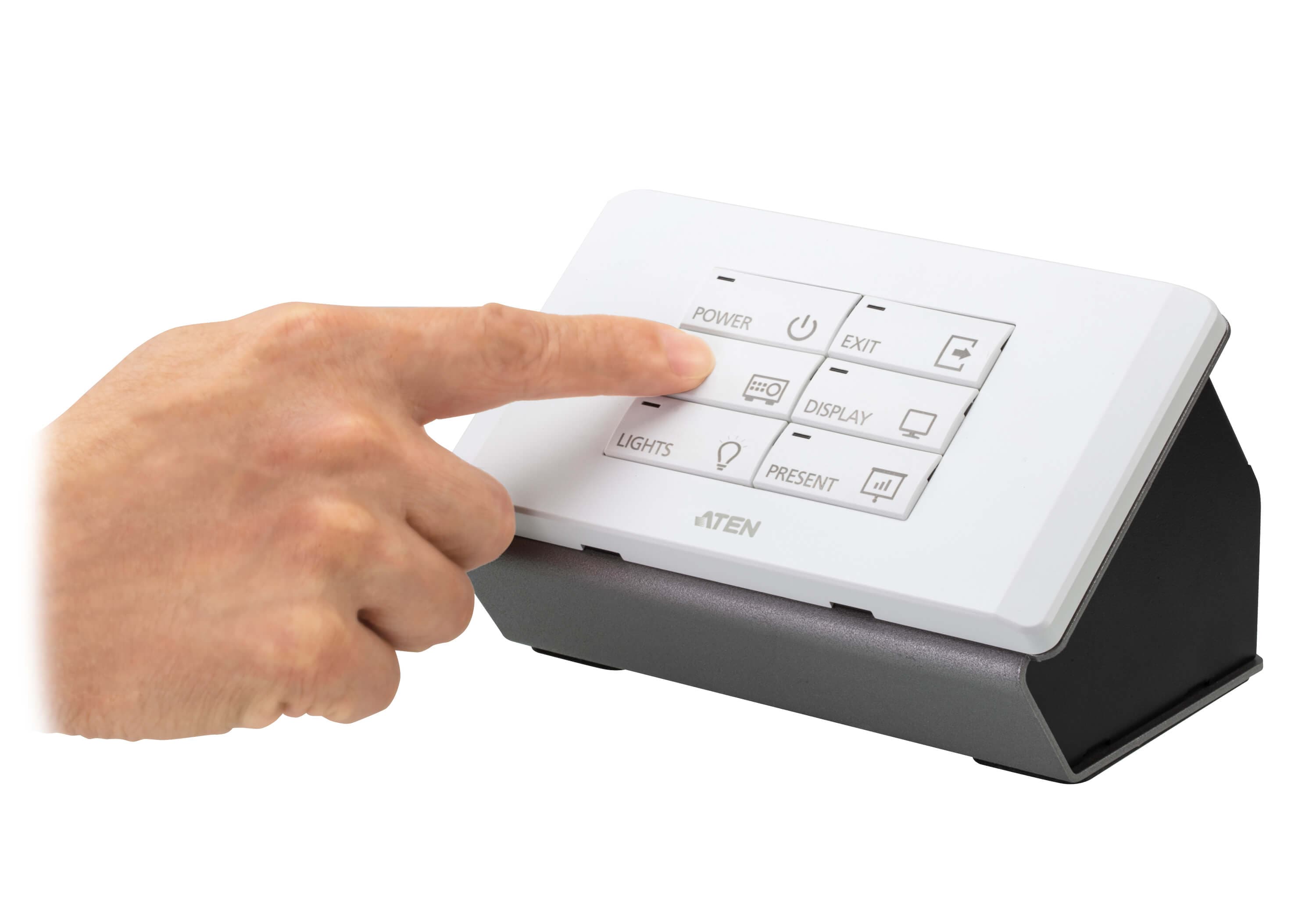

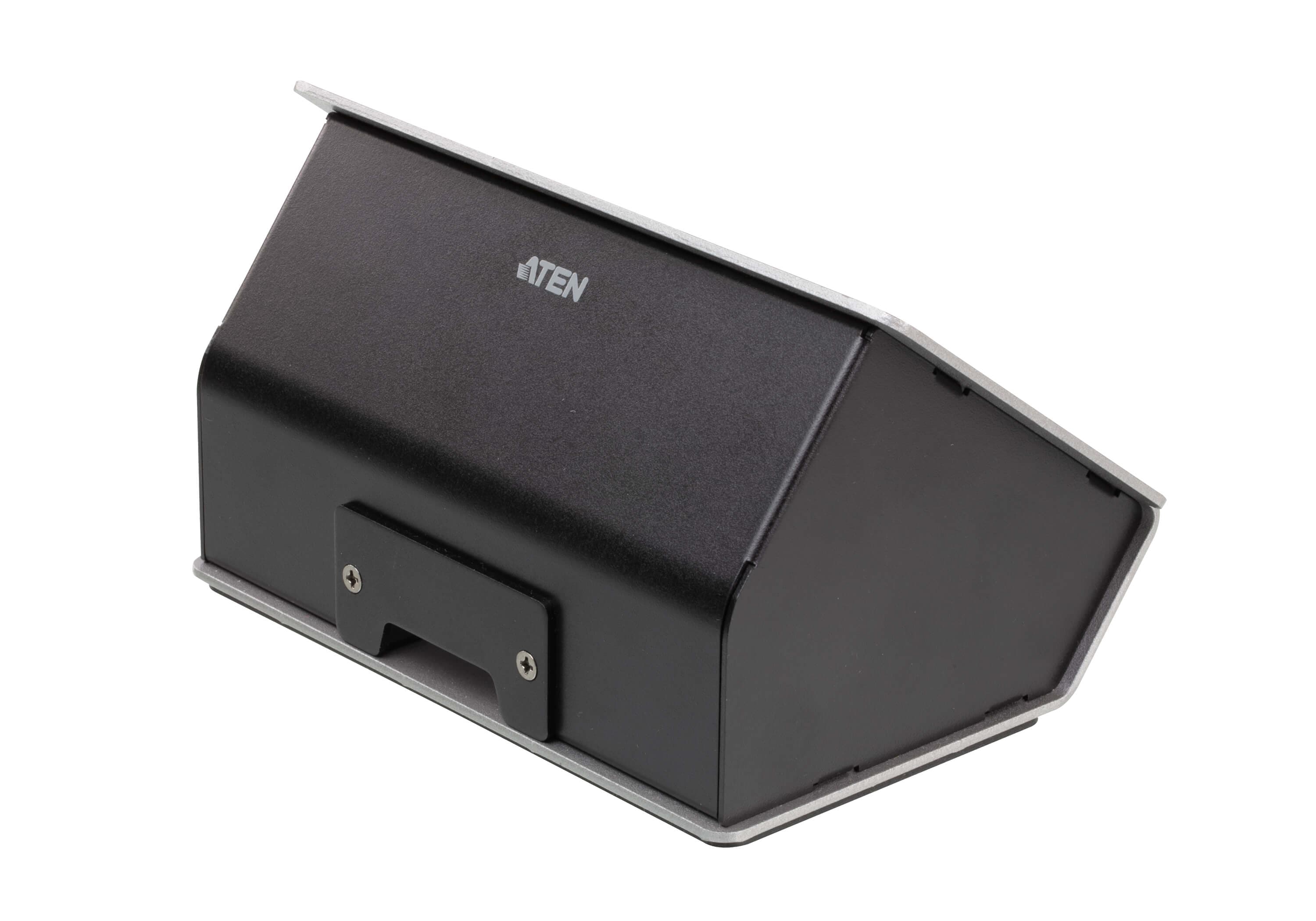

- Flexible installation is made easier with the keypad tabletop kit (VK112EUTTK), allowing for device mounting on the table or to the wall
Интерфейси
- Ethernet
- • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
- Подредба на бутоните
- 6~12 buttons customizable in 125 keypad layouts
Бутони и превключватели

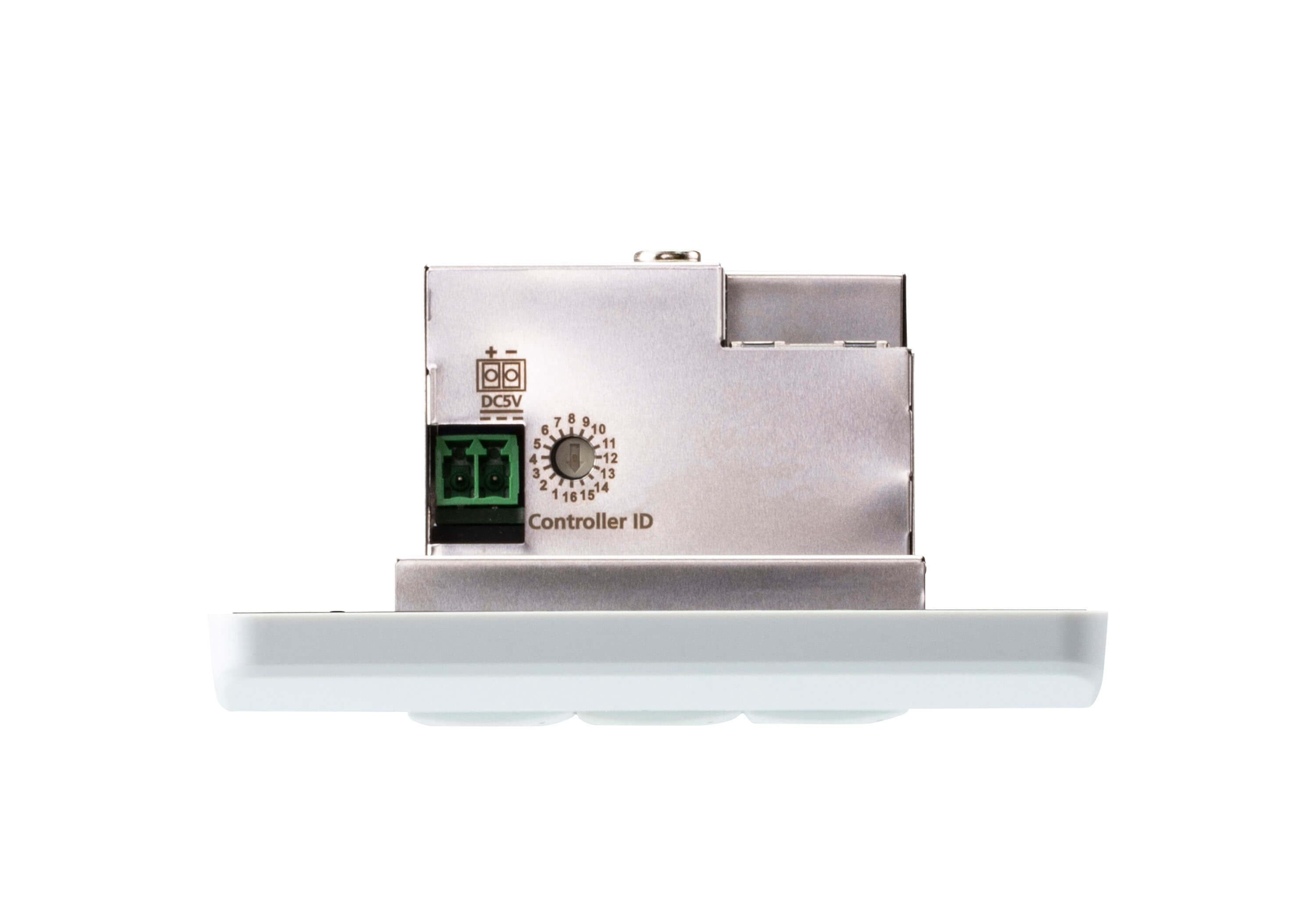

- ID на контролера
- 1 x 16-segment Switch

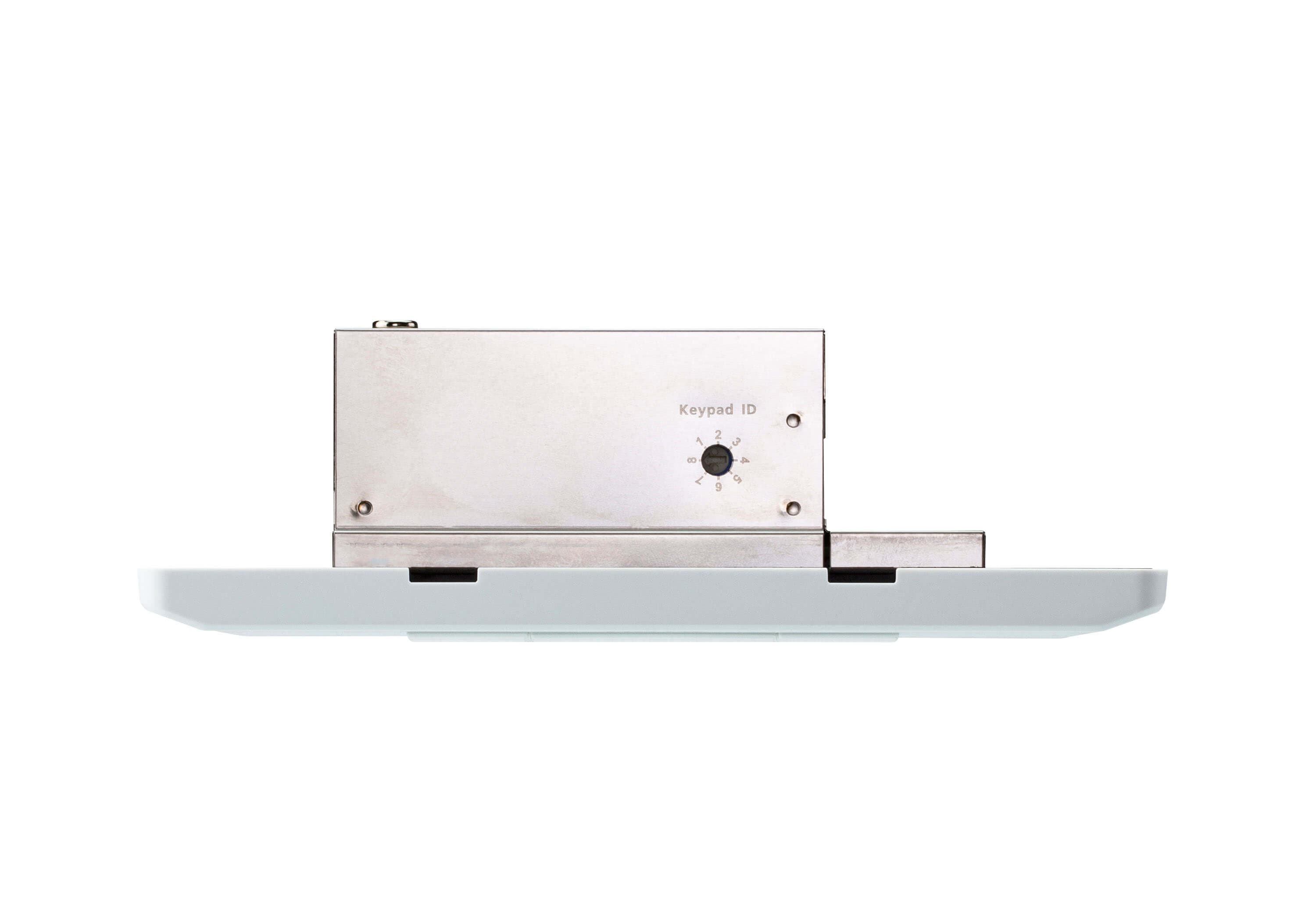

- ID на бутонния панел
- 1 x 8-segment Switch
- Бутон за нулиране
- 1 x Semi-recessed Pushbutton
- Консумация
- DC5V:1.25W:6BTU/h POE:1.56W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 50°C
- Температура на съхранение
- –20 – 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.17 kg ( 0.37 lb )
- Размери (Д x Ш x В)
- 8.32 x 14.76 x 4.80 cm (3.28 x 5.81 x 1.89 in.)
- Размери на лицевия панел (Д x Ш x В)
- 8.62 x 15.12 x 0.92 cm (3.39 x 5.95 x 0.36 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
