ATEN Control System - 8-button Keypad (US, 1 Gang)
VK108US
Клавиатура за ATEN Control System с 4 до 8 бутона в 14 подредби и връзка по Ethernet. Монтира се в единична (1 gang) US кутия; предлага се в черен и бял цвят.
Характеристики
- Key pad - provides physical connection to the ATEN Control System

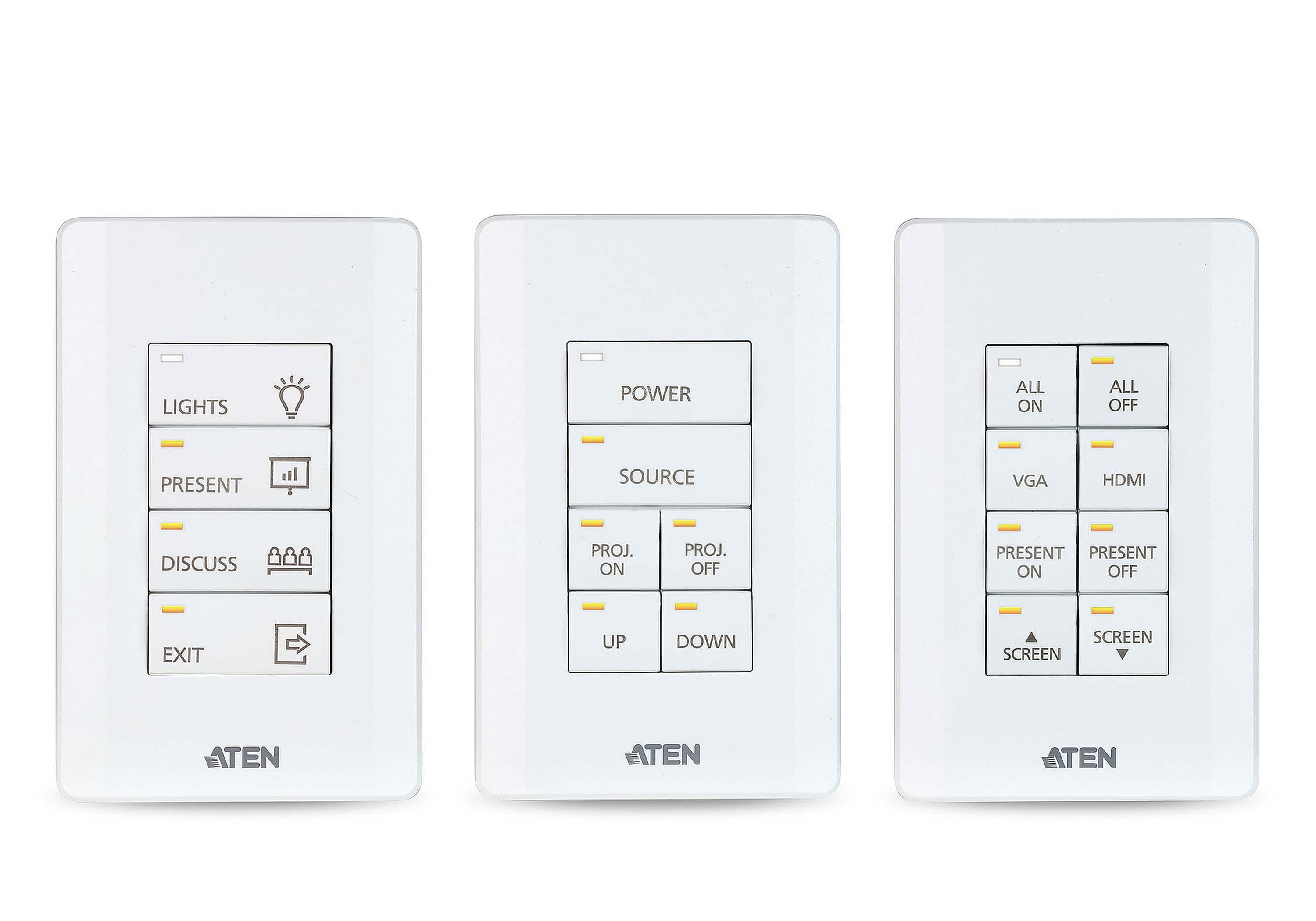

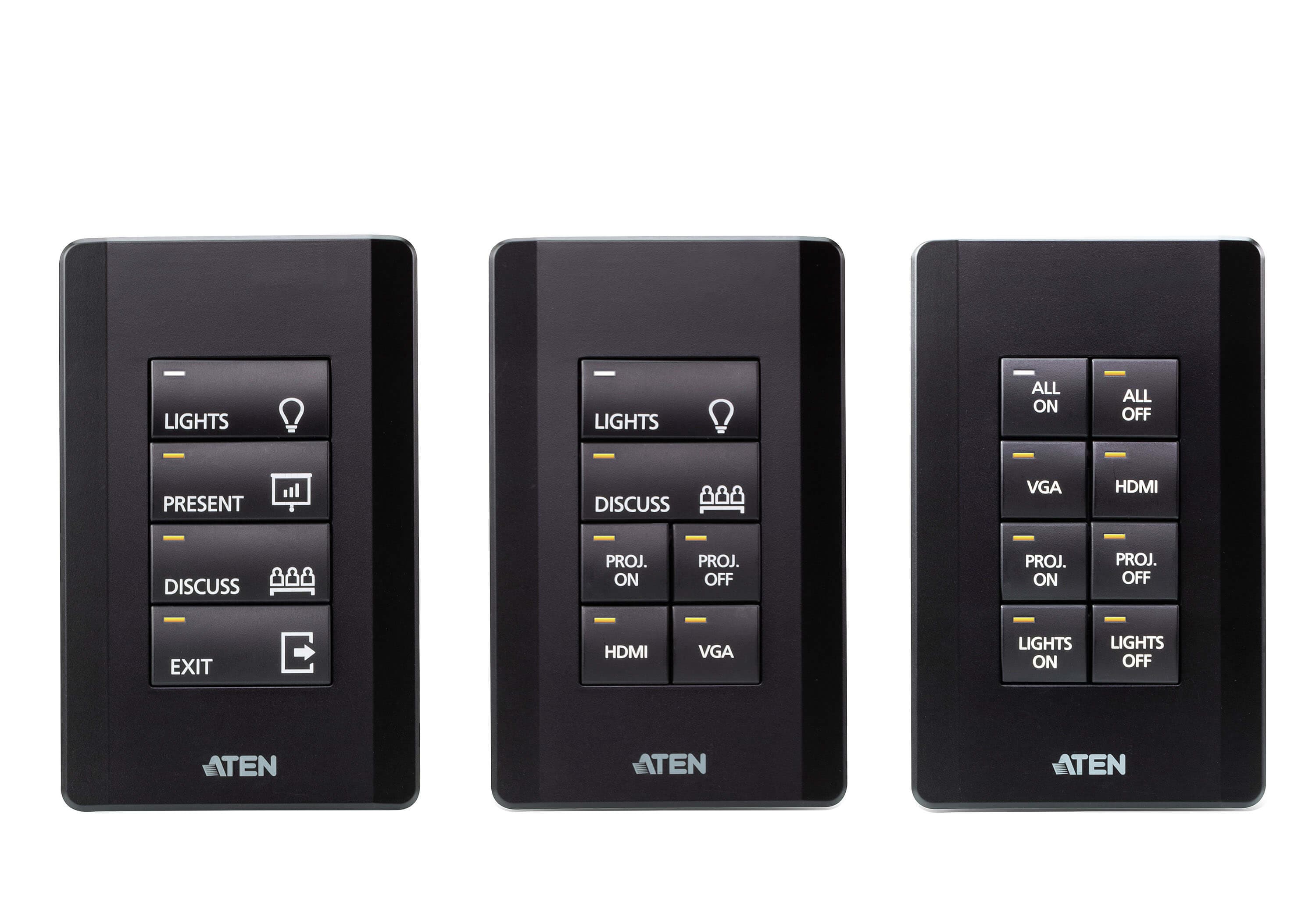

- Fully customizable with 14 layout combinations of 4 to 8 buttons

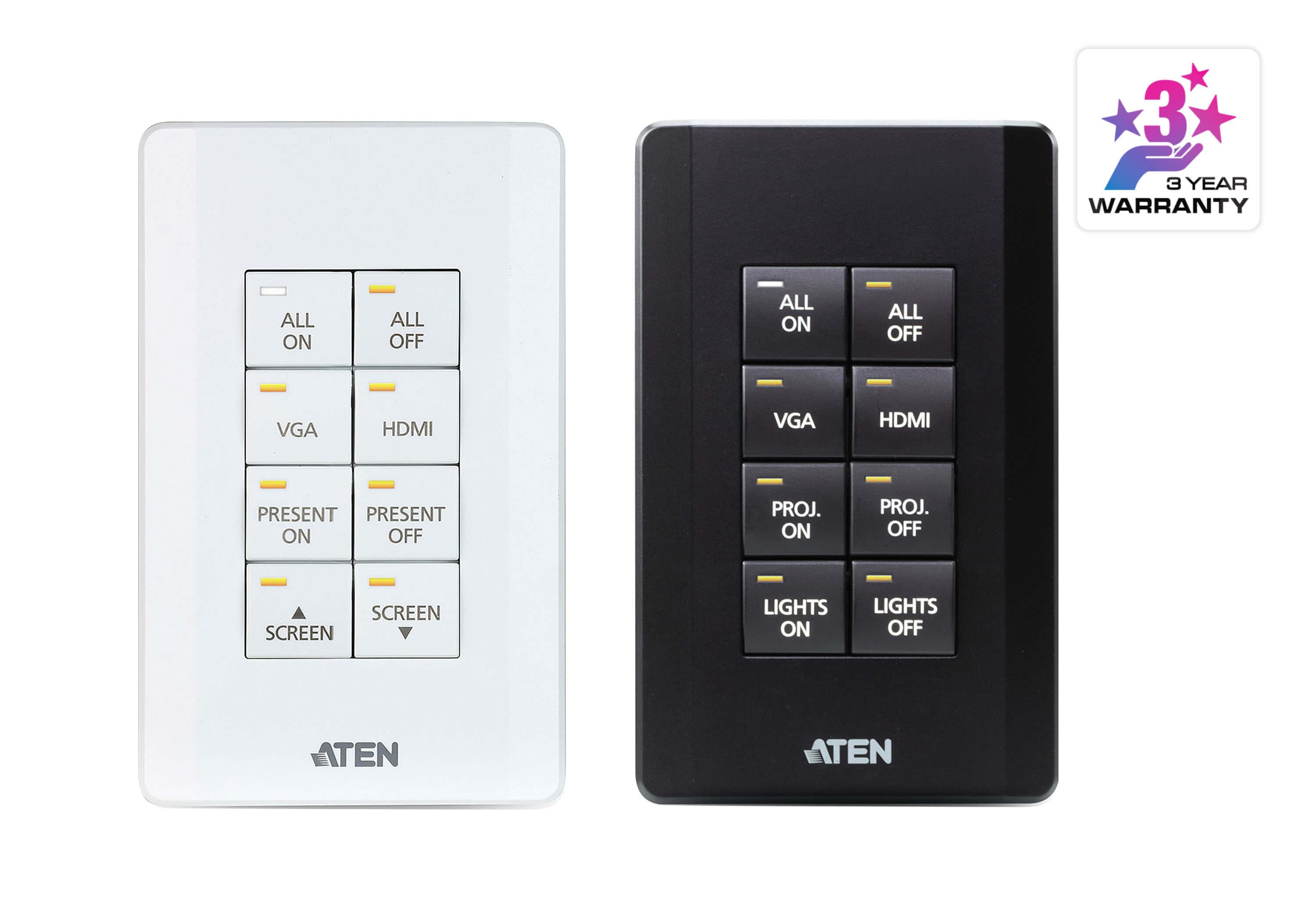

- Available in black or white color
- System LED indicators for quick connection status check
- Dual-color button LEDs for clear indication and visibility in dark environments

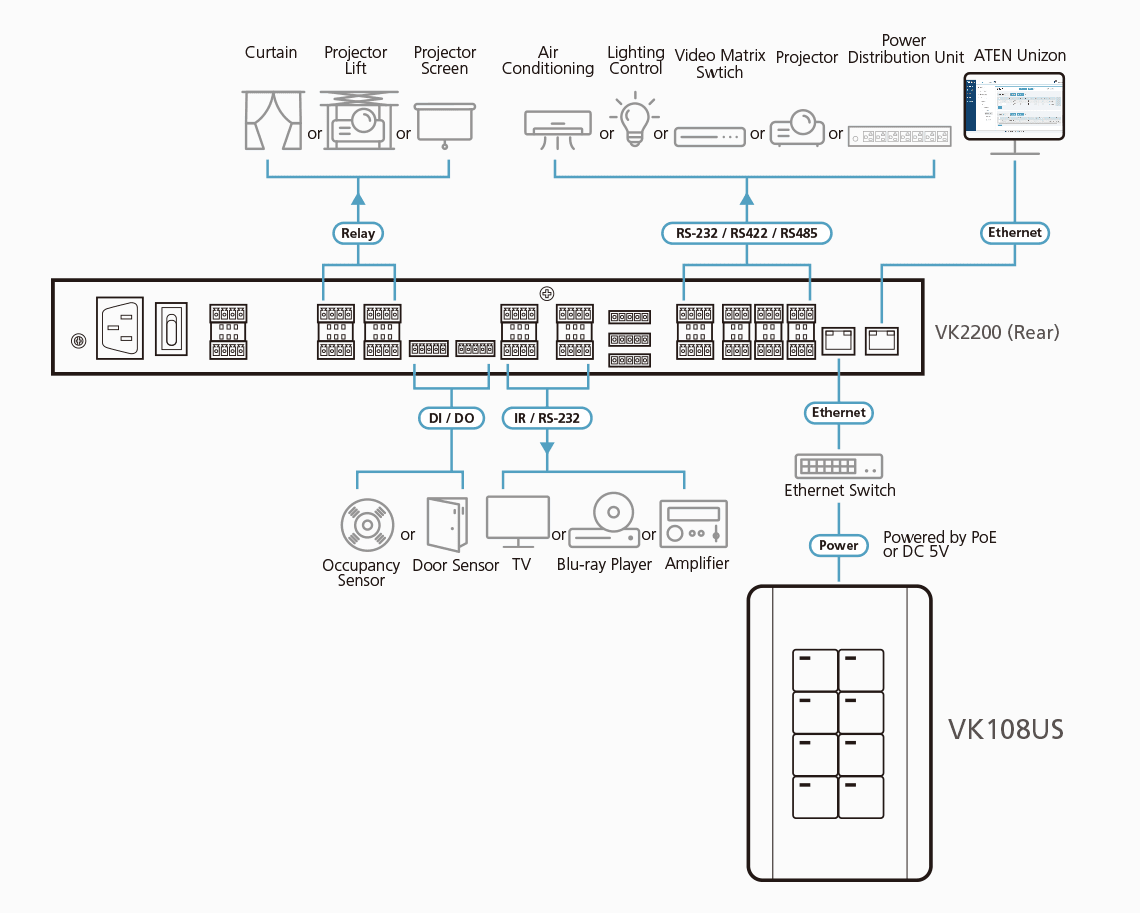

- Easy ID pairing with Control Box for Ethernet communication
- Up to 8 keypads connect to a single Control Box for future scalability
- Unrestricted modes support flexible behavior settings for each button
- Intuitive web GUI for easy keypad configuration
- Dual power supply – DC 5V or Power over Ethernet
- Flexible installation made easier with VK101 tabletop kit, allowing for device mounting on the table or to the wall*
- Customized button engraving service Note: When the VK108US is mounted on the VK101, power is supplied only through PoE.
Интерфейси

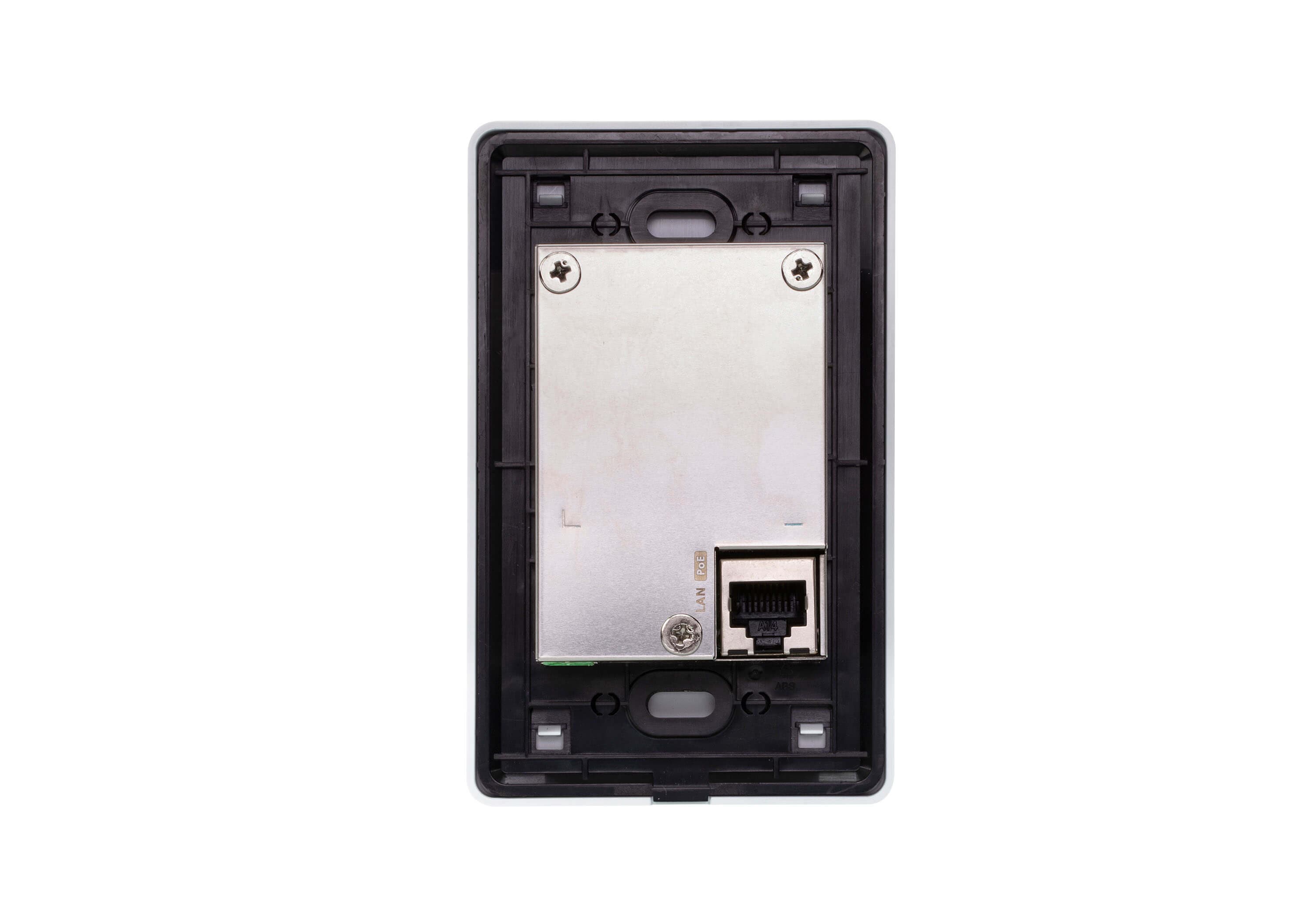

- Ethernet
- • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
- Подредба на бутоните
- 4~8 buttons customizable in 14 keypad layouts
Бутони и превключватели

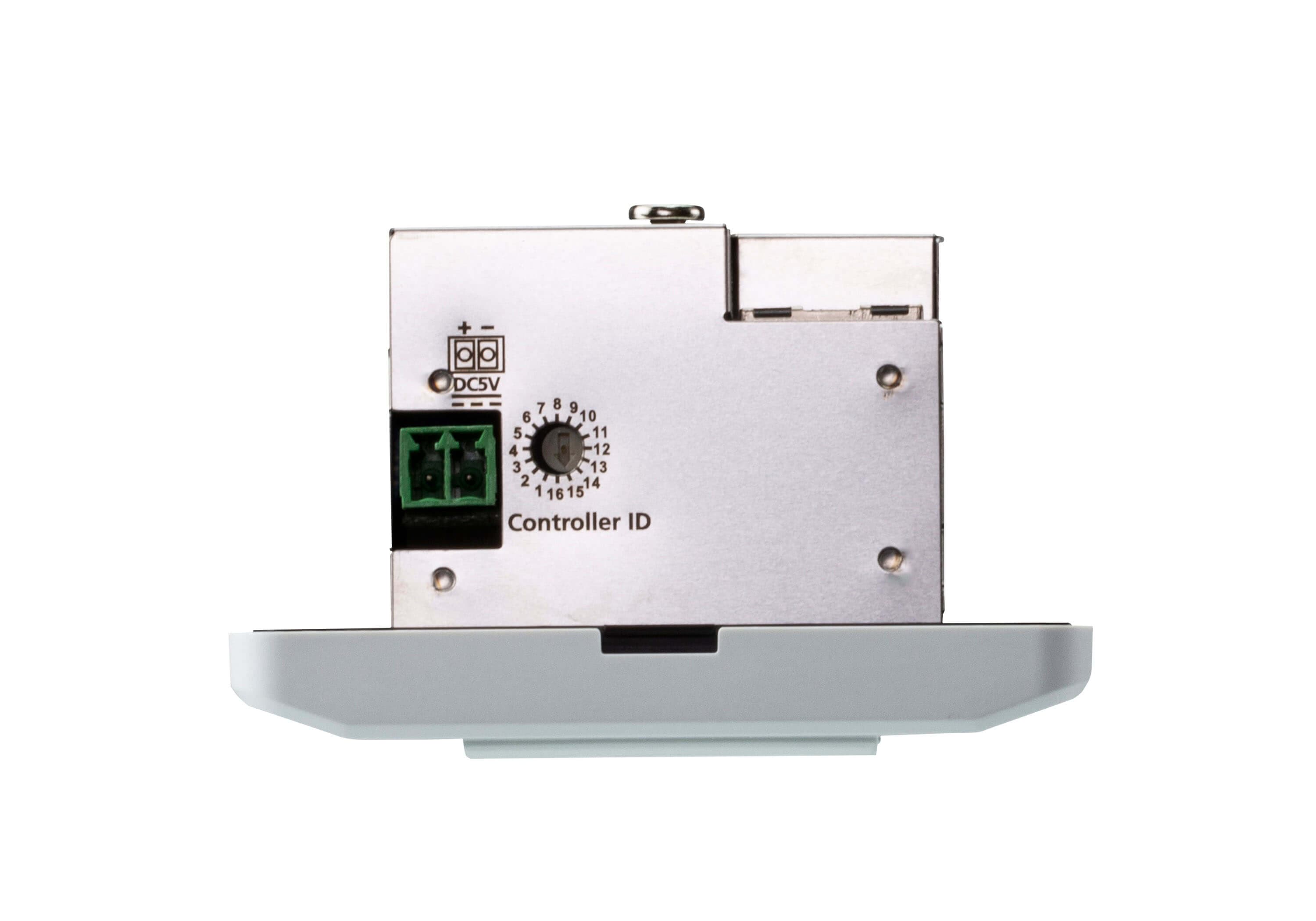

- ID на контролера
- 1 x 16-segment Switch

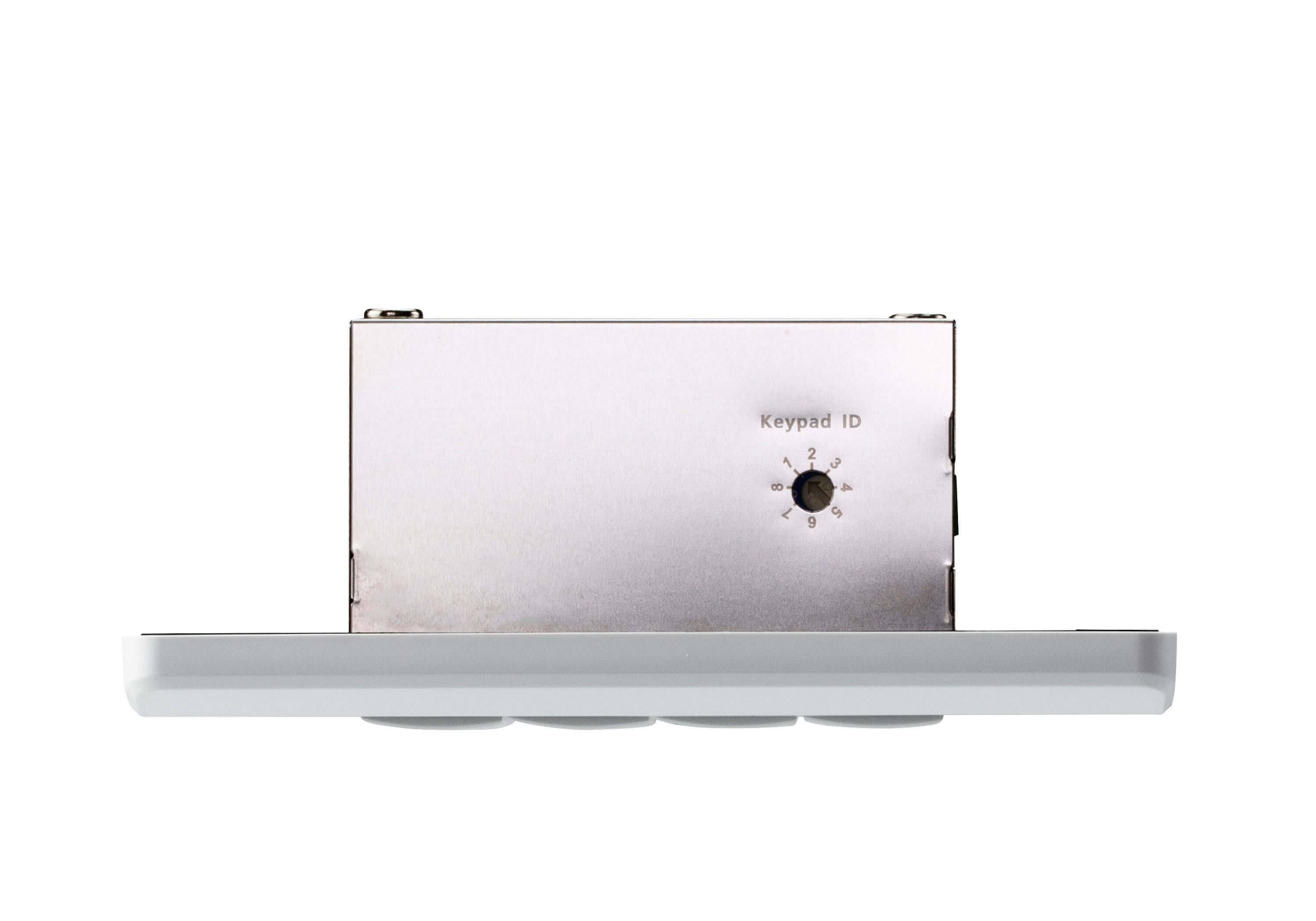

- ID на бутонния панел
- 1 x 8-segment Switch
- Бутон за нулиране
- 1 x Semi-recessed Pushbutton
- Консумация
- DC5V:1.25W:6BTU/h DC48V:1.58W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 50°C
- Температура на съхранение
- –20 – 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.13 kg ( 0.29 lb )
- Размери (Д x Ш x В)
- 11.63 x 7.06 x 3.89 cm (4.58 x 2.78 x 1.53 in.)
- Размери на лицевия панел (Д x Ш x В)
- 11.92 x 7.42 x 0.92 cm (4.69 x 2.92 x 0.36 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
