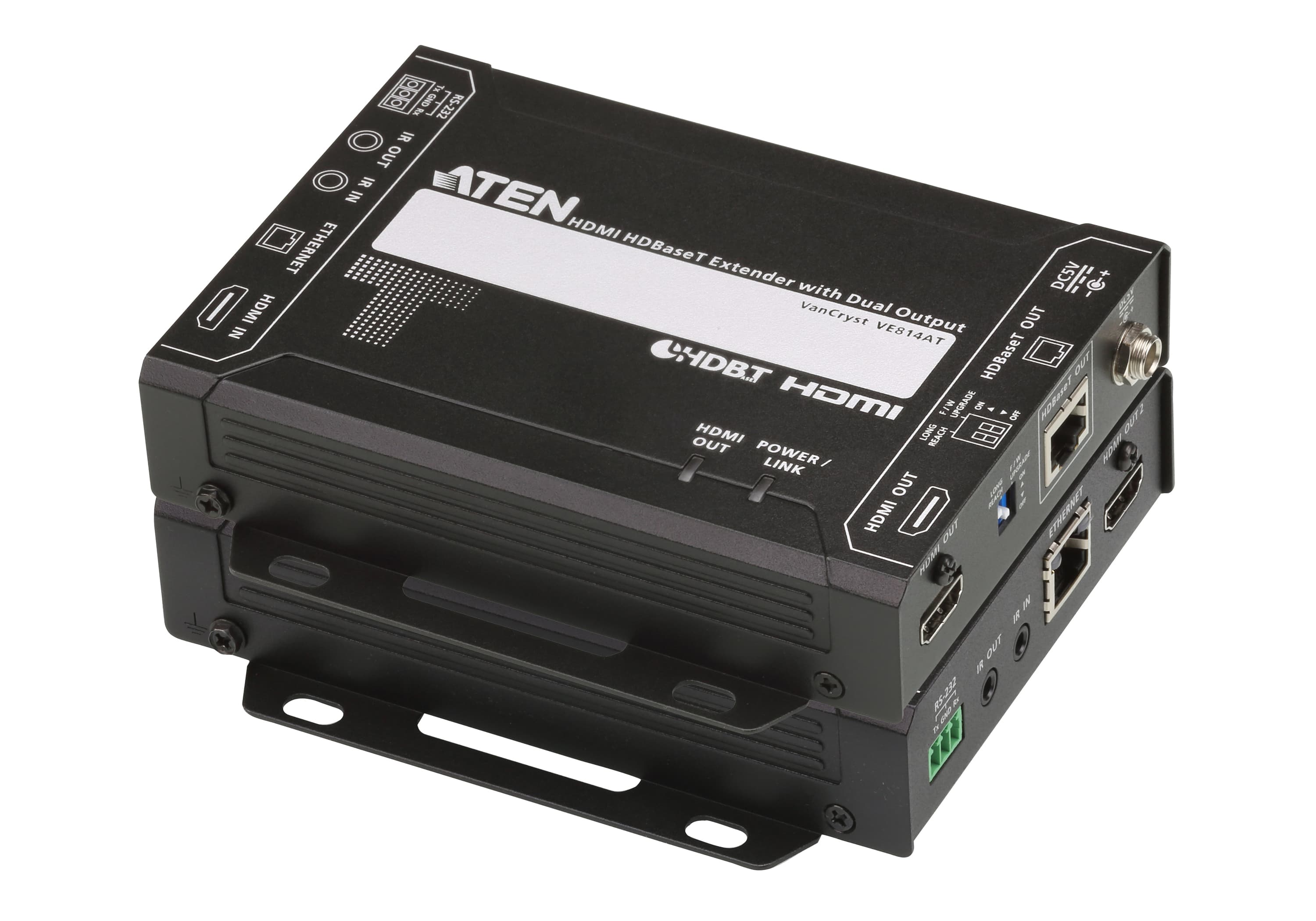

HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

Name: HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
Brand: ATEN
SKU: VE814

VE814Снет от производство

HDBaseT удължител за HDMI с два изхода — изнася дисплеите на до 100 m от източника по един Cat 5 кабел, с поддръжка на 4K.

Характеристики

Extends the distance between HDMI source and HDMI display
Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology

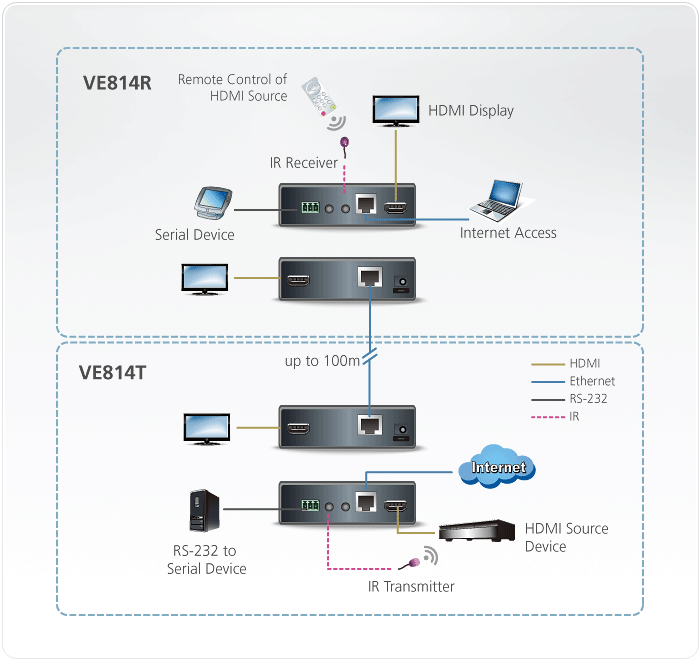

Supports one local and two remote displays
Supports two IR channels for bi-directional IR signal transmission
Extends Ethernet communication with pass-through port
HDMI (3D, Deep Color,4kx2k); HDCP Compatible
Long distance transmission – up to 100 m
Supports wide screen
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports up to 340 MHz bandwidth for high performance video
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display

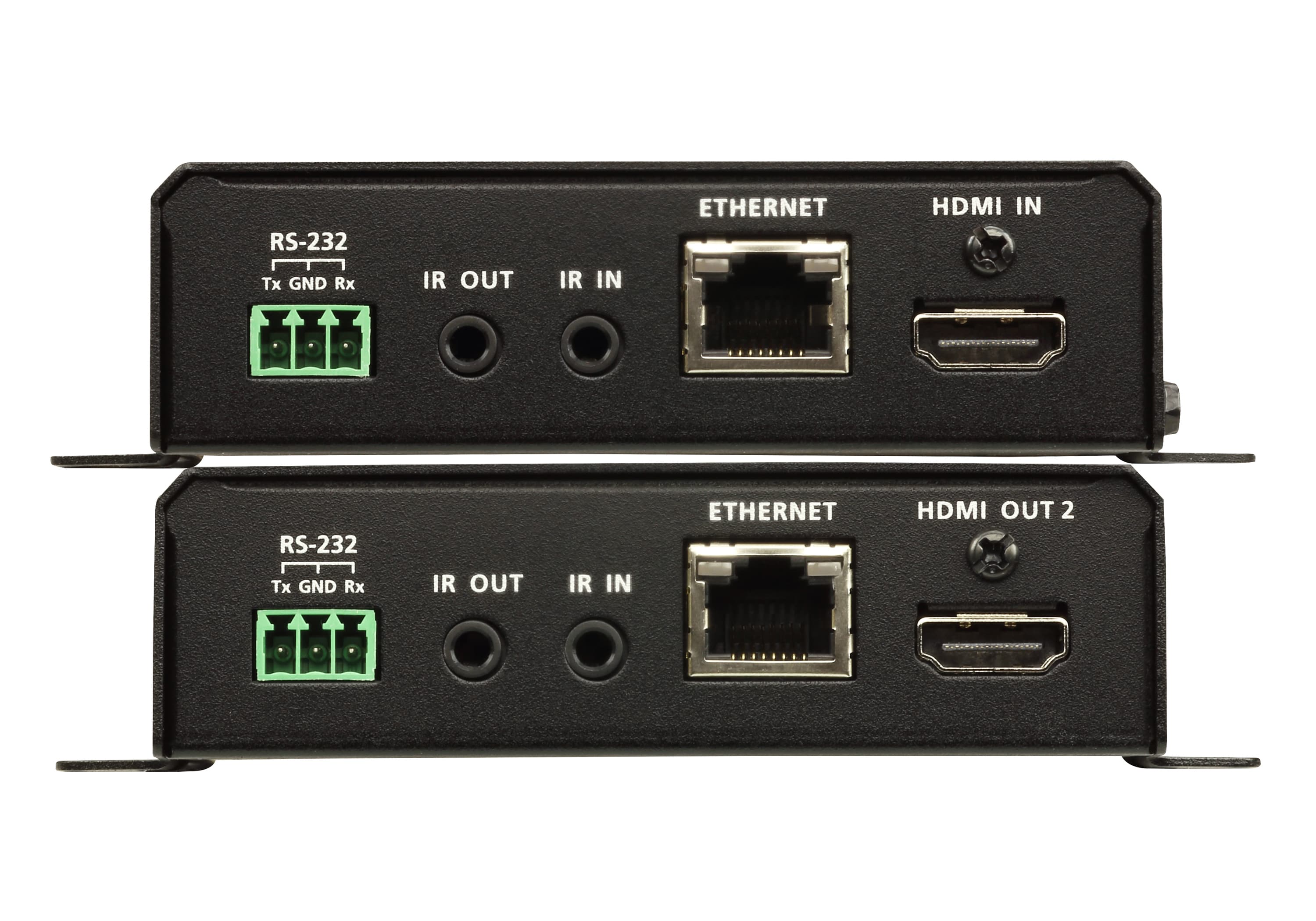

RS-232 Serial Port for serial device peripherals, such as touch screens, bar coders scanners, and so on
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Easy to install – no software required
Rack Mountable

Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. пикселна честота: Up to 340 MHz
Макс. пикселна честота: Up to 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Съответствие: HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

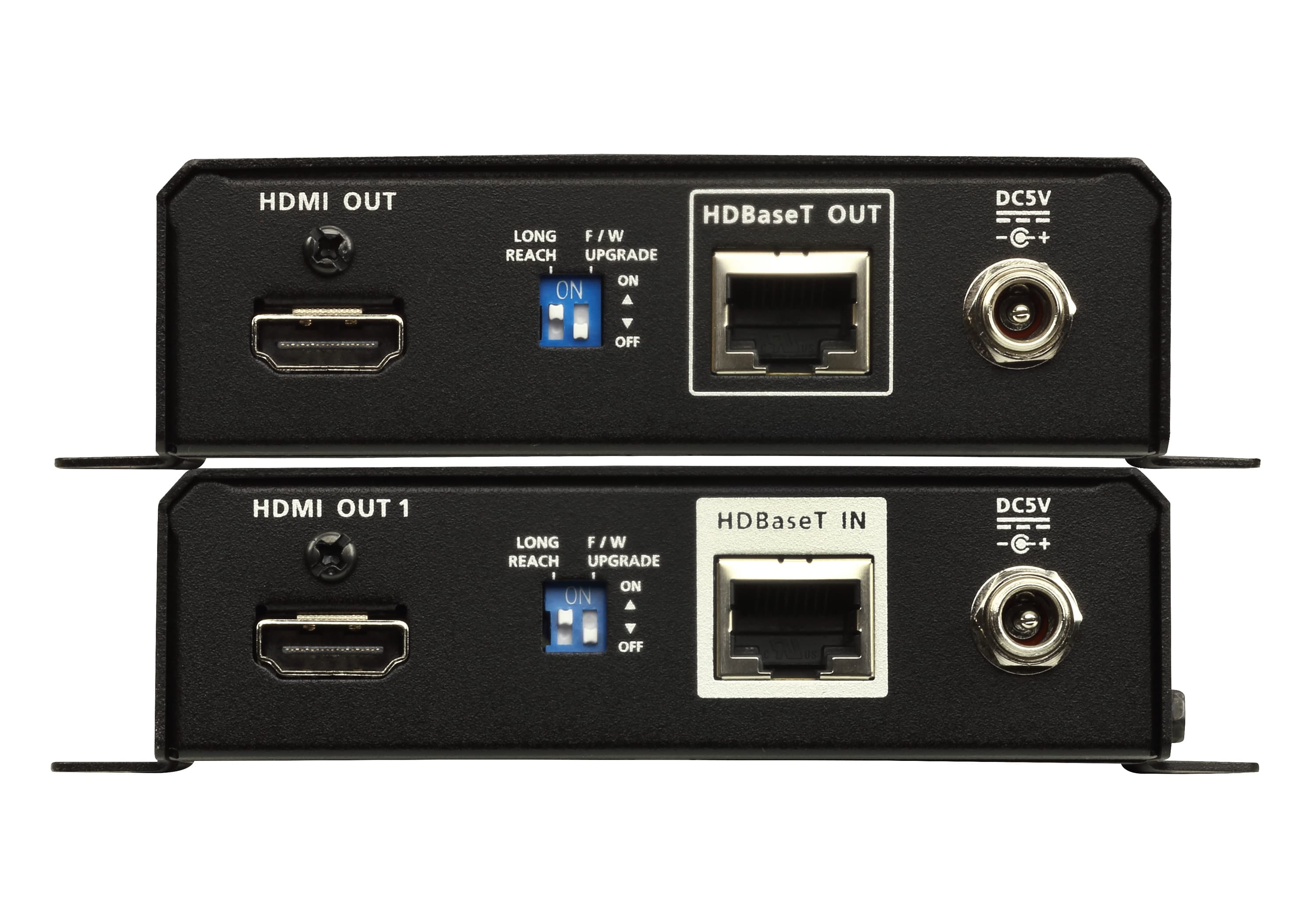

Захранване: 1 x DC Jack
Захранване: 1 x DC Jack
Консумация: DC5.3V:9.12W:43BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5.3V:5.65W:26BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.46 kg ( 1.01 lb )
Тегло: 0.46 kg ( 1.01 lb )
Размери (Д x Ш x В): 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
Размери (Д x Ш x В): 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
Брой в кашон: 5 pcs
Брой в кашон: 5 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
