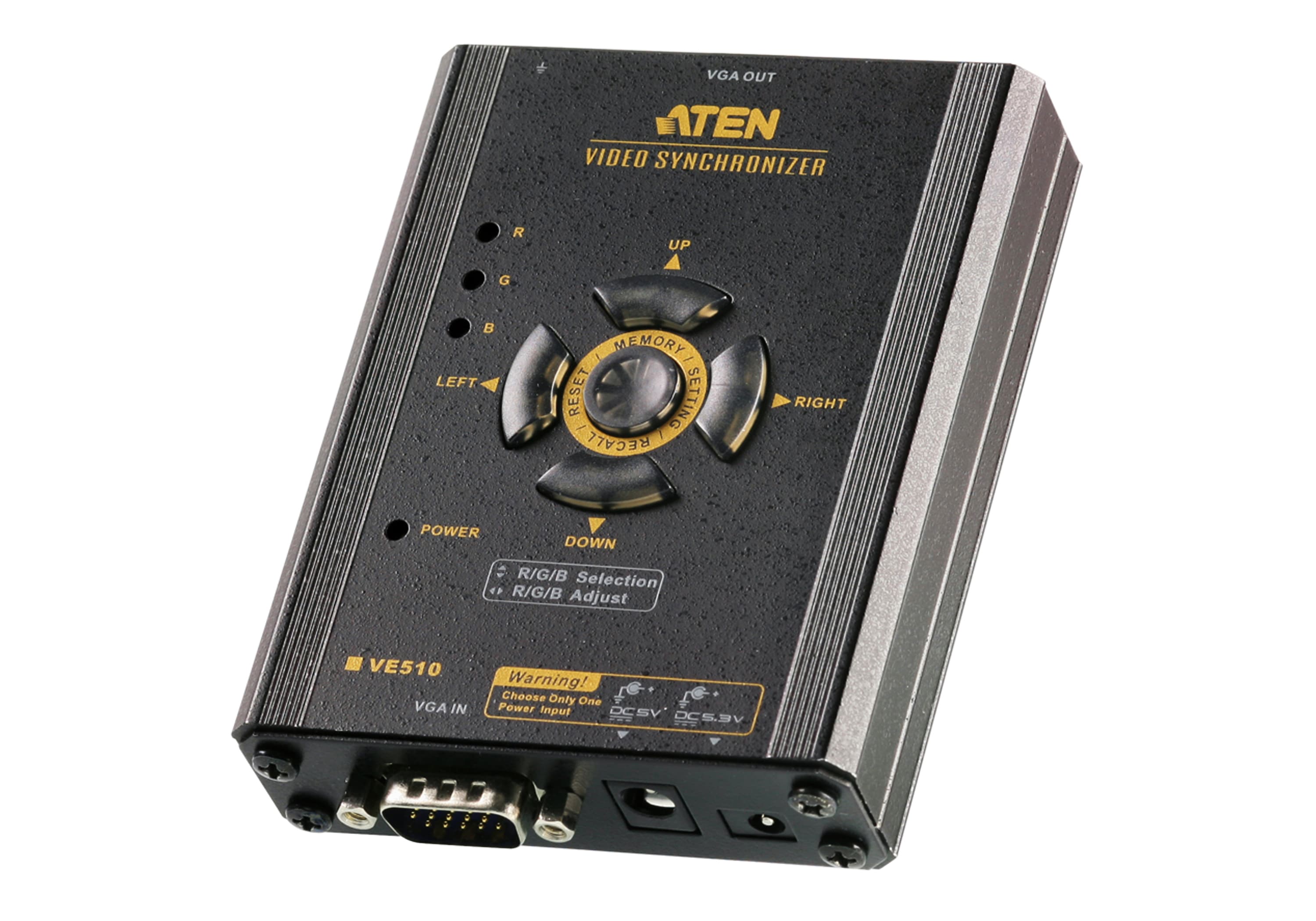

Синхронизатор на видео сигнал за дълги VGA трасета — компенсира закъснения и грешки във фазата на цветовете; RGB закъснението се донастройва ръчно с бутони, работи на разстояния до 30 m.
Характеристики

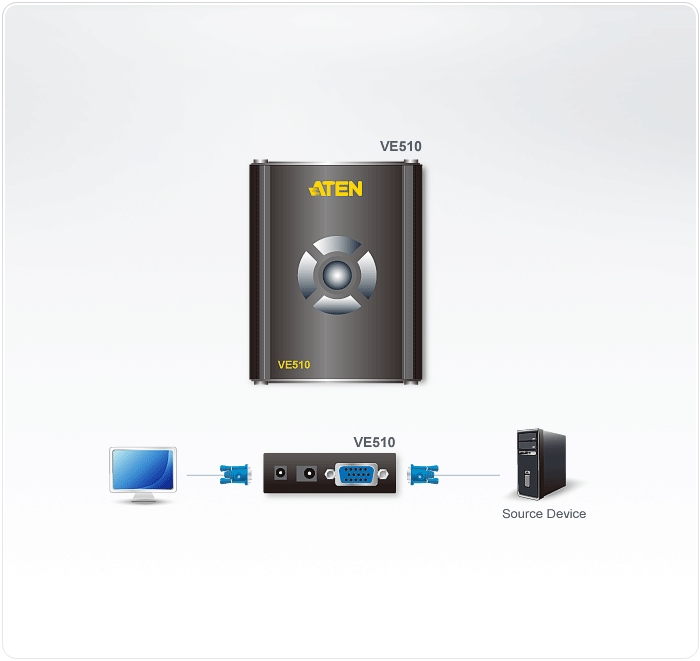

- Connects VGA based video devices to VGA displays and enhances the video quality in long distance installations
- Compensates for a delay and synchronizes signal delays
- RGB delay tuner-manually synchronizes the RGB signals via pushbuttons
- Skew equalization
- Memory set button-allows the storing and recalling of user settings
- LED display for status monitoring
- Easy to install
- Hot pluggable
- Compact Size-Din Rail and Wall mountable
- Compatible with ATEN KVM Extenders, Video Extenders and KVM Switches Remark: Color Adjustment Picture: 640x480 800x600 1024x768 1280x1024

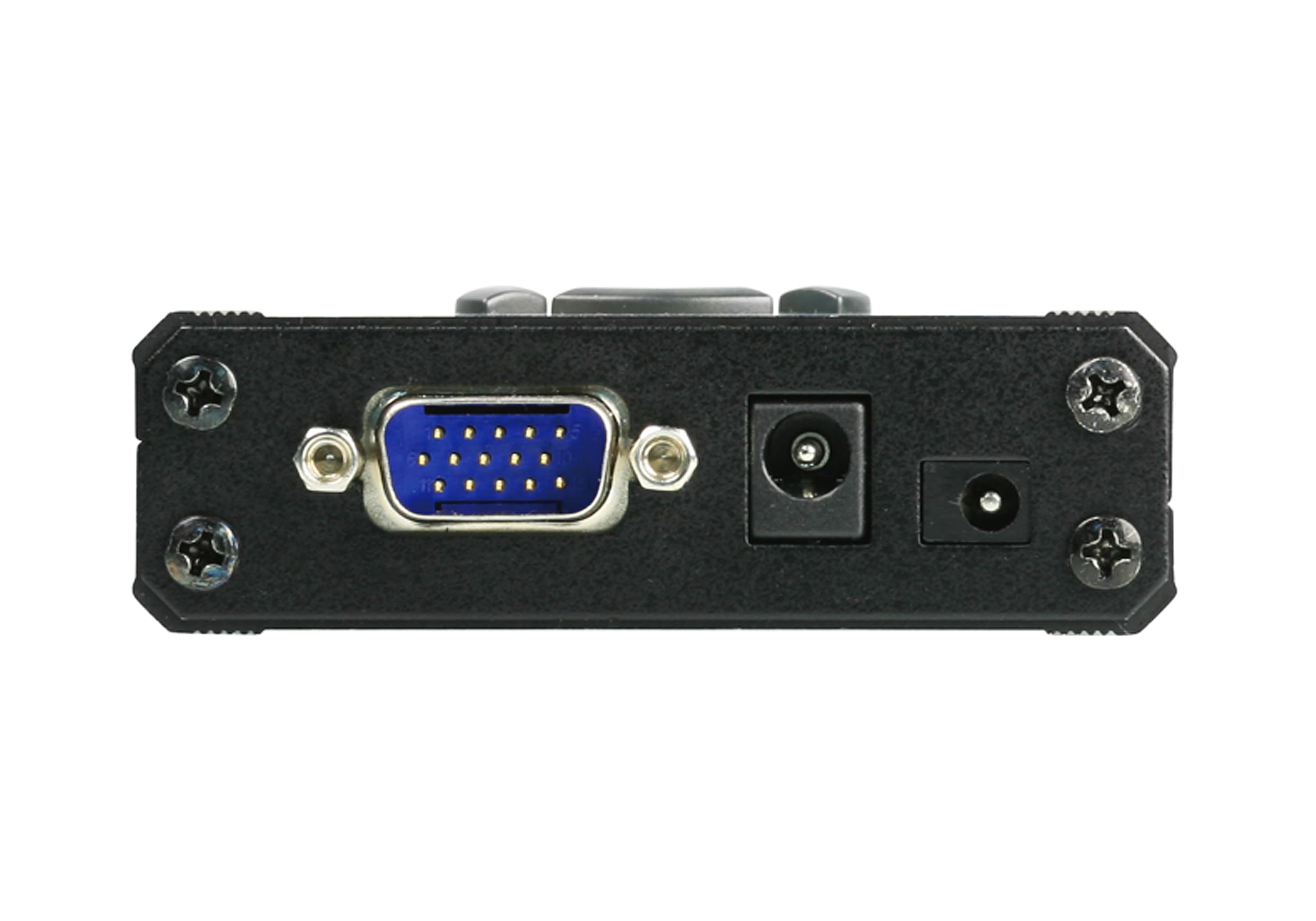

Видео вход
- Интерфейси
- 1 x HDB-15 Male (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 1.8 m

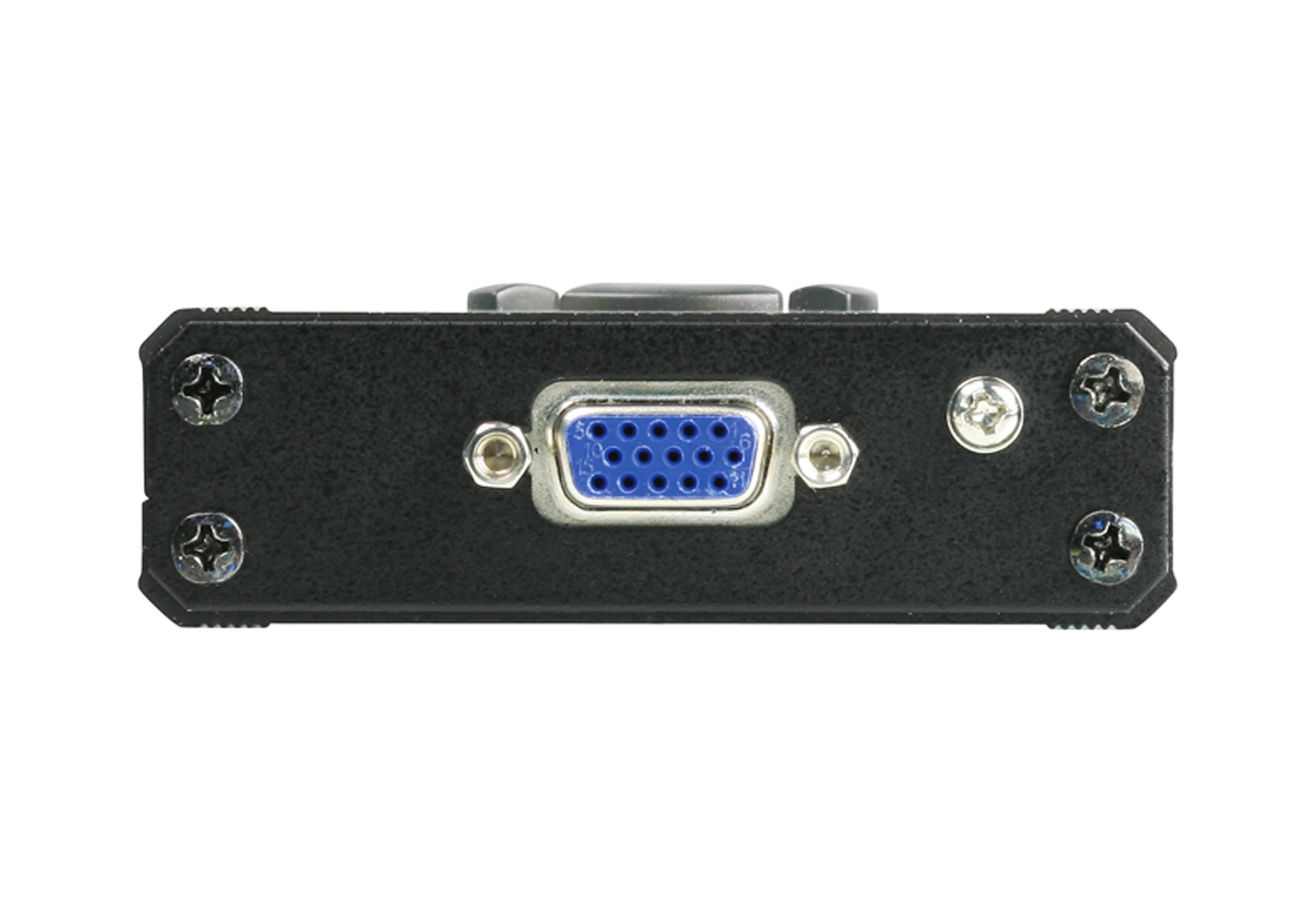

Видео изход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω
- Макс. разстояние
- 30 m
Видео
- Макс. честотна лента
- 300 MHz
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5V:1.1W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.21 kg ( 0.46 lb )
- Размери (Д x Ш x В)
- 11.02 x 7.93 x 2.54 cm (4.34 x 3.12 x 1 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
