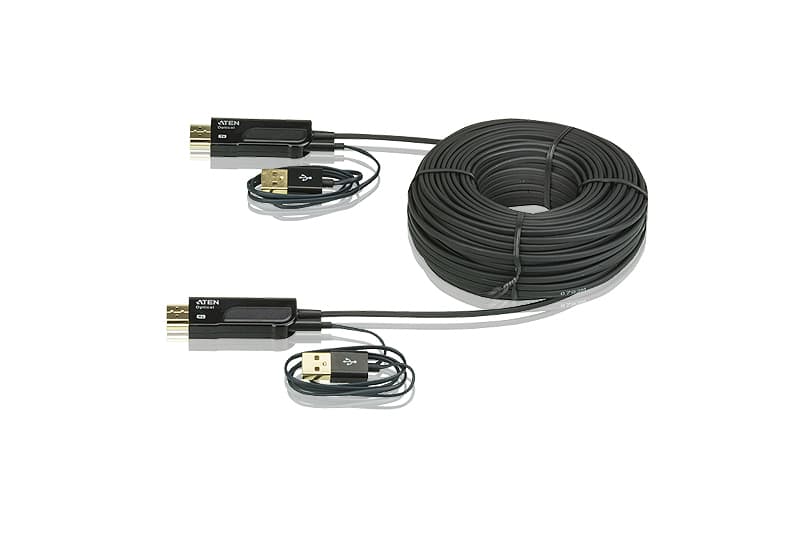

Активен оптичен HDMI кабел 30 m — пренася сигнала оптично, устойчив е на електромагнитни смущения и поддържа 4K до 4096 x 2160 при 10.2 Gbps.
Характеристики

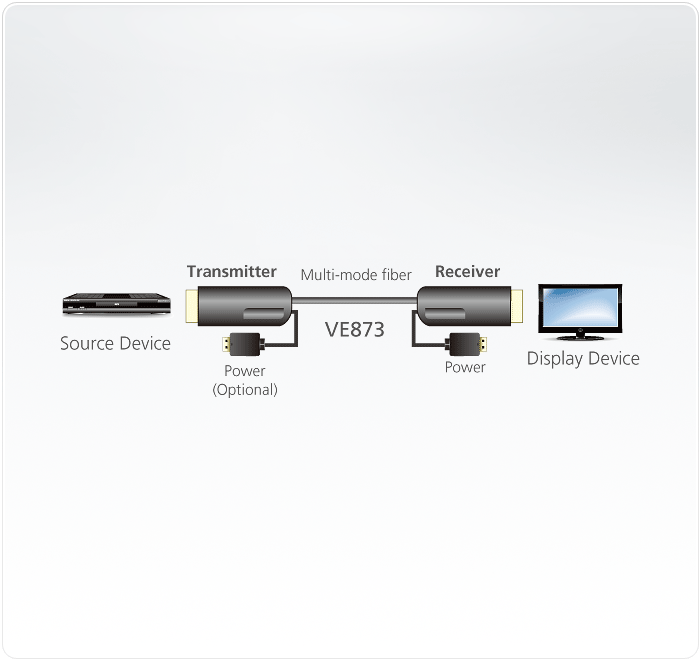

- Converts electrical data signals to optical signals
- HDMI (3D, 4kx2k,Deep Color); HDCP Compatible
- Superior video quality – up to 4096 x 2160
- RF/EMI free for clear signal transmission
- Easy to install with optical fiber cable
- Powered remote unit via USB Cable
- High data transfer rates of 10.2 Gbps
- Plug-and-play – no software required
Видео вход
- Интерфейси
- 1 x HDMI Type A Male (Black)
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 1 x HDMI Type A Male (Black)
- Импеданс
- 100 Ω
Видео
- Макс. скорост на данните
- 10.2 Gbps
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Up to 4K@30m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Male (Black)
- Изход
- 1 x HDMI Type A Male (Black)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- 5 VDC, 1W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.25 kg ( 0.55 lb )
- Брой в кашон
- 5 pcs
