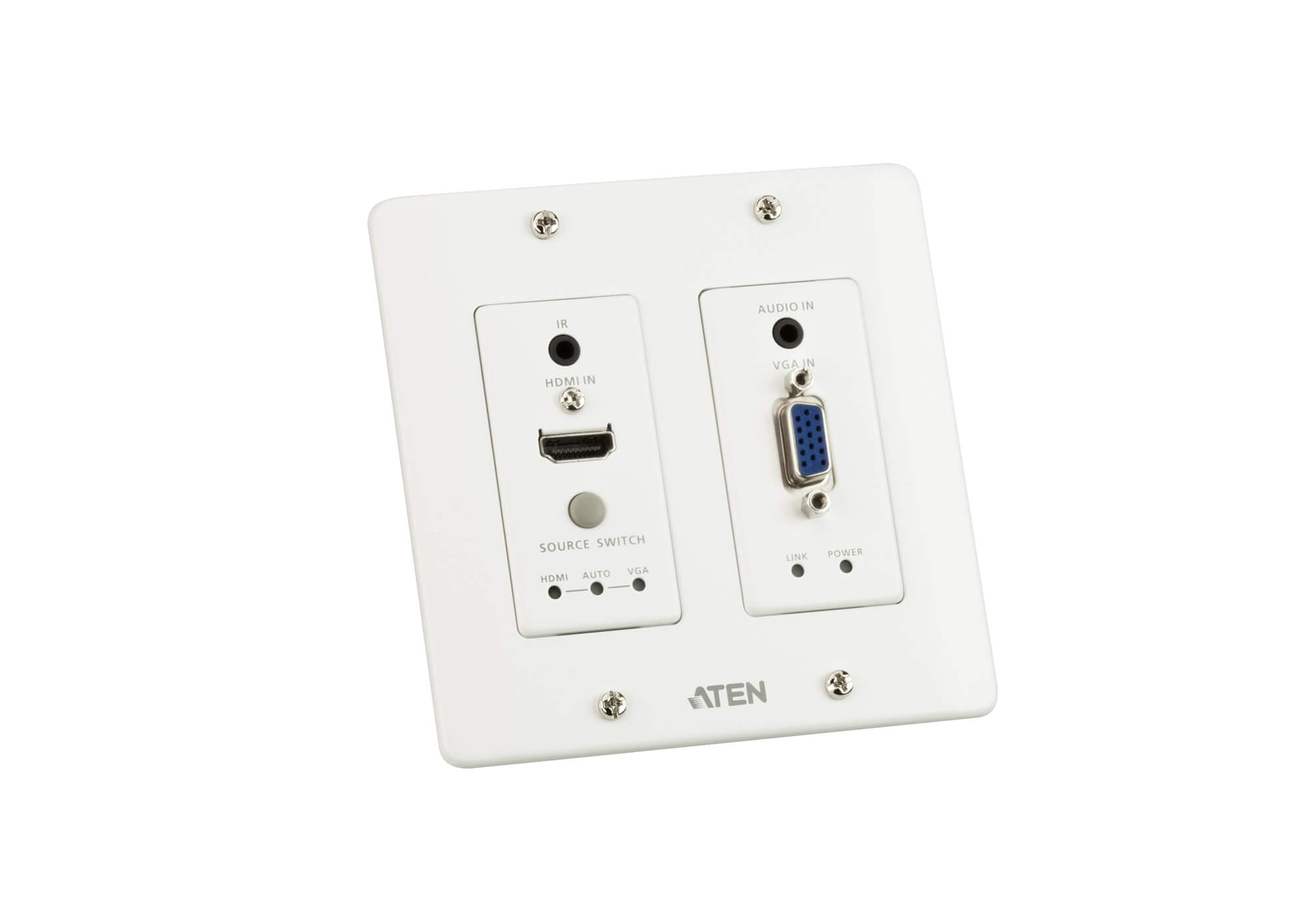

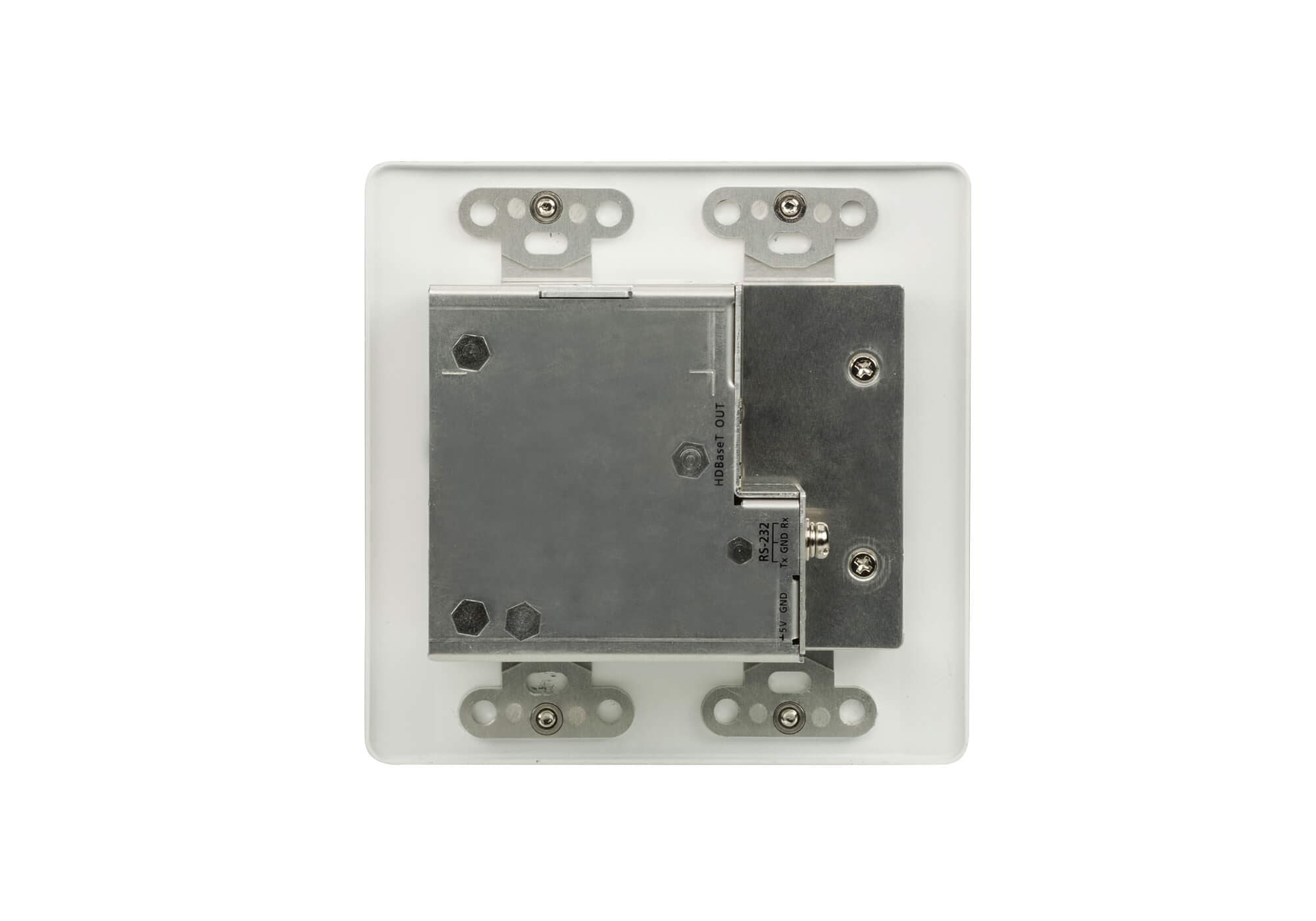

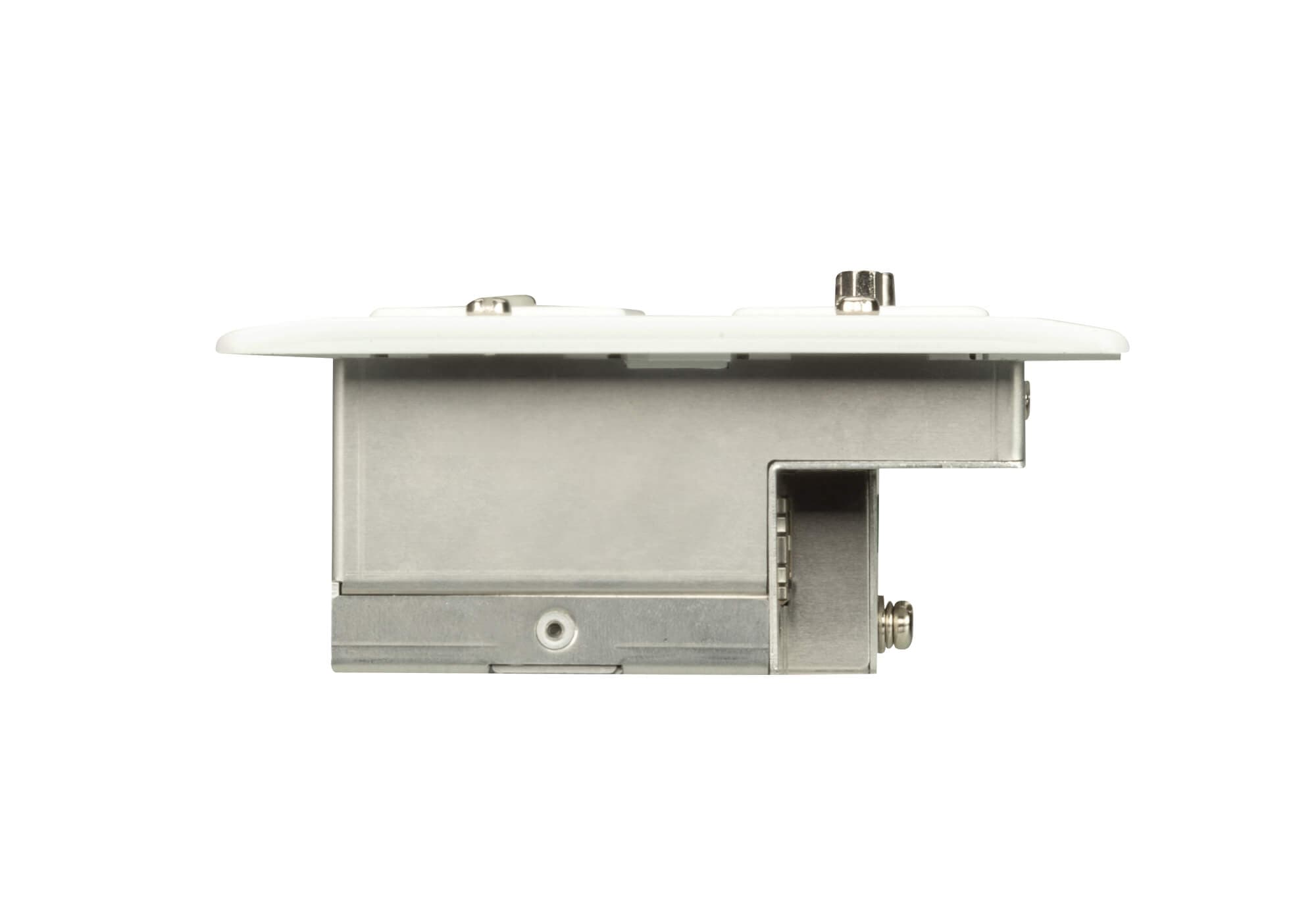

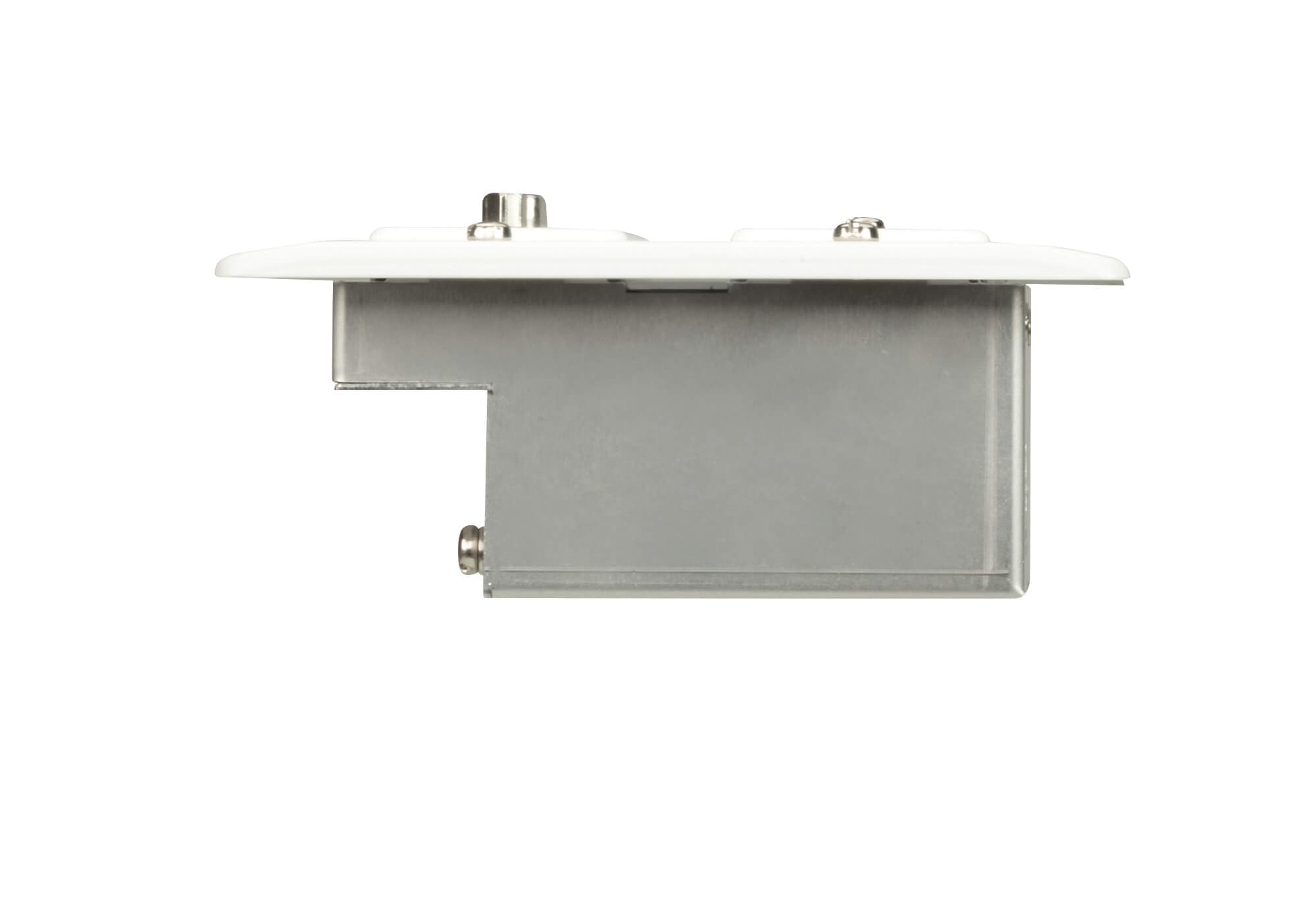

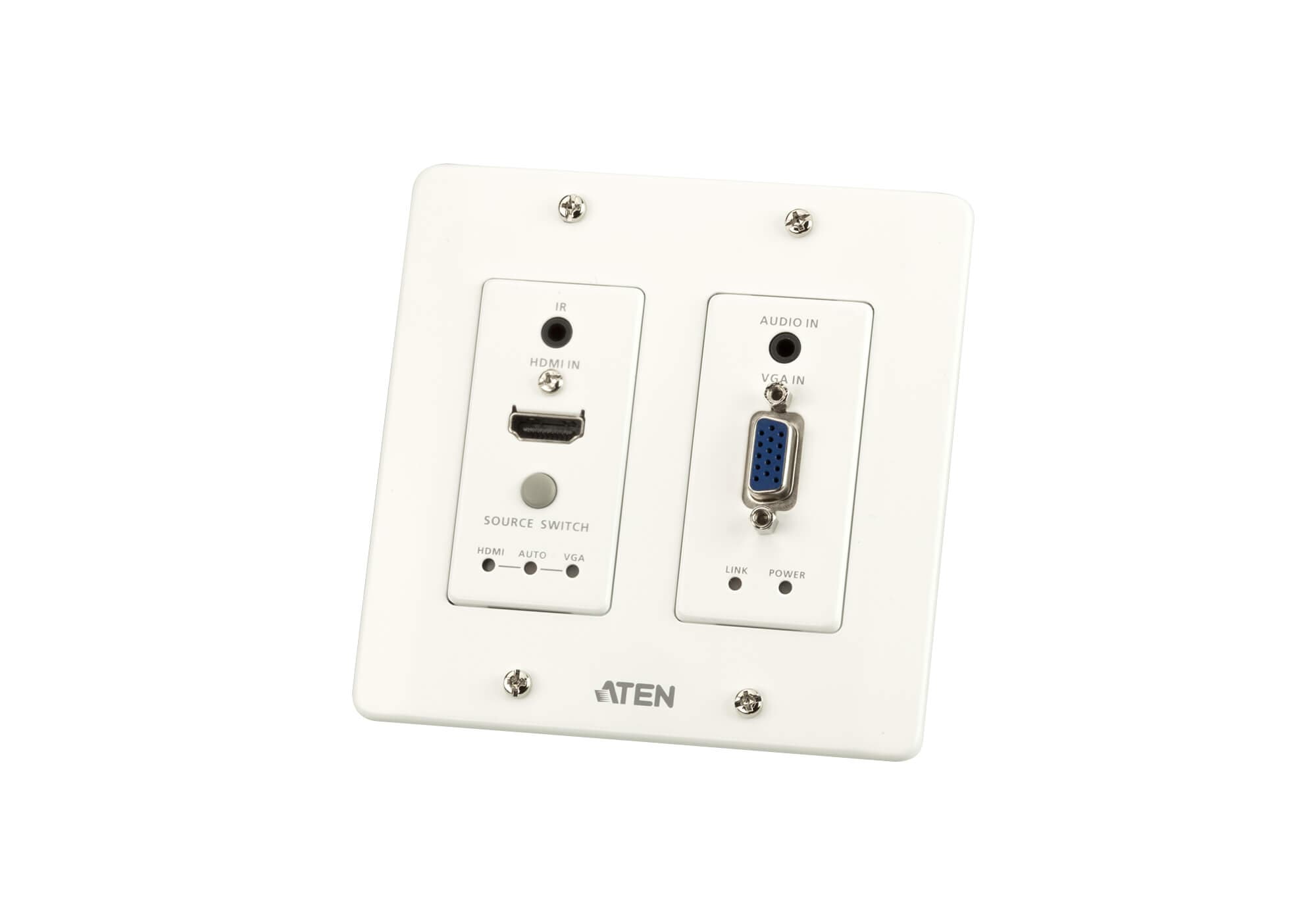

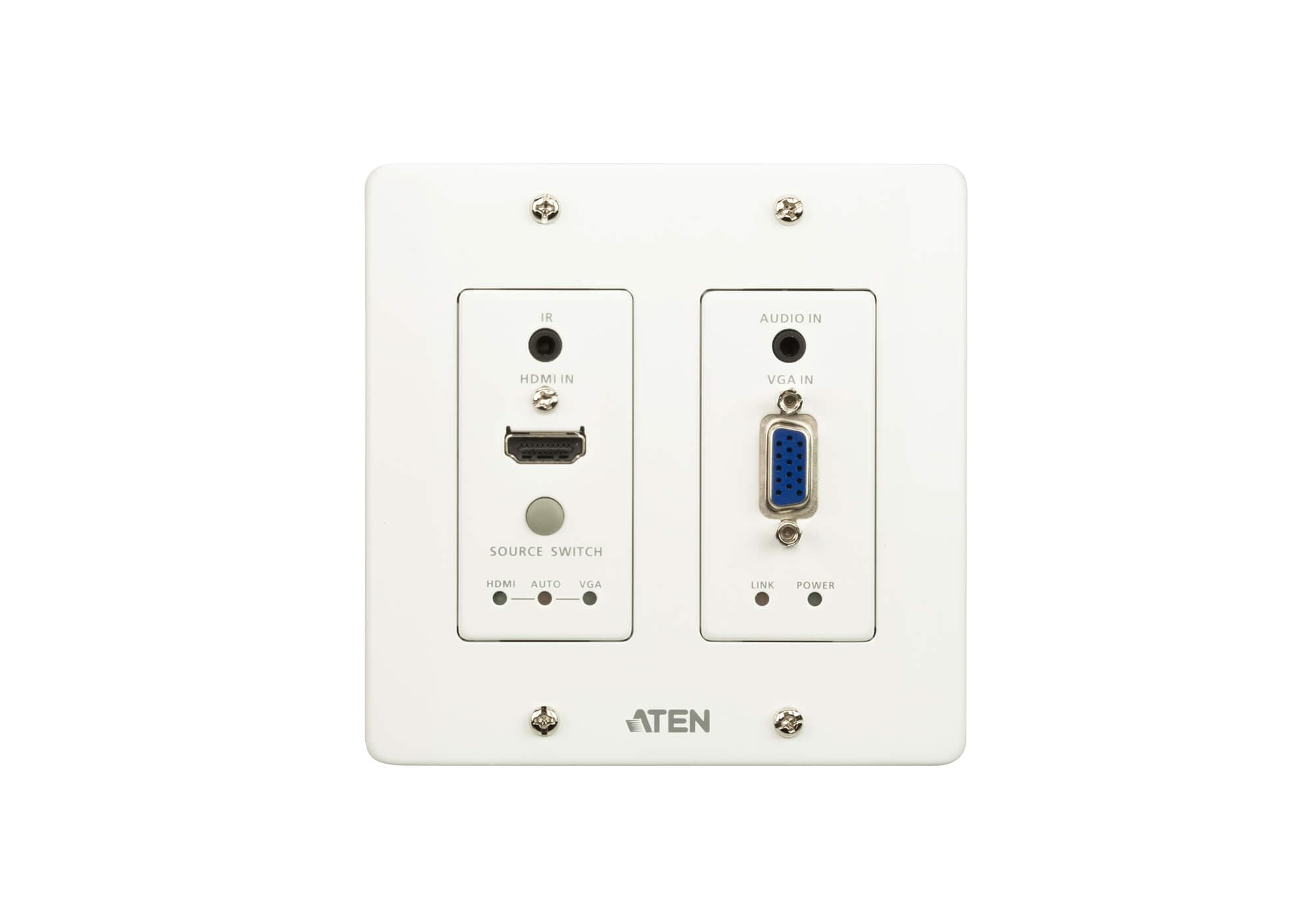

HDMI & VGA HDBaseT Transmitter with US Wall Plate (4K@100m) (HDBaseT Class A)
VE2812USTСнет от производство
Стенен HDBaseT предавател US формат за двойна монтажна кутия с HDMI и VGA входове. По един Cat 5e/6/6a кабел пренася HDMI 4K до 100 m (Cat 6a) или VGA до 1600x1200.
Характеристики

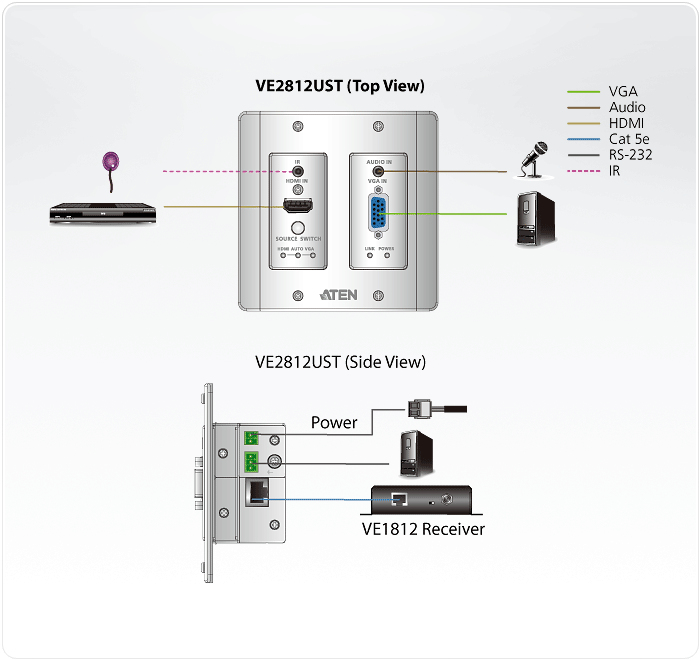

- Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Designed to mount in two- gang junction box
- HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality: • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable •VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Supports Auto Switch – automatically switches to a newly plugged-in source
- Functions as a switch or a converter • A Switch: Connects two sources (HDMI or VGA) • A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
- Supports RS-232 channel transmission or command mode for source switch control
- Compatible Receivers – VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R or future ATEN HDBaseT Receivers
- Plug-and-play
- Built- in 8KV / 15 KV ESD protection
- LED indication of sources and device status
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue)
- Импеданс
- HDMI: 100 Ω HDB-15 (VGA): 75 Ω
- Макс. разстояние
- 1.8 m
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)

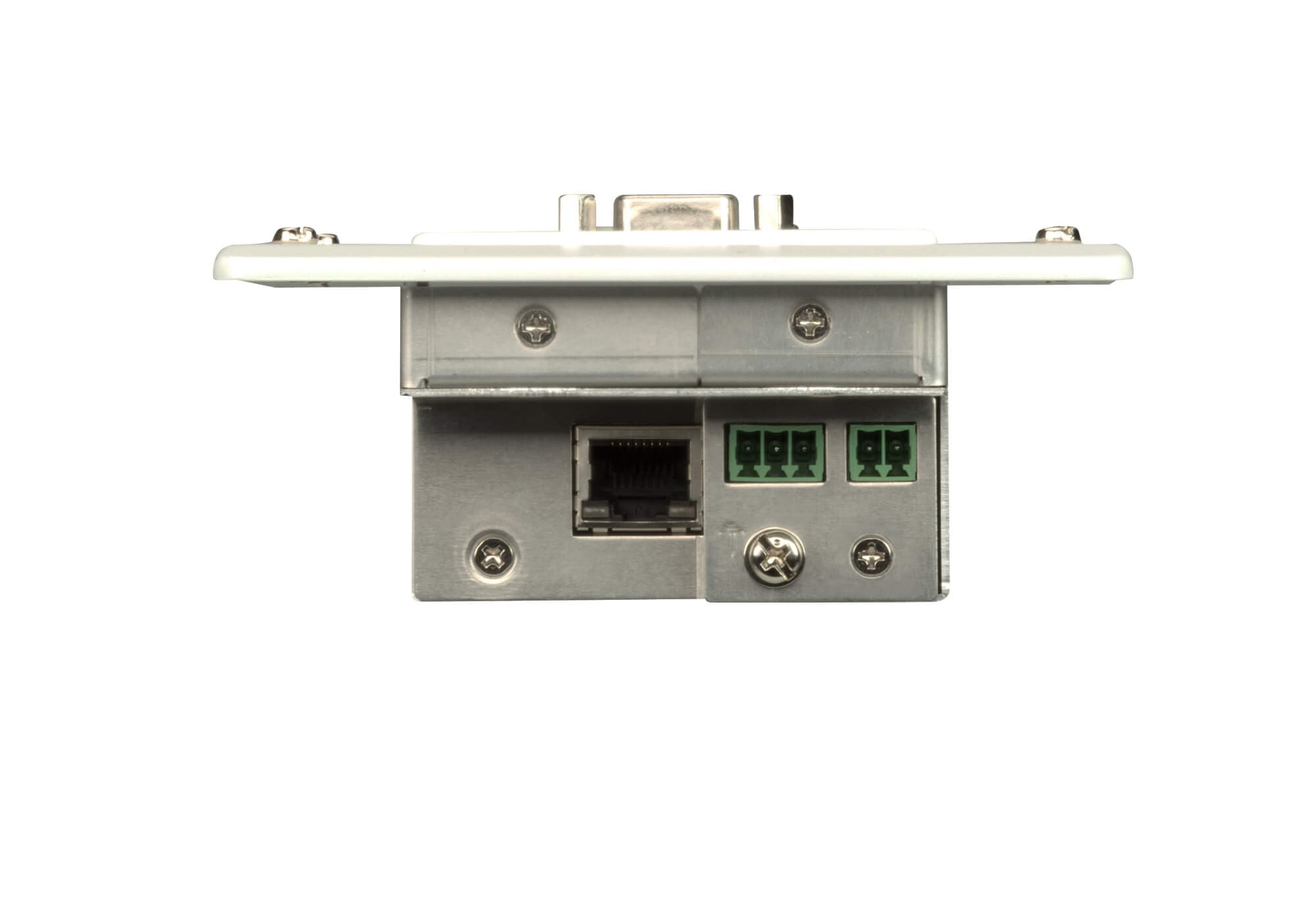

Конектори
- Между устройства
- 1 x RJ-45 Female
- Захранване
- 1 x Terminal Block, 2 pole (Green)
Управление
- RS-232
- Connector: 1 x Terminal Block, 3 pole (Green) Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
- IR
- 1 x Mini Stereo Jack Female (Black)
Бутони и превключватели
- Избор на видео вход
- 1 x Push Button - HDMI, VGA and AUTO

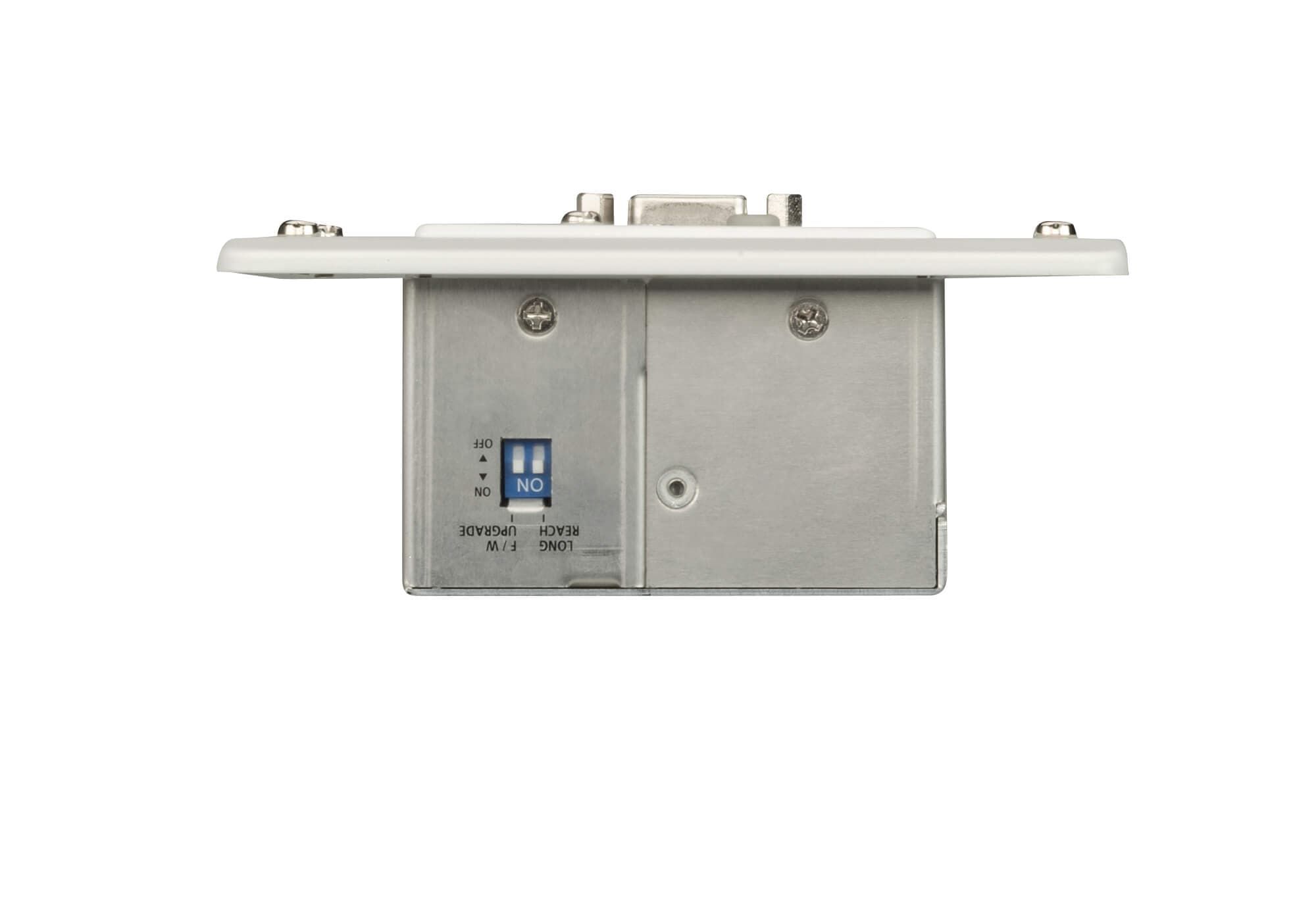

- Превключвател Long Reach
- 1 x Slide Switch - ON/OFF
- Обновяване на фърмуера
- 1 x Slide Switch - ON/OFF
- Консумация
- DC5V:3.04W:14.25BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.29 kg ( 0.64 lb )
- Размери (Д x Ш x В)
- 10.42 x 8.79 x 5.19 cm (4.1 x 3.46 x 2.04 in.)
- Размери на лицевия панел (Д x Ш x В)
- 11.43 x 11.43 x 0.60 cm (4.5 x 4.5 x 0.24 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
