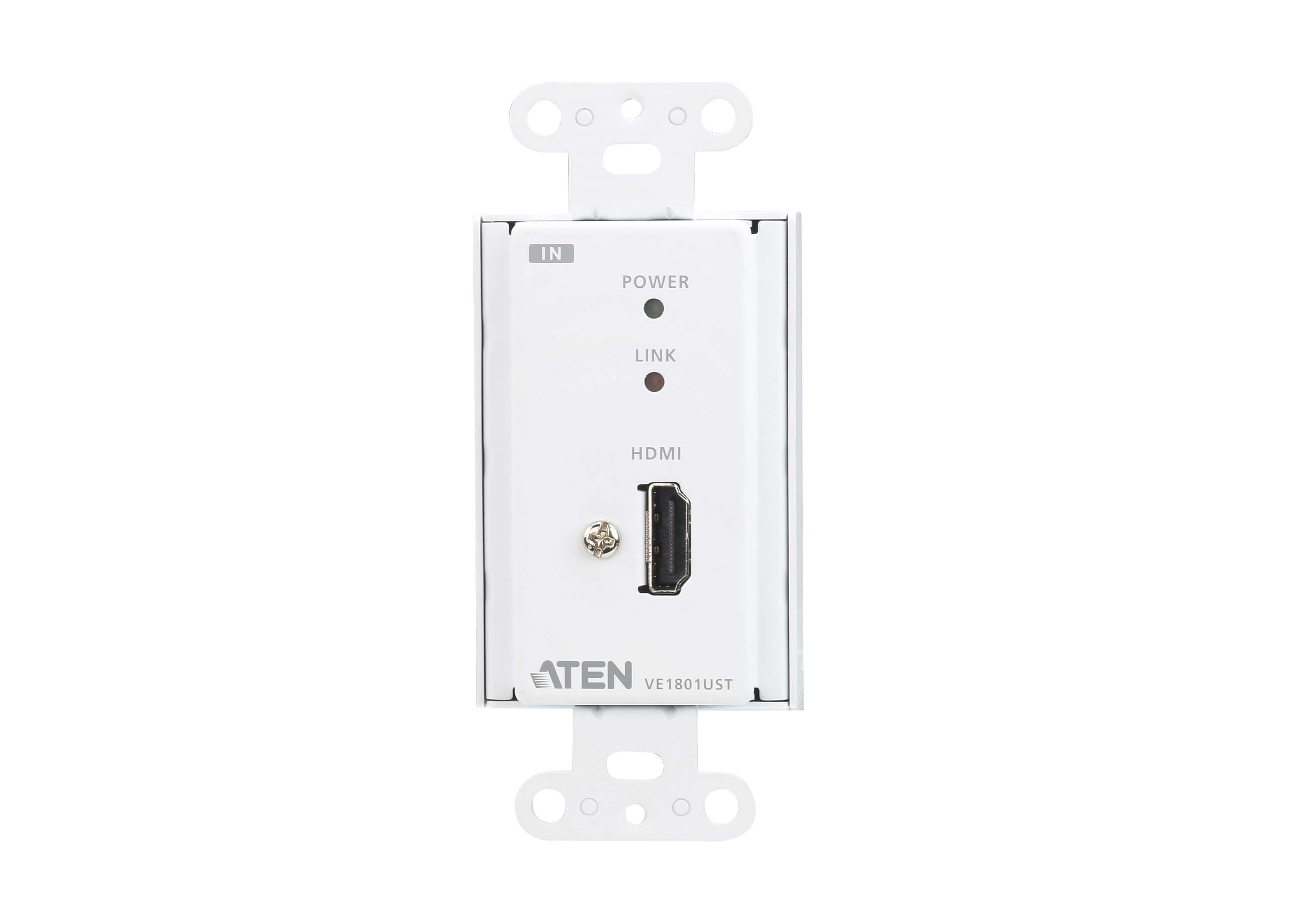

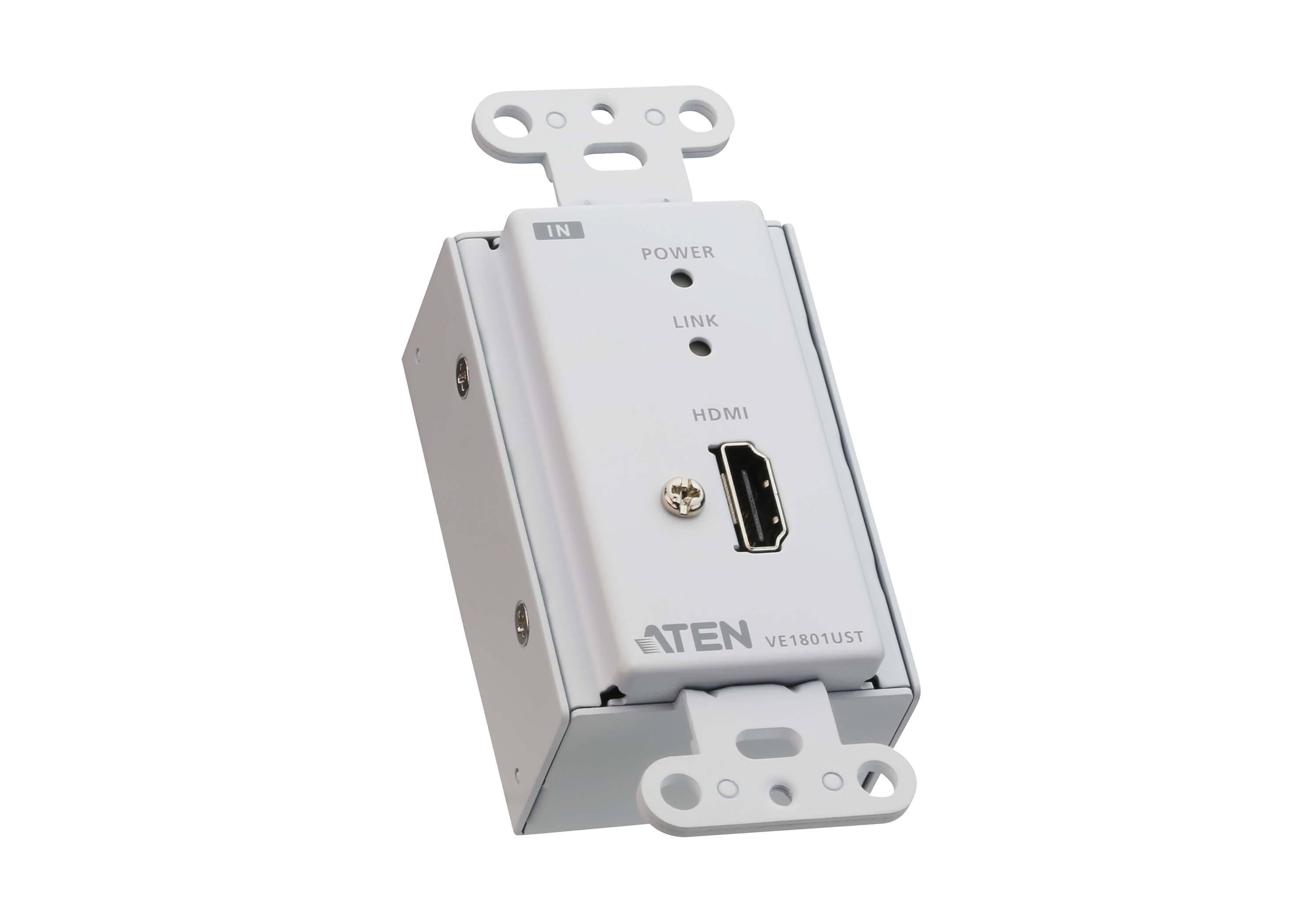

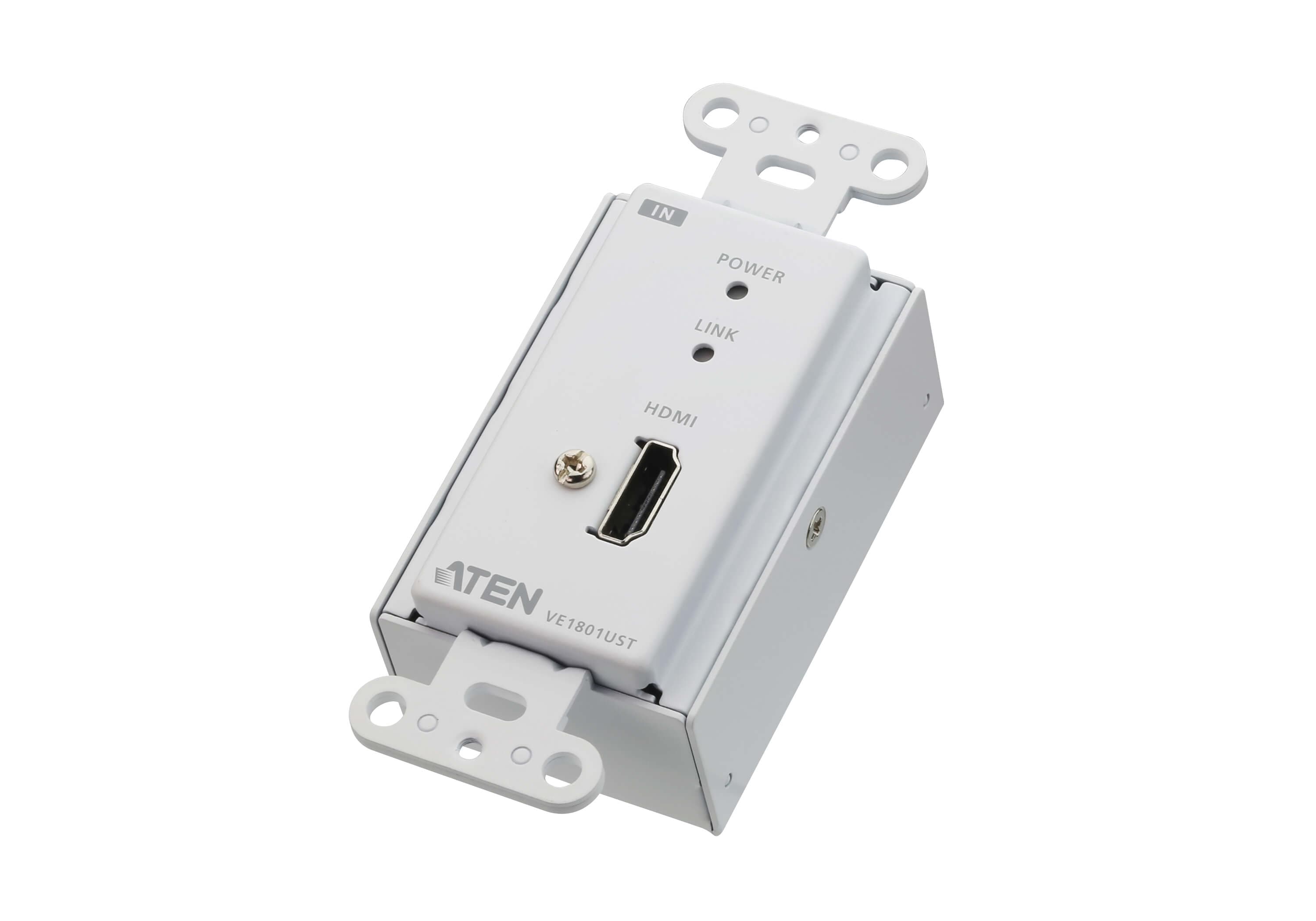

HDMI HDBaseT-Lite Transmitter with US Wall Plate (4K@40m) (HDBaseT Class B)
VE1801USTСнет от производство
HDBaseT-Lite предавател във вид на стенен панел US формат за единична монтажна кутия. Пренася HDMI при 4K до 35 m по Cat 5e/6, до 40 m по Cat 6a и 1080p до 60 m.
Характеристики
- Extends HDMI signals with superior video quality over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable • 4K up to 40 m • 1080p up to 70 m
- HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
- Designed to mount in a one-gang junction box
- Supports RS-232 channel transmission
- Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- LED indication of device status
- Supports widescreen format
- Built- in 8KV / 15 KV ESD protection
- Plug-and-play
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100Ω
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- 1 x HDMI Type A Female (Black)
Управление
- RS-232 канал
- 1 x Terminal Block, (3 pole, Green)

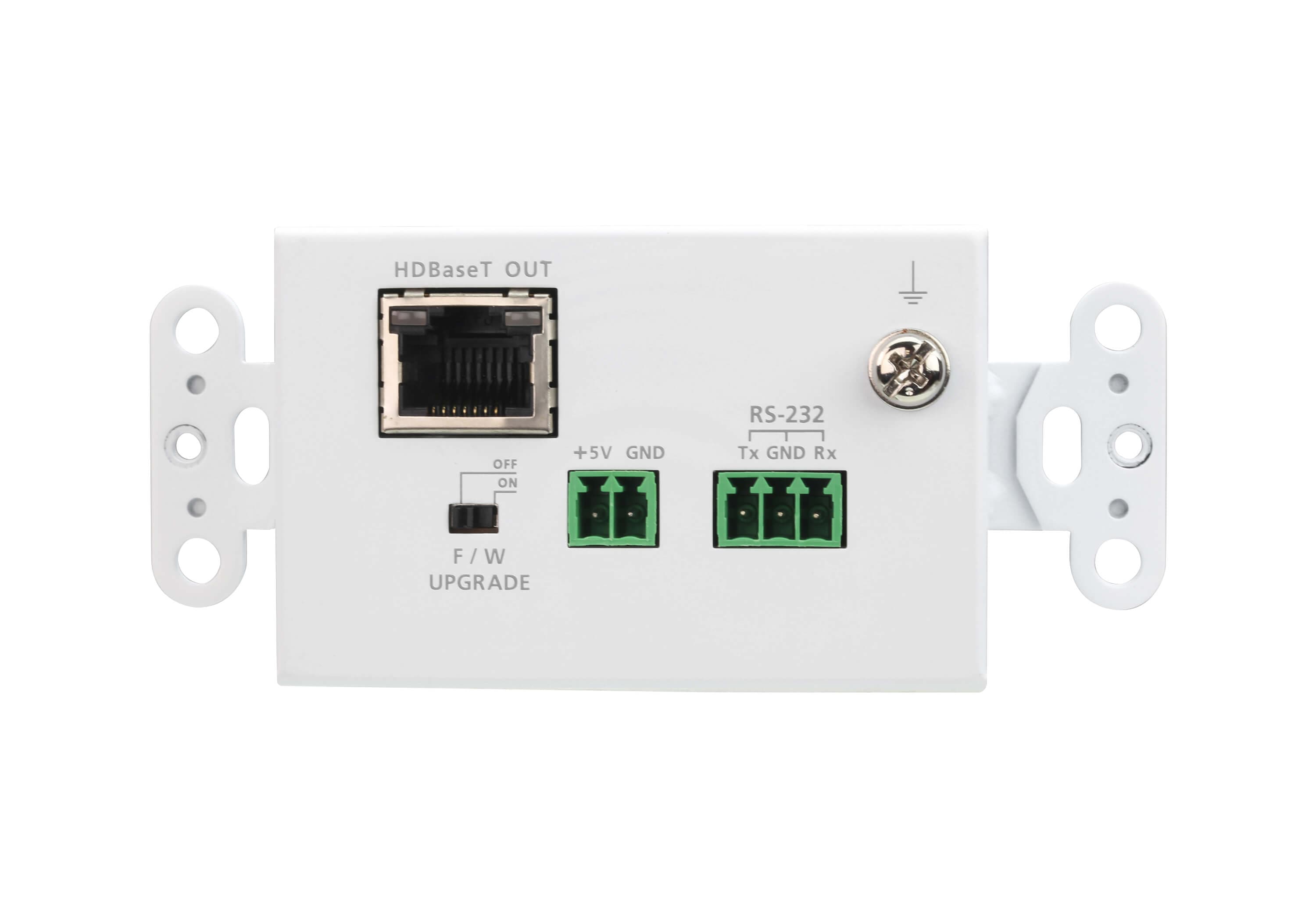

Конектори
- Между устройства
- 1 x RJ-45 Female
- Захранване
- 1 x Terminal Block (2 pole, Green)
- Консумация
- DC5V:1.749W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0% - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.17 kg ( 0.37 lb )
- Размери (Д x Ш x В)
- 10.41 x 4.44 x 4.10 cm (4.1 x 1.75 x 1.61 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
