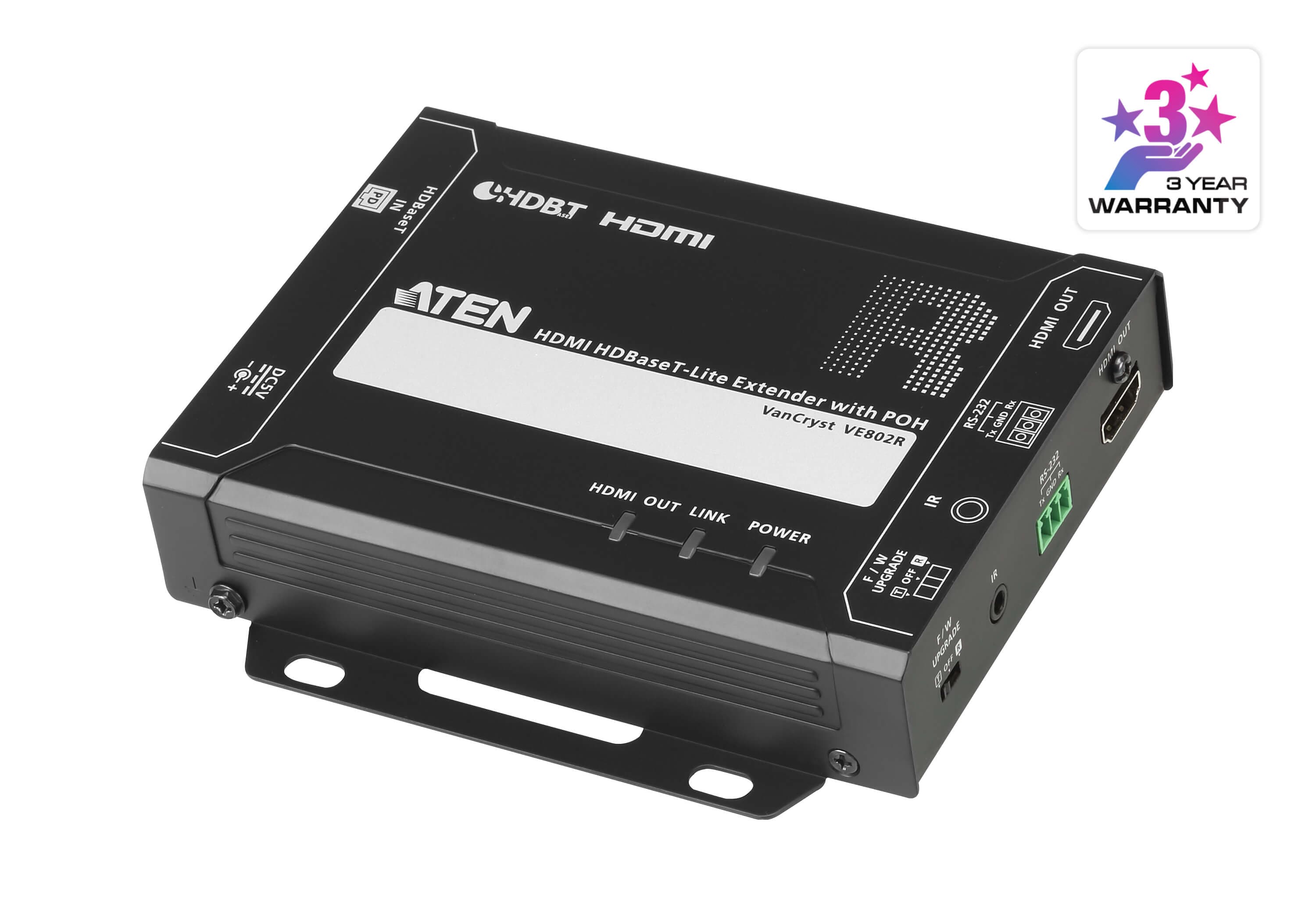

HDMI HDBaseT-Lite Receiver with PoH (4K@40m) (HDBaseT Class B) (PoH PD)
VE802R
HDBaseT-Lite приемник за HDMI с PoH — работи с HDBaseT предавател по Cat 5e/6/6a кабел до 70 m; 4K до 35 m (Cat 5e/6) или 40 m (Cat 6a), с passthrough на RS-232 и IR.
Характеристики
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Rack- Mountable
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100Ω
- Макс. разстояние
- 3 m
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Изход
- 1 x HDMI Type A Female (Black)
Управление
- RS-232
- Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
- IR
- 1 x Mini Stereo Jack Female (Black)
Конектори
- Захранване
- 1 x DC Jack (Black) with locking or 1 x RJ-45 (Power Over HDBaseT, POH)
- Между устройства
- 1 x RJ-45 Female
- Консумация
- DC5V:4.37W:20BTU/h POH:5.46W:25BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.46 kg ( 1.01 lb )
- Размери (Д x Ш x В) със скоба
- 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
