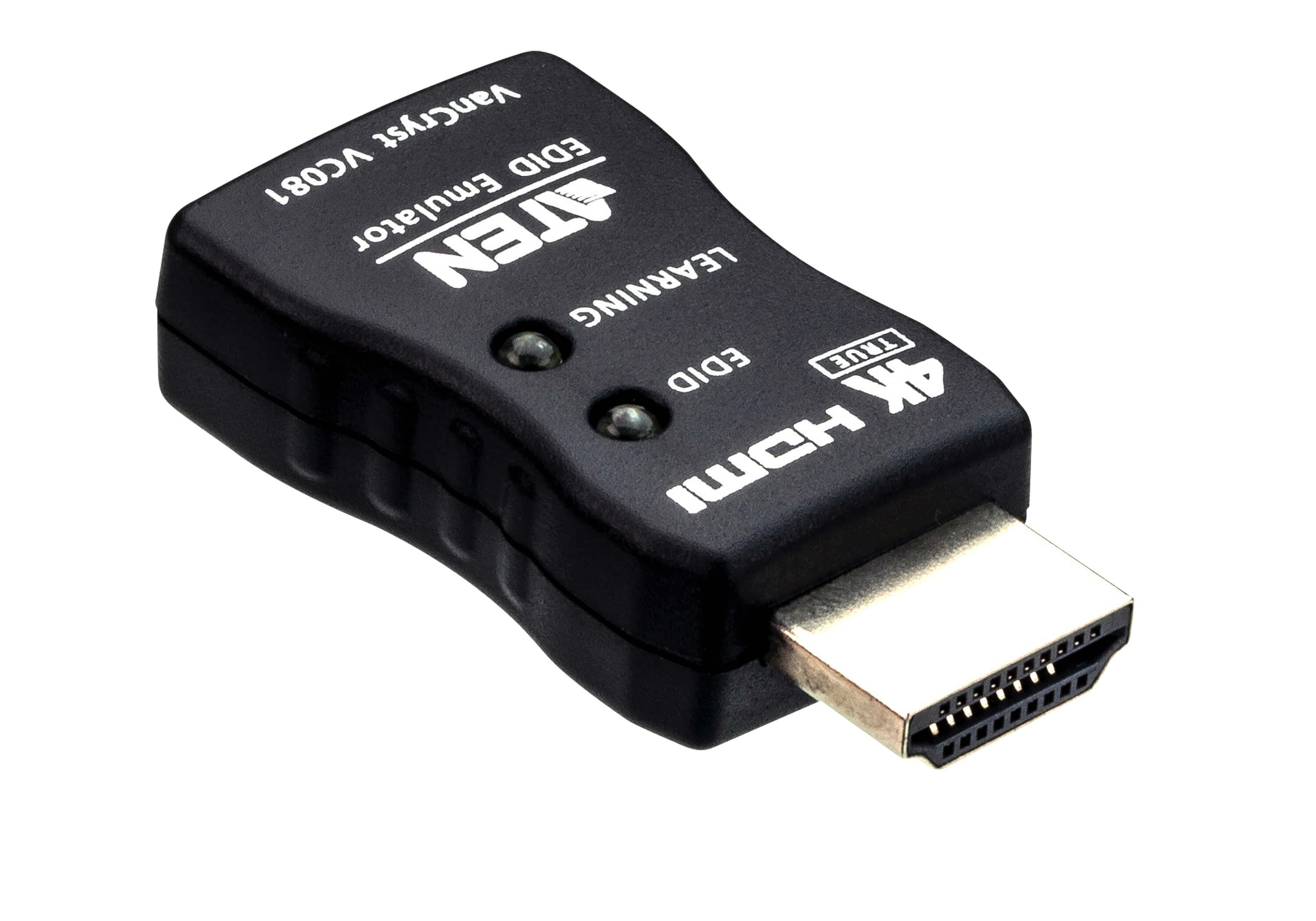

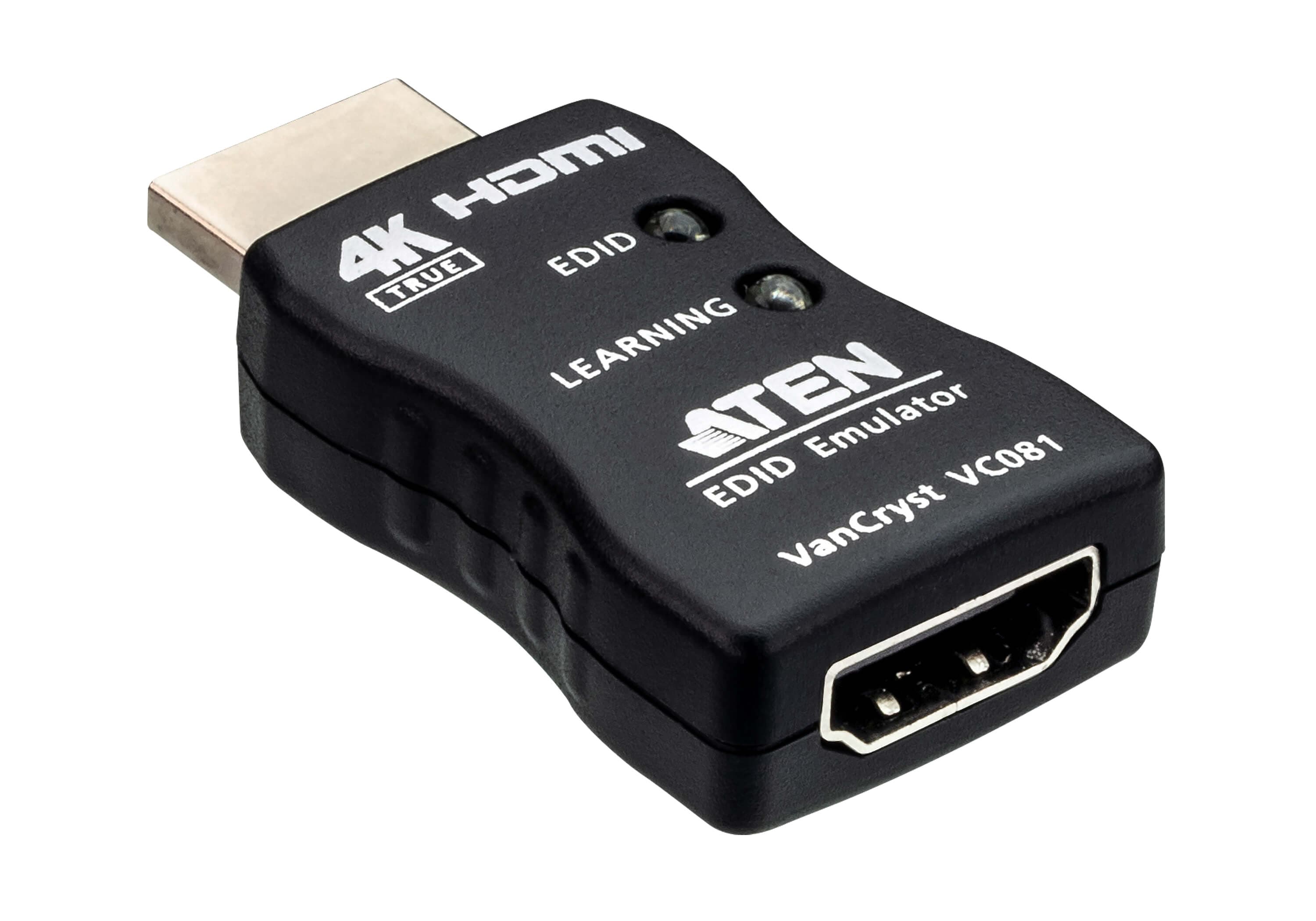

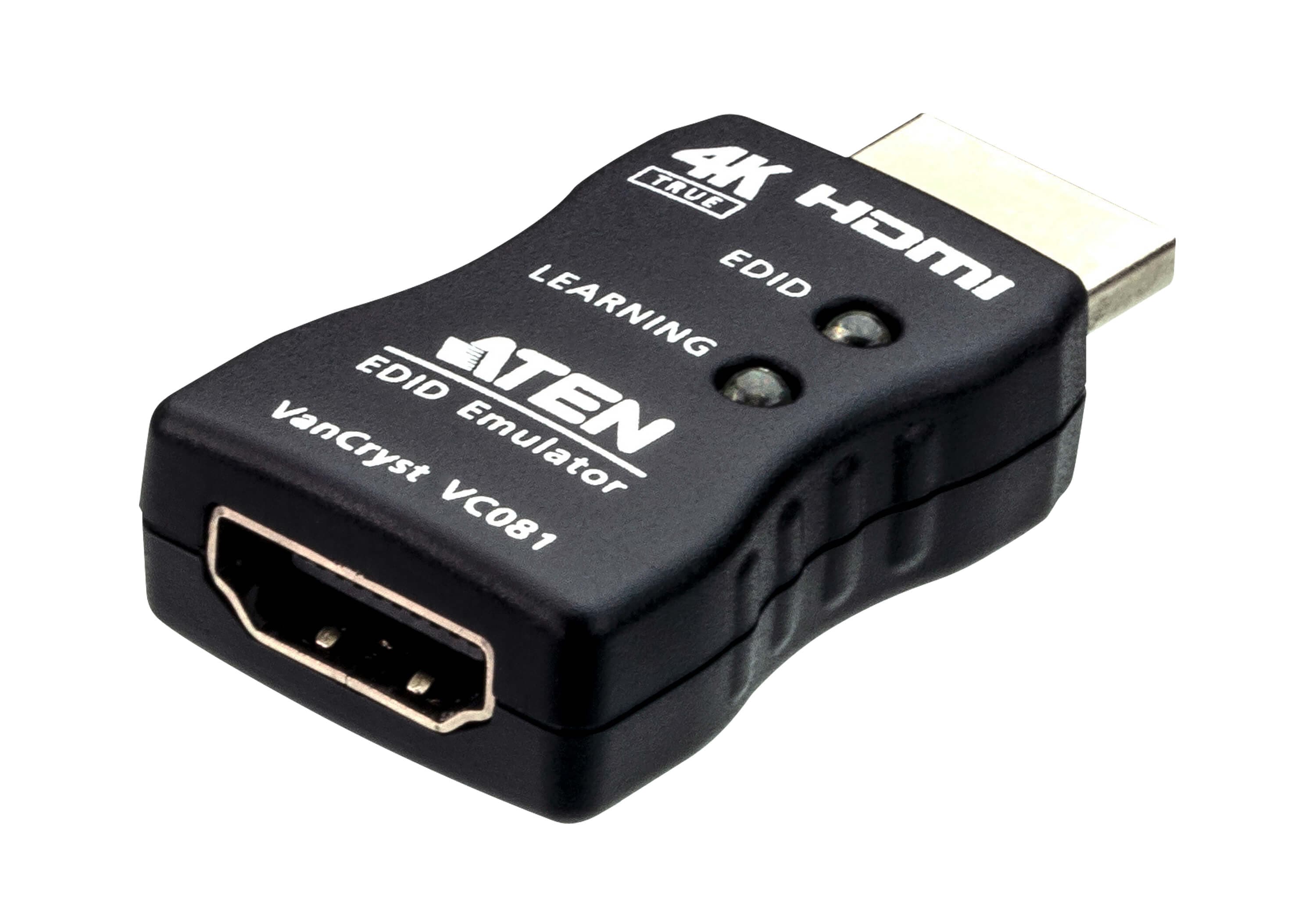

EDID емулатор, който запаметява EDID на HDMI дисплея и го подава към видеоизточника; поддържа True 4K (3840 x 2160 @ 60Hz 4:4:4), HDMI 2.0 и HDCP 2.2.
Характеристики
- Manages EDID communication between connected devices

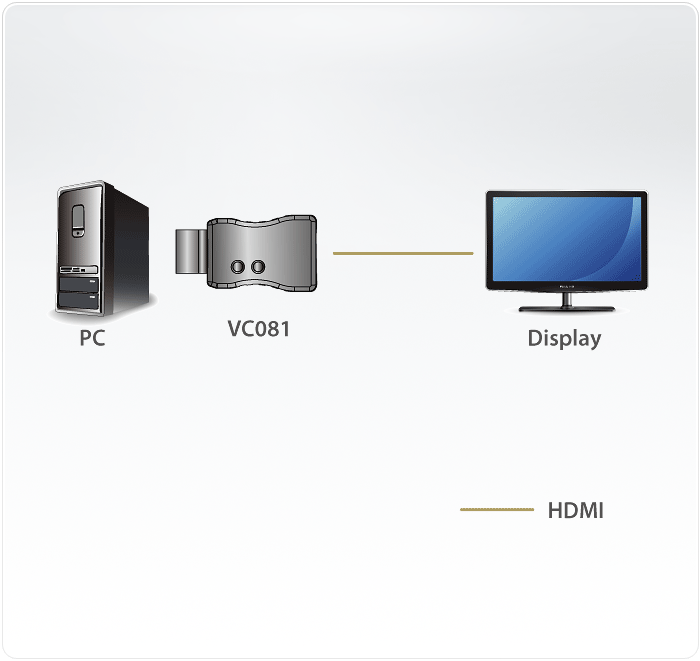

- Effectively learn the EDID from the HDMI display and relay it to the video source
- HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
- LED indicators to show device status
- Powered by HDMI source
- Compact and lightweight design
Индикатори
- Захранване
- Power status (Green x 1)
- Състояние
- Learning (Blue x 1)
Видео вход
- Интерфейси

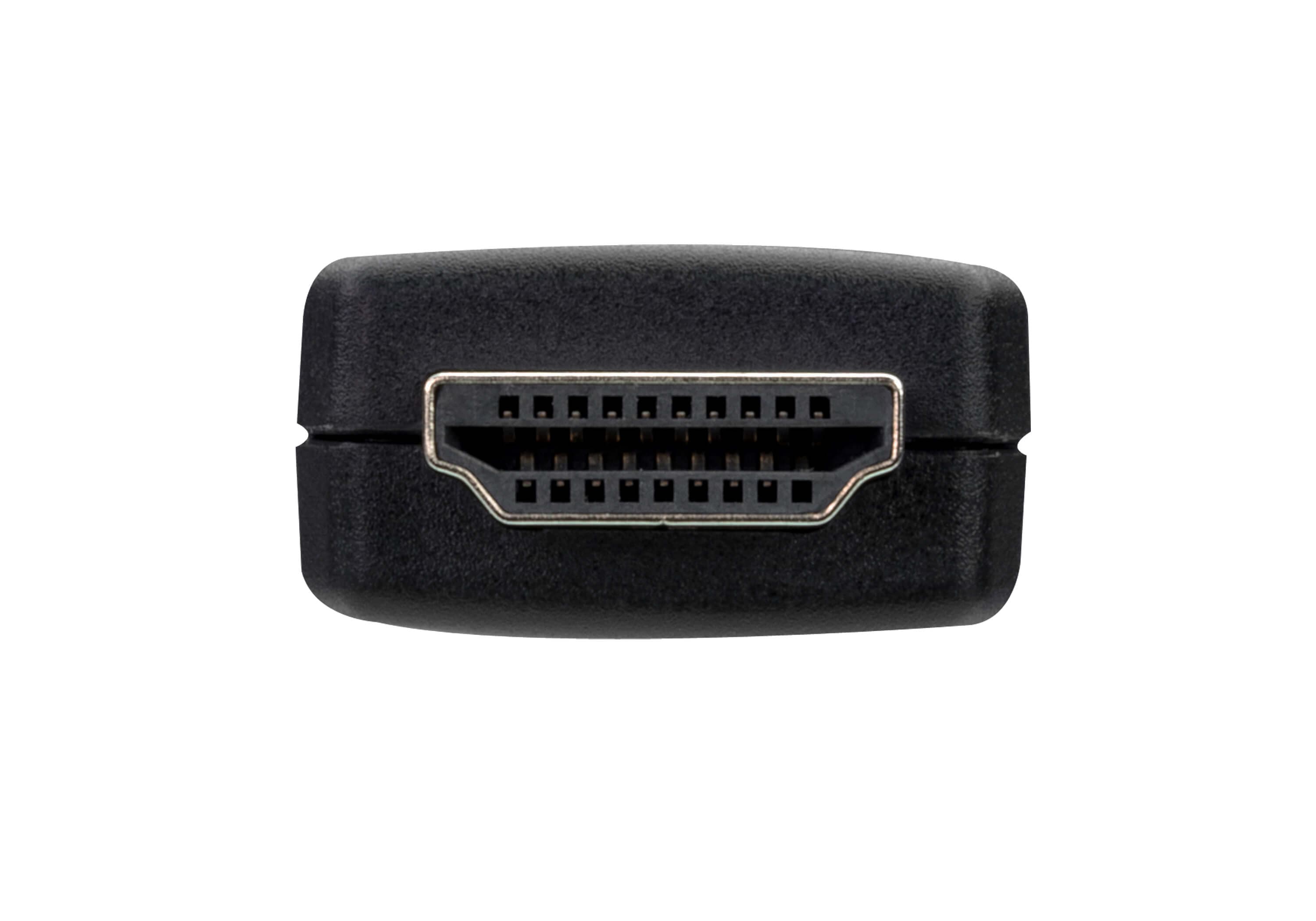

- 1 x HDMI Type A Male (Black)
- Импеданс
- 100 Ω
Видео изход
- Интерфейси

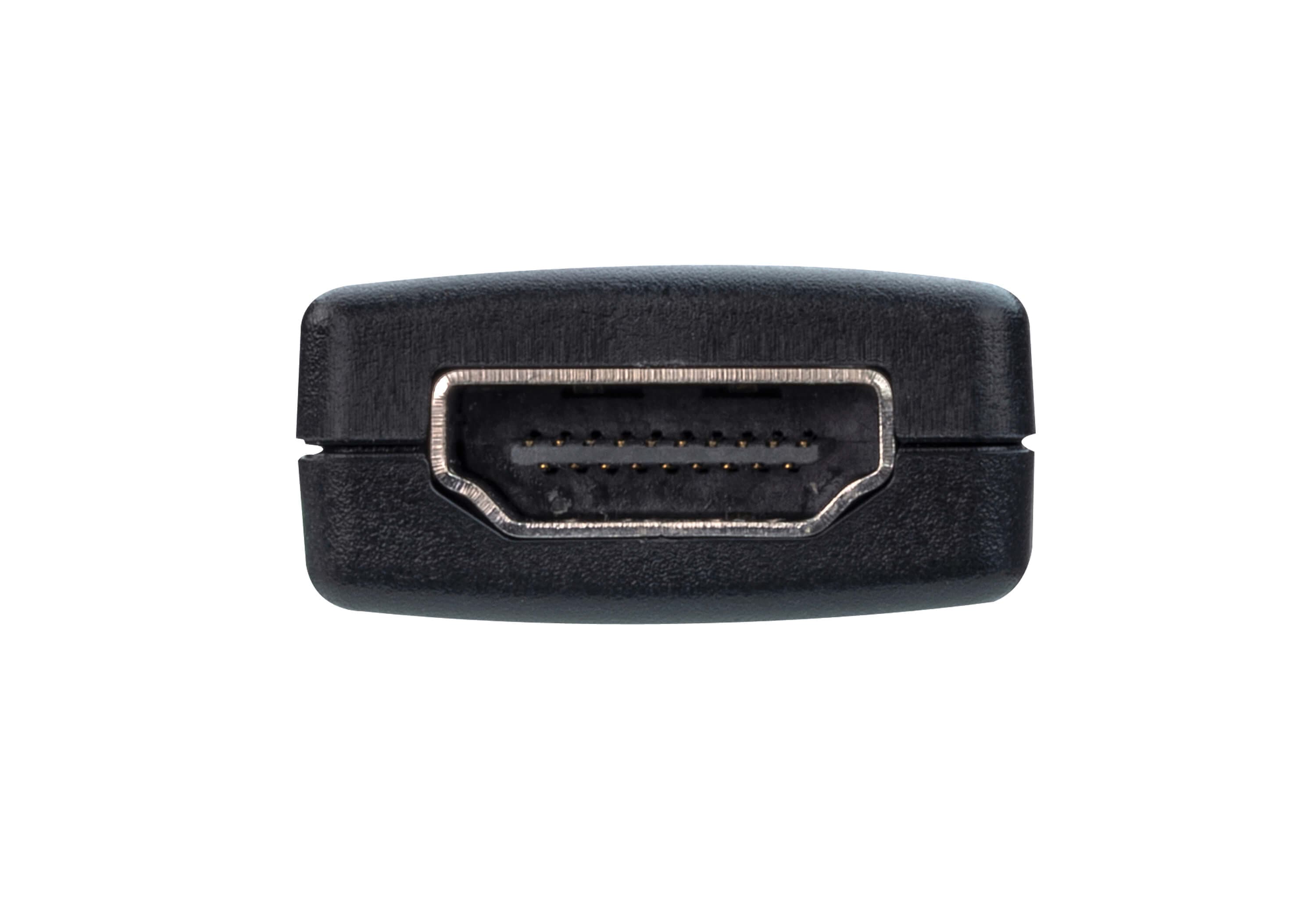

- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
Видео
- Съответствие
- HDMI 2.0 (3D, Deep Color) HDCP 2.2 Compatible Consumer Electronic Control (CEC)
- EDID настройки
- EDID Mode: Default / Learning
Конектори
- Захранване
- Bus-powered (5 VDC from source device)
- Консумация
- DC5V:0.1W:0.4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic (ABS)
- Тегло
- 0.08 kg ( 0.18 lb )
- Размери (Д x Ш x В)
- 4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.)
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
