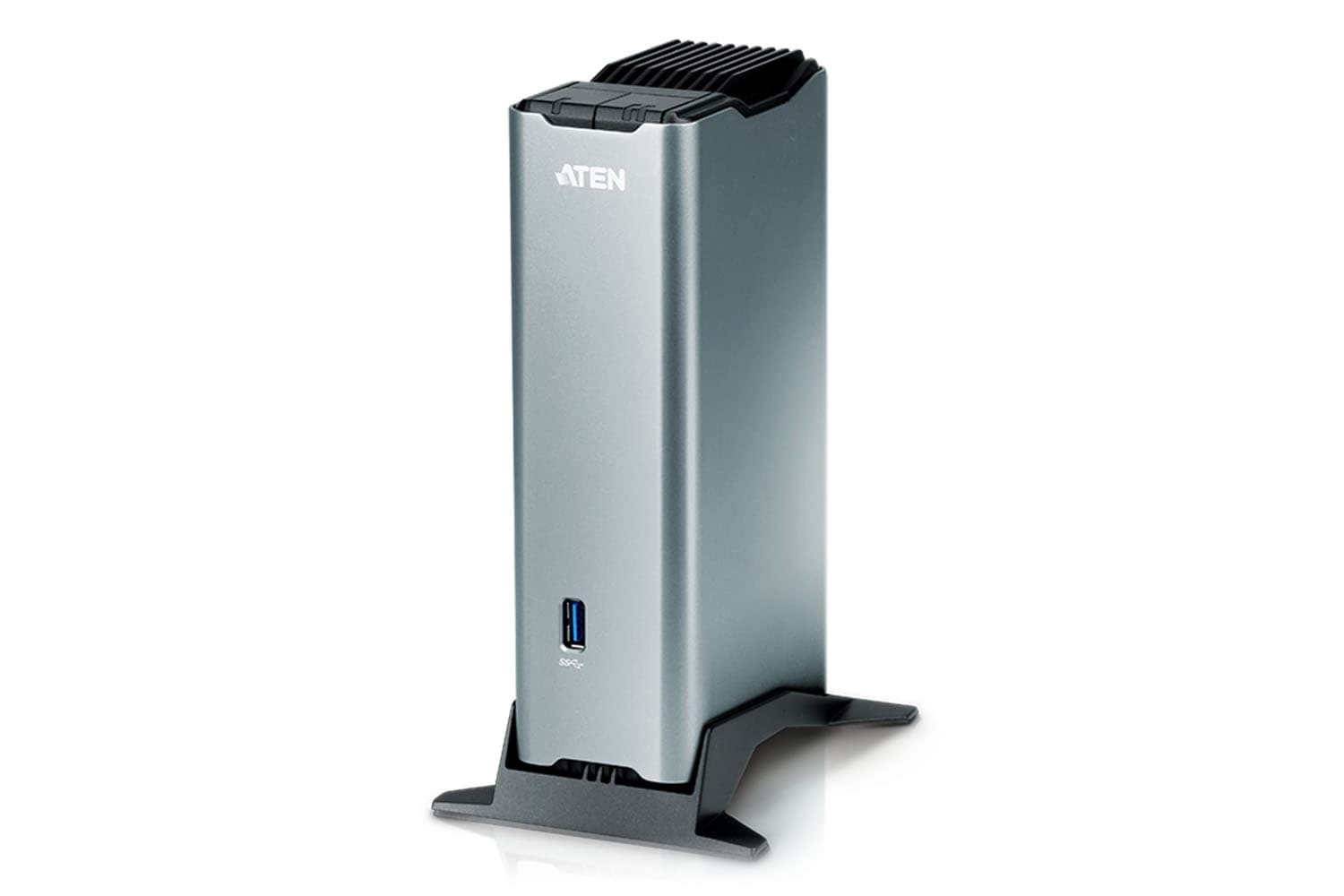

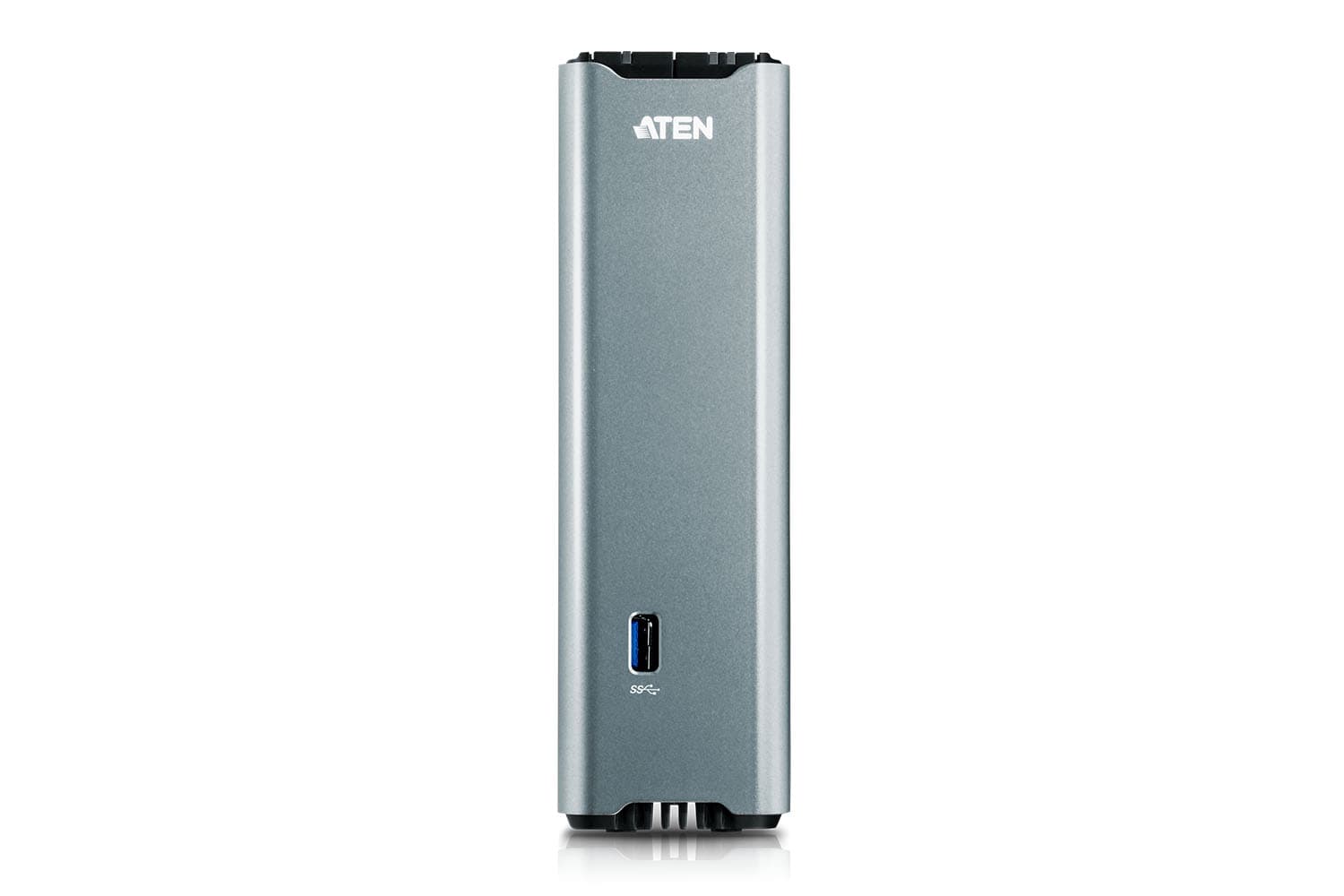

2-Port Thunderbolt 2 KVM Docking Station
US7220Снет от производство

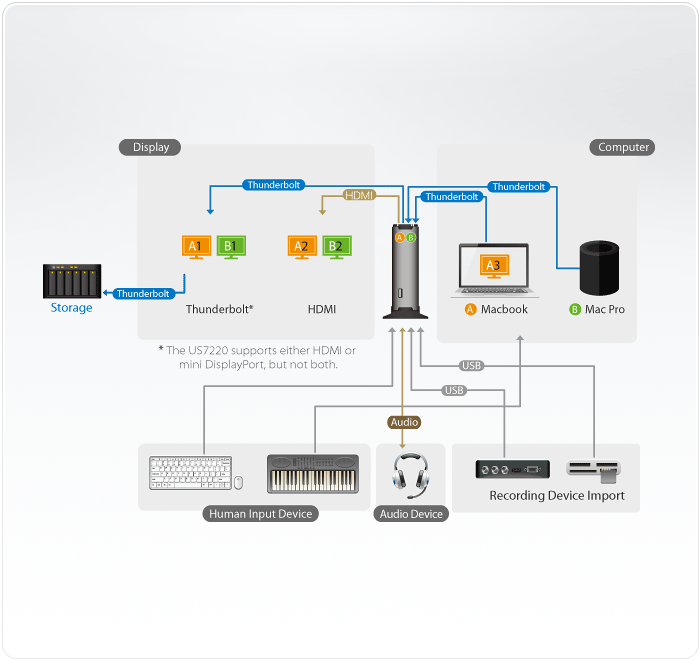

Докинг станция с KVM функционалност за два компютъра с Thunderbolt 2 — споделя Thunderbolt устройства, конфигурация с два монитора и USB периферия през един кабел; пренос до 20 Gbps.
Характеристики
- Thunderbolt 2.0 compliant with data transfer rates up to 20 Gbps
- Connect 11 devices to a laptop through a single Thunderbolt cable*
- Two Thunderbolt ports connect two Thunderbolt hosts
- One Thunderbolt port connects a Thunderbolt device and daisy-chains up to 5 additional devices
- Gigabit Ethernet port
- HDMI port supports an additional HDMI display
- Supports three USB 3.1 Gen 1 ports with data transfer rates up to 5 Gbps
- Two USB 2.0 ports with data transfer rates up to 480 Mbps
- Supports high-definition audio signals with Dolby and DTS pass-through via Mini TOSLINK; and 2.1 channel audio via 3.5 mm audio cable
- Analog/Digital audio line-in and line-out
- Supports HDMI 1.4b with 4K (UHD) resolution
- Supports DisplayPort 1.2 with 4K (UHD) resolution
- eSATA port for storage devices Note: Additional Thunderbolt cable sold separately.
Спецификация
- Връзки към компютри
- 2 Thunderbolt Computers
- Връзки към устройства
- 5 Max. (via Thunderbolt Daisy-Chaining)

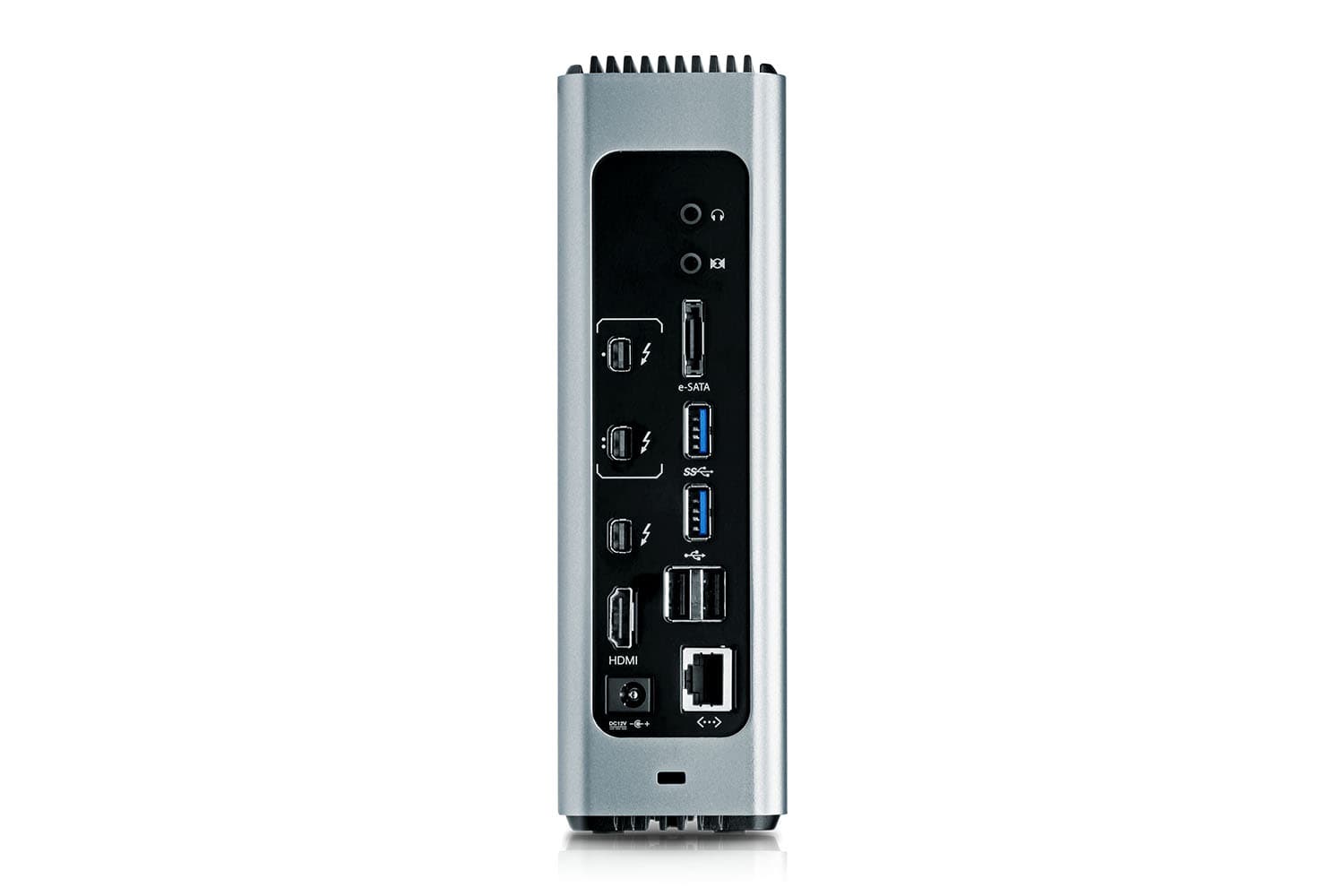

Конектори
- Компютър
- 2 x Thunderbolt 2.0 Female (Black)
- Устройство
- 1 x Thunderbolt 2.0 Female (Black) 3 x USB3.1 Gen1 Type A Female (Blue) 2 x USB2.0 Type A Female (Black) 1 x E-SATA Female (Black)
- LAN портове
- 1 x Gigabit Ethernet Female (Black)
- Аудио входове
- 1 x Stereo / Mini Toslink Jack Female (Black)
- Аудио изходи
- 1 x Stereo / Mini Toslink Jack Female (Black)
- Захранващ конектор
- 1
- Видео изход
- 1 x HDMI Female 1 x Thunderbolt / Mini DisplayPort Female*
- Избор на порт
- Port selection button x2
Индикатори
- Избран
- 2
- Видео резолюция
- Single View: Mini DisplayPort or Thunderbolt Monitor - 3840*2160@60* HDMI Monitor- 3840*2160@30 Dual View: Thunderbolt Monitor- 3840*2160@60 HDMI Monitor - 3840*2160@30 *The US7220 supports either HDMI or Mini DisplayPort, but not both.
- Консумация
- DC12V:6.78:226BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Съдържание на комплекта
- 1 x 1m Thunderbolt 2.0 Cable 1 x Power Adapter 1 x Vertical Stand
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.78 kg ( 1.72 lb )
- Размери (Д x Ш x В)
- 5.70 x 9.75 x 19.19 cm (2.24 x 3.84 x 7.56 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
