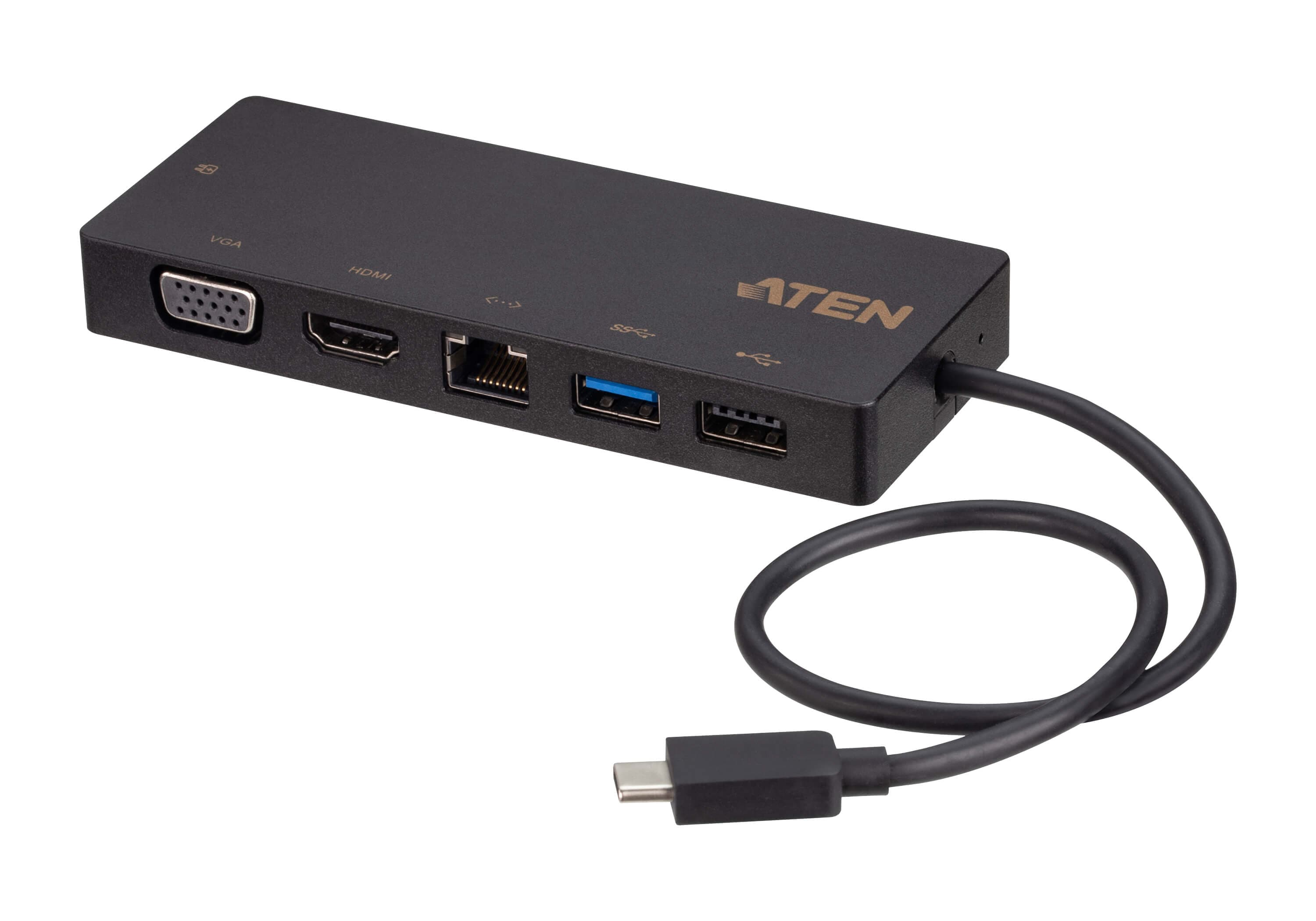

USB-C Multiport Mini Dock with Power Pass-Through
UH3236Снет от производство
Мини док за USB-C лаптоп: свързва до 5 устройства през един кабел — HDMI до 4K (3840 x 2160 @ 30Hz) или VGA, Gigabit Ethernet и PD 3.0 зареждане до 60W.
Характеристики

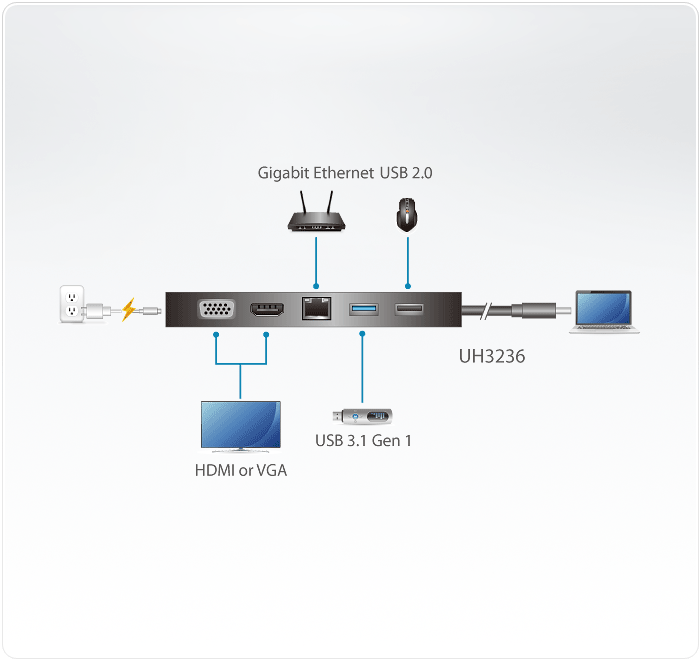

- Connects up to 5 devices to a laptop through a single USB-C cable
- Supports 4K HDMI (3840 x 2160 @ 30Hz) resolutions or VGA (1920 x 1200 @ 60Hz) resolutions

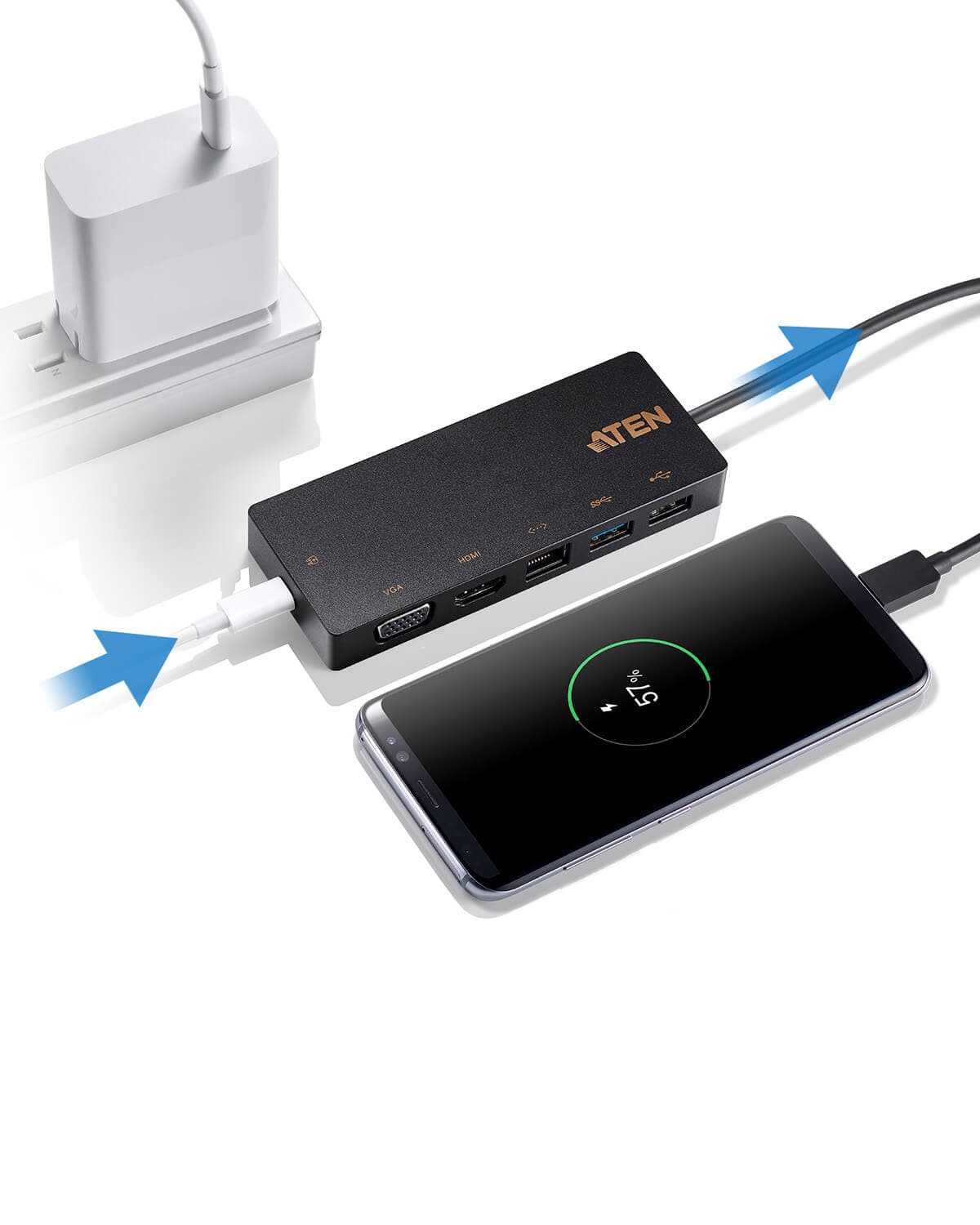

- Supports USB Power Delivery 3.0 for laptop charging up to 60W via USB-C power adapter – power profiles include 5V, 9V, 12V, 15V, 20V**
- Gigabit Ethernet port
- Plug & Play – no drivers needed
- Works with all major operating systems: Windows®, OS X®, and Android***
- Compatible with Thunderbolt 3 (USB-C) * With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode. **The total charging time may vary depending on the spec of USB-C power adapter connected to the UH3236. *** Support iPad Pro video output, USB keyboard, and Android mirror mode (Compatible with smart phones launched in 2018 or later that feature video output over USB-C with DP Alt Mode) only
Спецификация
- Връзки към компютри
- 1
- Дължина на кабела
- 35 cm

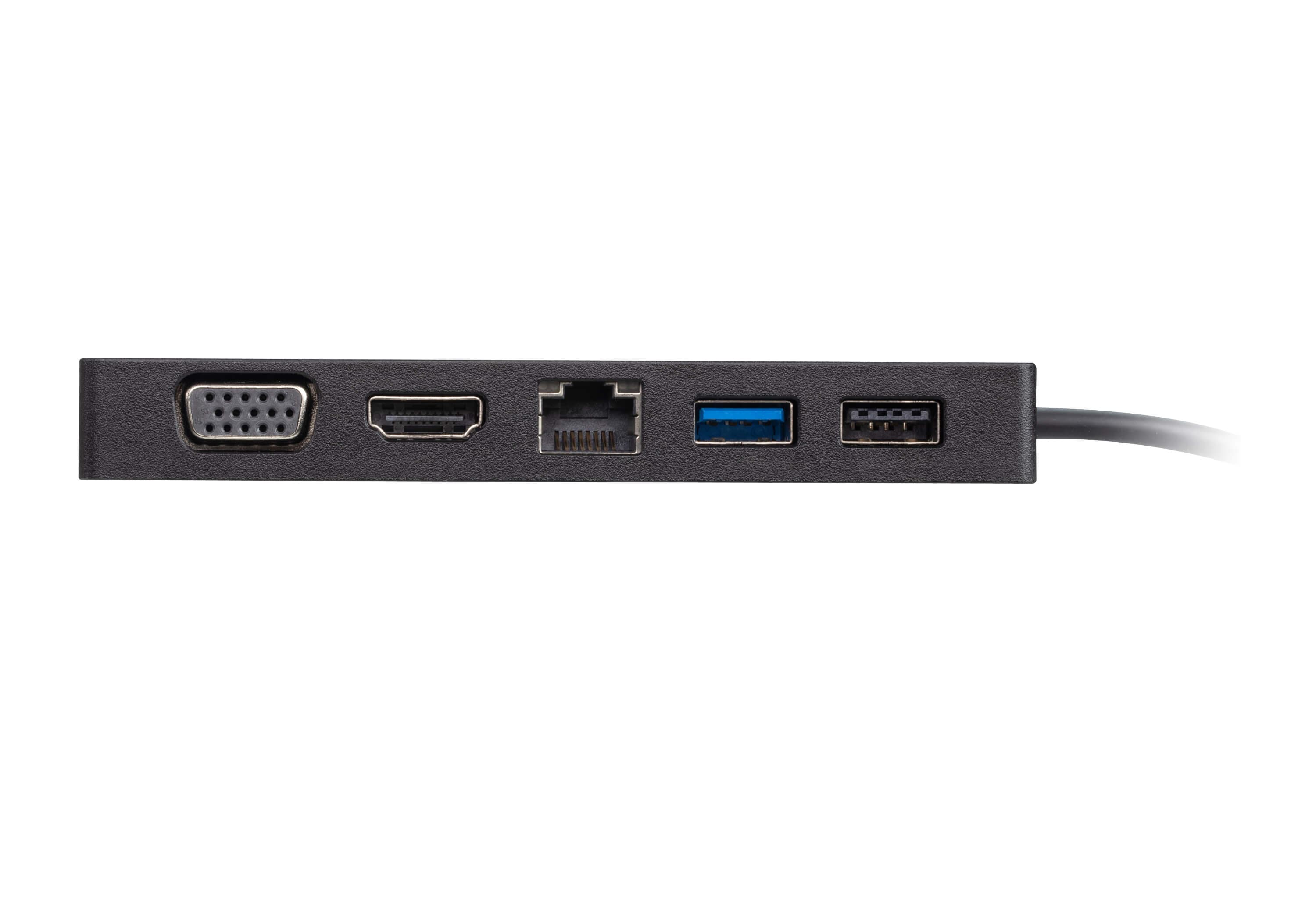

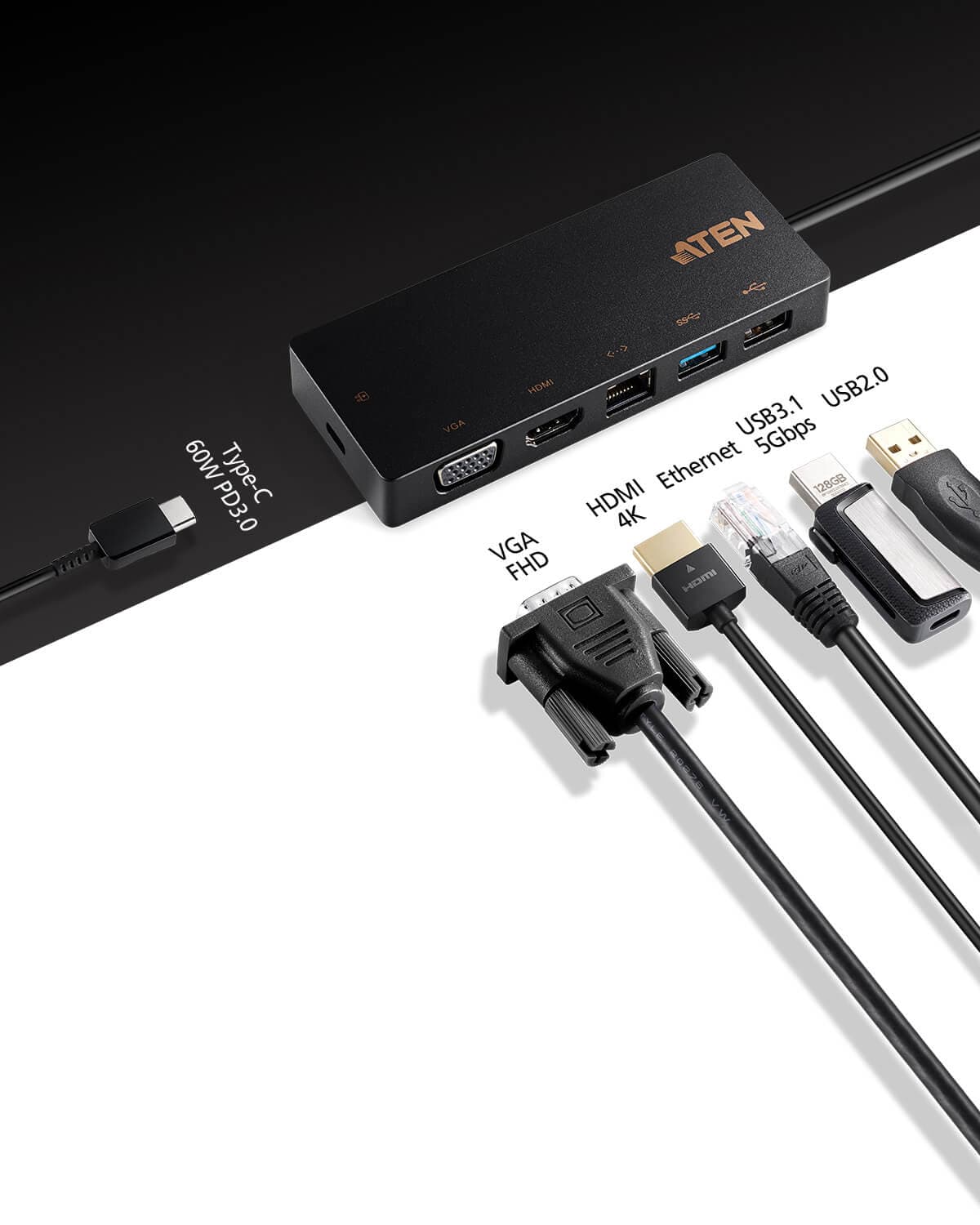

Конектори
- Компютър
- 1 x USB-C Male (Black)
- Видео изход
- 1 x HDMI Female (Black) 1 x VGA Female (Black)
- Устройство
- 1 x USB 2.0 Type A Female (Black) 1 x USB 3.2 Gen1 Type A Female (Blue)
- LAN портове
- 1 x Gigabit Ethernet Female (Black)
- Захранване
- 1 x USB-C Female Support Power Delivery 3.0 for laptop charging up to 60W, power profiles include 5V, 9V, 12V, 15V, 20V (additional USB-C power adapter needed)* * For device charging, a Limited Power Source (LPS) certified single port USB-C PD power adapter over 65 Watt is recommended. * The minimum system power requirement for basic USB functions and video output should be at least 5V, 12.5W.
- Видео резолюция
- Single View: * HDMI - 3840*2160@30 or VGA - 1920*1200@60 *With Intel 7th-Generation Core Processor (Kaby Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html For video output to work through a USB-C port, device with DP Alt Mode support is required.
- Консумация
- DC5V:12.5W:56BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Системни изисквания
- Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode** **Only Samsung and Huawei support PC-like operation, others only support mirror mode. iPadOS 13.1 and above, iPad Pro (USB-C)
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.08 kg ( 0.18 lb )
- Размери (Д x Ш x В)
- 14.00 x 5.50 x 1.60 cm (5.51 x 2.17 x 0.63 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
