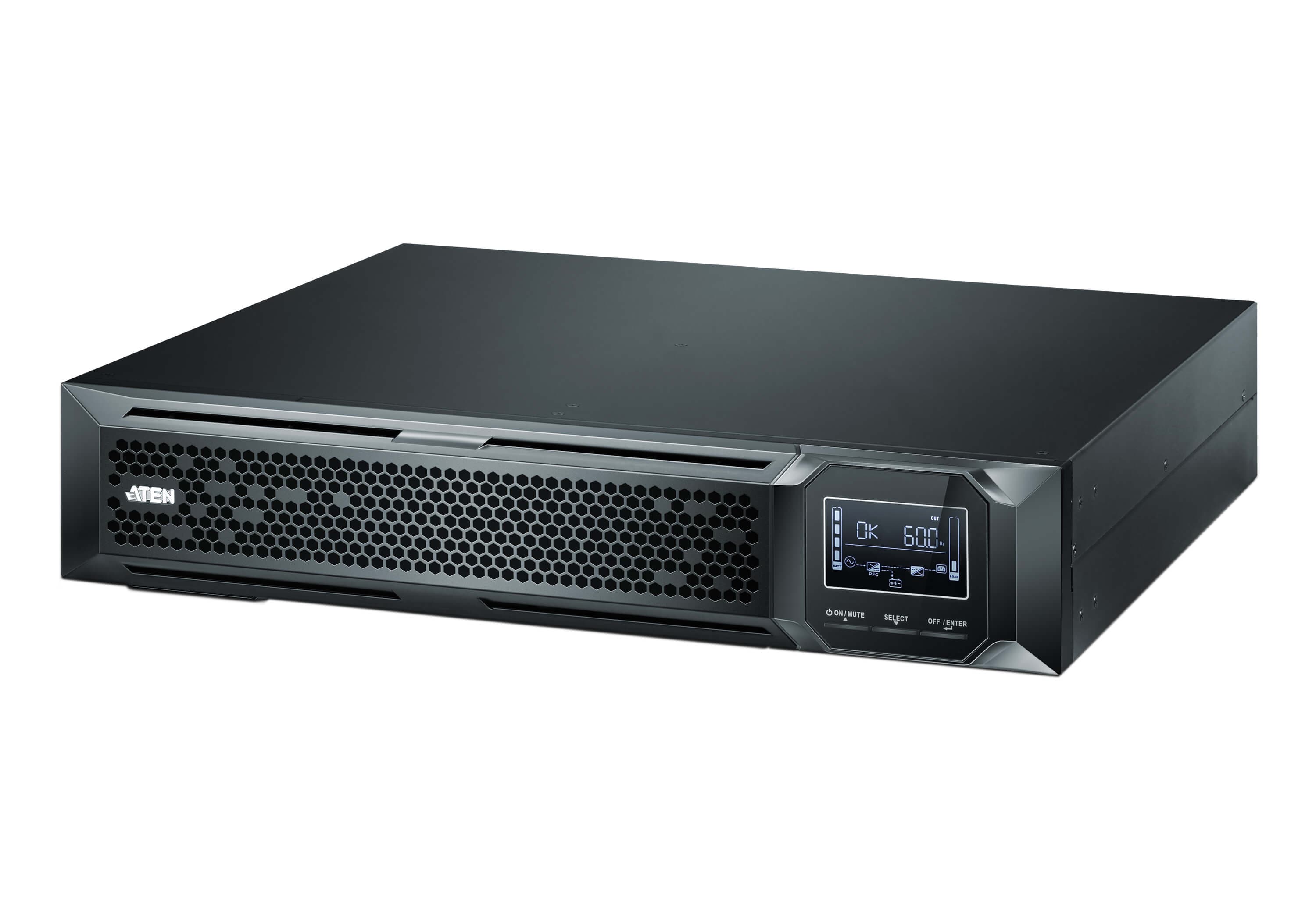

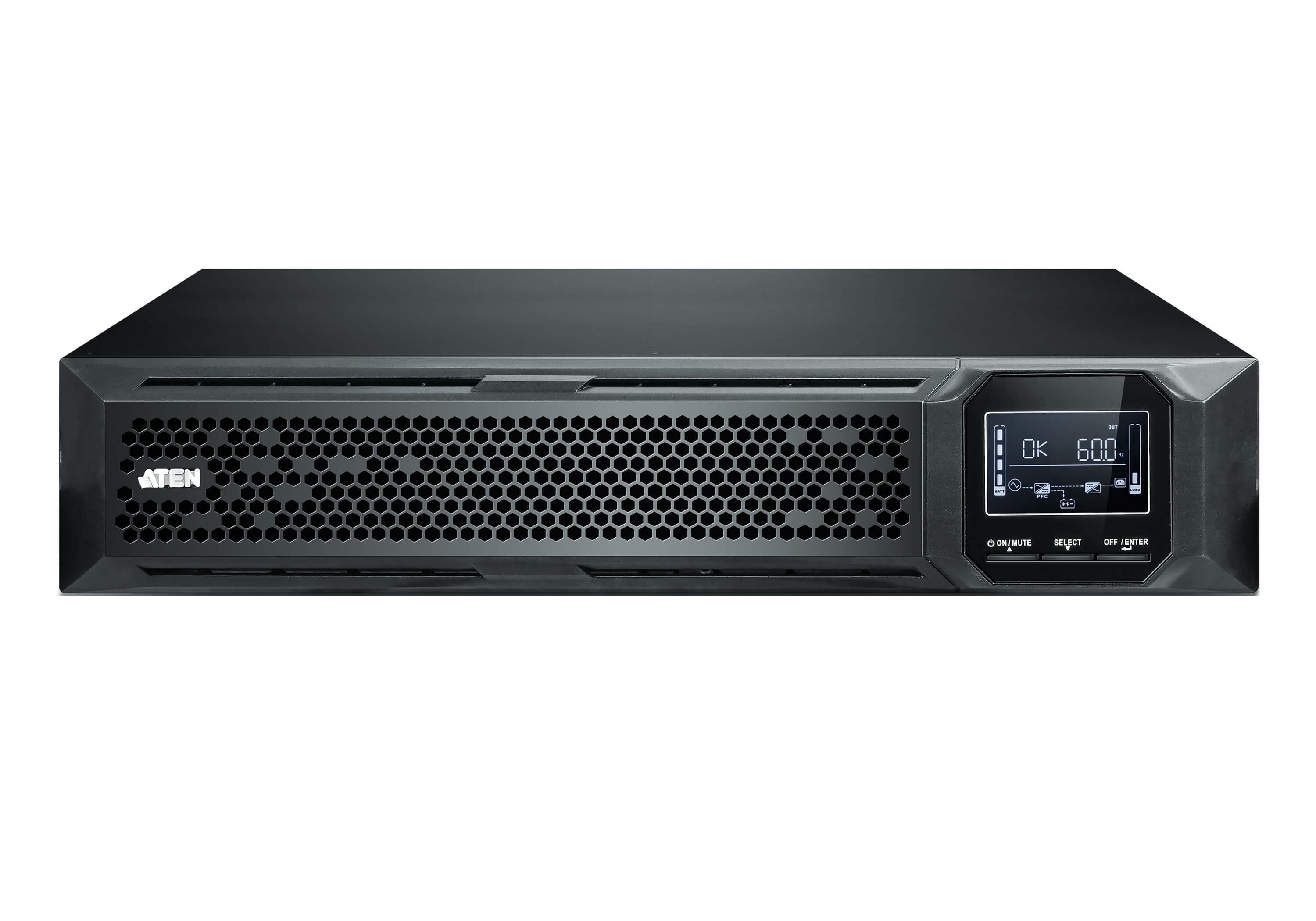

Онлайн UPS с двойно преобразуване, 1000 VA, за мрежи 220 / 230 / 240 V. Изходен фактор на мощността 1 и регулация на напрежението под 1%; с програмируеми изходи и EPO за аварийно изключване.
Характеристики
- True double-conversion – output power factor is 1 (maxium), which means all of the power supplied is being used for productive work and makes work the most efficient
- Output voltage regulation < 1% – provides higher performance and efficiency for critical applications
- Programmable power management outlets – users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices

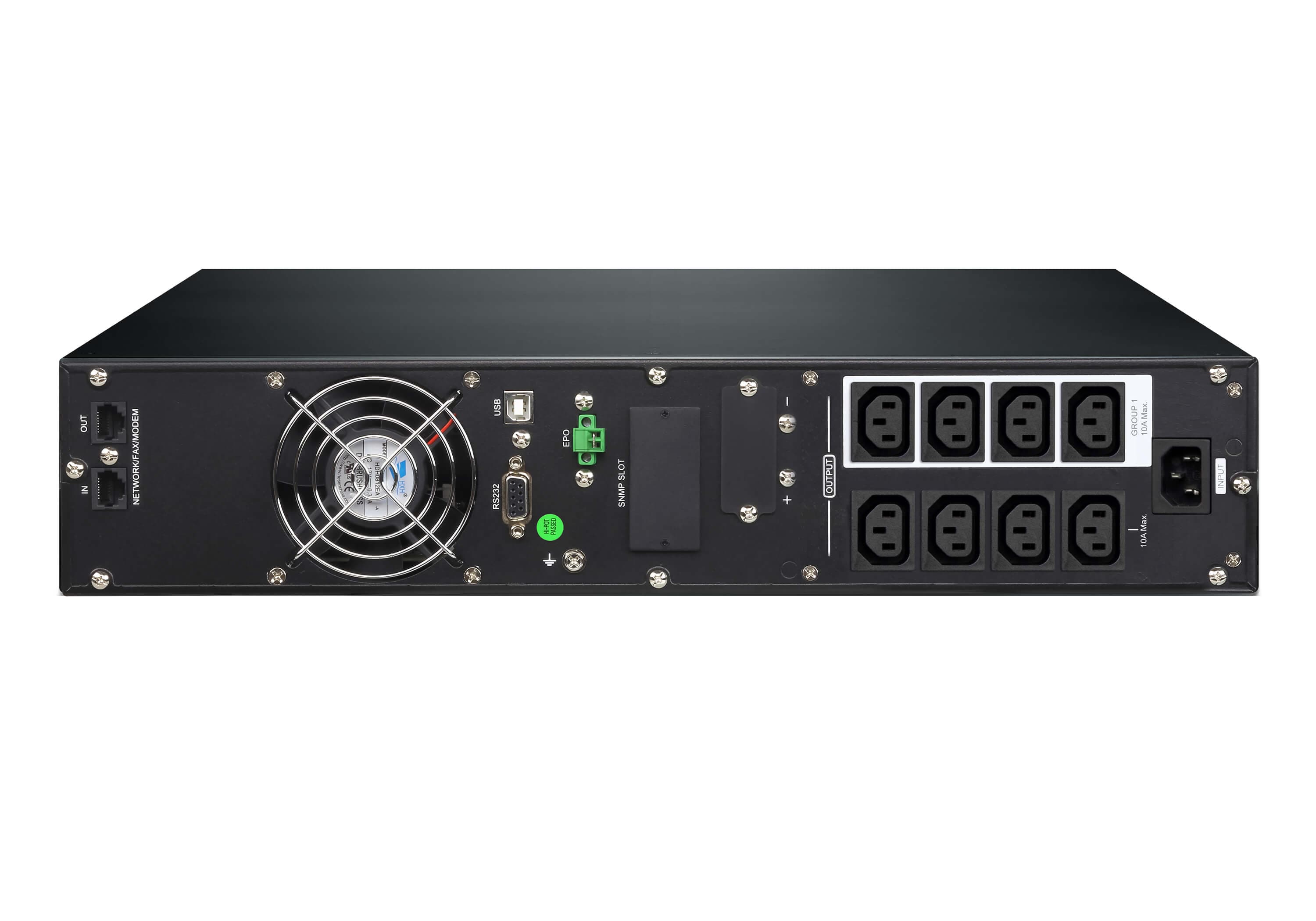

- Emergency Power Off function (EPO) – EPO connector at rear panel allows emergency UPS Power Off from a remote location
- SNMP + USB + RS-232 multiple communications – allows either USB or RS-232 communication ports to work with SNMP interface simultaneously
- Hot swappable battery design – all potential UPS maintenance, including complete power module exchange, can be performed without powering down connected equipment As long as utility power is on, users can leave the UPS and connected equipment on while replacing the battery
- ECO mode for energy saving – offers up to 97% effi ciency to cut energy usage and cost. UPS power application via static bypass timely returns to online double conversion when the need arises
- Provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection
- High power factor charger up to 1000W capacity with very low ripple current when charging battery
- Multi-functional LCD interface – displays immediate, detailed information on input voltage, battery capacity, power status, battery status, operating status, and assessed backup runtime, etc
- Smart battery charger design to optimize battery performance – adjusts charging voltage according to outside temperatures and extends the useful service life of batteries
Общи
- UPS топология
- Double-Conversion
- Ефективност (макс.)
- >96%(ECO) >89%(AC) >88%(Batt)
- HID съвместим USB порт
- Yes
- Сериен порт
- Yes
- SNMP / HTTP дистанционен мониторинг
- Yes - Optional SNMP CARD
Вход
- Напрежение
- 220/230/240 VAC
- Диапазон на входното напрежение
- 160-300 VAC ± 5% @ 100% load 110-300 VAC ± 5% @ 50% load Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.
- Диапазон на входната честота
- 40 Hz ~ 70 Hz
- Номинален входен ток
- 4.8A
- Входен фактор на мощността
- ≧ 0.99 @ nominal voltage (100% load)
- Студен старт
- Yes
- Тип щепсел
- IEC 320 C14
- Захранващ кабел
- 6ft (Schuko Plug/UK Plug/AU Plug/IEC Plug)
Изход
- VA
- 1000
- Мощност
- 1000
- Форма на вълната при работа на батерия
- Sine Wave
- Честота при работа на батерия
- 50/60Hz +/- 0.1 Hz
- Изводи - общо
- 8
- Тип на изхода
- (8) IEC 320 C13
- Изводи - с батерийно резервиране и защита от пренапрежение
- 8
- Номинален фактор на мощността
- 1
- Крест фактор
- 3:1
- Хармонични изкривявания
- ≦2 % THDi (Linear Load) ≦ 4 % THDi (Non-linear Load)
- Регулация на напрежението
- ± 1%(Batt)
- Време за превключване (AC към батерия)
- 0ms
- Време за превключване (инвертор към байпас)
- 4ms(ECO)
Батерия
- Автономност при половин товар (мин)
- 9.44
- Автономност при пълен товар (мин)
- 3.10
- Тип батерия
- Sealed Lead-Acid
- Напрежение на батерийния пакет
- 24V
- Капацитет на батерията
- 12V/9AH
- Брой батерии
- 2
- Гореща подмяна
- Yes
- Типично време за зареждане
- 3 hours recover to 95% capacity@2A charging current. Max charger current 12A
- Допълнителен батериен модул
- BP24V18AH
- Резервен батериен пакет
- BC24V9AH
- Брой резервни батерийни пакети
- 1
Физически характеристики
- Височина (U)
- 2U
- Тип

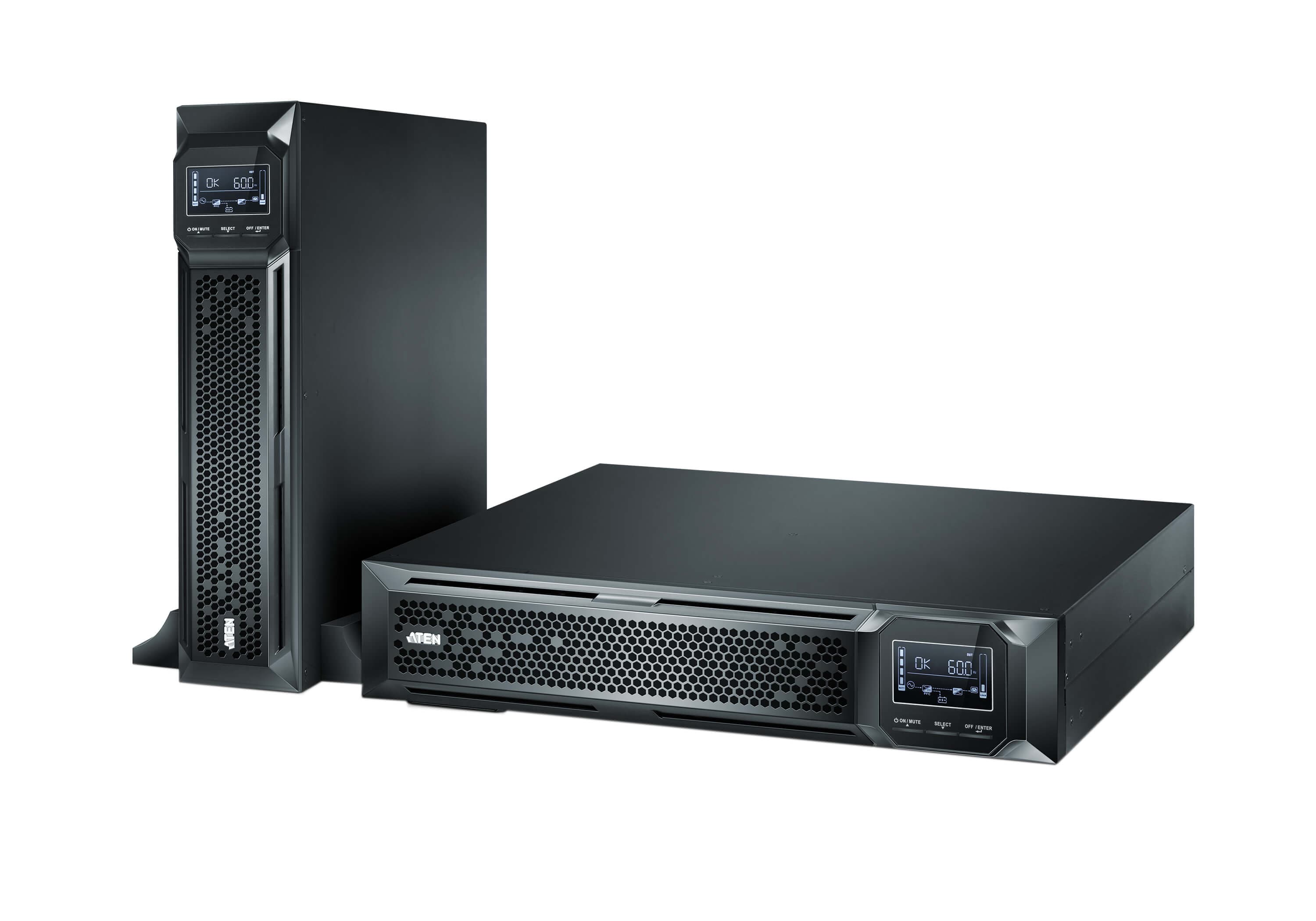

- Rack/Tower
- Размери (Д x Ш x В)
- 8.80 x 43.80 x 41.00 cm (3.46 x 17.24 x 16.14 in.)
- Тегло
- 12.70 kg ( 27.97 lb )
Работна среда
- Температура (работна / съхранение)
- 0–40°C (non-condensing) / -20 – 50°C
- Влажност (работна и при съхранение)
- 20–90 % RH / 10% – 95%(No condensing)
- Шум на 1 m от устройството
- Less than 50dB
Сертификати
- Сертификати
- CE
- Сертификати
- RoHS
- Съдържание на комплекта
- 1x Rack Mounting Kit 1x Rail Slide Kit 1x RS-232 Cable 1x USB Type A to B Cable 4x Power Cable (1xIEC C13/C14+ 1xIEC C13/Schuko+1xIEC C13/UK +1xIEC C13/AU(10A)) 1x Tower Stand Set
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
