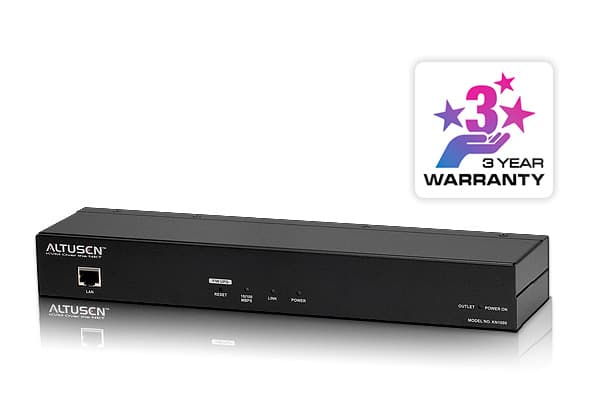

1-Local/Remote Share Access Single Port VGA KVM over IP Switch with Single Outlet Switched PDU (1600 x 1200)

Name: 1-Local/Remote Share Access Single Port VGA KVM over IP Switch with Single Outlet Switched PDU (1600 x 1200)
Brand: ATEN
SKU: KN1000

KN1000Снет от производство

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

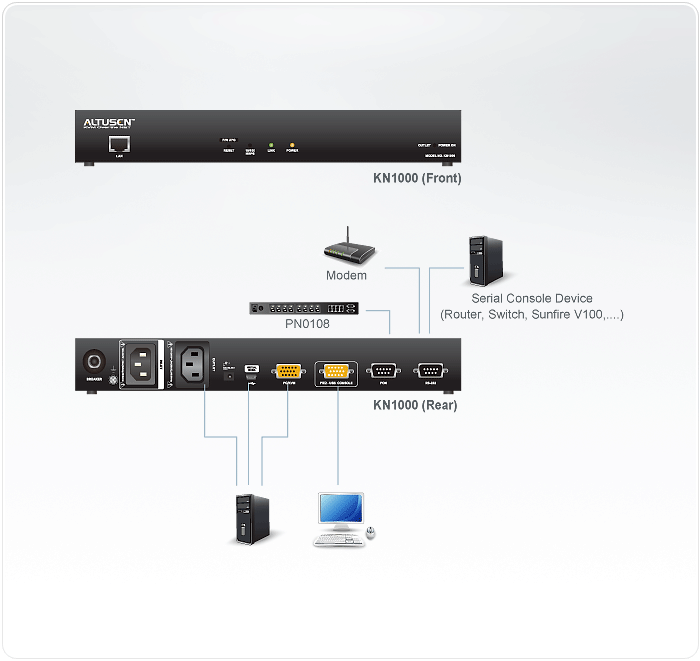

Устройство за отдалечен достъп на BIOS ниво до сървър през IP; добавя Over-IP функция и към KVM превключватели без такава. Вграден PDU с един контакт; видео до 1600 x 1200.

Характеристики

Hardware
Provides over-IP capability to servers or KVM switches that do not have built in over-IP functionality*
Built in single port Power Switch
Supports PS/2, USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
Local console provides PS/2, and USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1600 x 1200 @ 60Hz- 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hzwith 24 bit color depth for remote sessions * Compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758, CS1708A, CS1716A, ACS1208A, ACS1216A, KH2508A, KH2516A, KH1508A, and KH1516A
Some of the KN1000's features may not be supported, depending on the functionality of the connected KVM switch. (For example, some switches do not support virtual media.)
Some features found on the connected KVM switches may not be supported on the KN1000. (For example, the CS1754's audio.) ** Requires CV130A converter purchase Management
Up to 64 user accounts
Up to 32 concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Remote Firmware upgradable
Serial console management – serial terminal access. Access the device connected to KN1000 via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions
PPP mode (modem) dial-in/dial out support for out-of-band, and low bandwidth operation
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ALTUSEN CC2000 Management software
Power Over the NET™ integration for remote power control
Remote power on and off control function with Wake on LAN
On/Off scheduling for power outlet. Power management tasks can be scheduled on a daily, weekly, monthly or user-specified time basis
Safe shutdown support
Auto-Ping pings a device to determine its status, if the ping test fails after a set amount of time- it automatically takes an action assigned
DDNS (Dynamic Domain Name System)
Export/import user account and configuration settings
Manage browser access methods (disable browser, http, or https) Ease-to-Use Interface
Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel – a special hideaway control panel with configurable function icon Advanced Security
Smart Card /CAC Reader Support
External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
IP/MAC Filter for enhanced security protection
Supports password protection
Private CA Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images Virtual Remote Desktop
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse Dynasync™
Exit Macros support

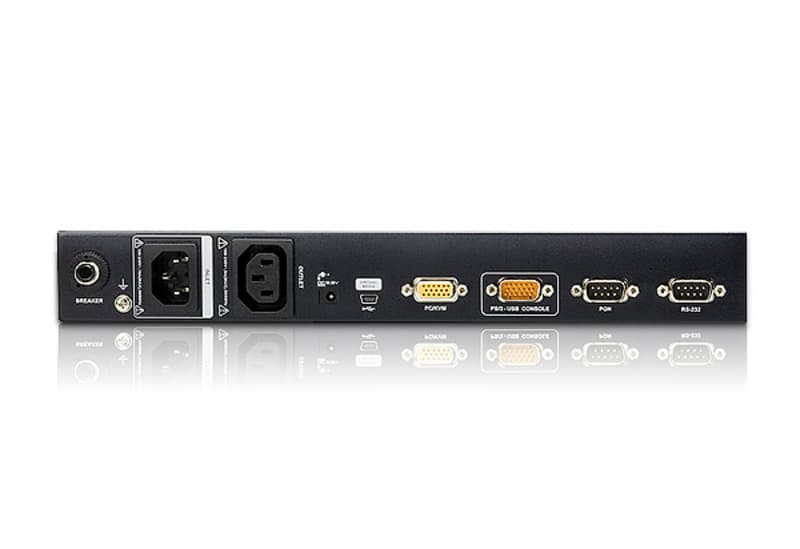

Конектори

Конзолни портове: 1 x SPHD Male (Yellow)
KVM портове: 1 x SPHD Female (Yellow)
PON: 1 x DB-9 Male
RS-232: 1 x DB-9 Male
LAN портове: 1 x RJ-45 Female
Захранващи входове: 1 x IEC320 C14
Захранващи изводи: 1 x IEC320 C13
Захранване: 1 x DC Jack
Виртуална медия: 1 x USB Mini-B Female

Бутони и превключватели

Нулиране: 1 x Semi-recessed pushbutton

Индикатори

Захранване: 1 (Orange)
Захранващи изводи: 1 (Orange)
Връзка: 1 (Green)
10/100 Mbps: 1 (Orange/Green)

Емулация

Клавиатура / мишка: USB; PS/2
Видео: 1600 x 1200 @ 60 Hz; DDC2B
Макс. входна мощност: 100–240 V~ 50/60 Hz, 10A
Изход: 100–240 V~; 50/60 Hz; 9A
Консумация: DC5.3V:6.77W:40BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Температура на съхранение: -20-60°C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.86 kg ( 1.89 lb )
Размери (Д x Ш x В): 31.00 x 8.15 x 4.20 cm (12.2 x 3.21 x 1.65 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
