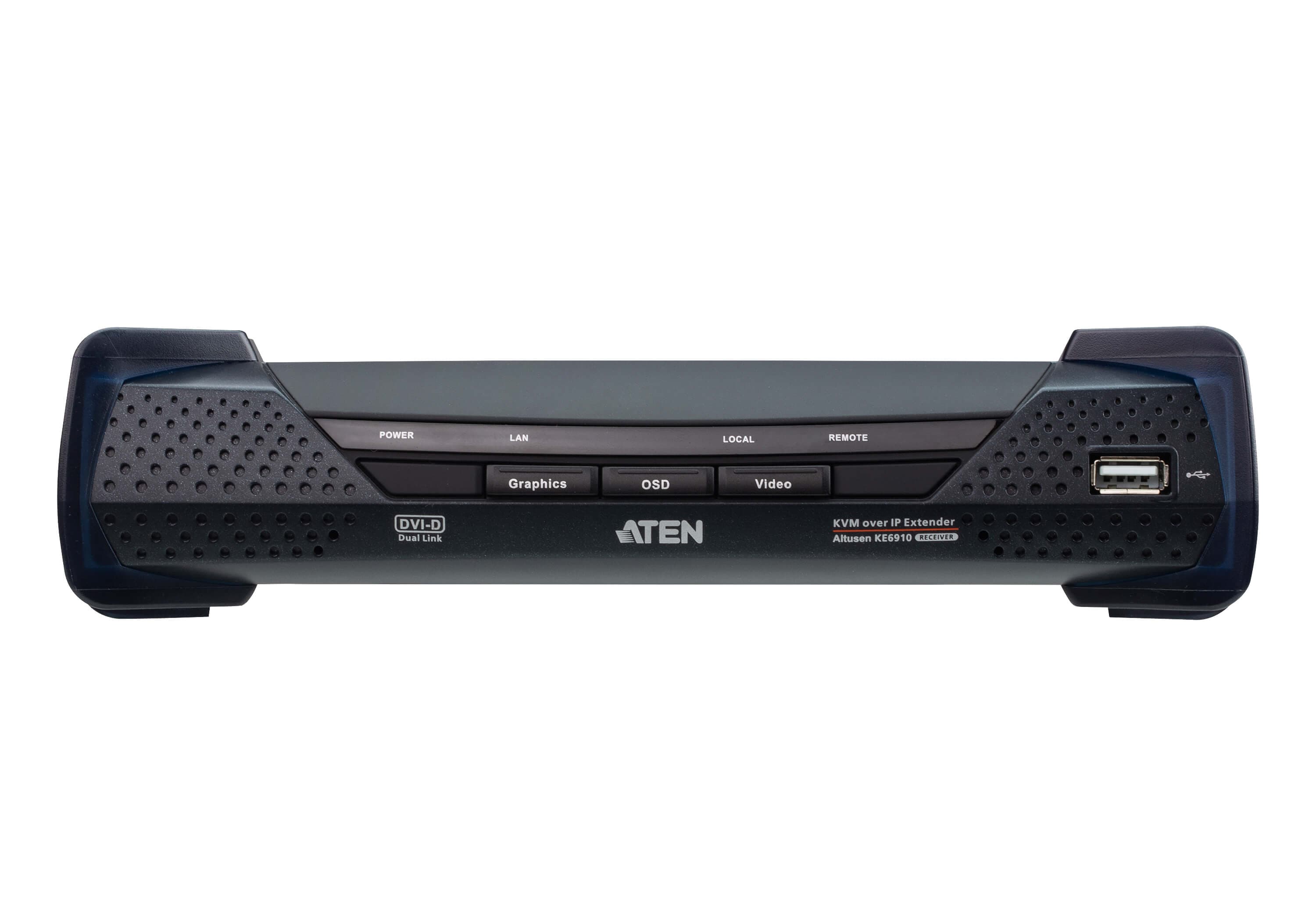

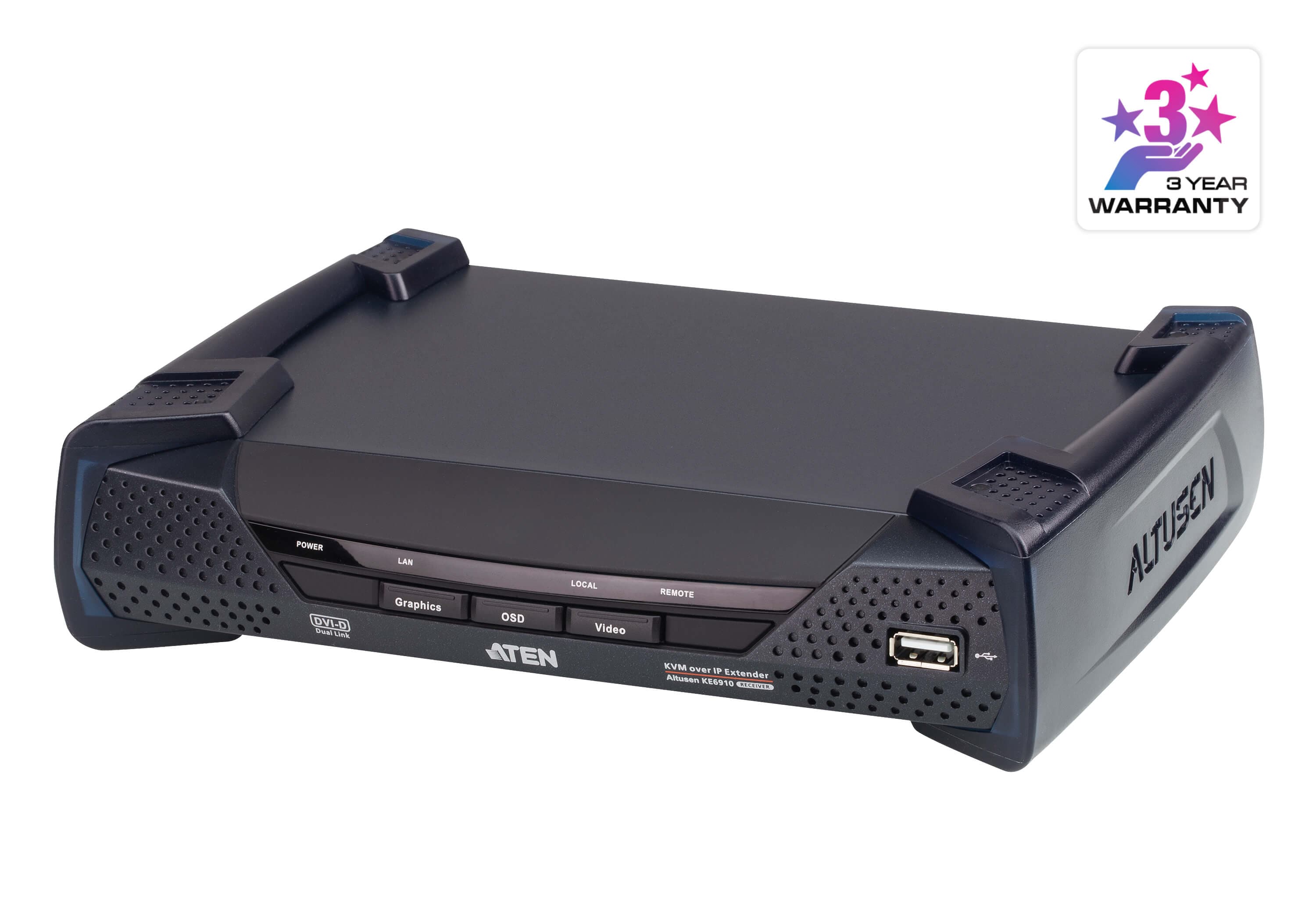

2K DVI-D Dual Link KVM over IP Receiver
KE6910RСнет от производство
Приемник за KVM Over-IP, който свързва монитор, клавиатура и мишка към отдалечени компютри с DVI-D Dual Link видео до 2048x2048@60Hz. Превключва между предавателите за 0.3 секунди или с преместване на мишката между екраните.
Характеристики
- Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
- Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- Fast Switching – 0.3-second switching between transmitter-connected servers of any resolution
- “Push” and “Pull” – shares content instantly to/from a single Rx or video wall by just one click
- Authentication Lock – automatically logs in when the power of the system is resumed after power off
- Connection Redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
- Disconnection Alert – Pop-up warning message and looping alarm beeping notify users the disconnection status
- Supports power / network failover – ensures constant availability for mission-critical applications (2 DC jacks for KE6910; 1 RJ-45 and 1 SFP fiber for network failover)
- ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
- Video Walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
- Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
- On-screen Preview (Panel Array™ Mode) – allows users to view the video of up to 36 displays on one screen
- Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
- Channel connections allow RX devices to connect to multiple TX devices – to streams video, audio, USB and serial sources independently
- Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
- Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
- Advanced user authorization settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
- Video grouping of up to 4 sets of KE series devices to support Multi-Display applications
- Configurable user and group permissions for access and control of KVM over IP extenders
- Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button2 Note: 1. These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by CCKM. 2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.
- The housing meets IEC 60945 standards for maritime control room use and has passed environmental tests
- Supports 1Gbps SFP fiber module expansions up to 10 km1
- Advance processor provides lossless and zero latency video transmissions up to 2560 x 2048 @ 50Hz, 2560 x 1600 @ 60Hz; 8-bit RGB (24-bit total color)
- Audio enabled – supports stereo speakers and microphone
- High speed USB Storage Transmission support
- Auto-MDIX – automatically detects cable type
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Fanless design for silent operations that are energy efficient
- Rack Mountable – Mounting options: •2X-021G Dual Rack Mount Kit •2X-031G Single Rack Mount Kit
- Includes an industrial-grade power adapter – supports operating temperature of 0°C- 50°C to ensure durability and adaptability under harsh environmental conditions Note: 1. The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
- Centralized management software – KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
- Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
- OSD (On Screen Display) on the receiver configures both units
- EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
- Four selectable access modes for multiple simultaneous access (Exclusive/Occupy/Share/ View only mode) – administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
- Command line interface – administrators can control all KVM over IP extenders via RS-232 or TCP/IP using a CLI or 3rd party application
- RS-232 serial ports – allow users to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
- Supports Hotkey Commands
- Flashing LED and beeping features help locate and identify devices
- Video Compression Level – allows users to increase / decrease the video quality to adjust for appropriate network bandwidth
- Compatible with all KE devices
- Dedicated LAN port for KE direct connections – can be isolated from the corporate network
- Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
- Supports industry standard Transport Layer Security (TLS) protocol
- USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Supports Smart Card/CAC Reader
Конектори
- USB порт
- 2 x USB Type A Female (White)
- Конзолни портове
- 2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
- KVM портове
- N/A
- Захранване
- 2 x DC Jack (Black)
- LAN портове
- 1 x RJ-45 (Black) 1 x SFP Slot
Бутони и превключватели
- OSD
- 1 x Pushbutton
- Видео
- 1 x Pushbutton
- Графика
- 1 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Избор на режим
- 1 x Slide Switch (Extension, RS-232 Config)
Индикатори
- 10/100/1000 Mbps
- 1 (10: Orange / 100: Orange & Green / 1000: Green)
- Захранване
- 1 (Blue)
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
Емулация
- Клавиатура / мишка
- USB
- Консумация
- DC5V:9.02W:68BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Видео резолюция
- Up to 2560 x 2048 @ 50 Hz/2048 x 2048 @60Hz/2560 x 1600 @ 60 Hz
- Закъснение
- < 5ms
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.26 kg ( 2.78 lb )
- Размери (Д x Ш x В)
- 22.75 x 17.16 x 5.48 cm (8.96 x 6.76 x 2.16 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
