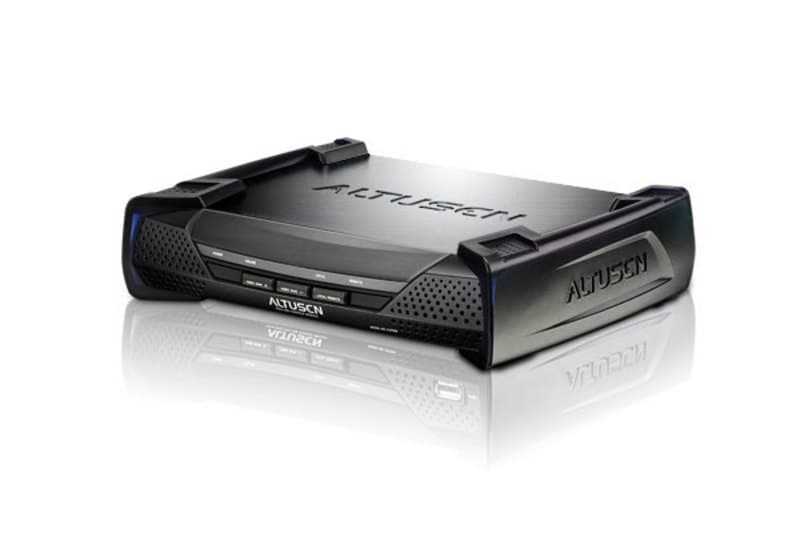

Конзолен модул за матричен KVM превключвател KM0932/KM0532 — изнася PS/2 или USB конзола на разстояние до 300 m и превключва и към локален компютър.
Характеристики

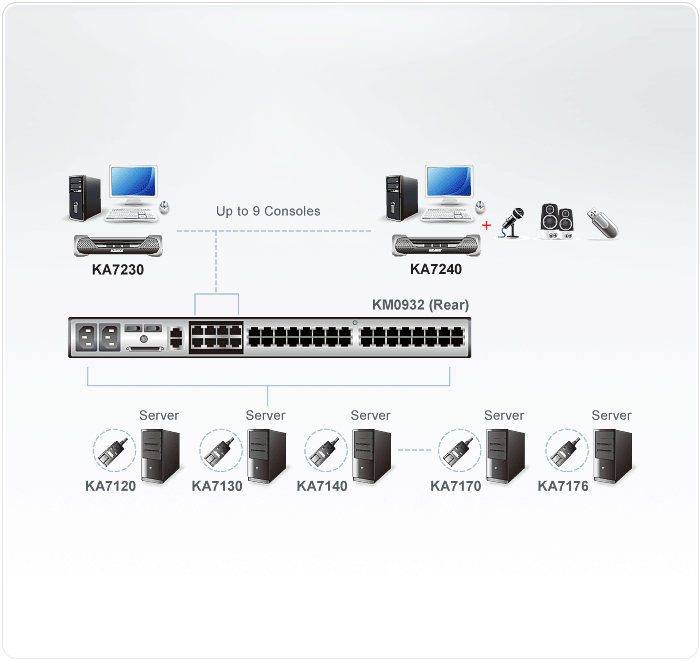

- One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532)
- Supports PS/2 and USB keyboards and mice(Console)
- Switch between your workstation computer and the matrix KVM switch
- Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers
- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point
- Connects to matrix KVM switch via Cat 5e/6apple cable
- Superior Video Quality – 1920 x 1200 @ 60 Hz up to 200 meters; 1280 x 1024 @ 60 Hz up to 300 meters
- Manual video gain control for fine tuning
- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus
- Firmware upgradeable
Спецификация
- Връзки към компютри
- 1
- Конзолни връзки
- 1
- Избор на порт
- GUI, Hotkey

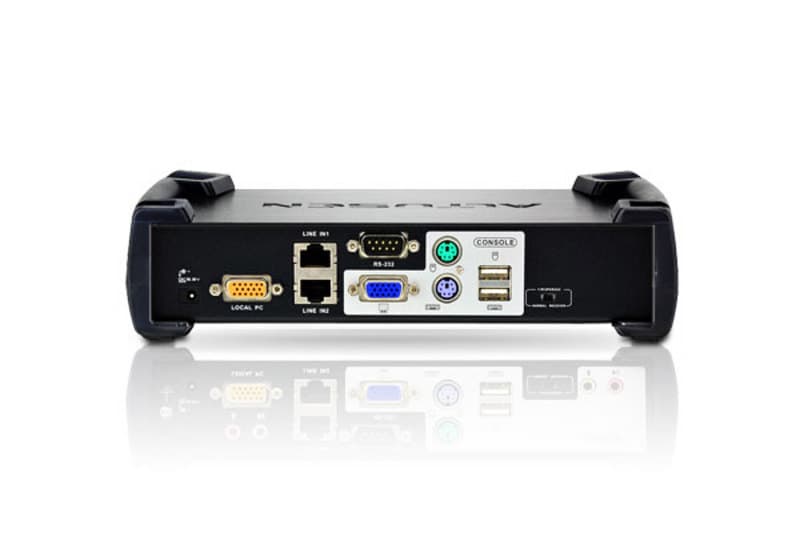

Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
- KVM порт за локален компютър
- 1 x SPHD-17 Female (Yellow)
- Портове за KVM превключватели
- 2 x RJ-45 Female
- RS-232
- 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack

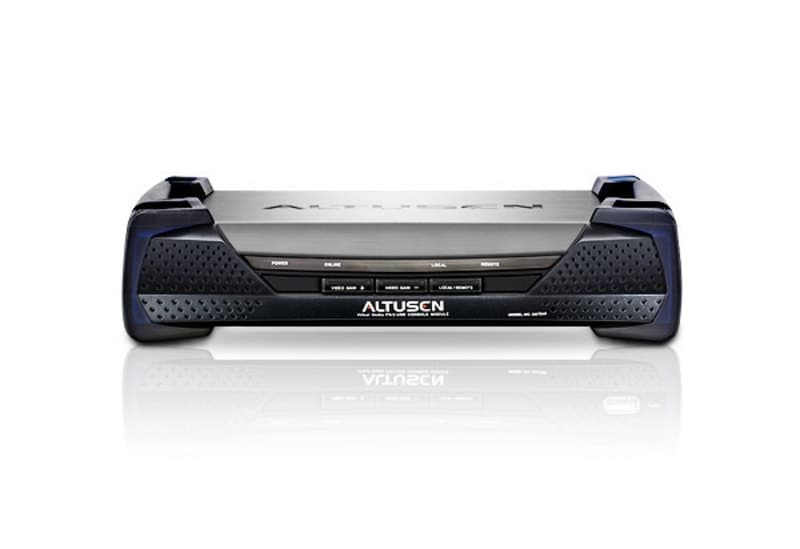

Бутони и превключватели
- Обновяване на фърмуера
- 1 x Slide
- Настройка на видео усилване
- 2 x Pushbutton
- Избор
- 1 x Pushbutton (Local/Remote)
Индикатори
- Захранване
- 1 (Blue)
- Онлайн
- 1 (Green)
- Локално
- 1 (Orange)
- Отдалечено
- 1 (Orange)
Емулация
- Клавиатура / мишка
- PS/2; USB (PC, Sun, Mac)
- Видео
- 1920x1200@60Hz (200 m); 1280x1024@60Hz (300 m)
- Интервал на сканиране
- 1-240 Seconds
- Консумация
- DC5.3V:6.12W:37BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.22 kg ( 2.69 lb )
- Размери (Д x Ш x В)
- 22.71 x 17.15 x 5.48 cm (8.94 x 6.75 x 2.16 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
