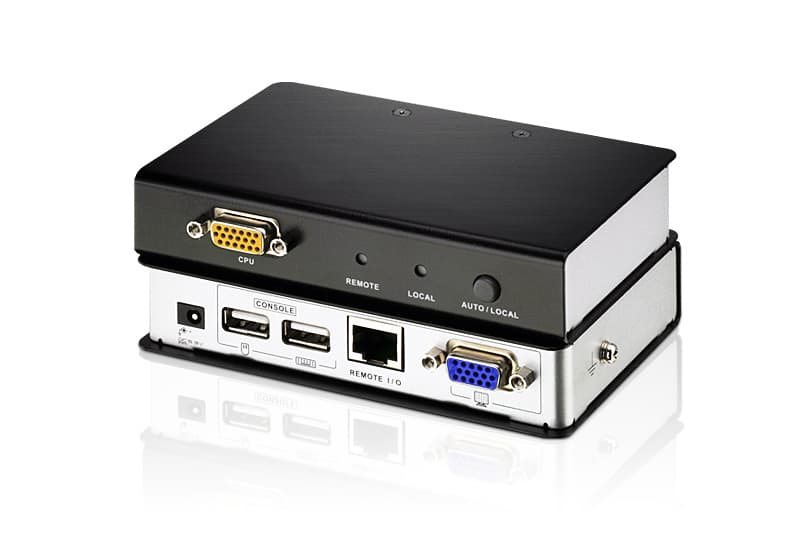

USB-PS/2 KVM Adapter Module with Local Console
KA7171Снет от производство

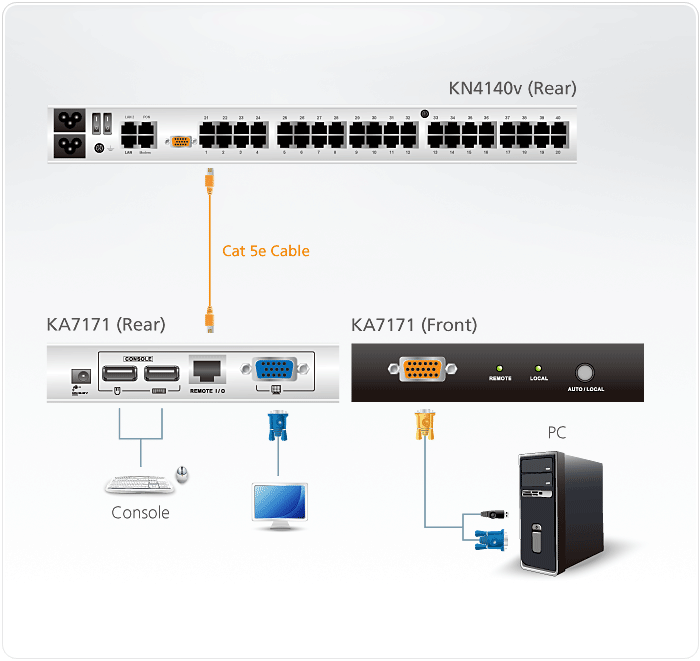

KVM адаптерен модул, който добавя пълна локална конзола към KVM over IP или матричен KVM превключвател. Свързва се с Cat 5e/6 кабел; поддържа PS/2 и USB клавиатури и мишки.
Характеристики
- Cat 5e/6 cable connects the device and KVM switch
- Supports computers with PS/2 or USB keyboards and mice
- Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console
- Pushbutton operating mode selection for privileged console control
- Built-in ASIC for greater reliability and compatibility
- USB overcurrent detection and prevention
- Built-in ESD protection and surge protection
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
- Supports VGA , SVGA , SXGA , UXGA , WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
- Easy to install – no software required - connecting cables to the devices is all it takes * This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.
Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)
- KVM портове
- 1 x SPHD-18 Female (Yellow)
- Захранване
- 1 x DC Jack (Black)
Бутони
- Избор на работен режим
- 1 x Pushbutton
Индикатори
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
Емулация
- Клавиатура / мишка
- PS/2, USB
- Видео
- Up to 1920 x 1200 @ 60Hz; DDC2B
- Консумация
- DC5.3V:1.88W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.33 kg ( 0.73 lb )
- Размери (Д x Ш x В)
- 12.70 x 8.65 x 2.50 cm (5 x 3.41 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
