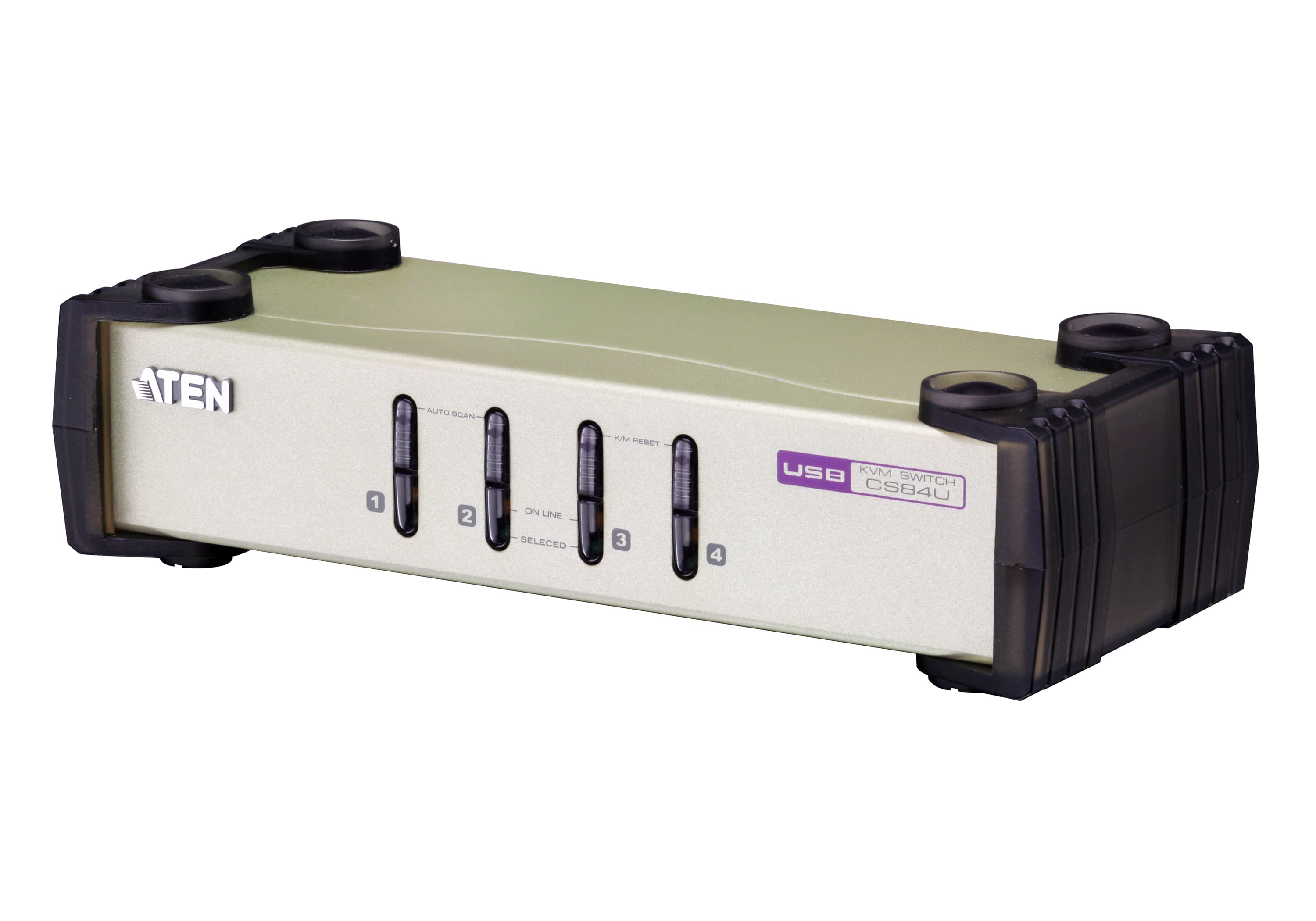

4-Port PS/2-USB VGA KVM Switch

Name: 4-Port PS/2-USB VGA KVM Switch
Brand: ATEN
SKU: CS84U

CS84U

Настолен VGA KVM превключвател за 4 компютъра, поддържа PS/2 и USB клавиатури и мишки. Избор на порт с бутони, клавишни комбинации или мишка.

Характеристики

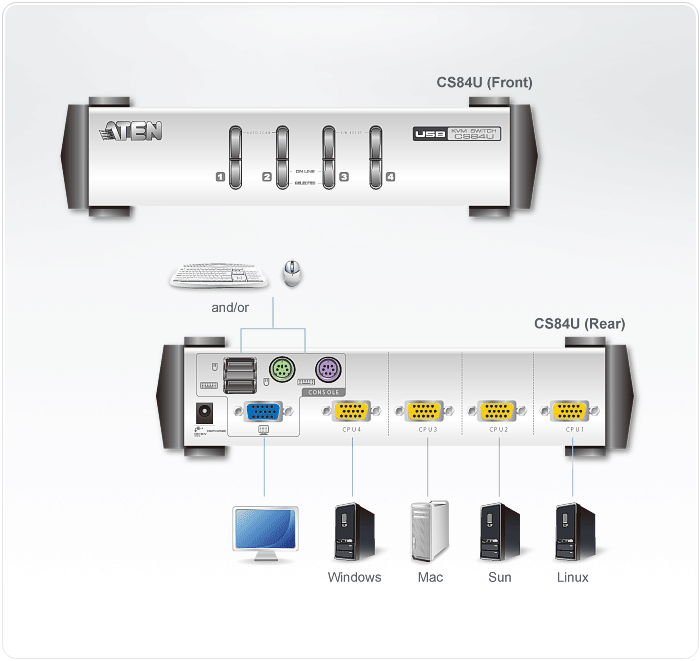

One PS/2-USB VGA console controls four VGA interface computers.
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Computer selection via front panel pushbuttons, hotkeys, and mouse
Multiplatform support - Windows, Linux, Mac, and Sun
Superior video quality - 2048 x 1536; DDC2B
Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping - supports English, Japanese, and French keyboards
Gaming keyboard support
Auto Scan Mode for monitoring all computers
Firmware upgradable
Bus-Powered * 1. PC keyboard combinations emulate Mac/Sun keyboards 2. Mac/Sun keyboard work only with their own computers

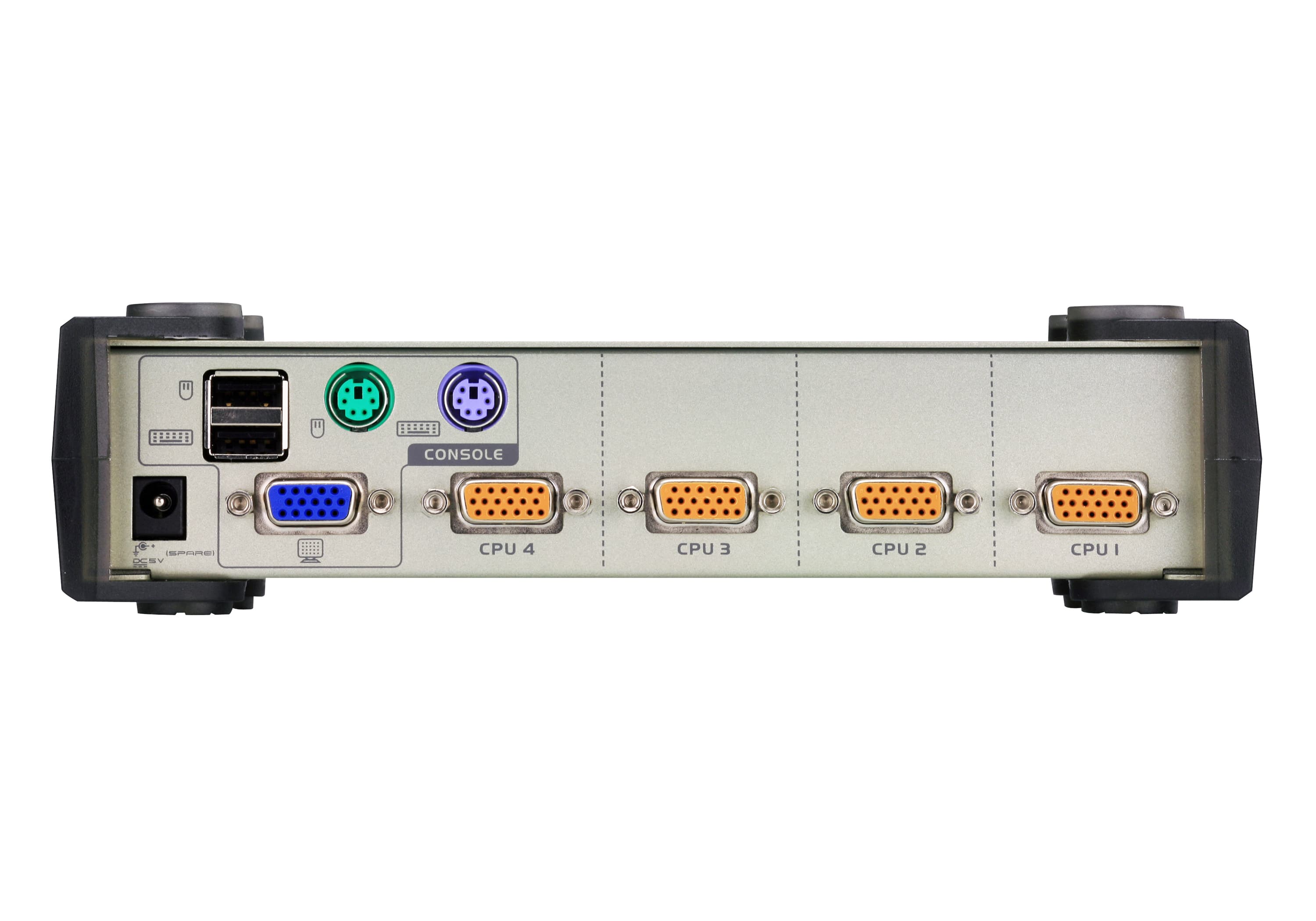

Конзолни портове: 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
KVM портове: 4 x SPHD-18 Female (Yellow)
Захранване: 1 x DC Jack

Клавиатура / мишка: PS/2, USB
Видео: 2048 x 1536 @ 60 Hz; DDC2B
Интервал на сканиране: 3, 5, 10, 20 seconds (default: 5 secs.)
Консумация: DC5V:0.87W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.77 kg ( 1.7 lb )
Размери (Д x Ш x В): 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
