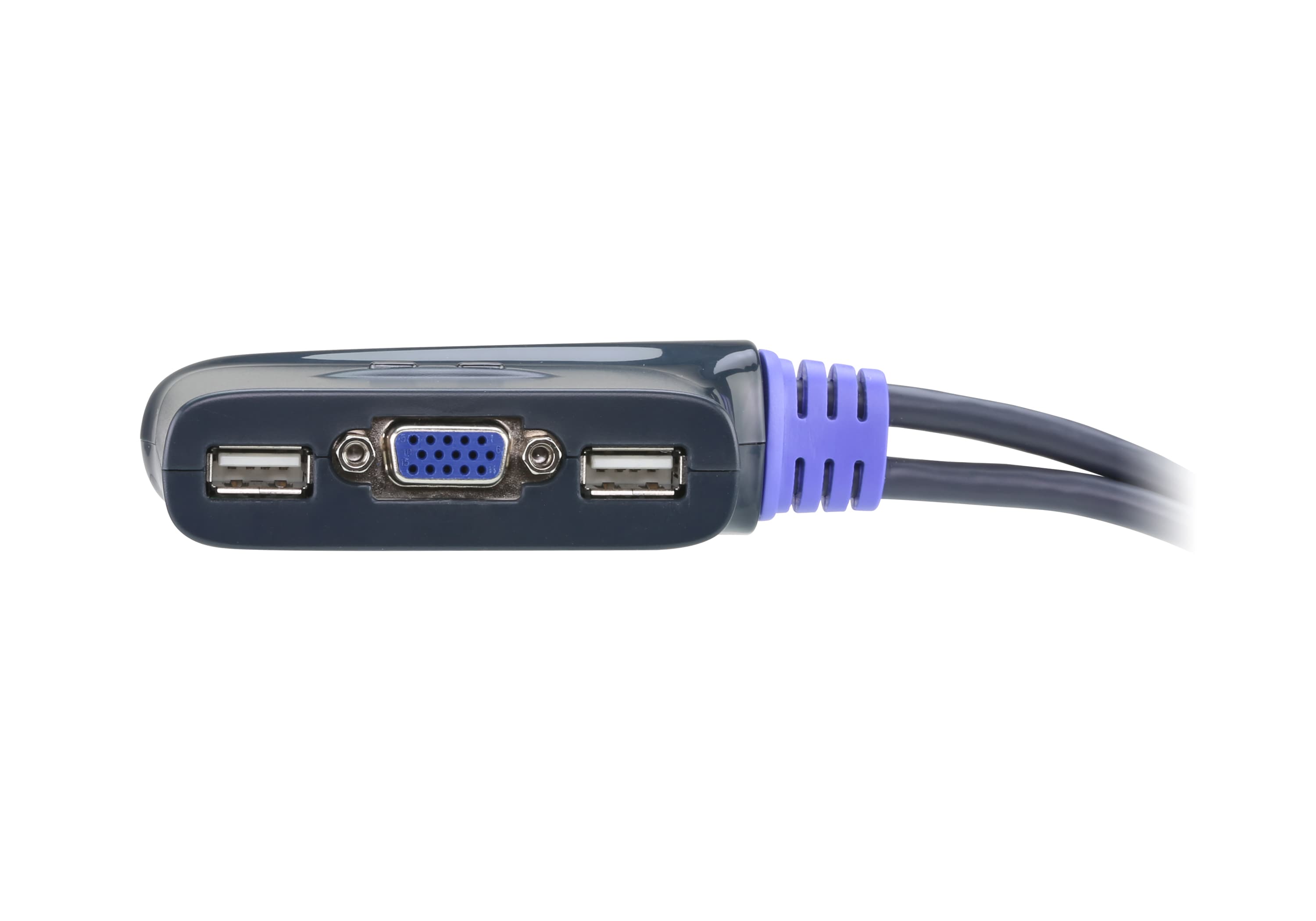

2-Port USB VGA/Audio Cable KVM Switch (1.8m)
CS62UСнет от производство
Кабелен KVM превключвател: една USB конзола управлява 2 компютъра, с VGA и аудио. Вградени кабели 1.8 m; превключване с горещи клавиши или от мишката.
Характеристики

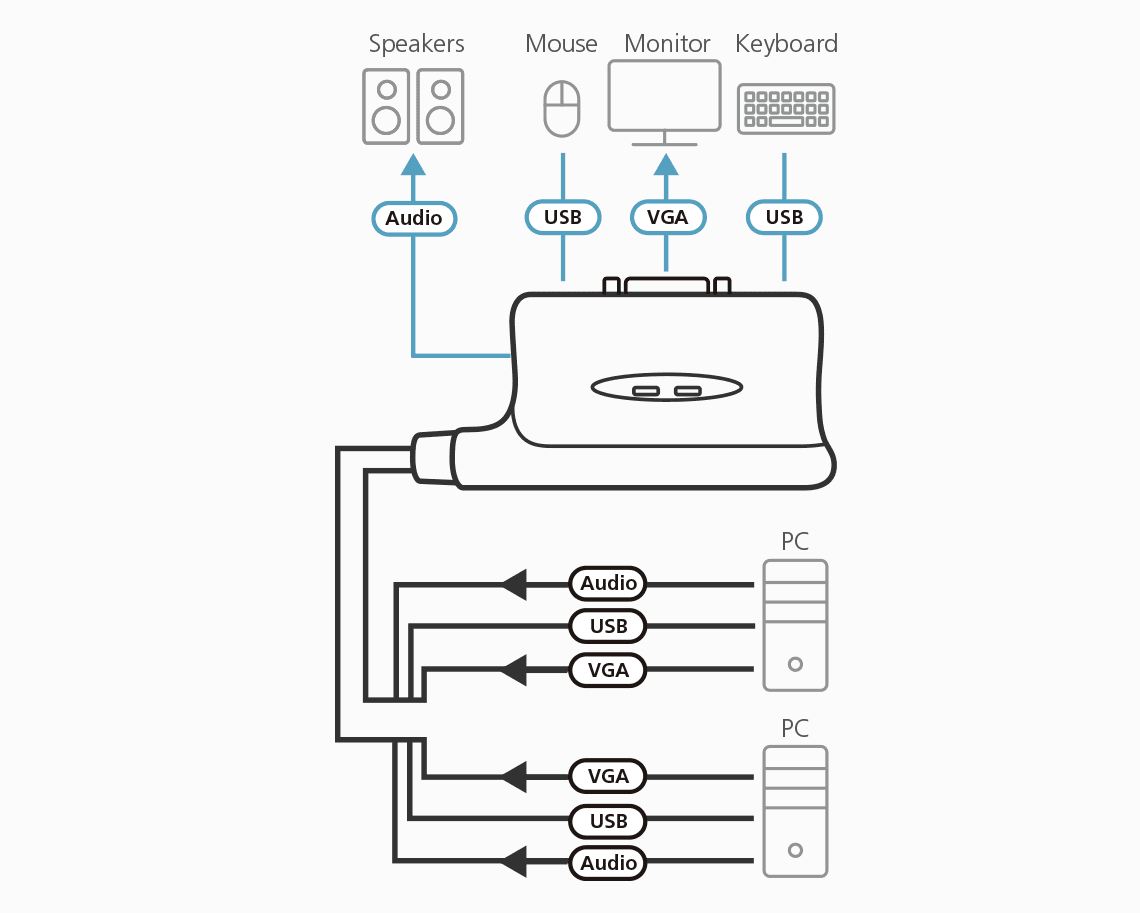

- One USB console controls two USB computers

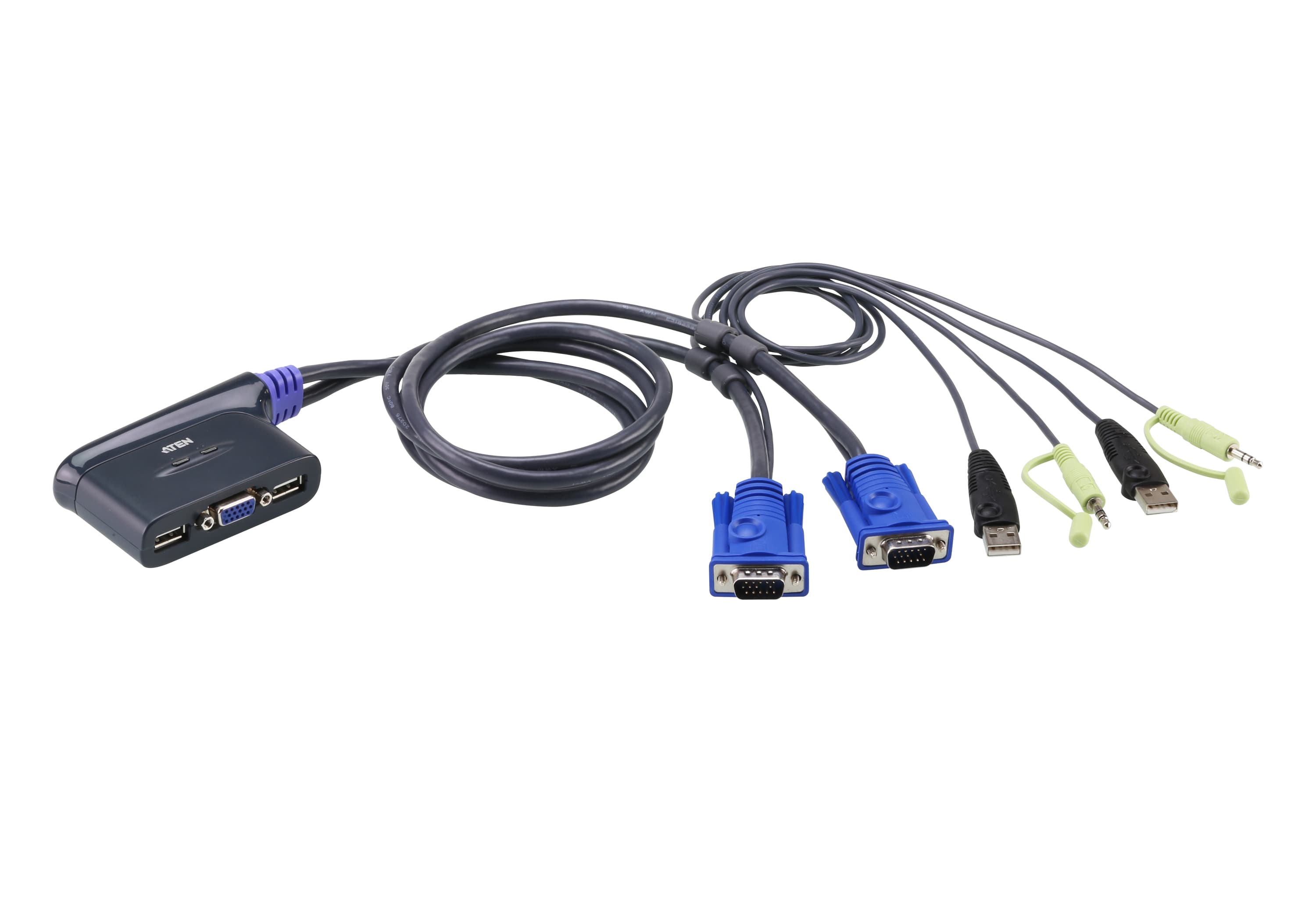

- Compact design, built-in 1.8 m cables
- Hotkey selection for OS and keyboard languages
- Computer Selection via hotkey and USB mouse
- Multiplatform support – Windows, Linux, Mac, and Sun
- Video DynaSync ™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation / bypass feature supports most mouse drivers
- USB mouse port can be used for USB hub and USB peripheral sharing*
- Supports gaming keyboards
- Supports multifunction and wireless keyboards and mice
- All-in-one design
- Supports speaker functions
- Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
- Auto Scan function to monitor computer operation
- Bus-powered
- Sun/Mac keyboard support and emulation * To use the USB mouse port as a USB hub, users must first disable mouse emulation mode.
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Mouse
Конектори
- Конзолни портове
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
- KVM портове
- 2 x HDB-15 Male (Blue) 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green)
Индикатори
- Избран
- 2 (Green)
Дължина на кабела
- Компютър
- 2 x 1.8 m
Емулация
- Клавиатура / мишка
- USB
- Видео
- 2048 x 1536 @ 60Hz; DDC2B
- Интервал на сканиране
- 5 seconds
- Консумация
- DC5V:0.328W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.37 kg ( 0.81 lb )
- Размери (Д x Ш x В)
- 8.75 x 6.08 x 2.80 cm (3.44 x 2.39 x 1.1 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
