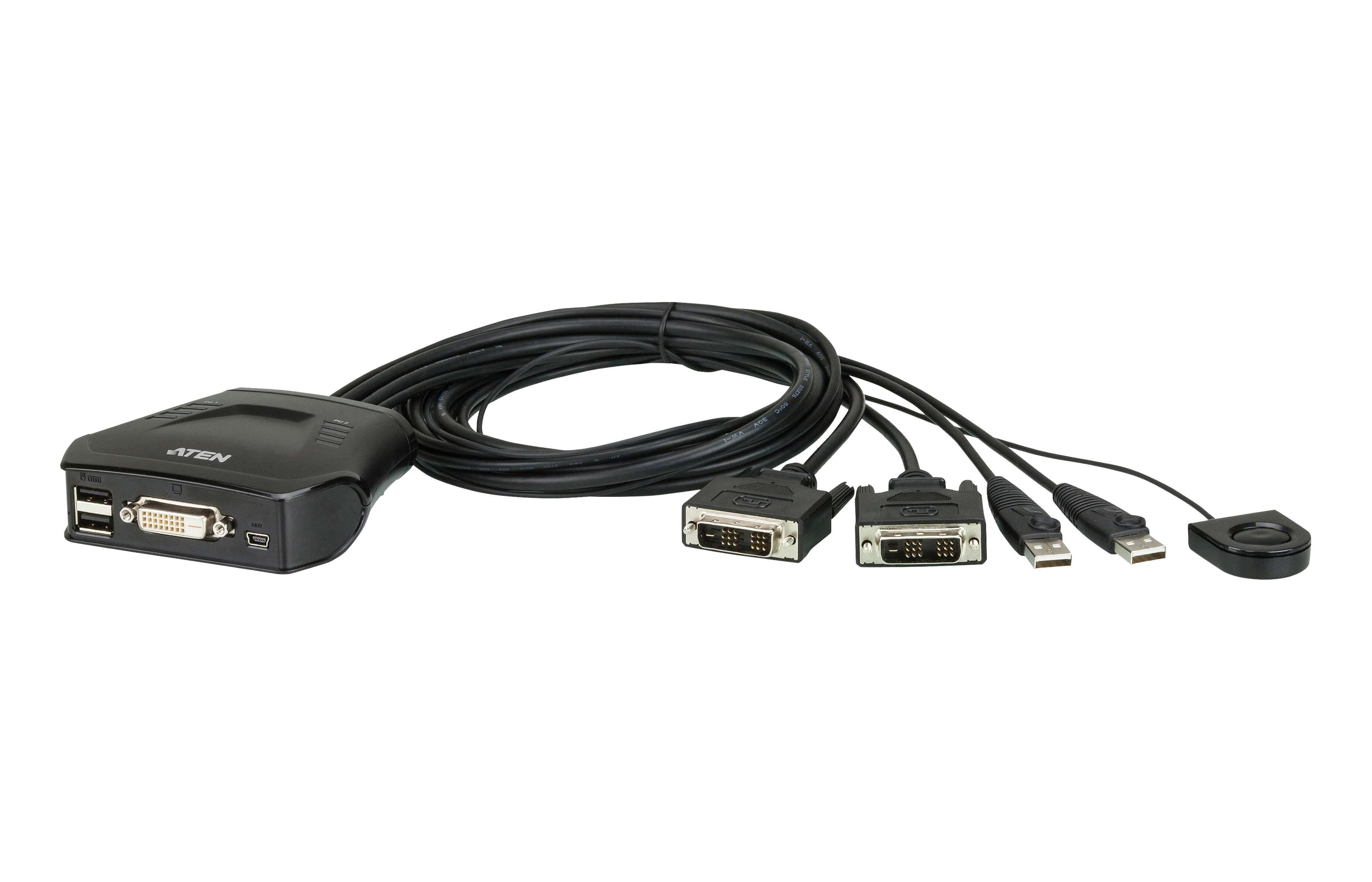

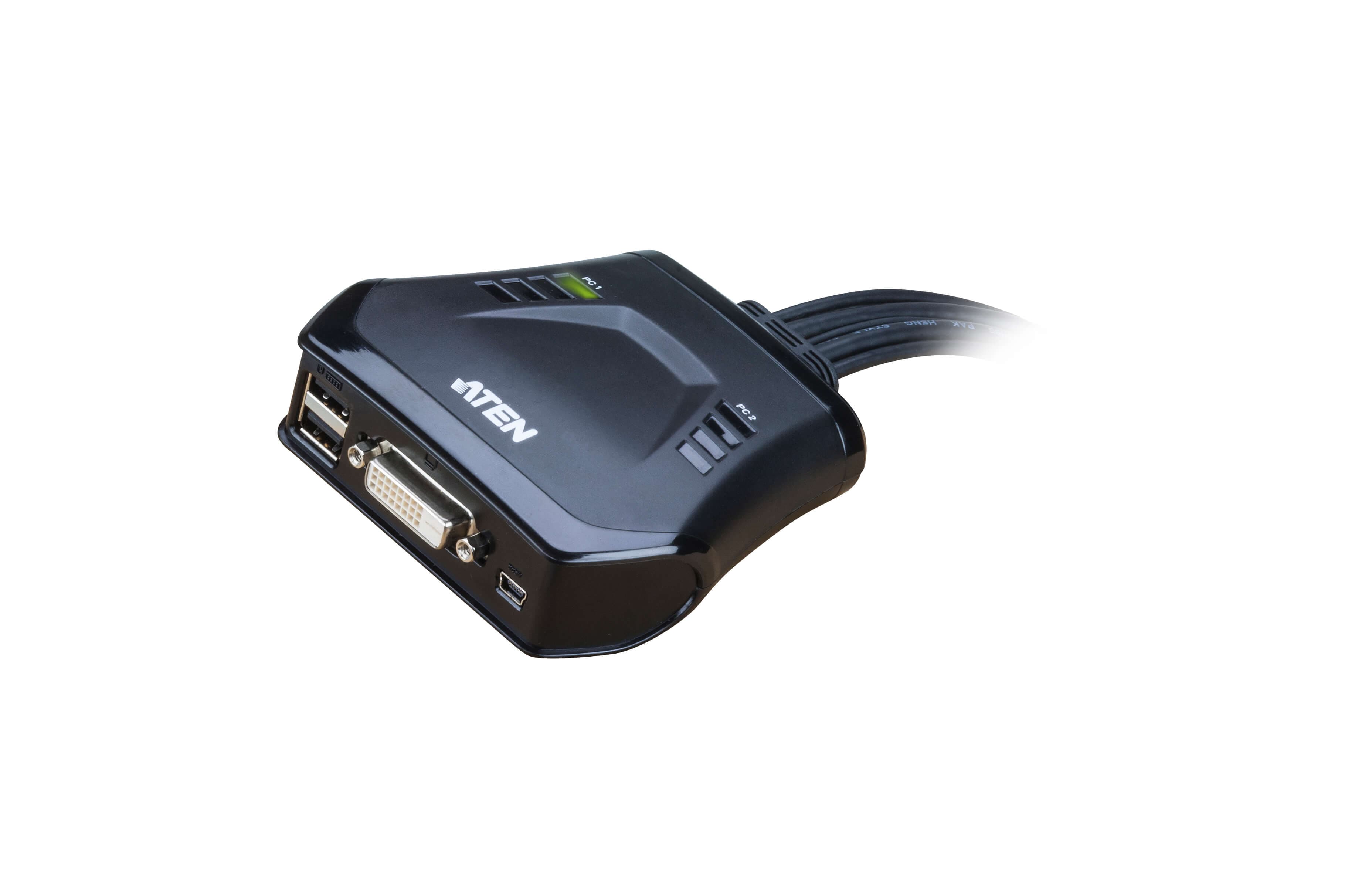

2-Port USB DVI Cable KVM Switch with Remote Port Selector
CS22DСнет от производство
Кабелен KVM превключвател за достъп до 2 компютъра от една USB и DVI-D конзола. Вградени кабели 1.2 m; портът се сменя с изнесен селектор.
Характеристики

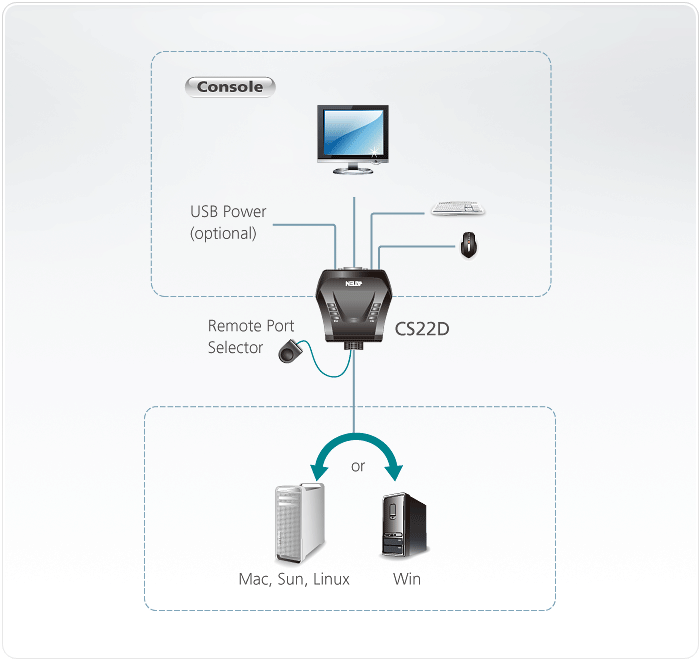

- One DVI-D video console controls two DVI-D USB interface computers
- Computer Selection via Remote Port Selector
- OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
- Superior video quality- up to 1920 x 1200@60Hz
- Supports USB hot-plugging
- Bus-Powered
- The console USB ports can be used for USB peripheral sharing1 Note: 1. The CS22D may require an external power supply via a micro USB port.
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Remote Port Selector
Конектори
- Конзолни портове
- 1 x DVI-D Female (White) 2 x USB Type A Female 1 x USB Mini-B Female
- KVM портове
- 2 x DVI-D Male (Black) 2 x USB Type A Male
Индикатори
- Избран
- 2 (Green)
Дължина на кабела
- KVM
- 2 x 1.2 m
- Дистанционен избор на порт
- 1.8 m
- Видео резолюция
- 1920 x 1200 @ 60 Hz
- Консумация
- DC5V:0.93W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.34 kg ( 0.75 lb )
- Размери (Д x Ш x В)
- 9.95 x 9.66 x 3.01 cm (3.92 x 3.8 x 1.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
