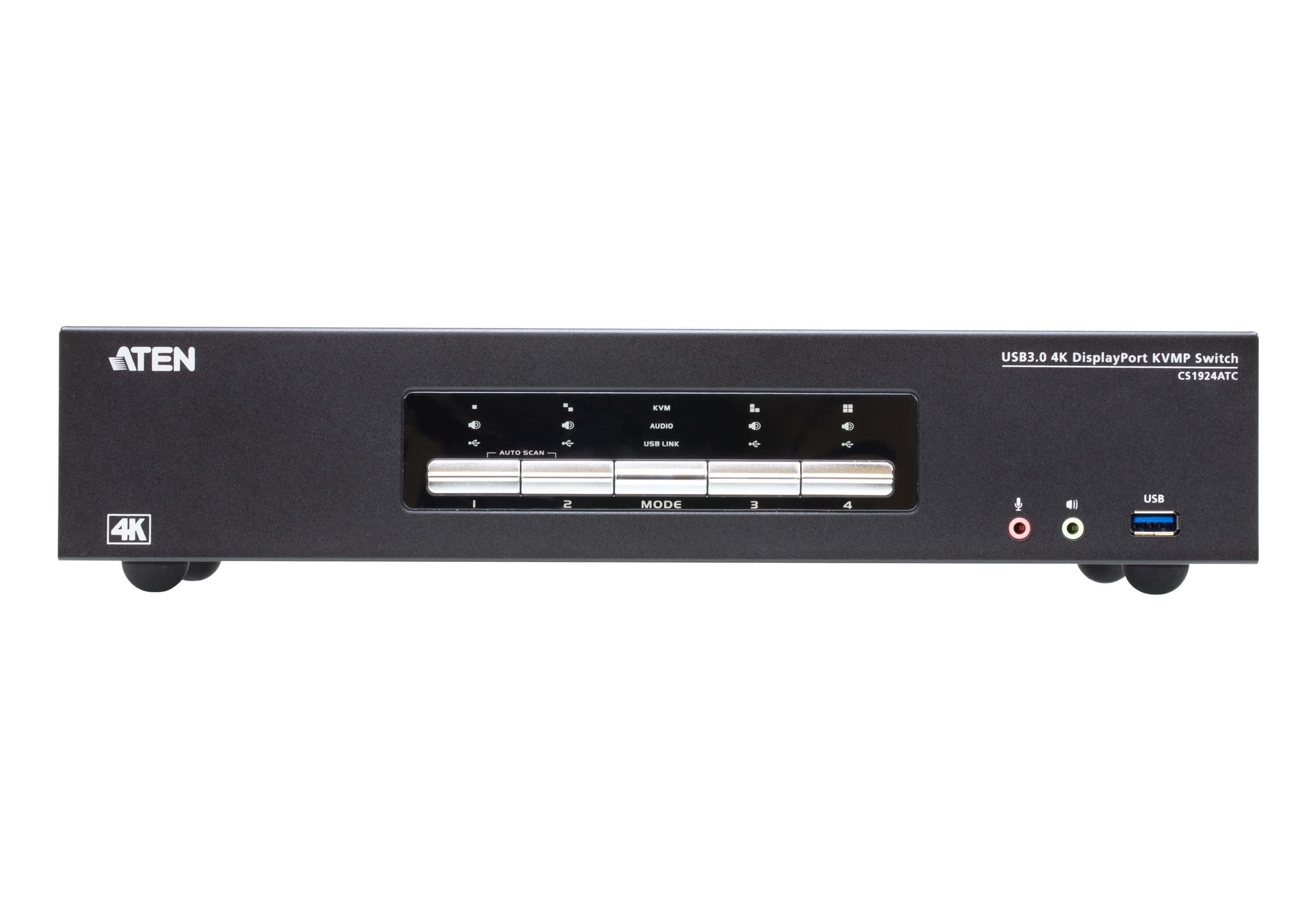

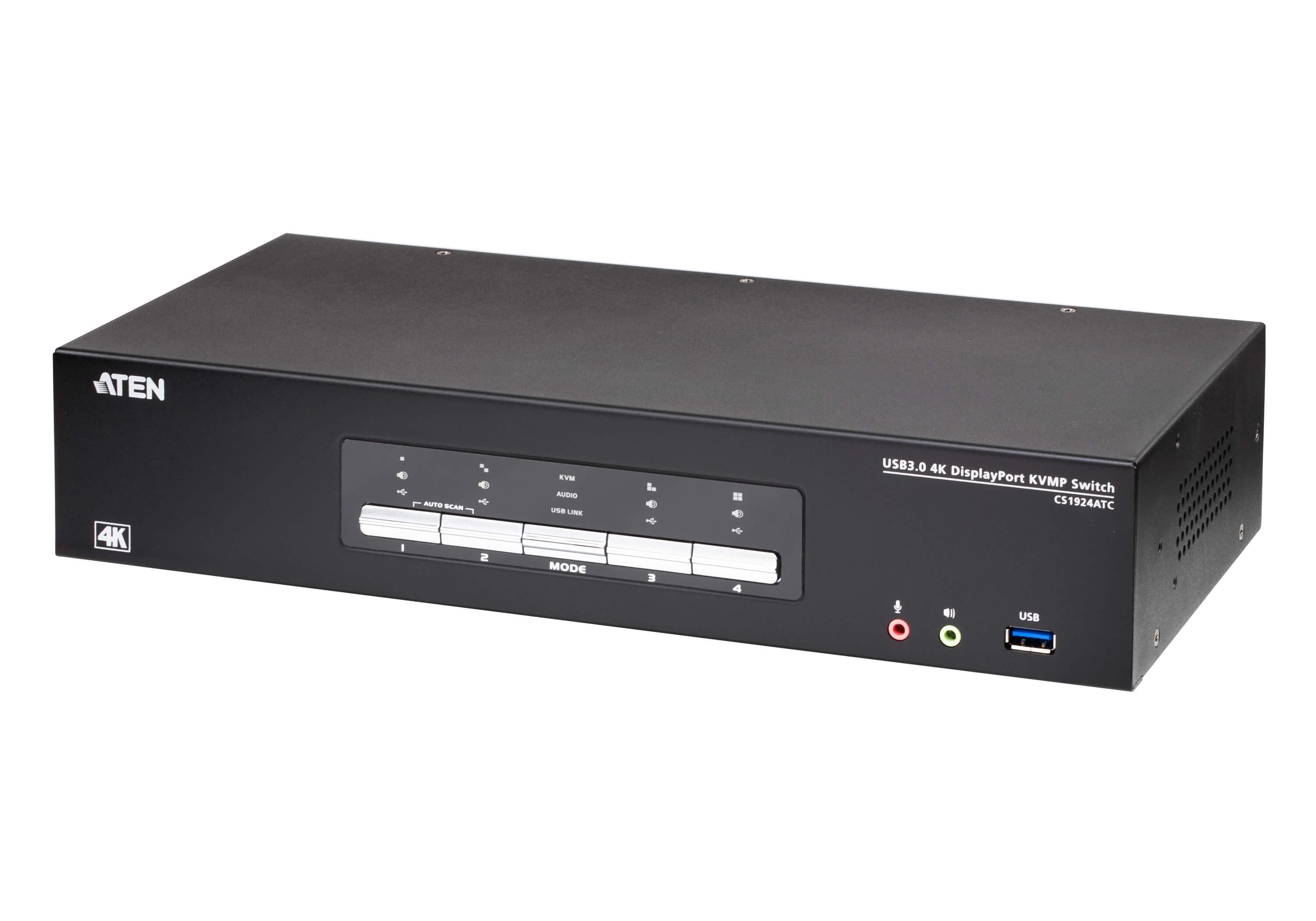

4-Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC
CS1924ATC
KVMP комутатор за 4 DisplayPort компютъра, предназначен за контрол на въздушното движение (ATC). Поддържа 2048 x 2048 @ 60 Hz за радарни монитори, Zero-Second превключване и 2 DC входа за резервирано захранване.
Характеристики
- One USB / DisplayPort console controls 4 DisplayPort computers and shares 2 USB peripherals
- Supports 2048 x 2048 @ 60 Hz screen resolutions dedicated for radar monitoring; maximum resolution up to 4096 x 2160 @ 60 Hz
- Zero-Second Switch – provides continuous video stream and real-time switching
- Supports power failover – 2 lockable DC jacks for power redundancy to ensure constant availability for mission-critical applications
- Supports serial port switching for legacy devices, maintaining compatibility with existing device interfaces
- Computer Selection via front panel pushbuttons, hotkeys, mouse, RS-232 commands, and remote port selector
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
- EDID Expert™ – smooth power- up, high-quality display and use of the best video resolution across different screens
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- DisplayPort 1.2, and HDCP compliant
- Supports HD audio*
- Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
- Console keyboard emulation / bypass feature supports most multimedia keyboards
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
- Power on detection
- Auto scan
- Firmware upgradable Note: HD audio through DisplayPort cannot be switched independently
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkeys, Pushbutton, Mouse, RS232 commands, Remote Port Selector

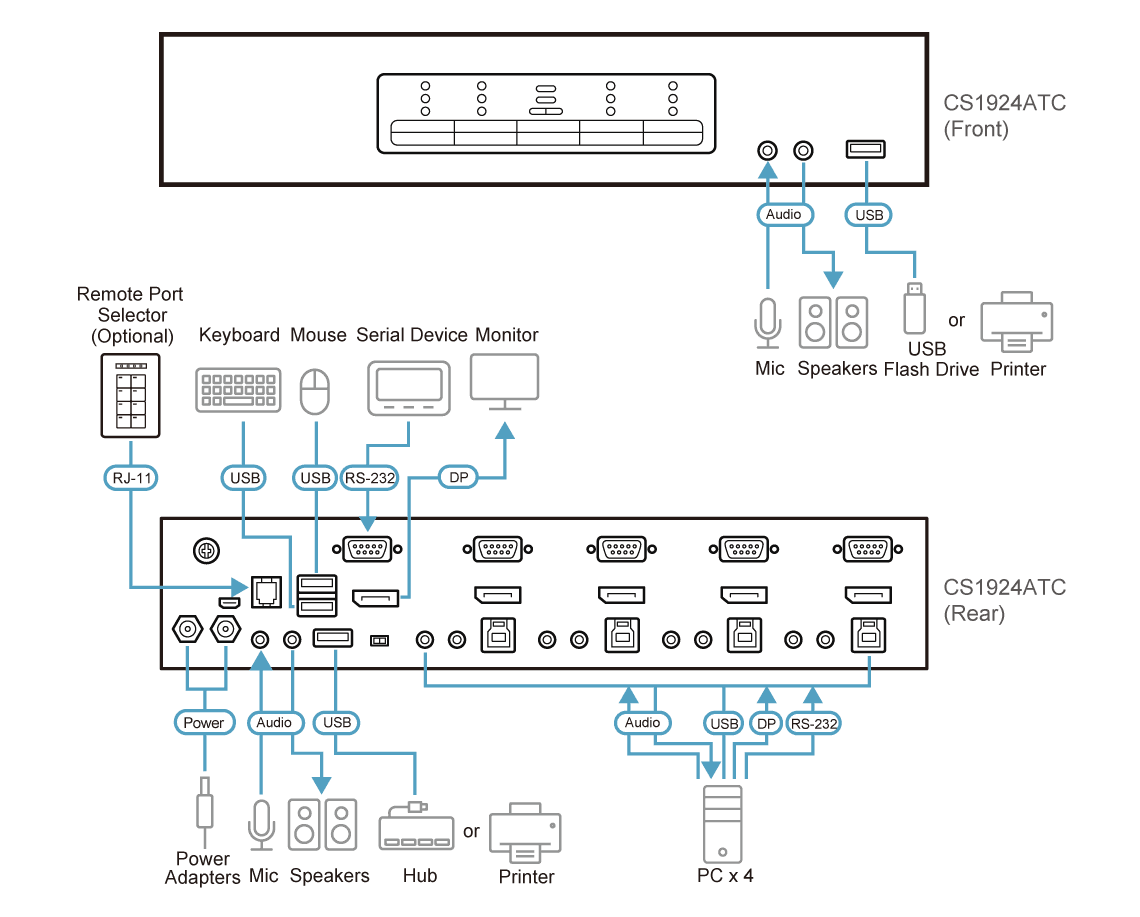

Конектори
- Конзолни портове
- 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Stereo Jack Female (Pink; 1 x front, 1 x rear) 1 x DB-9 Male

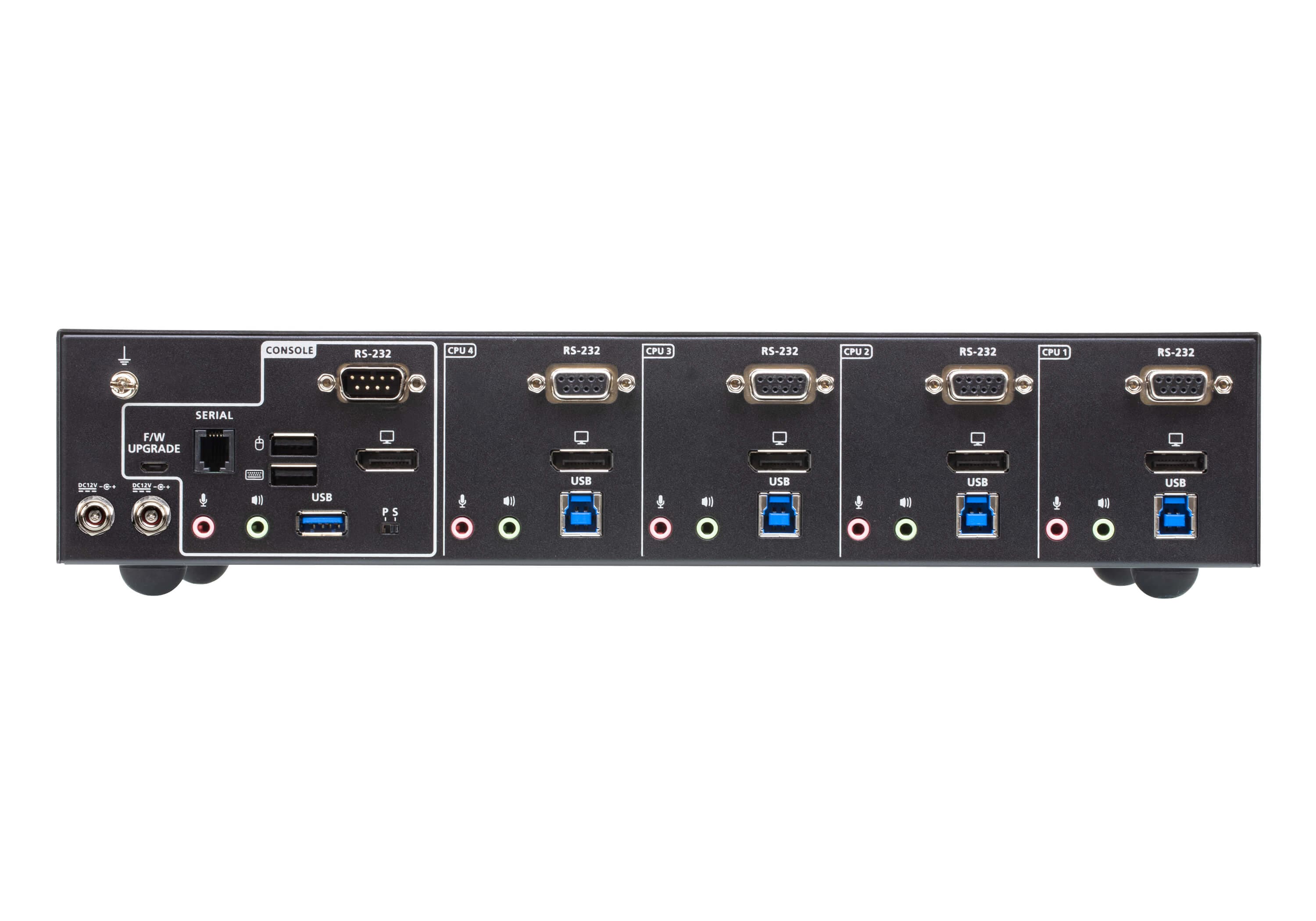

- KVM портове (компютри)
- 4 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) 4 x DB-9 Female
- Захранване
- 2 x Lockable DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
- Дистанционен избор на порт
- 1 x RJ-11 Female
- Обновяване на фърмуера
- 1 x micro USB Female
Бутони и превключватели
- Избран
- 5 x Pushbutton
Индикатори
- USB връзка
- 4 (Green)
- Аудио
- 4 (Green)
- KVM
- 4 (Orange)
Емулация
- Клавиатура / мишка
- USB
- Видео
- Up to 4096 x 2160 @ 60Hz
- Консумация
- DC12V:16.84W:137BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.87 kg ( 4.12 lb )
- Размери (Д x Ш x В)
- 33.50 x 16.10 x 6.55 cm (13.19 x 6.34 x 2.58 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
