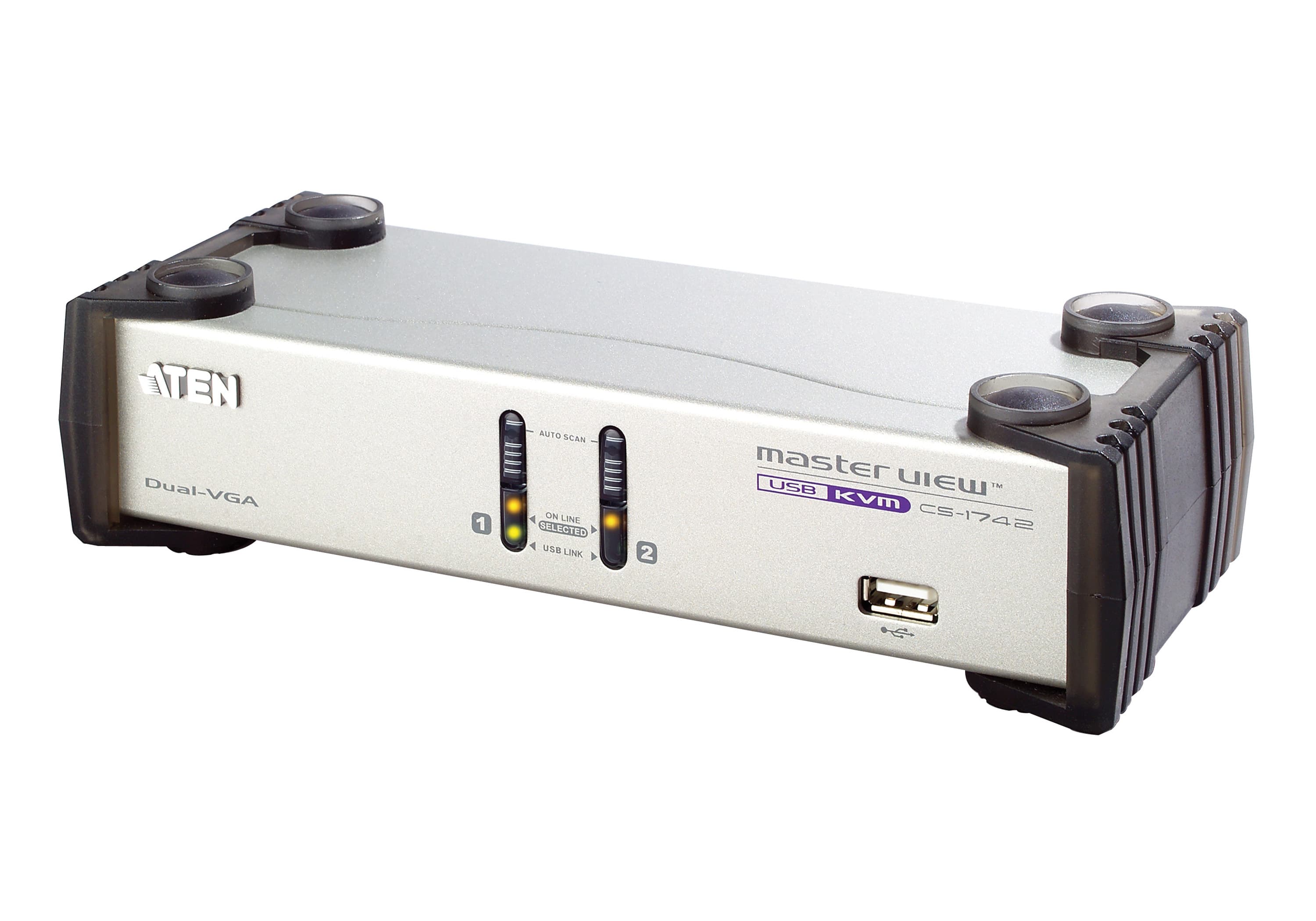

2-Port USB VGA Dual Display/Audio KVMP™ Switch

Name: 2-Port USB VGA Dual Display/Audio KVMP™ Switch
Brand: ATEN
SKU: CS1742

CS1742Снет от производство

KVM превключвател за 2 компютъра с двоен дисплей — една USB конзола с два VGA монитора, клавиатура, мишка и аудио; вграден 2-портов USB хъб.

Характеристики

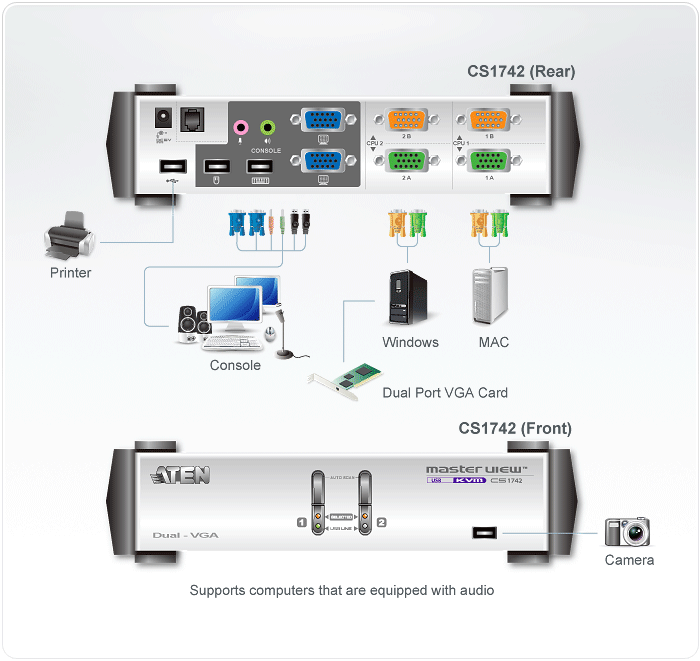

Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
2 port USB Hub built in
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting

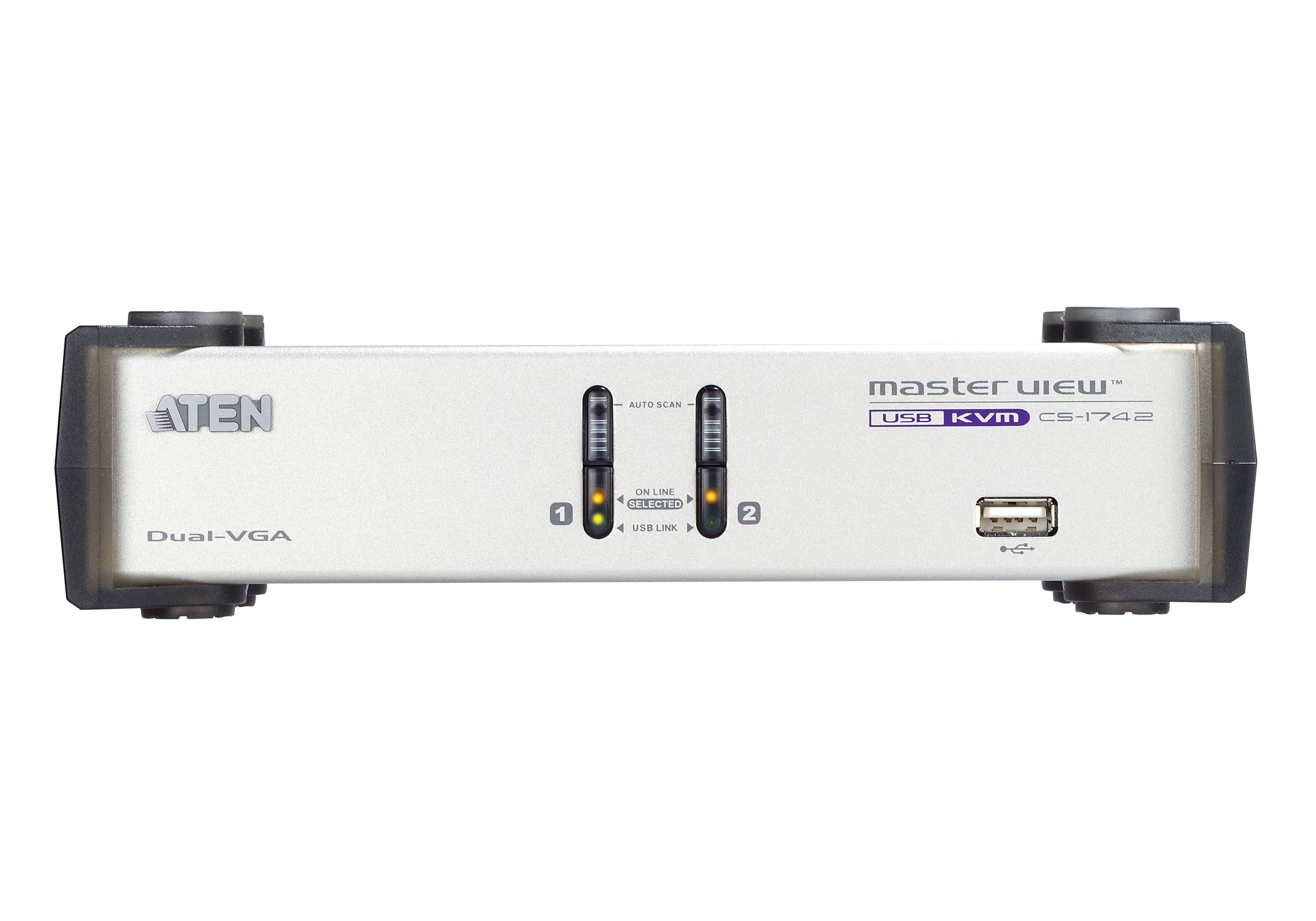

Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradeable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation* *1.PC keyboard combinations emulate SUN/Mac keyboards. *2.SUN/Mac keyboards only work with their own computers.

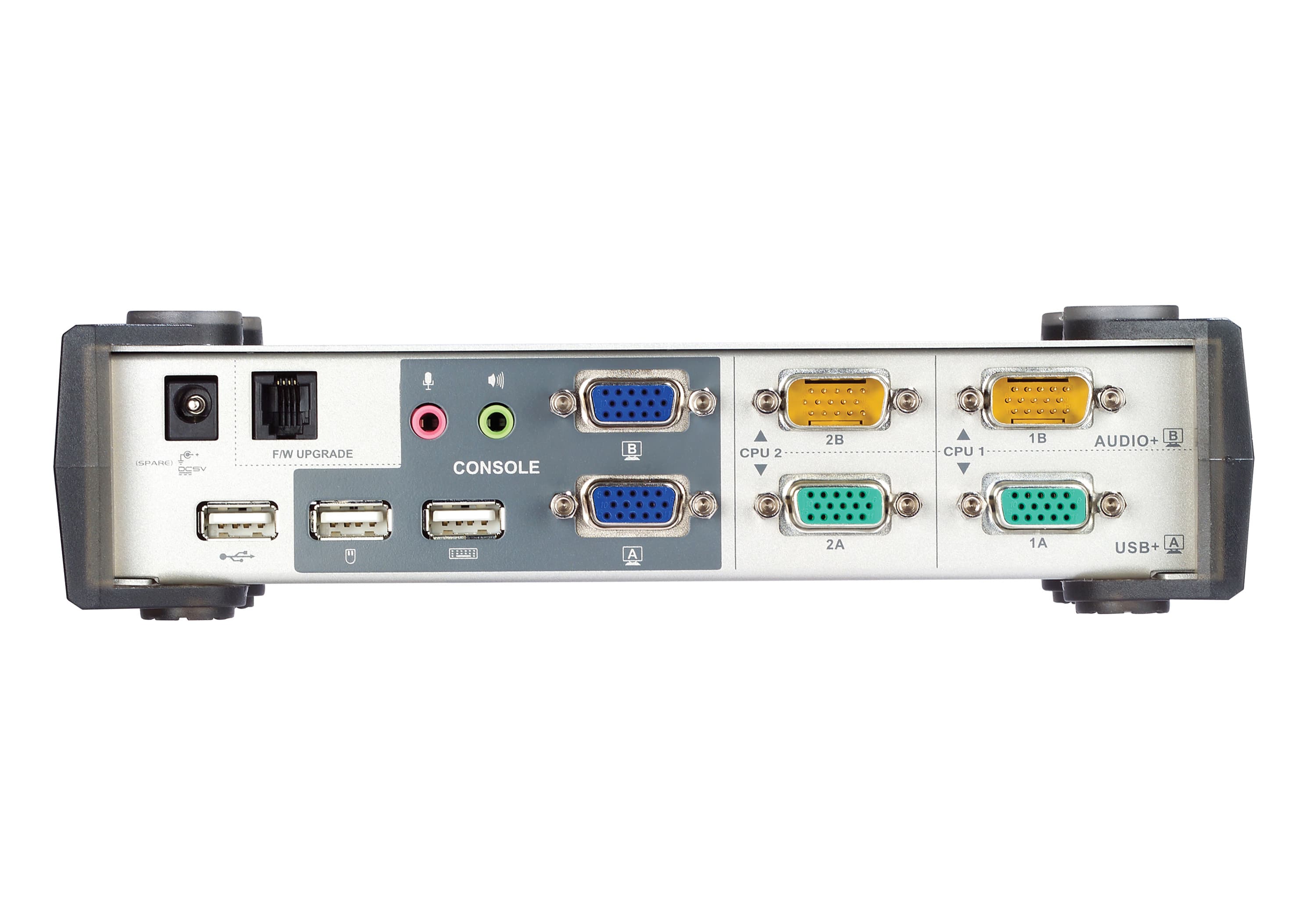

Конзолни портове: 2 x USB Type A Female (White) 2 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM портове: 2 x SPHD-15 Male (Yellow) 2 x SPHD-15 Female (Green)
USB хъб: 2 x USB Type A Female (White)
Обновяване на фърмуера: 1 x RJ-11 Female (Black)
Захранване: 1 x DC Jack (Black)

Клавиатура / мишка: USB
Видео: 2048 x 1536; DDC2B
Интервал на сканиране: 1-99 seconds
Консумация: DC5V:0.98W:30BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.82 kg ( 1.81 lb )
Размери (Д x Ш x В): 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
