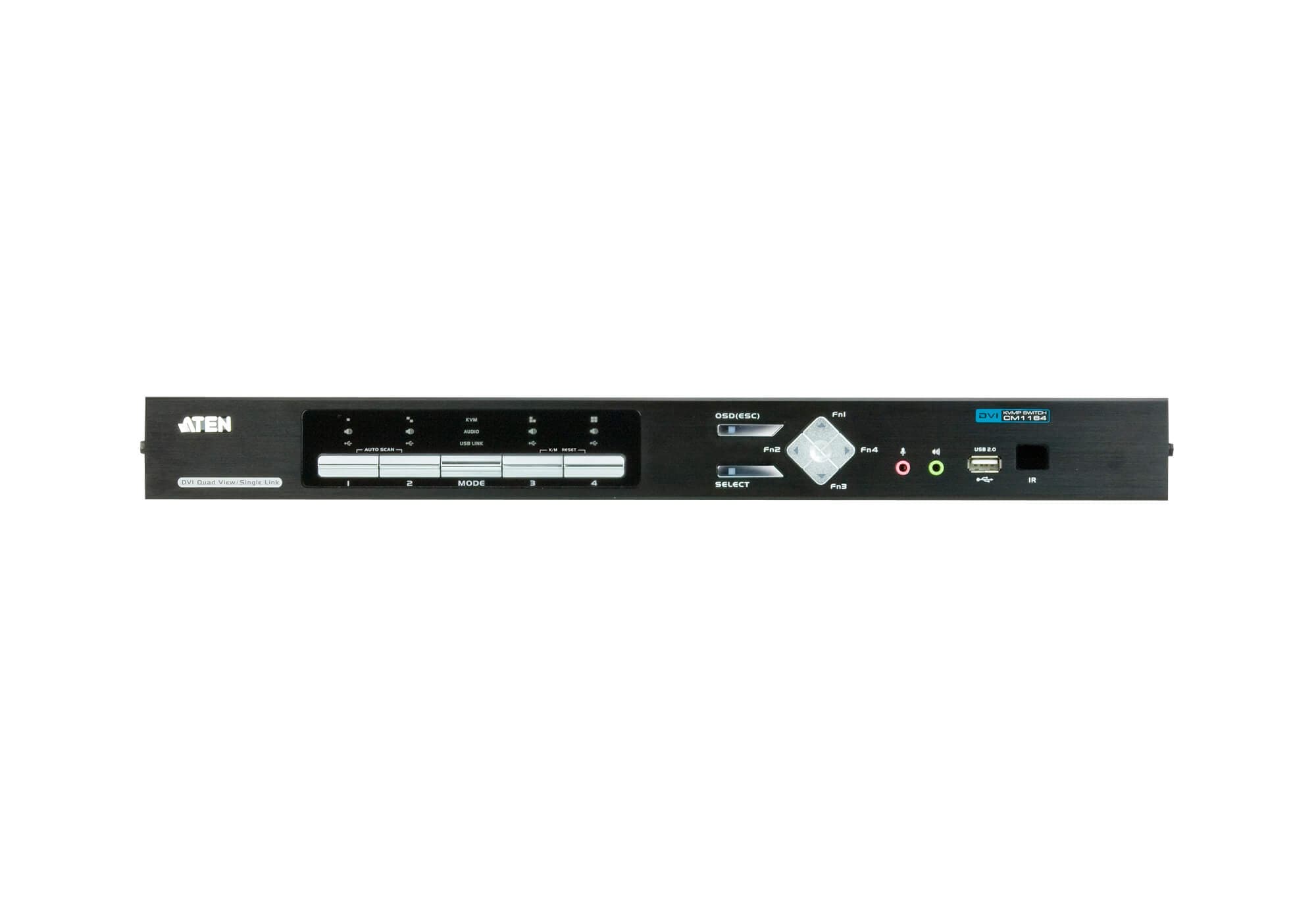

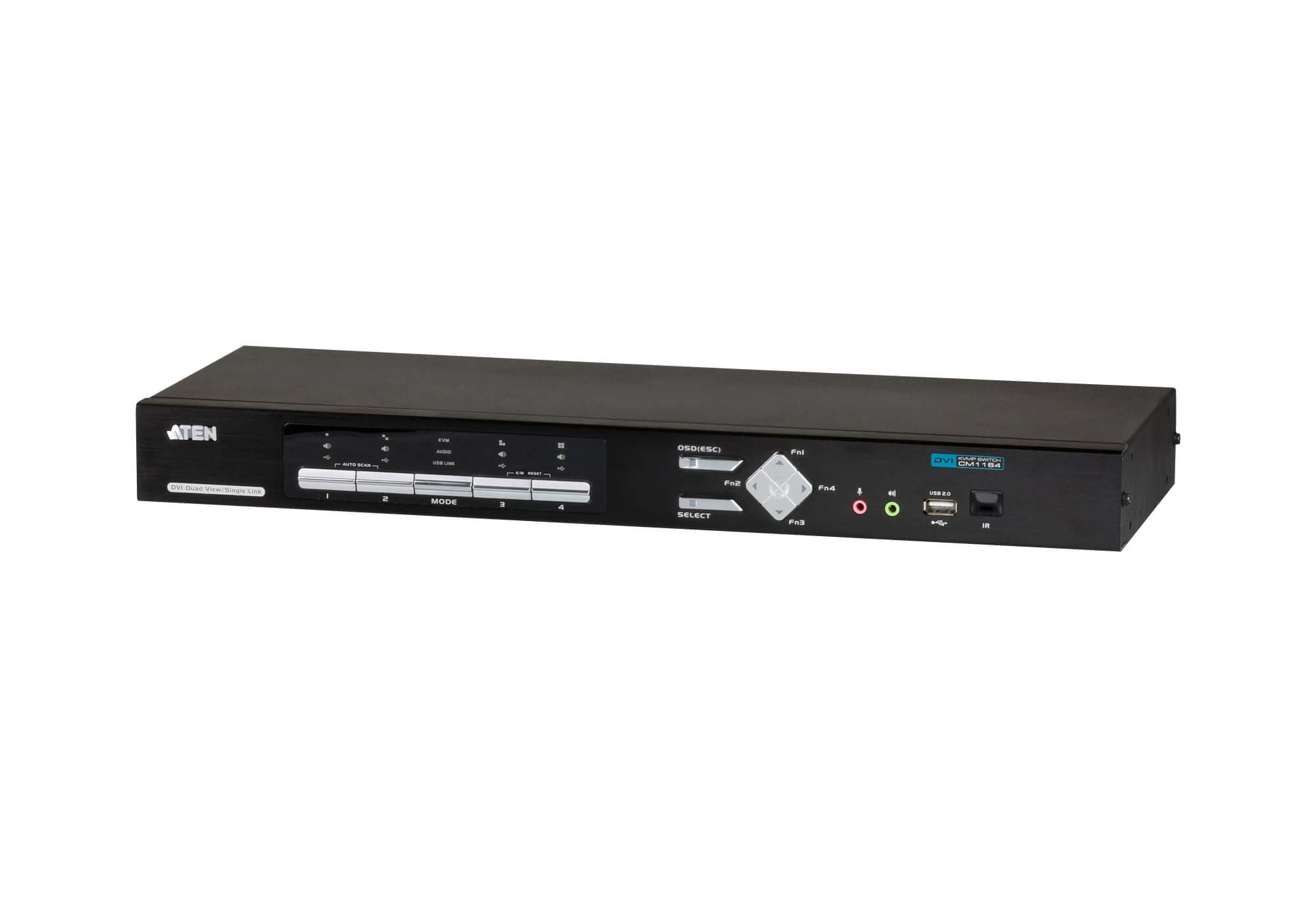

4-Port USB DVI Multi-View/Audio KVMP™ Switch
CM1164Снет от производство
DVI KVM превключвател с multi-view — една USB конзола управлява 4 компютъра и показва до 4 източника на един екран. Управление от преден панел, OSD и IR дистанционно.
Характеристики
- One USB console independently and simultaneously controls four DVI-D computers and two additional USB devices
- Multi-view console controls up to 4 video sources on one screen
- Function control and system setting via Front Panel, OSD, IR Remote – display mode, port selection, daisy chain, and so on
- Channel Editor - edit display windows, and other functions with the mouse and on-screen control panel
- Hardware Cursor – OSD navigation via console mouse

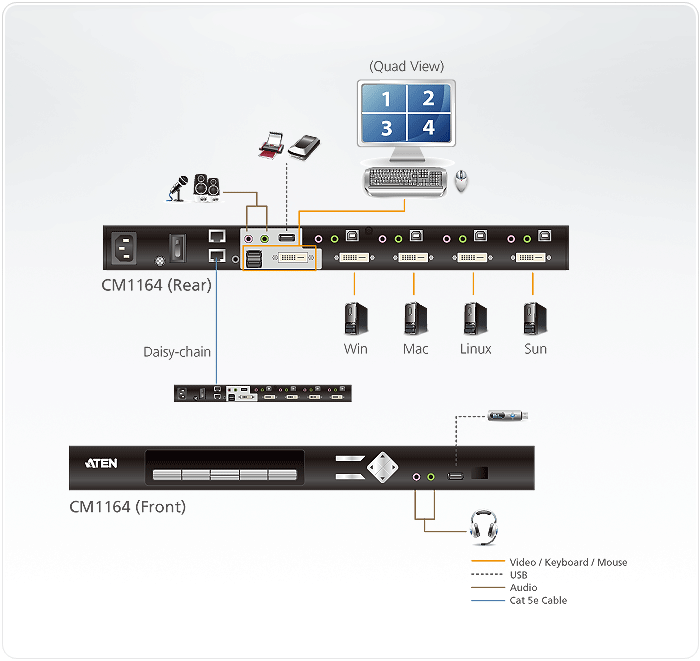

- DCC (Daisy Chain Control) port enables users to connect up to four CM1164 units, and use one console keyboard/mouse to manage computers or another CM1164
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specification
- Computer selection via front panel push buttons, hotkeys, IR Remote Control and OSD (with mouse* function enabled)
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice***
- Console keyboard emulation /bypass feature that support most multimedia keyboards***
- Independent switching for USB peripheral port, audio function, and KVM switch focus
- Power on detection
- Auto scan feature
- Multiplatform support – Windows, Linux, Mac and Sun
- Keyboard and Mouse support emulation and bypass
- Superior video quality – up to 1920 x 1200 resolution
- Multilingual keyboard mapping-Supports English, Japanese, and French keyboards
- Full bass response provides a rich experience for 2.1 channel audio
- Mac/Sun keyboard support and emulation**
- Upgradeable firmware through computers' USB port * For 3-key USB wheel mouse only **PC keyboard combinations emulate Mac/Sun keyboards. **Mac/Sun keyboards only work with their own computers. ***The USB keyboard and mouse console ports on the CM1164's rear panel will only support a USB keyboard and mouse.
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Front Panel Pushbuttons; Hotkeys; IR Remote Control; On-Screen Display (OSD); Mouse
Конектори
- Конзолни портове

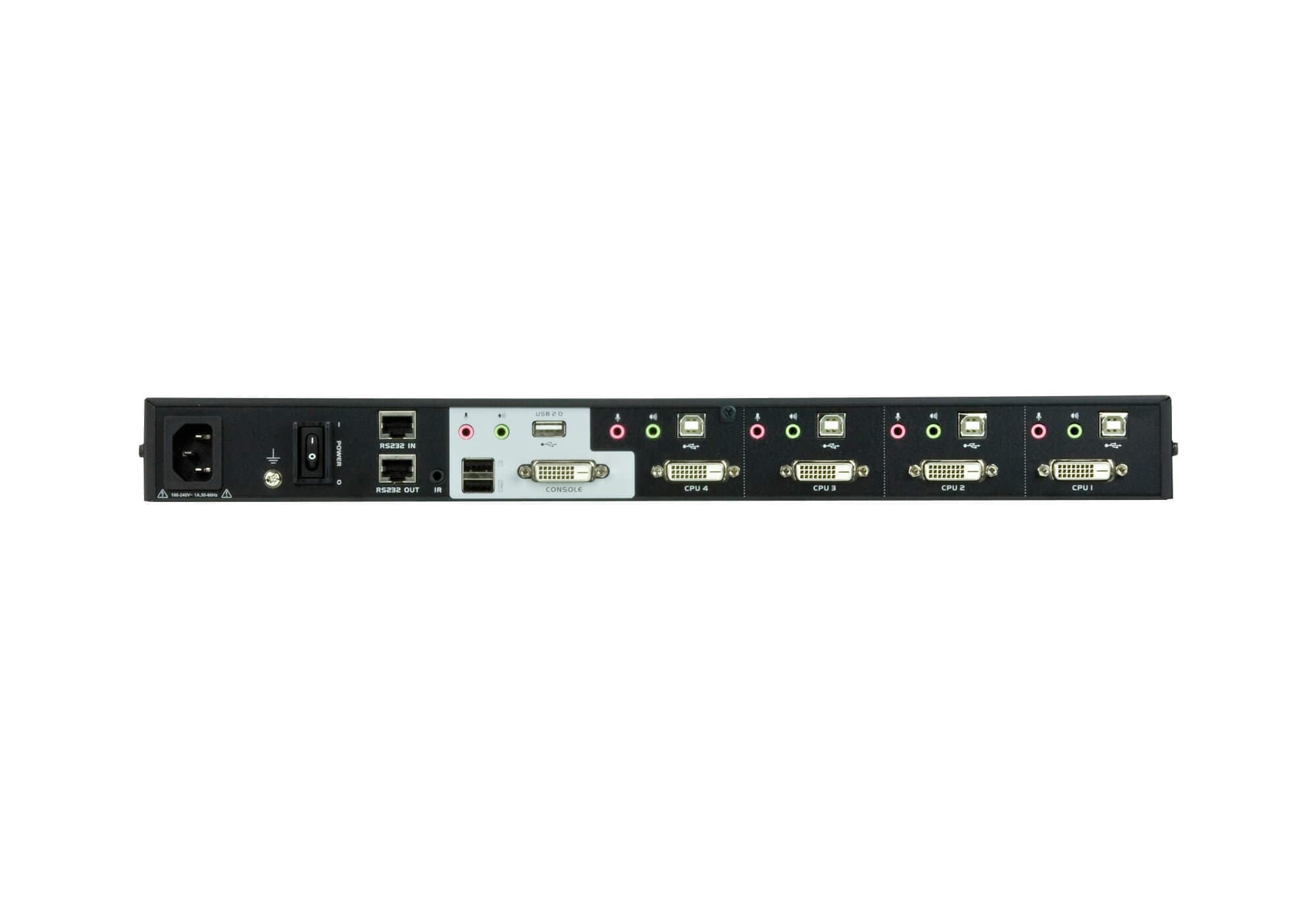

- 2 x USB Type A Female (Black; rear panel) 1 x Single Link DVI-D Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel,1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) 2 x RJ-45
- KVM портове
- 4 x USB Type B Female (White) 4 x Single Link DVI-D Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
- Захранване
- 1 x IEC320 Jack
- USB хъб
- 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel)
Бутони и превключватели
- Избран
- 11 x Pushbuttons
Индикатори
- KVM
- 4 (Orange)
- Аудио
- 4 (Green)
- USB
- 4 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 1920 x 1200 @ 60 Hz (DVI-D)
- Интервал на сканиране
- 1–99 secs. (Default: 5 secs)
- Консумация
- AC110V:15.2W:97BTU/h AC220V:15.2W:97BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -10-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.50 kg ( 5.51 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.38 x 4.40 cm (17.21 x 6.45 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
