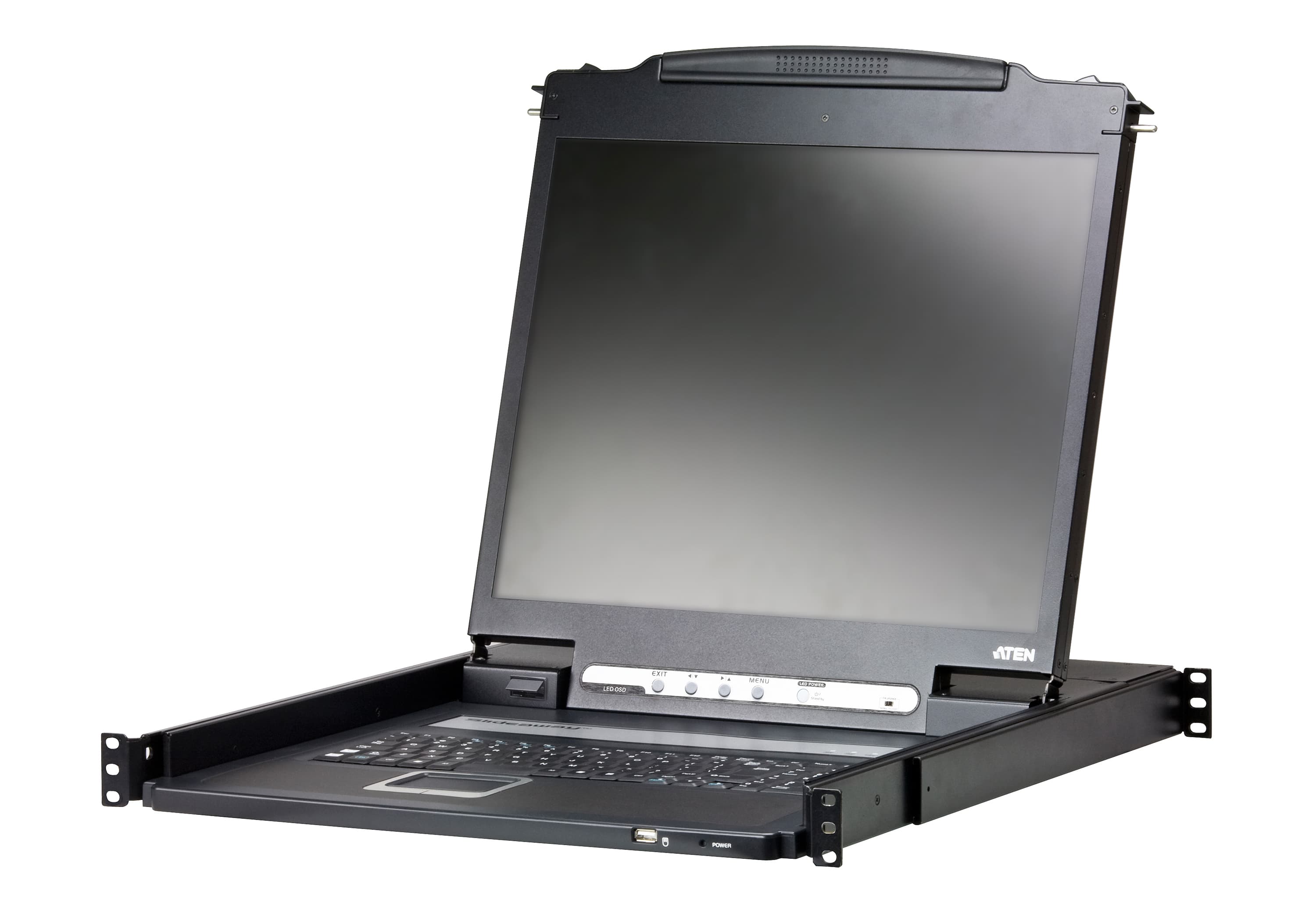

Lightweight Single Rail LCD Console (PS/2-USB, VGA)
CL3000Снет от производство
LCD KVM конзола с 19" LED-подсветен монитор, клавиатура и тъчпад на една релса — свързва се като конзола към съвместими KVM превключватели. Клавиатурата и тъчпадът имат LED осветление.
Характеристики

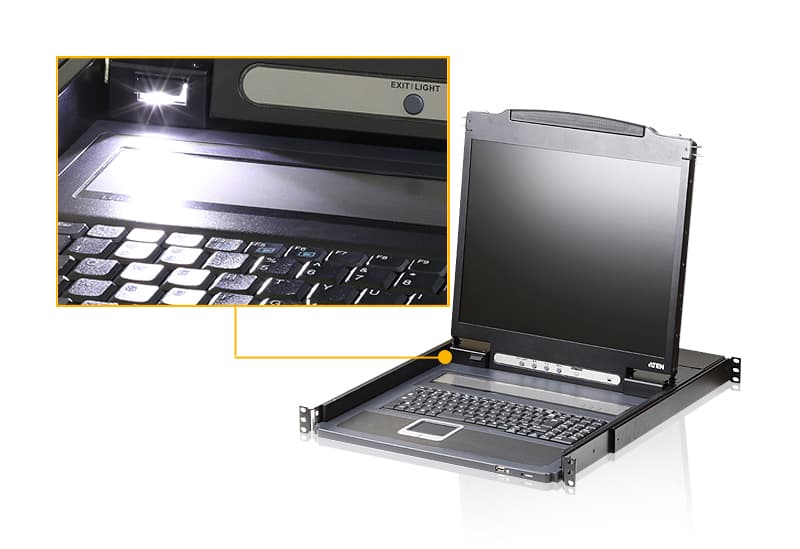

- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console featuring a 19" LCD monitor
- Green power LED-backlit LCD monitor saves energy
- Lightweight design for easier installation
- Advanced Random Vibration Resistance Testing - MIL-STD-810G certified
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Additional hot-pluggable USB mouse port on the front panel (also functions as a USB peripheral port)
- Multiplatform support – Windows, Linux, Mac, and Sun
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Firmware upgradable

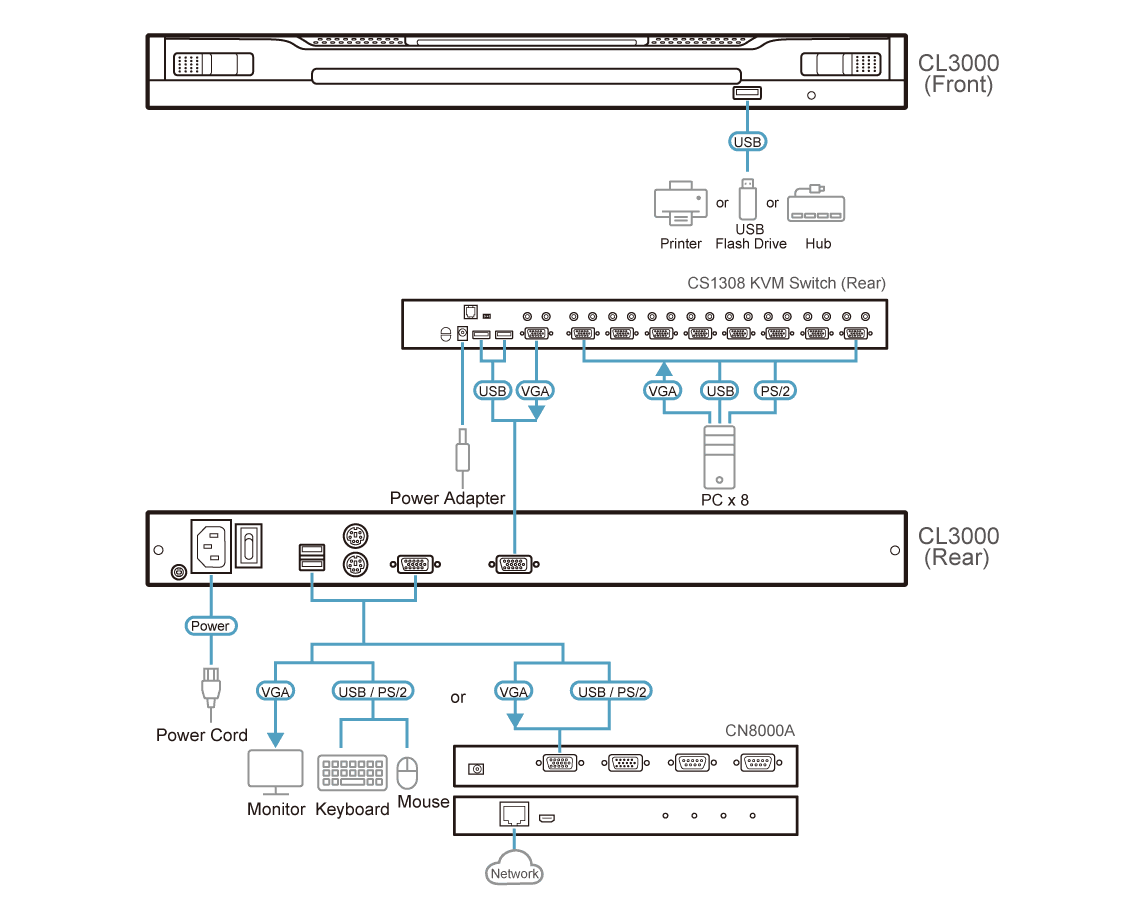

- Extra console port – manage computers from an external console (monitor, USB or PS/2 keyboard and mouse)
- Console lock – the console remains securely locked away when not in use
- Slideaway™ housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor
- Adjustable depth to fit within a rack
- Optional rack mount kits available including easy installation options
- Standard 105-key keyboard
- Keyboard Language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Traditional Chinese and Turkish More information about "Easy Rack Mounting"...
Спецификация
- Функция
- CL3000N
Връзки към компютри
- Директно
- 1
- Избор на конзола
- Hotkey

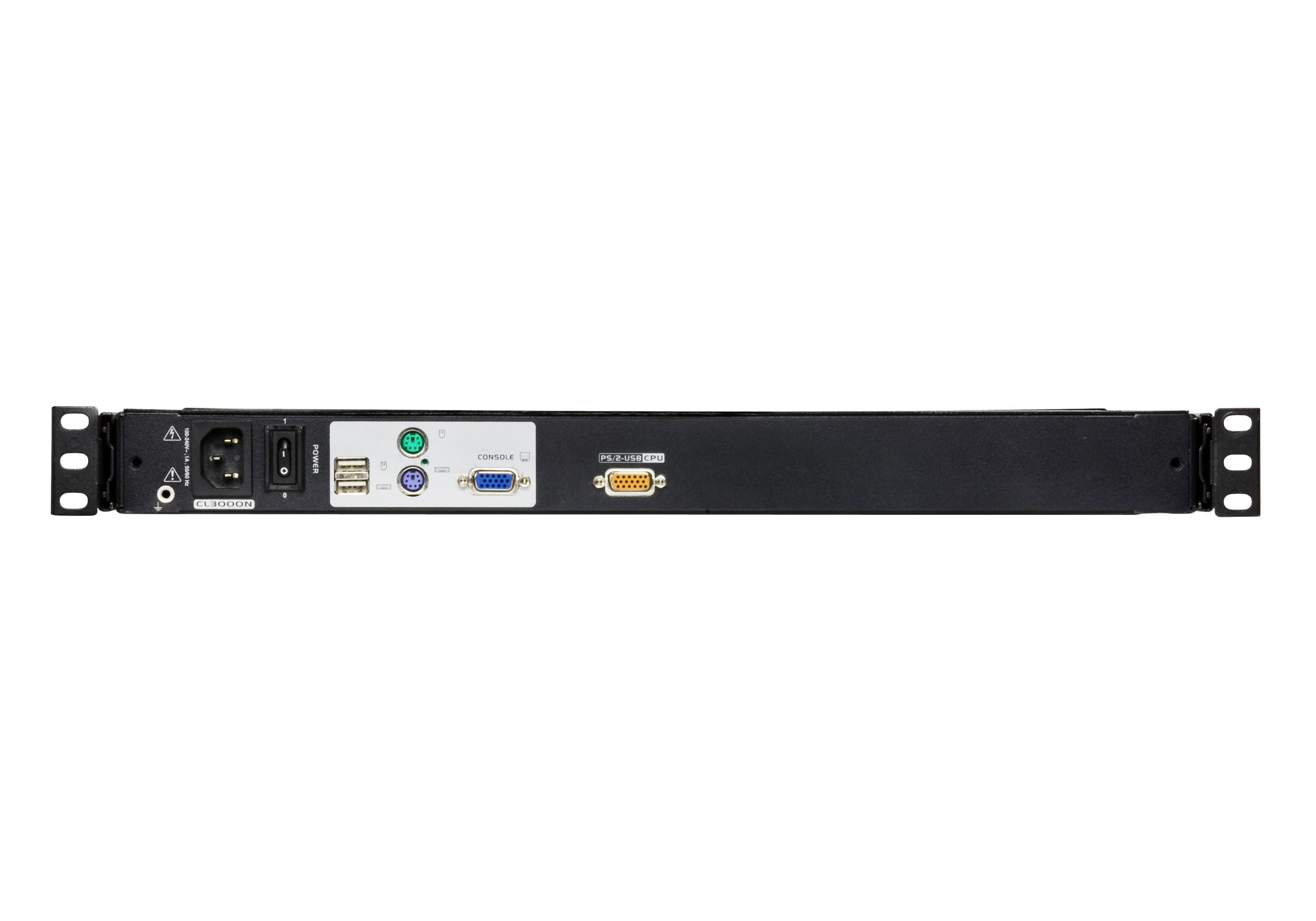

Конектори
- KVM портове
- 1 x SPHD Female (Yellow)
- Захранване
- 1 x IEC 60320/C14
- Външни конзолни портове
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- Външна мишка / периферия
- 1 x USB Type A Female (Front)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Захранване
- 1 x KVM Console (Dark Green) 1 x LCD (Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 19" TFT-LCD
- Резолюция
- 1280 x 1024@75Hz
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.294 mm x 0.294 mm
- Поддържани цветове
- 16.77M colors
- Контраст
- 1000:1
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B
Емулация
- Клавиатура / мишка
- PS/2, USB
- Макс. входна мощност
- 100–240VAC; 50–60Hz; 1A
- Консумация
- AC110V:23.8W:122BTU/h AC220V:25.4W:130BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Тест за устойчивост на вибрации
- MIL-STD-810G Certified Test Conditions: • Frequency Range: 5-500Hz • Grams: Value X, Y axis 0.76Grms, Z axis 1.07Grms • Test Duration: 1 hour/per axis
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тип релси
- Single Rail
- Тегло
- 9.00 kg ( 19.82 lb )
- Размери (Д x Ш x В)
- 48.00 x 58.92 x 4.40 cm (18.9 x 23.2 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
