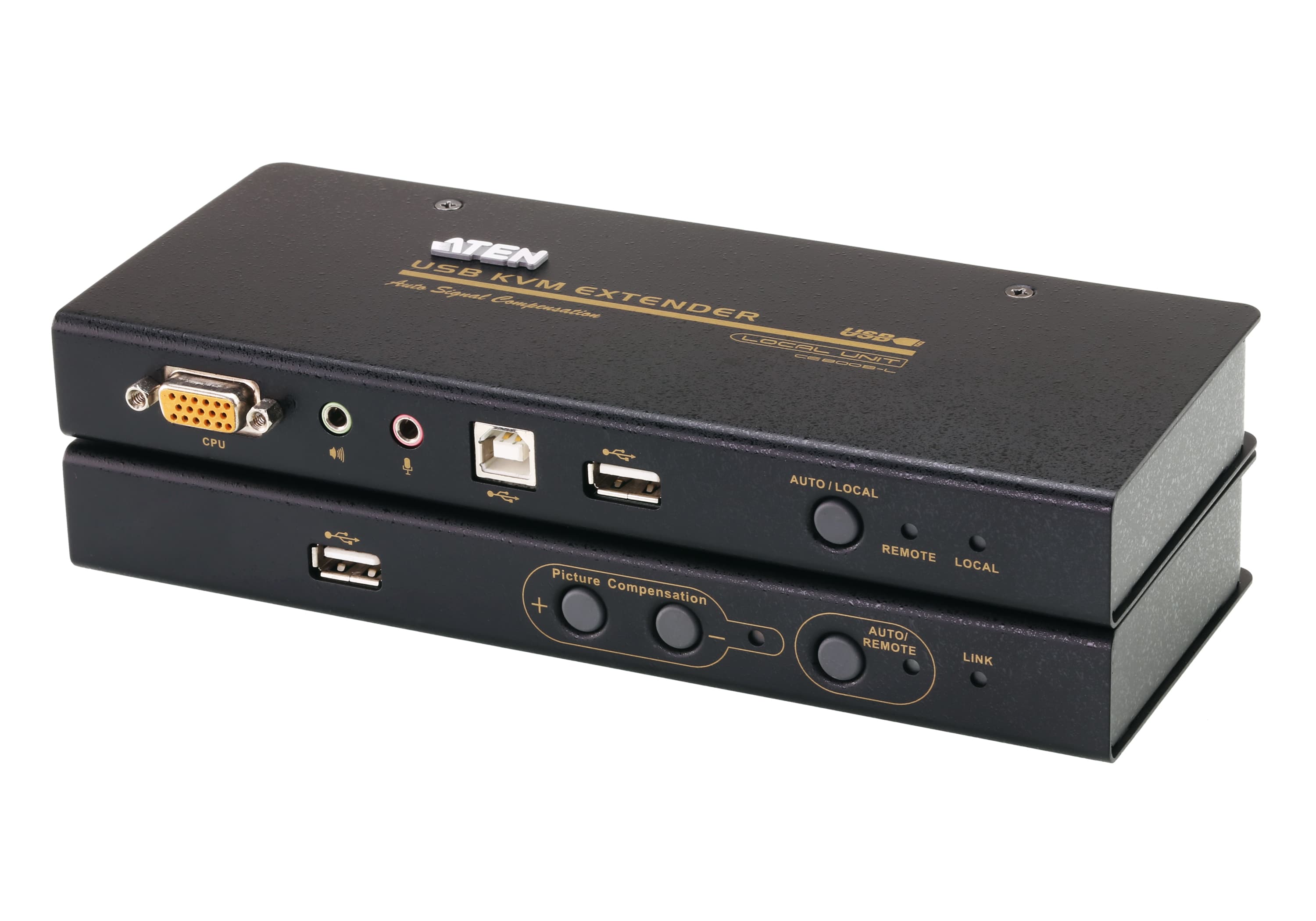

USB VGA/Audio Cat 5 KVM Extender with USB Flash Storage (1024 x 768@250m)

Name: USB VGA/Audio Cat 5 KVM Extender with USB Flash Storage (1024 x 768@250m)
Brand: ATEN
SKU: CE800B

CE800BСнет от производство

KVM удължител за USB конзола с VGA, аудио и порт за USB флаш памет — до 250 m по Cat 5e. Управление от двете конзоли, избор с бутон.

Характеристики

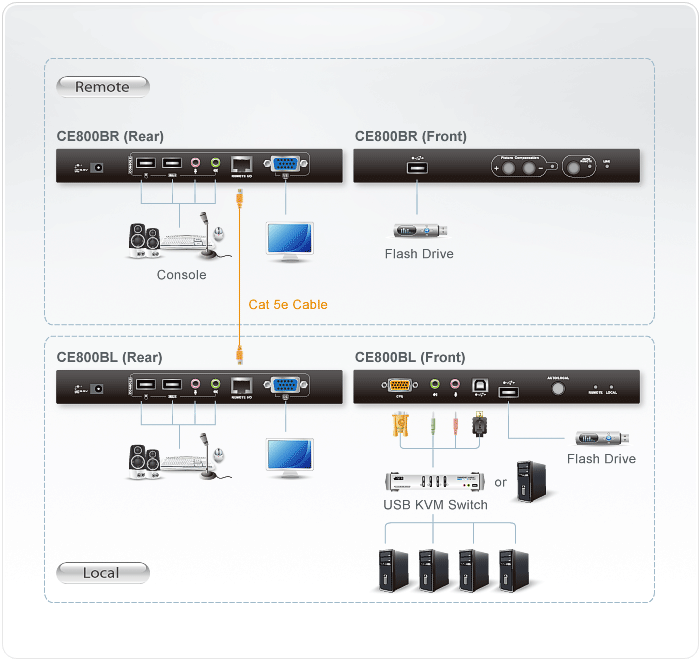

Cat 5e cable to connect the Local and Remote Units - up to 250 m (825 ft) apart
Dual console operation - control your system(s) from both the local and remote consoles
Pushbutton selection of the active console
Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing
Remote unit special security feature requires login when attaching an external USB storage device
Supports Wide Screen formats *
Supports VGA, SVGA, and multisync monitors – local monitor supports DDC; DDC2; DDC2B
High resolution video - up to 1600 x 1200 @ 60 Hz
Built-in 8KV/15KV ESD protection and 2KV surge protection
Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance
Supports stereo speakers and stereo microphone
Supports Microsoft Intellimouse and the scrolling wheel on most mice
Upgradable firmware
Built-in ASIC for greater reliability and compatibility * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

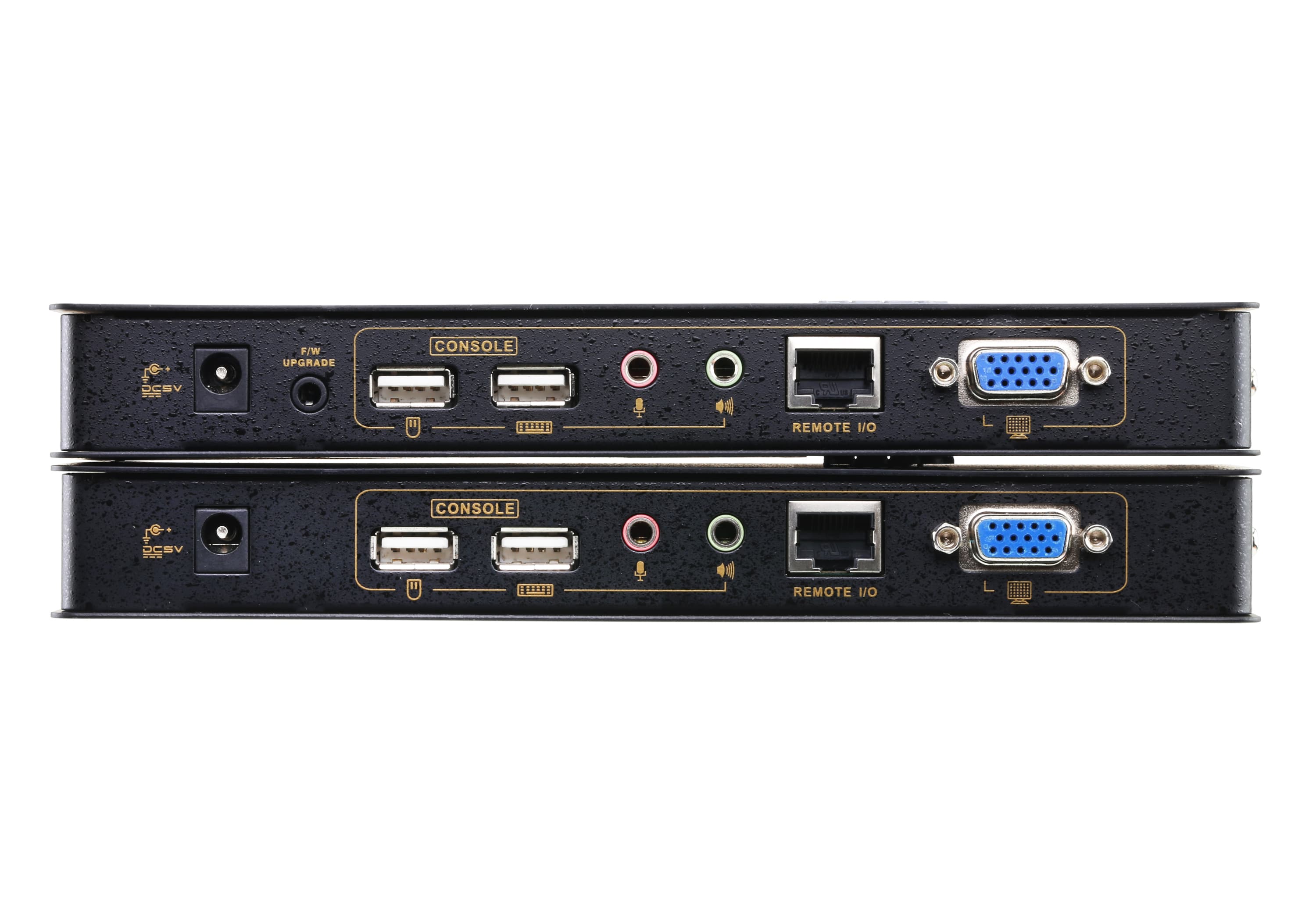

Конзолни портове: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink)
Конзолни портове: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink)

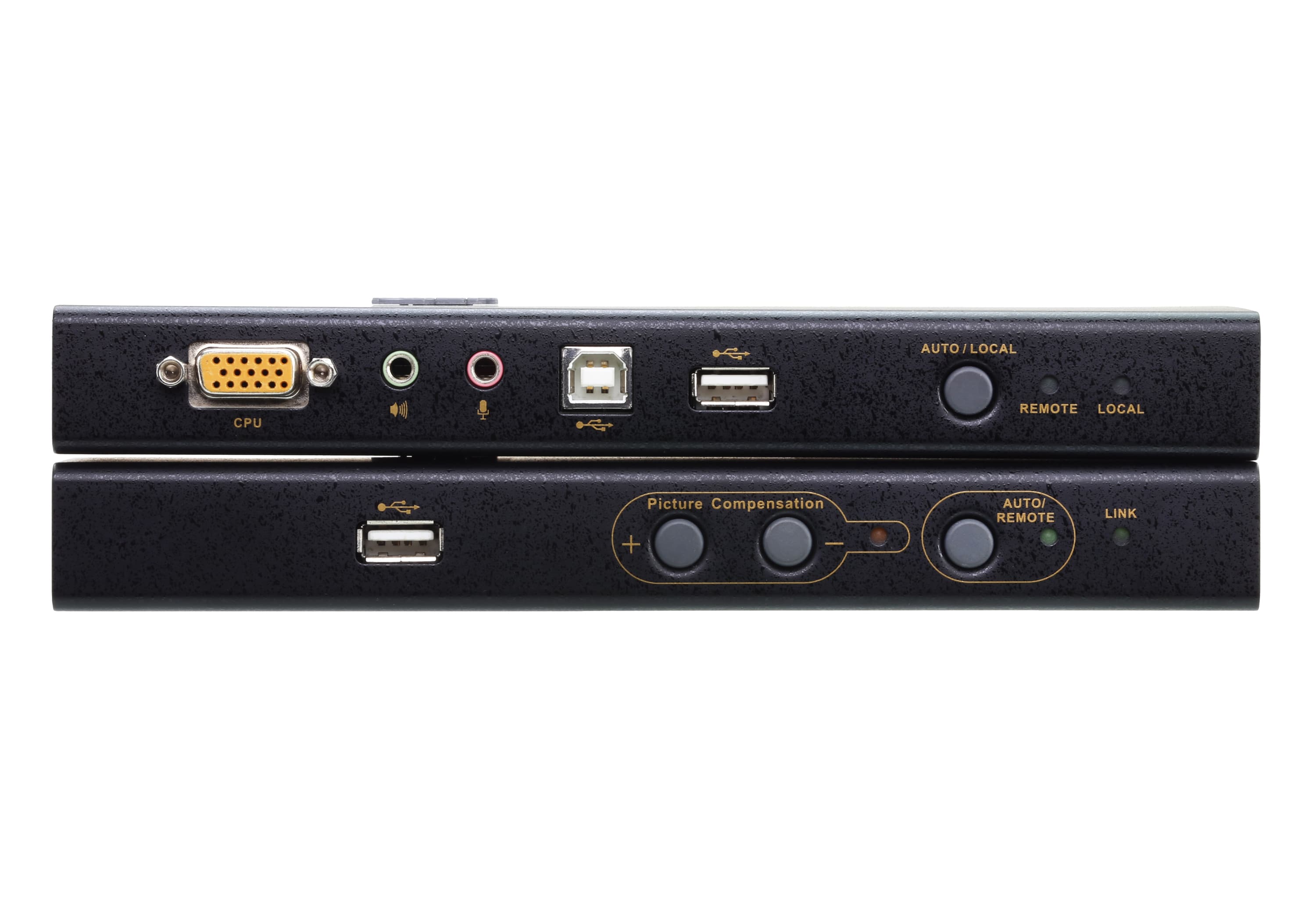

KVM портове: 1 x SPHD-15 Female (Yellow) 1 x USB Type B (Female) 1 x USB Type A (Female) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink)
KVM портове: 1 x USB Type A (Female)
Обновяване на фърмуера: 1 x 4-conductor 3.5 mm Jack
Обновяване на фърмуера: N/A
Захранване: 1 x DC Jack
Захранване: 1 x DC Jack
Между устройства: 1 x RJ-45
Между устройства: 1 x RJ-45

Локално: 1 (Green)
Локално: N/A
Отдалечено: 1 (Green)
Отдалечено: 1 (Green)
Връзка: N/A
Връзка: 1 (Green)
Компенсация: N/A
Компенсация: 1 (Orange)
Видео: 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1024x768@60Hz at 250m
Видео: 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1024x768@60Hz at 250m
Консумация: DC5V:2.67W:27BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V:4.75W:29BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.51 kg ( 1.12 lb )
Тегло: 0.49 kg ( 1.08 lb )
Размери (Д x Ш x В): 20.20 x 8.63 x 2.63 cm (7.95 x 3.4 x 1.04 in.)
Размери (Д x Ш x В): 20.20 x 8.16 x 2.63 cm (7.95 x 3.21 x 1.04 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
