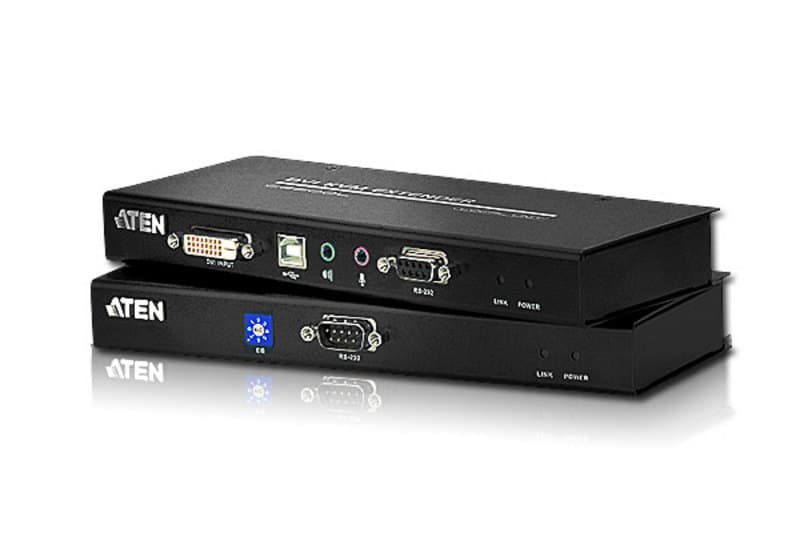

USB DVI Dual Link Cat 5 KVM Extender (1024 x 768@60m)

Name: USB DVI Dual Link Cat 5 KVM Extender (1024 x 768@60m)
Brand: ATEN
SKU: CE602

CE602Снет от производство

KVM удължител за USB конзола с DVI-D Dual Link видео и RS-232 — локалният и отдалеченият модул се свързват с Cat 5e на до 60 m.

Характеристики

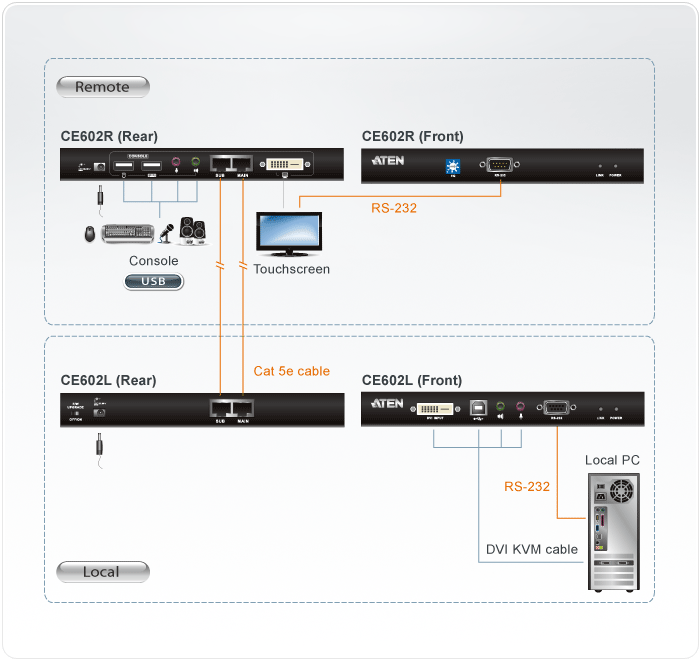

Local and Remote Units connect at distances up to 60 m using Cat 5e cable
Allows access to a computer or KVM installation from a remote console (up to 60 m)
Supports DVI-D interface and allows transmission of DVI duallink signals
Features ATEN technology that allows A/V transmission over one cat 5e cable
The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and dual link signals
Manual compensation control to adjust signal strength in order to compensate for distance
RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
Audio Enabled – supports stereo speakers and microphone
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Supports Wide Screen formats
Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 40 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to the devices is all it takes
Firmware upgrade

Конзолни портове: N/A

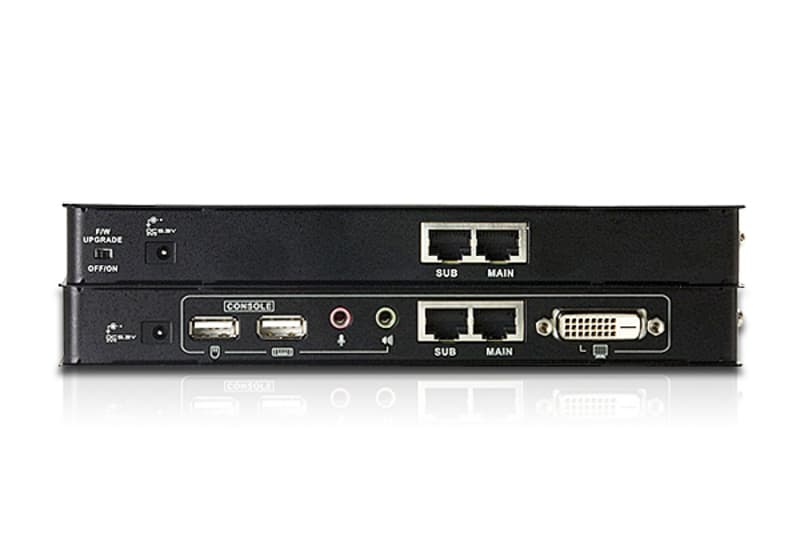

Конзолни портове: 2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)

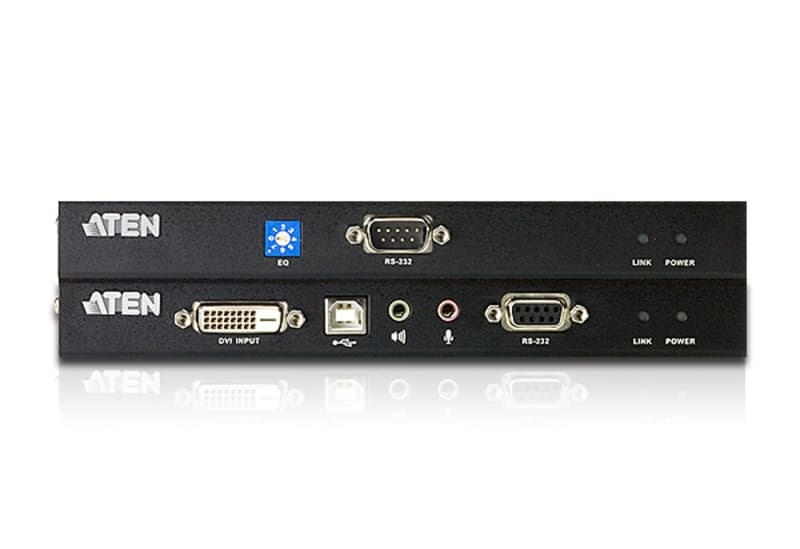

KVM портове: 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x USB Type B Female (White)
KVM портове: N/A
RS-232: 1 x DB-9 Female (Black)
RS-232: 1 x DB-9 Male (Black)
Захранване: 1 x DC Jack
Захранване: 1 x DC Jack
Sub / Main: 2 x RJ-45 Female (Black)
Sub / Main: 2 x RJ-45 Female (Black)

Клавиатура / мишка: USB
Клавиатура / мишка: USB
Видео: 2560 x 1600 @ 60Hz (40 m, Dual Link) 1024 x 768 @ 60Hz (60 m)
Видео: 2560 x 1600 @ 60Hz (40 m, Dual Link) 1024 x 768 @ 60Hz (60 m)
Консумация: DC5V:2.68W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V:5.02W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.48 kg ( 1.06 lb )
Тегло: 0.48 kg ( 1.06 lb )
Размери (Д x Ш x В): 20.20 x 8.54 x 2.50 cm (7.95 x 3.36 x 0.98 in.)
Размери (Д x Ш x В): 20.20 x 8.68 x 2.50 cm (7.95 x 3.42 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
