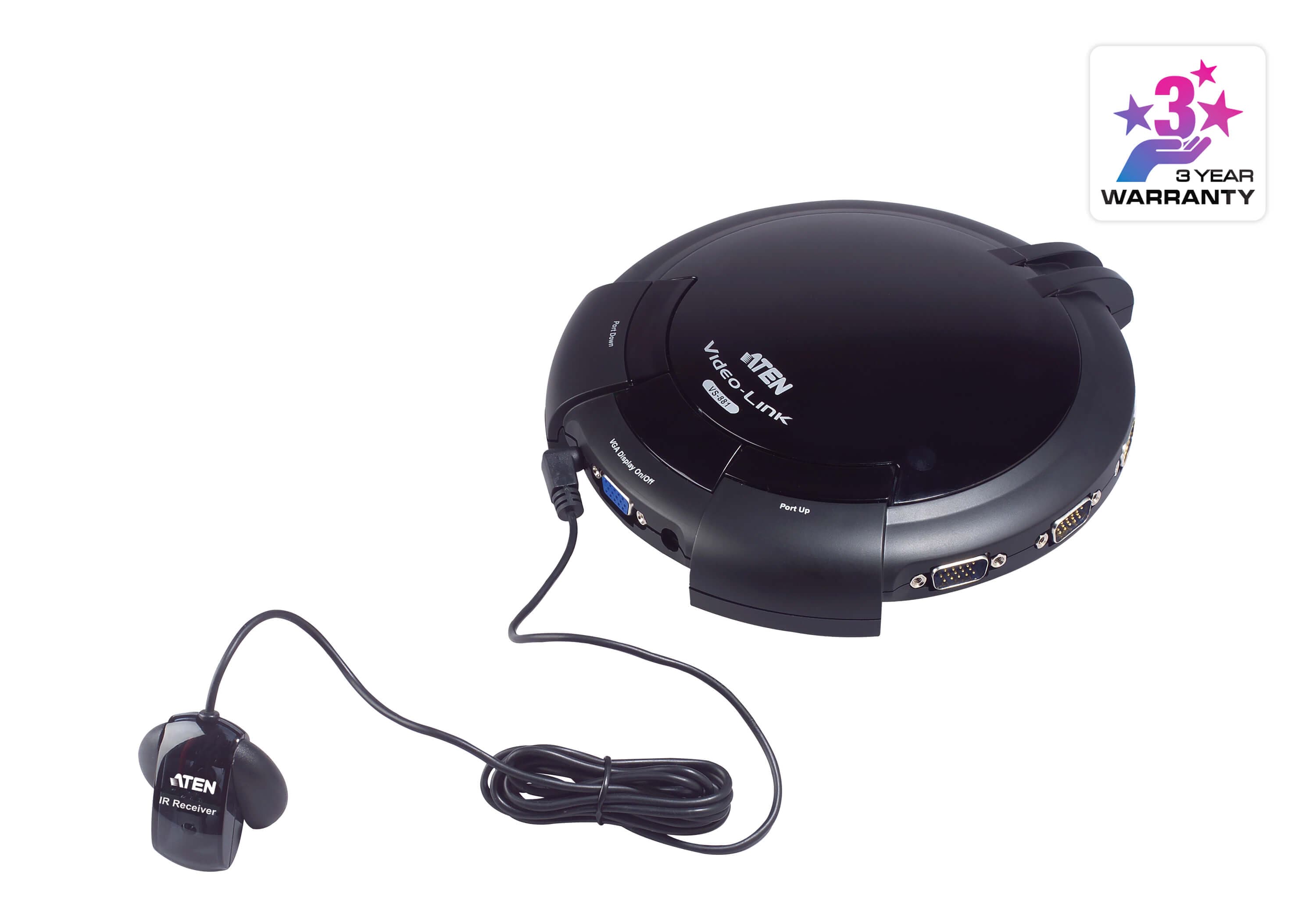

8-Port VGA Switch with Auto Switching
VS881Discontinued

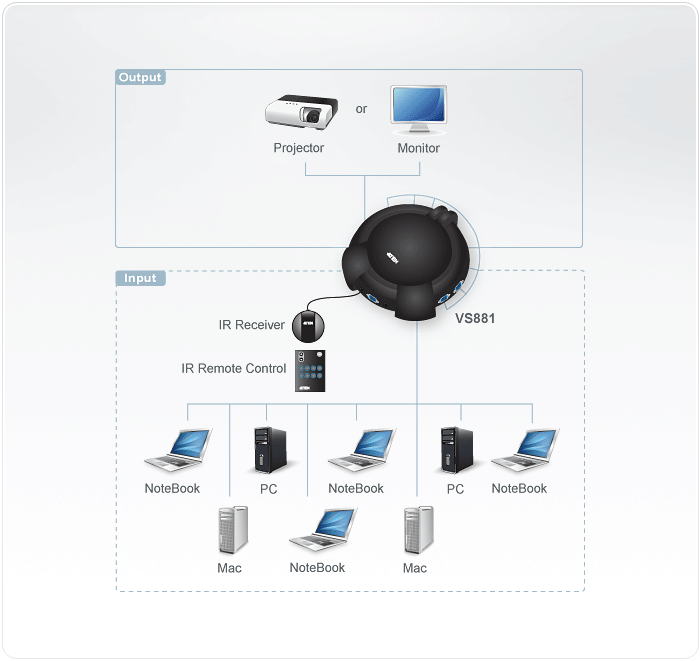

The VS881 is a video switch with 8 ports. It allows 8 independent computers or notebook computers to display their video outputs on a single monitor or on the screen
Features
- Displays the video output of eight separate computers on a single monitor or projector
- Modern concentric design with intuitive connector layout for quick and easy access
- Fast and convenient computer selection via pushbuttons or infrared (IR) remote control
- Extra-thin infrared handset allows easy storage in the mother unit
- Electronic switching for greater reliability and durability
- Easy installation - no software required - no confi guration
- Superior video quality - up to 2048x1536; DDC; DDC2; DDC2B
- Supports VGA, SVGA, XGA,UXGA, QXGA and multisync monitors
- Automatic incoming signal selection (Auto)
Video Input
- Interfaces
- 8 x HDB-15 Male (Blue)
- Impedance
- 75 Ω
- Max. Distance
- 1.8 m
Video Output
- Interfaces
- 1 x HDB-15 Female (Blue)
- Impedance
- 75 Ω
- Max. Distance
- 10 m
Video
- Max. Bandwidth
- 300 MHz
- Max. Resolution
- Up to 1920 x 1440
- Max. Distance
- Up to 10 m
Control
- IR
- 1 x Mini Stereo Jack Female (Black)
Connectors
- Power
- 1 x DC Jack
- Power Consumption
- DC5V:1.22W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50°C
- Storage Temperature
- -20 - 60°C
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.45 kg ( 0.99 lb )
- Dimensions (L x W x H)
- 17.35 x 19.13 x 4.50 cm (6.83 x 7.53 x 1.77 in.)
- Carton Lot
- 5 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
