HDMI Extender

Name: HDMI Extender
Brand: ATEN
SKU: VE800

VE800Discontinued

Request a quote Datasheet PDF Quick start guide

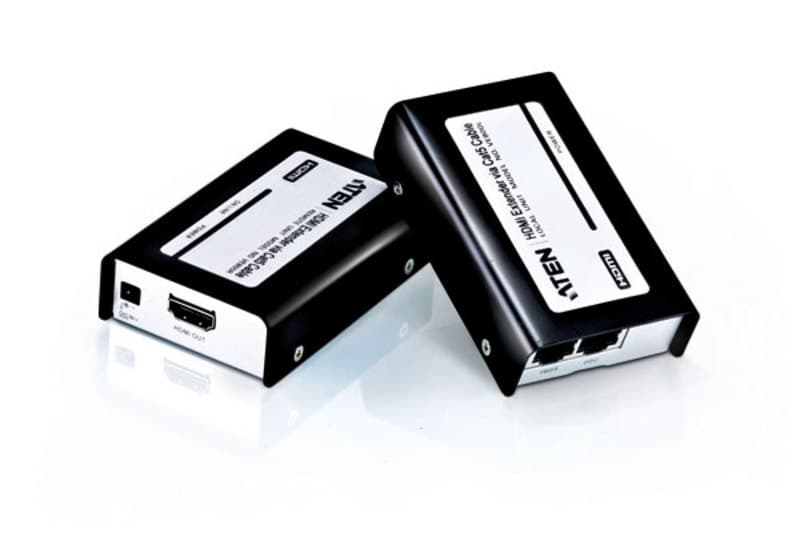

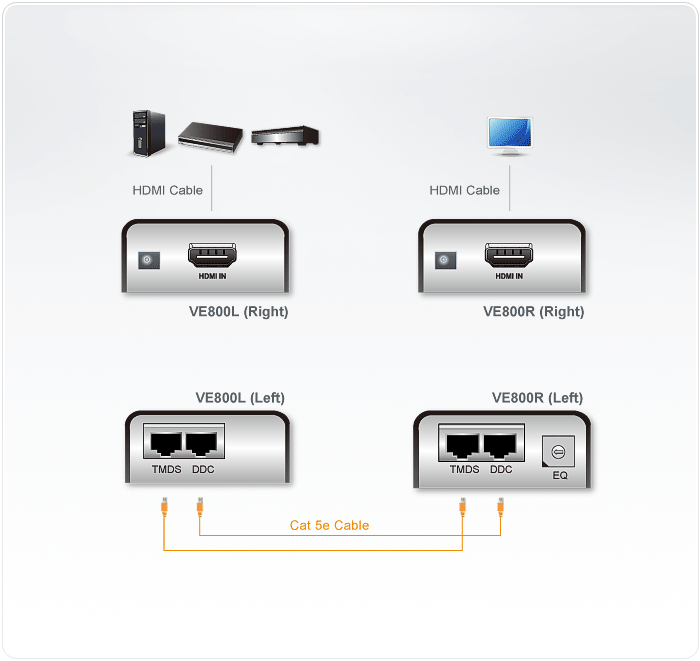

The VE800 HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using two Cat 5e cables. It is equipped with HDMI (high definition multimedia

Features

Extends the distance between HDMI source and HDMI display
Uses Cat 5e cable to achieve long distance transmission
8 segment equalization adjustment switch
Extend 1080p by 40m; extend 1080i (HDTV) by 60m
Superior video quality – 1920 x 1200, up to 1080p
HDMI (3D, Deep Color)
Supports Dolby True HD and DTS HD Master Audio
DDC compatible
HDCP 1.1 Compatible
Compatible with all ATEN HDMI switches and splitters

Specifications

Device Connections: 1
Device Connections: N/A

Connectors

Display: N/A
Display: 1 x HDMI Type A Female (Black)
Device: 1 x HDMI Type A Female (Black)
Device: N/A
Unit To Unit: 2 x RJ-45 Female
Unit To Unit: 2 x RJ-45 Female
Power Jack: 1 x DC Jack
Power Jack: 1 x DC Jack

LEDs

Power: 1 (Orange)
Power: 1 (Orange)
Online: N/A
Online: 1 (Green)
Video Resolution: HDTV resolutions: 480p, 720p, 1080i, 1080p(1920 x 1080); PC resolutions: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200)
Video Resolution: HDTV resolutions: 480p, 720p, 1080i, 1080p(1920 x 1080); PC resolutions: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200)
Power Consumption: DC5V:1.22WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power Consumption: DC5V:0.95WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0–50°C
Operating Temperature: 0–50°C
Storage Temperature: -20–60°C
Storage Temperature: -20–60°C
Humidity: 0-80% RH, Non-condensing
Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Metal
Housing: Metal
Weight: 0.16 kg ( 0.35 lb )
Weight: 0.16 kg ( 0.35 lb )
Dimensions (L x W x H): 9.00 x 5.50 x 2.40 cm (3.54 x 2.17 x 0.94 in.)
Dimensions (L x W x H): 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
