HDMI Cat 5 Repeater (1080p@40m)

Name: HDMI Cat 5 Repeater (1080p@40m)
Brand: ATEN
SKU: VB802

VB802Discontinued

Request a quote Datasheet PDF Quick start guide CAD drawing

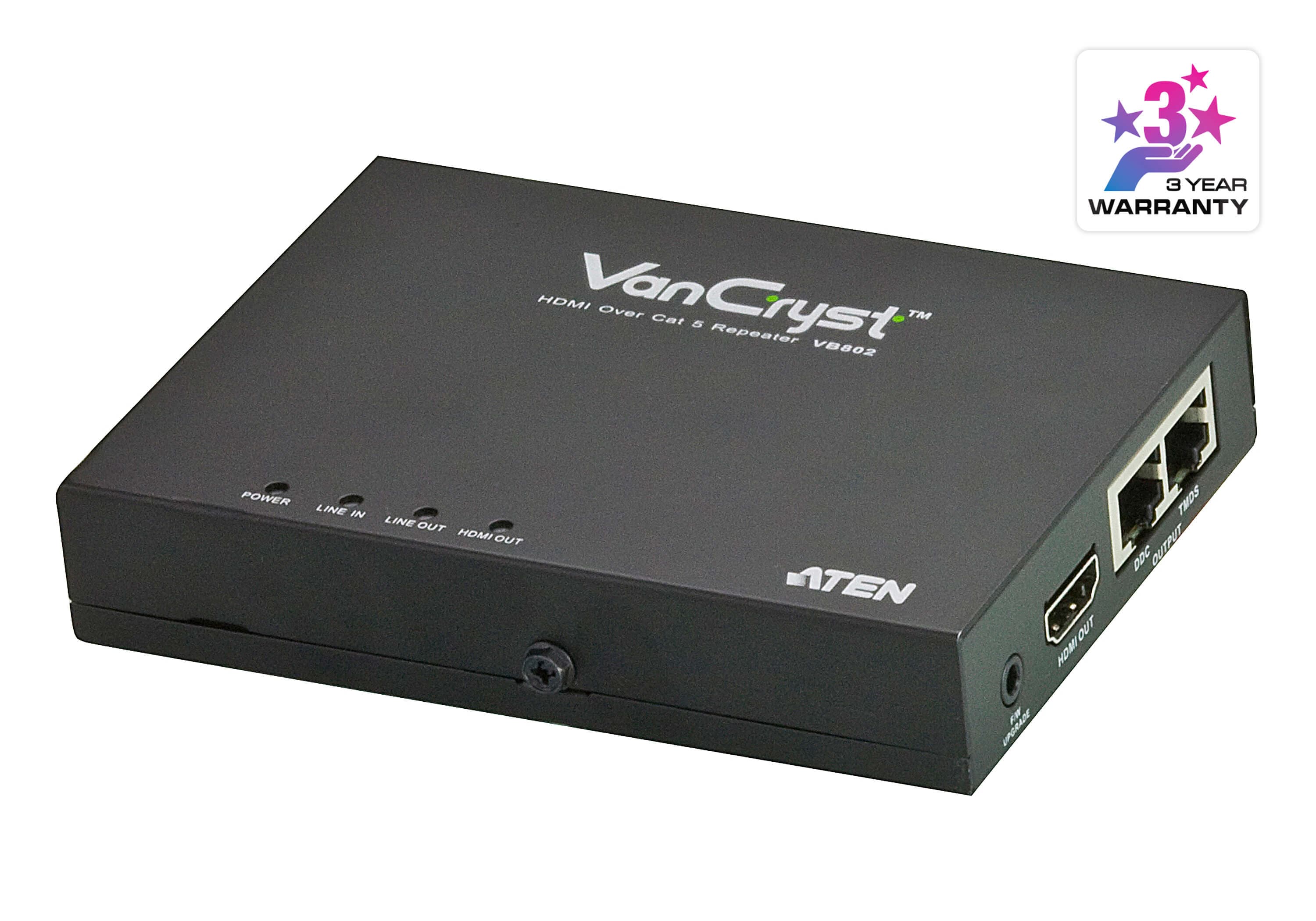

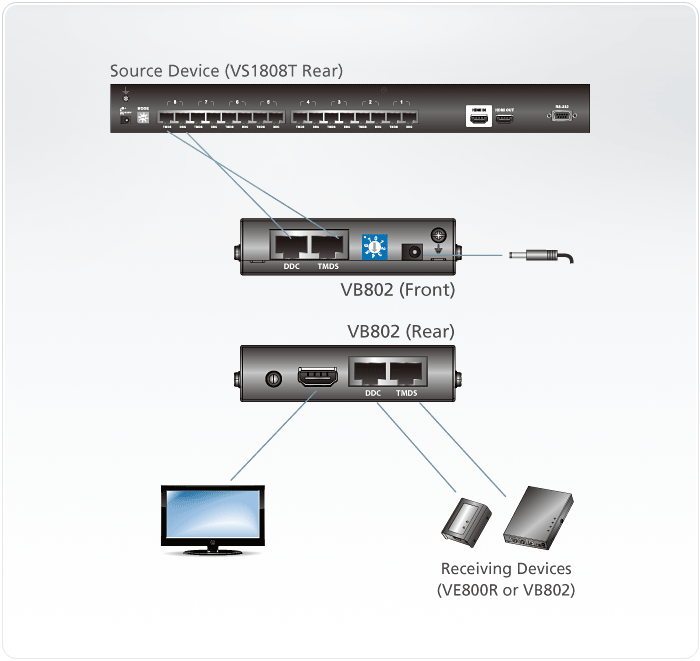

The VB802 HDMI Over Cat 5 Repeater is an HDMI signal extension device which is compatible with ATEN HDMI Over Cat 5 Splitters or Extender. The VB802 extends the transmission

Features

Uses two Cat 5e cables to extend HDMI signal
Long distance transmission – up to 60 m
Provides the quickest and most efficient way to move multimedia content from Transmitter to Receiver
Offers local HDMI output
HDMI and HDCP compatible
HDMI (3D)
Supports Dolby True HD and DTS HD Master Audio
8-level EQ adjustment to improve image quality
Cascadable to five levels*
Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080) * Signal quality depends on cables. We recommend STP Cat 5e/6 cables or ATEN low skew cable (Part No. 2L-2801)

Video Output

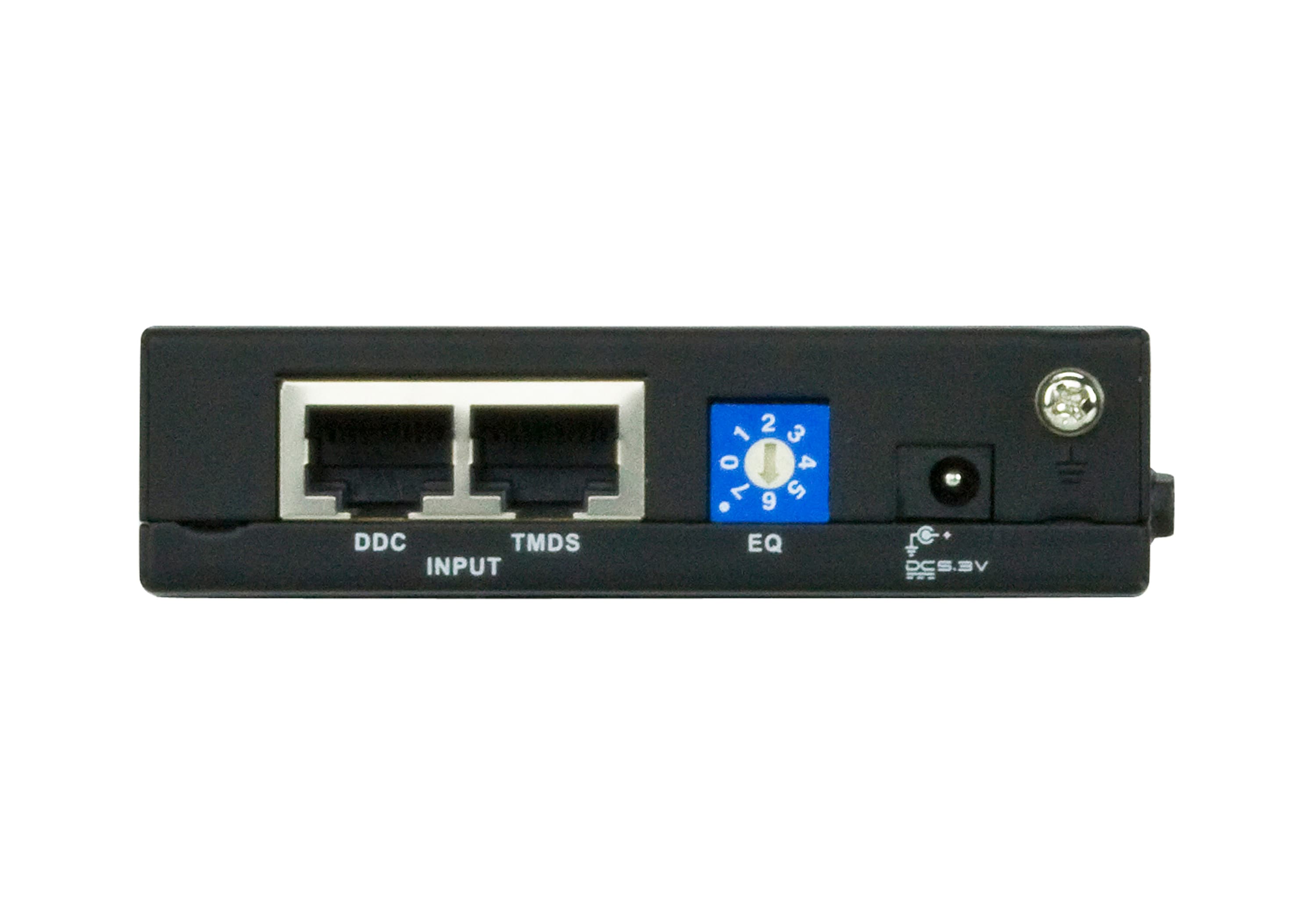

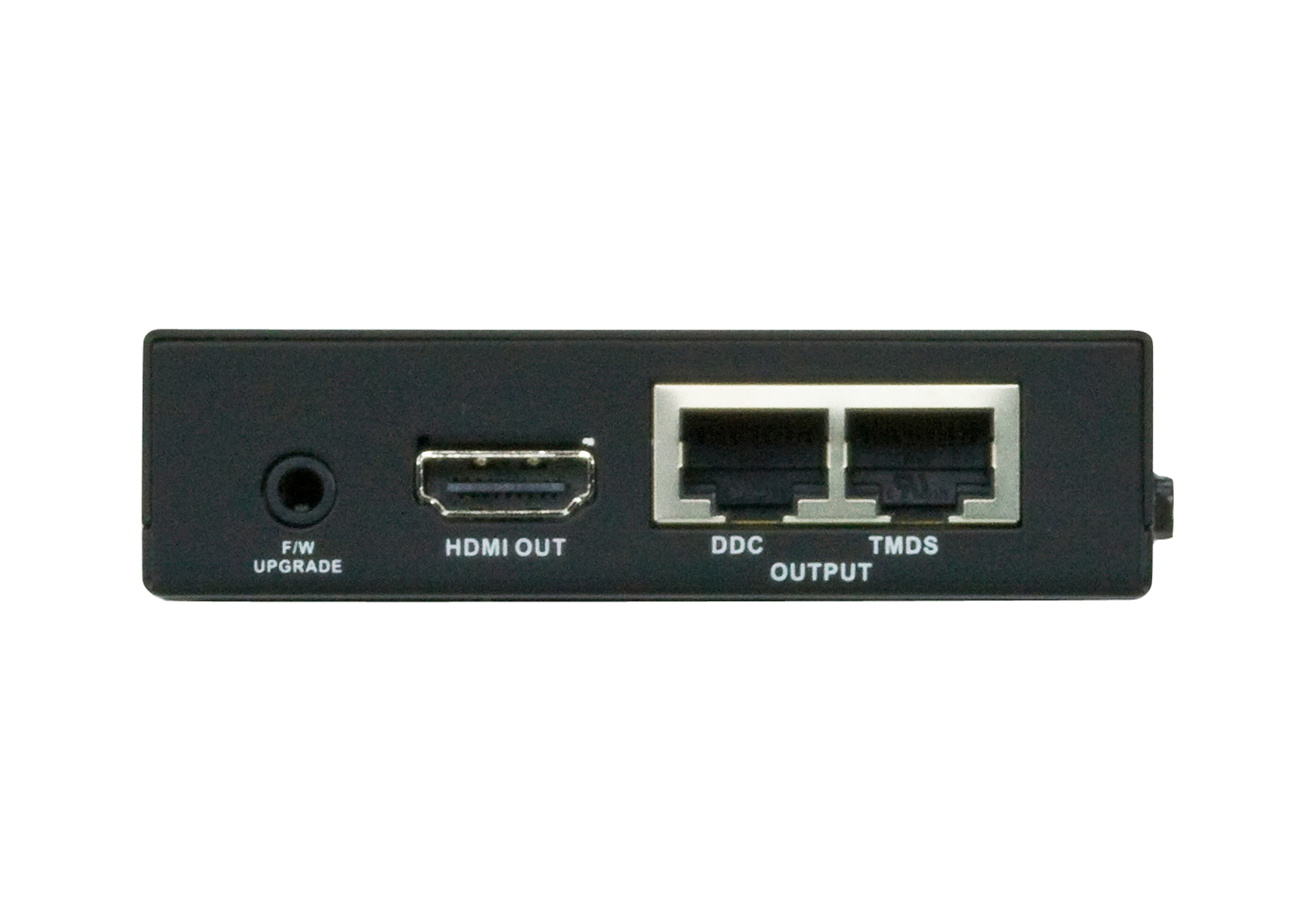

Interfaces: 1 x HDMI Type A Female (Black) 2 x RJ-45 Female
Impedance: 100 Ω

Video

Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
Max. Bandwidth: 225 MHz
Compliance: HDMI (3D, Deep Color) HDCP Compatible
Max. Resolutions / Distance: Up to 1080p@40m; 1080i@60m

Audio Outputs

Interfaces: 1 x HDMI Type A Female (Black)

Connectors

Power: 1 x DC Jack (Black)
Power Consumption: DC5V:12.28W:58BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 50°C
Storage Temperature: -20 - 60°C
Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Metal
Weight: 0.25 kg ( 0.55 lb )
Dimensions (L x W x H): 12.30 x 9.04 x 2.26 cm (4.84 x 3.56 x 0.89 in.)
Carton Lot: 20 pcs
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
