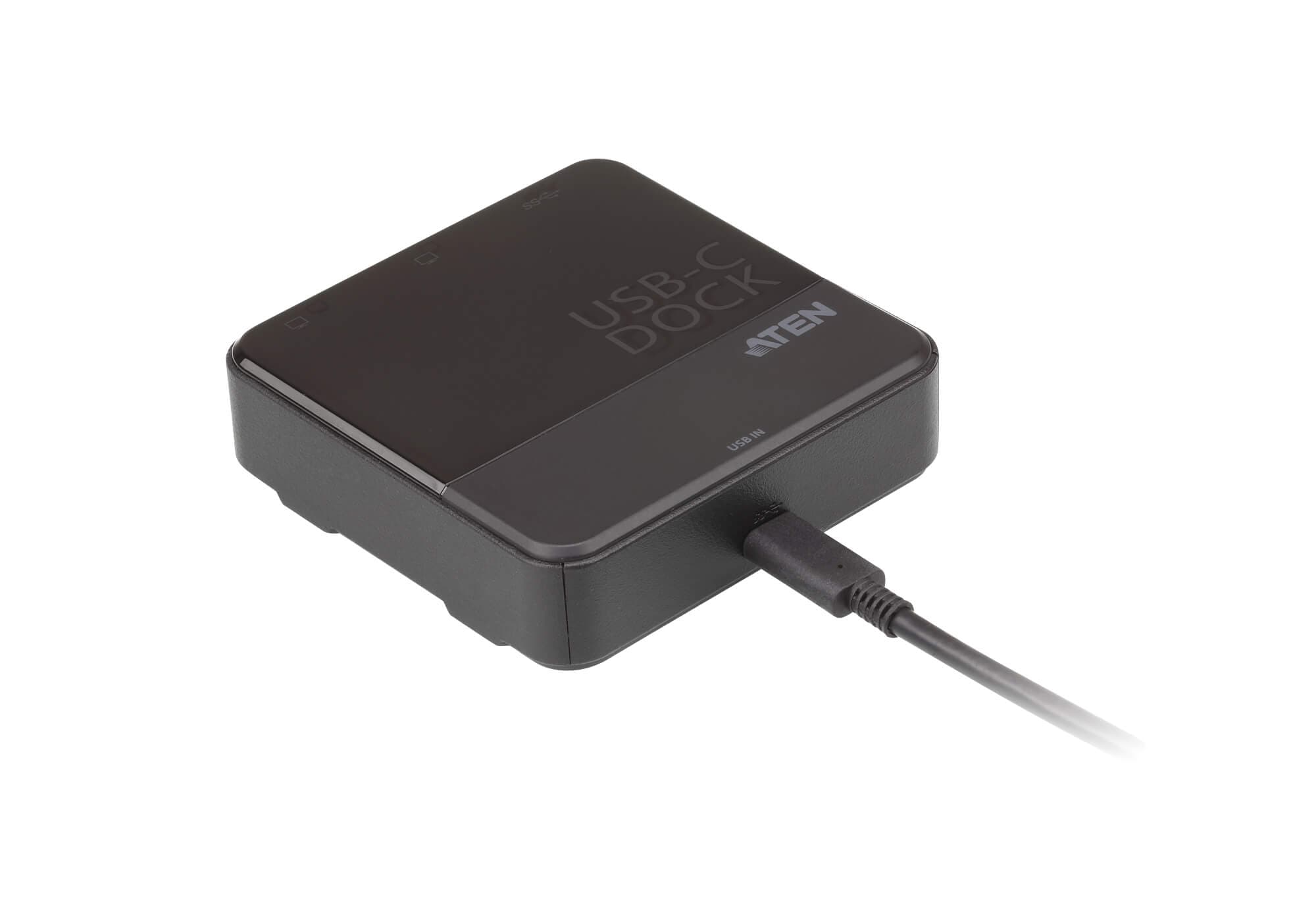

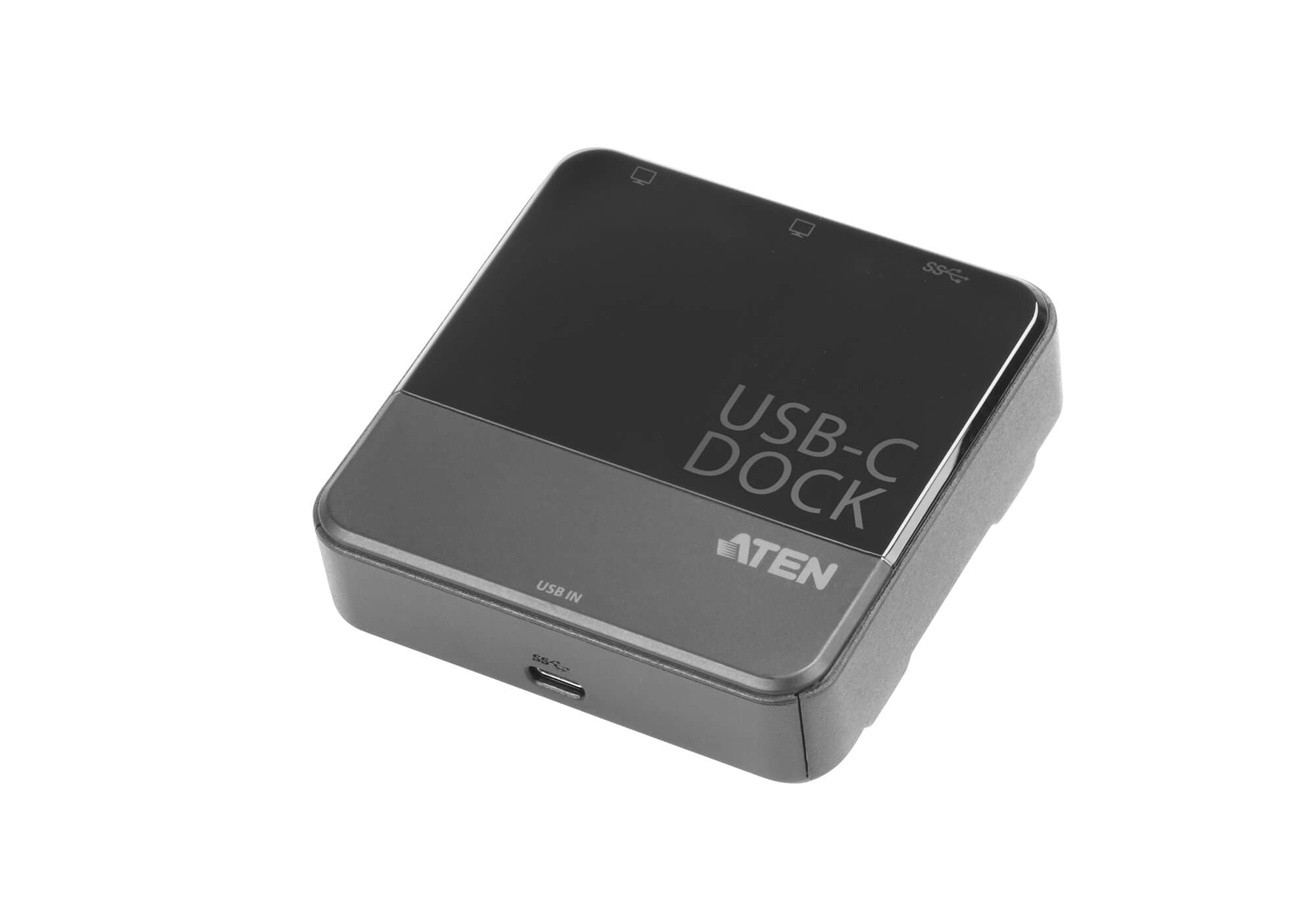

Mini USB-C dock driving two HDMI monitors, with 4K output on a single display or 1920 x 1080 on both simultaneously, plus a USB 3.2 Gen 1 Type-A port.
Features
- USB 3.2 Gen1 compliant

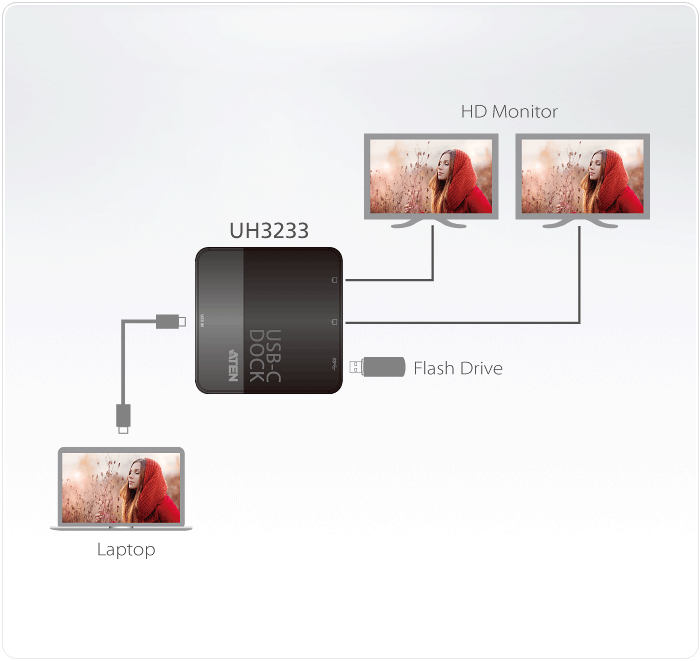

- Connects a computer to two HDMI monitors with Dual-View output
- Supports 4K (UHD) resolutions via single display output*
- Supports dual-display video output up to 1920 x 1080 simultaneously**
- USB 3.2 Gen1 port with data transfer rates up to 5 Gbps
- Plug and Play – no drivers or external power adapter needed
- Works with all major operating systems: Windows®, OS X®, Android and iPad Pro * With Intel 7th- Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode. ** For Dual-View to work, a computers graphics card must support MST technology. Mac computers, Android and iPad Pro only support a single-view output.
Specifications
- Computer Connections
- 1
Connectors

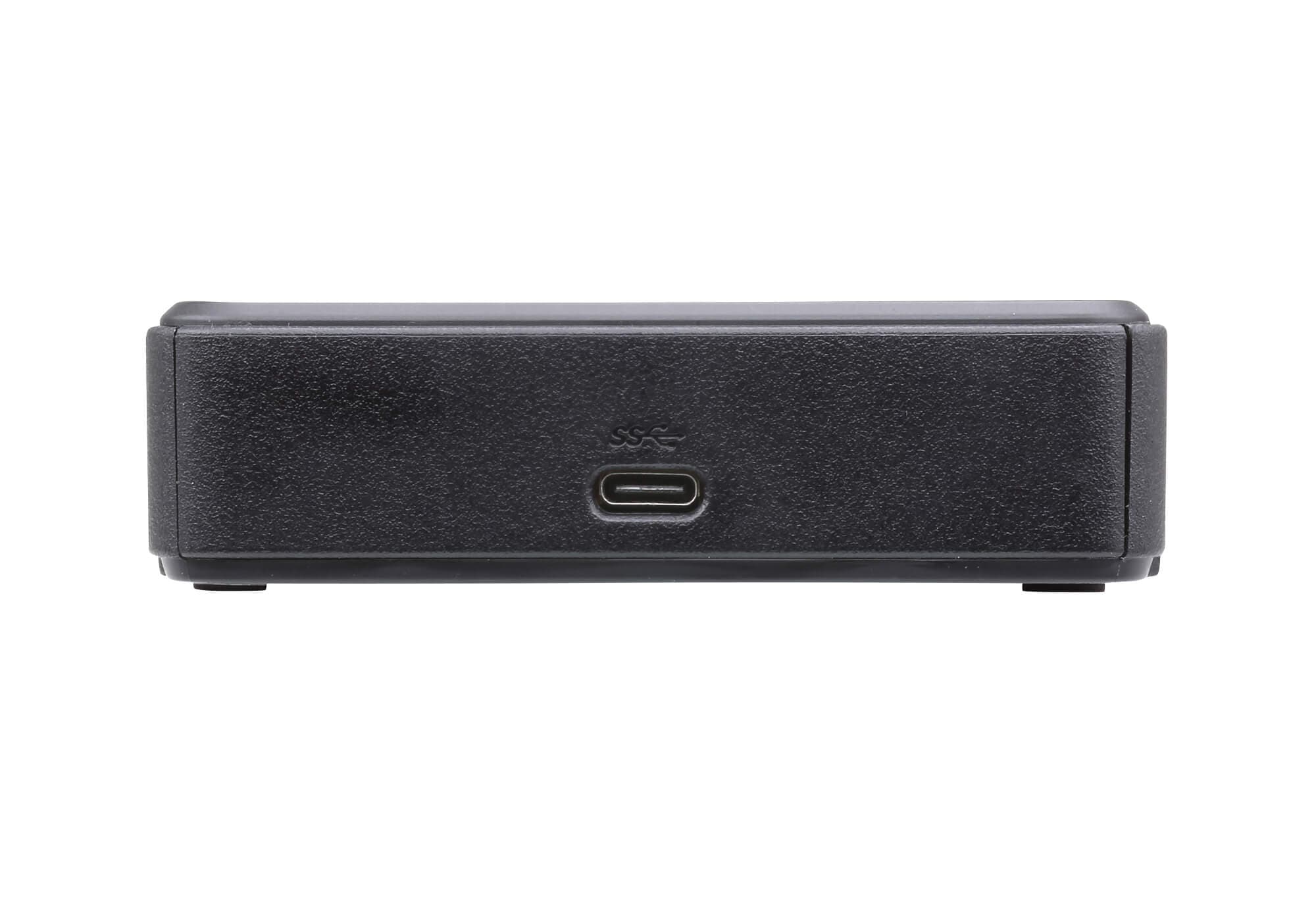

- Computer
- 1 x USB-C Female (Black)

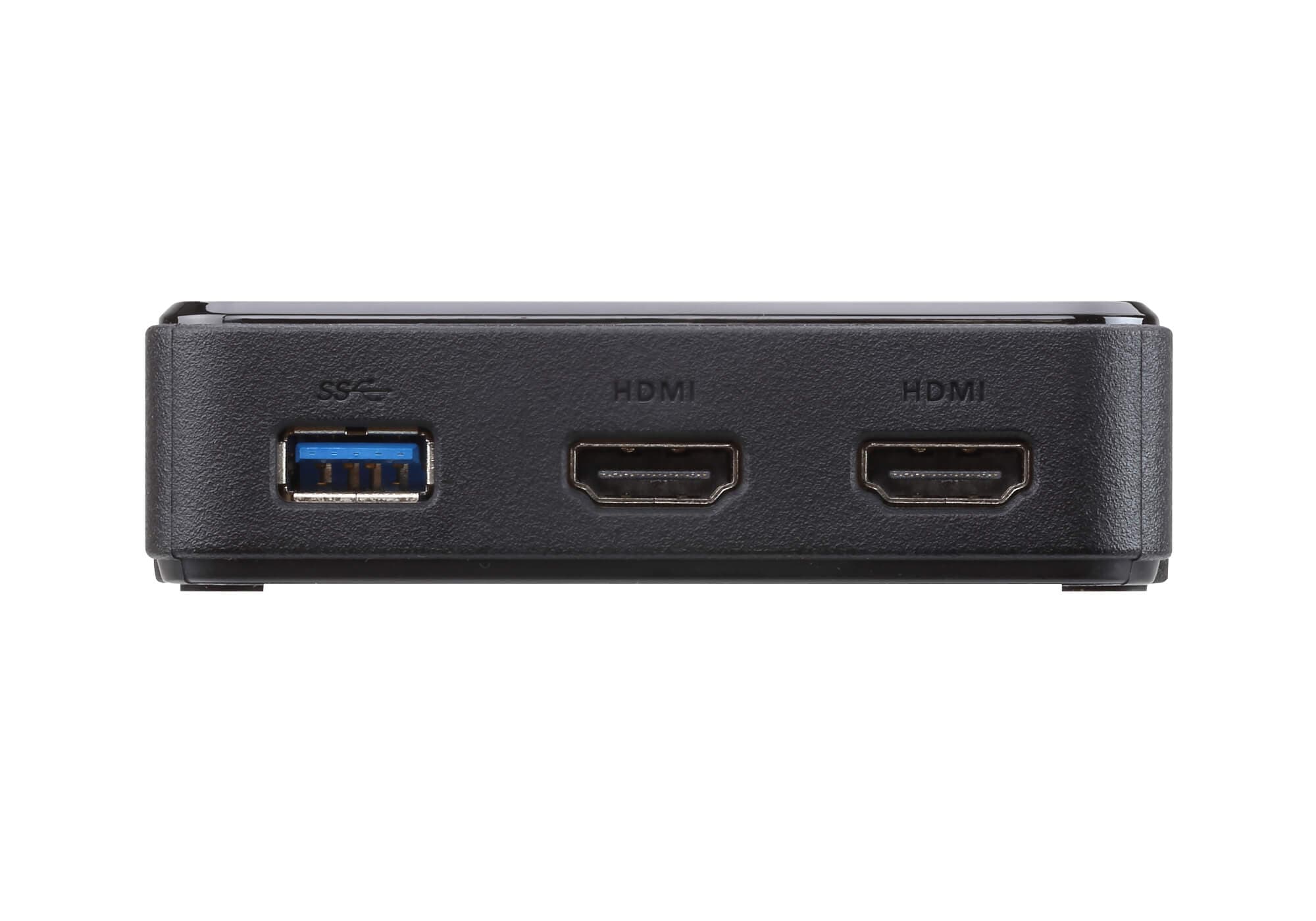

- Device
- 1 x USB 3.2 Gen1 Type-A Female (Blue)
- Video Output
- 2 x HDMI Female (Black)
LEDs
- Power
- 1 (Blue/Orange)
- Video Resolution
- Single-View: HDMI - 3840*2160@30* Dual-View: HDMI - 1920*1080@60** * With Intel 7th-Generation Core Processor (Kaby Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html For video output to work through a USB-C port, device with DP Alt Mode support is required. **For Dual-View to work, a computers graphics card must support MST technology. Mac computers only support single-view output.
- Power Consumption
- DC5V:2W:29BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Package Contents
- 1 x 1m USB-C Cable
Environmental
- Operating Temperature
- 0–40°C
- Storage Temperature
- -20–60°C
- Humidity
- 0–80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.10 kg ( 0.22 lb )
- Dimensions (L x W x H)
- 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
